Industry-specific attributes
| Brand Name | QIN/RUBY/OEM |
Other attributes
| Place of Origin | Guangdong, China |
| Model Number | QT-DM10PSN/SA/CA |
| Brand | QIN/RUBY/OEM |

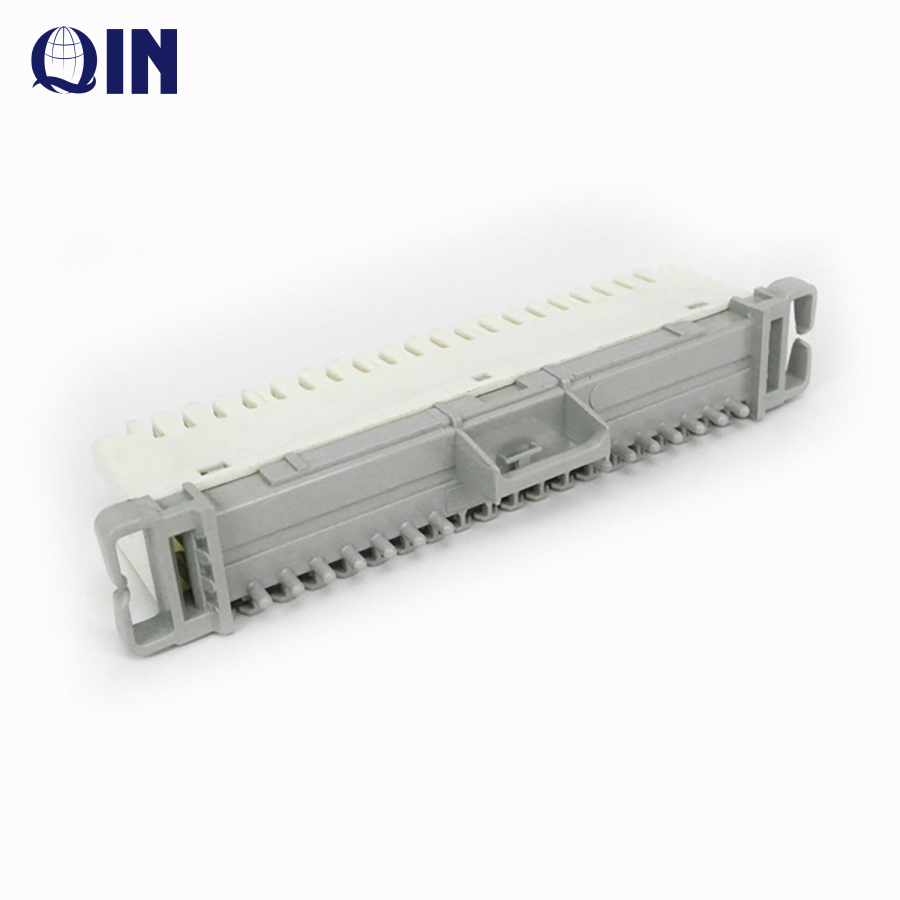

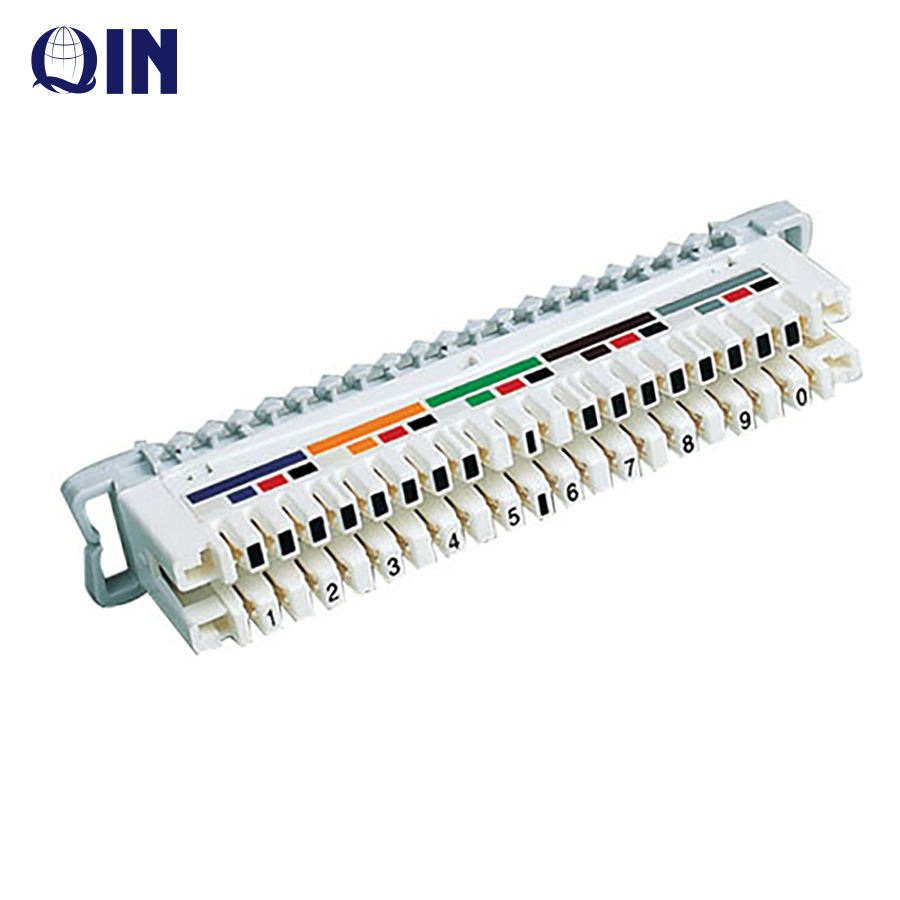

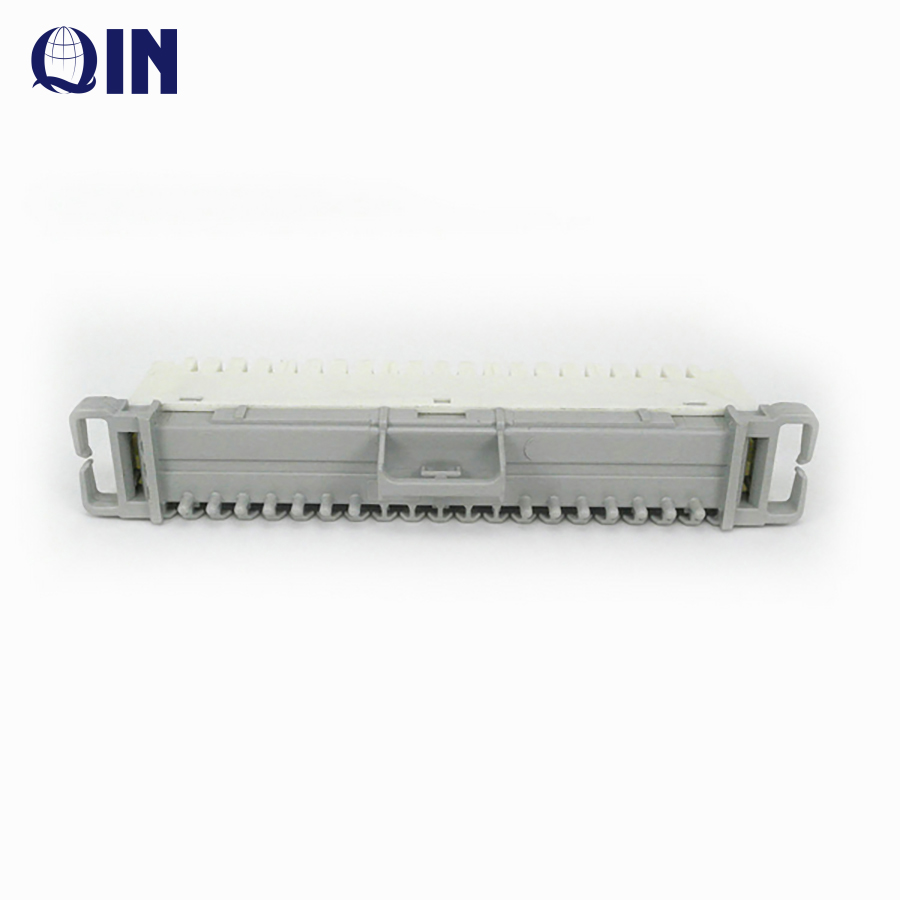

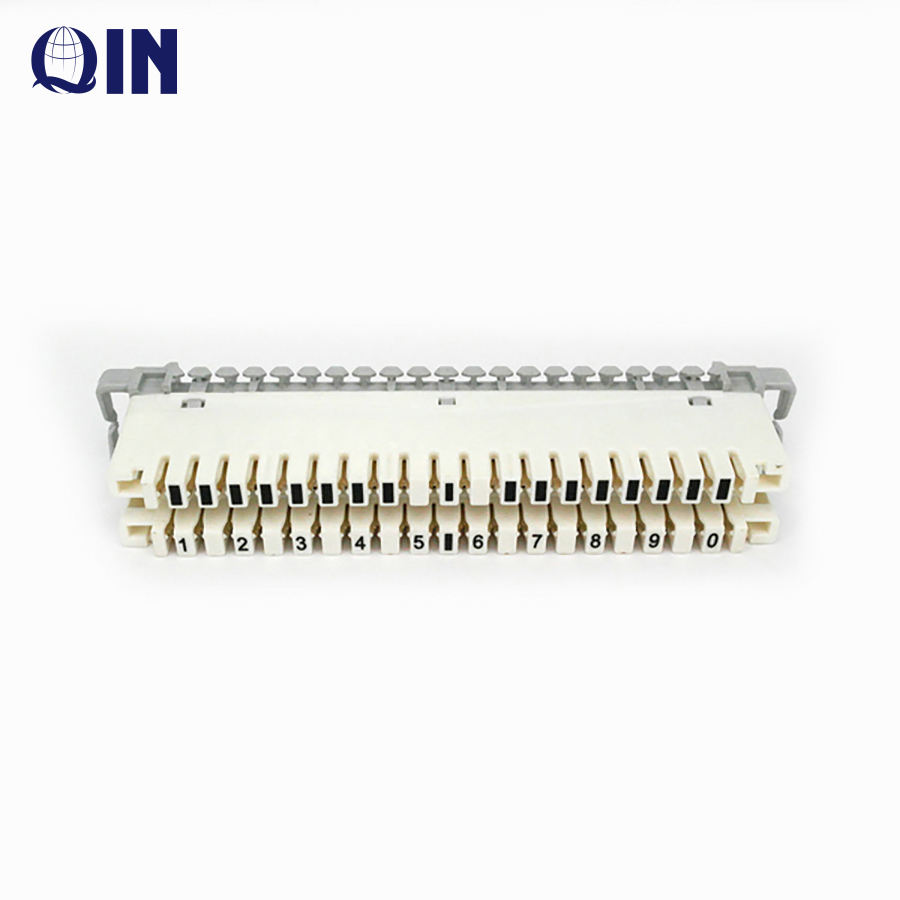

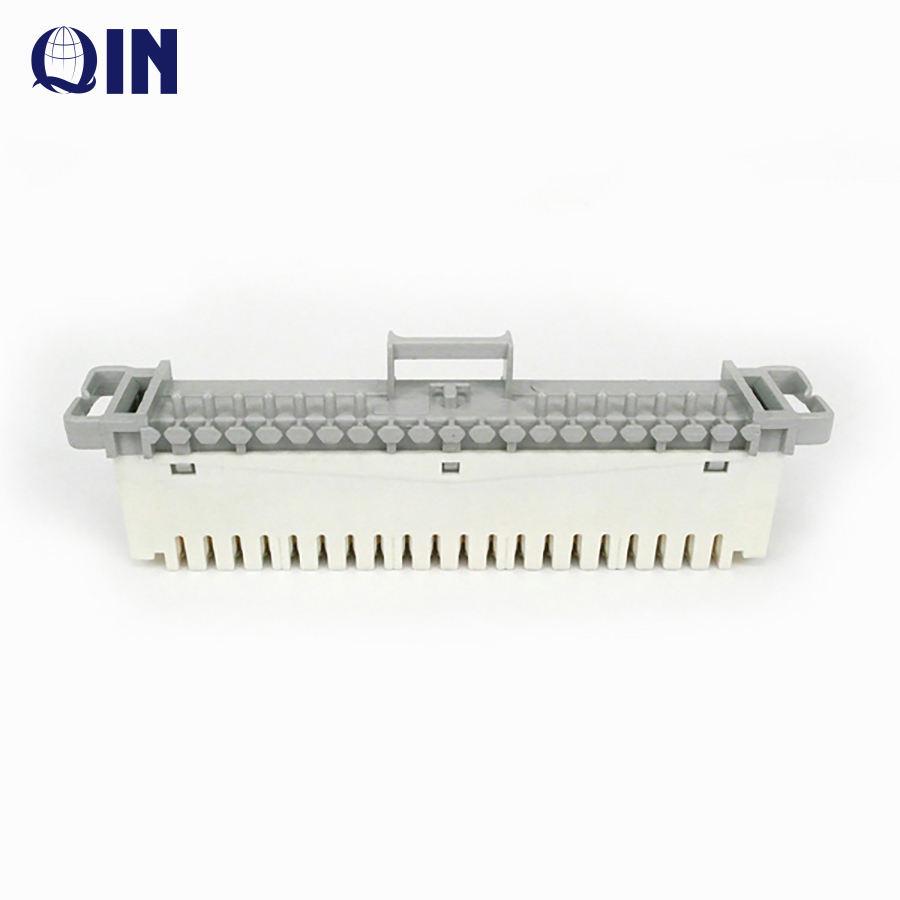

| Name | krone disconnection module |
| Certificate | ROHS |
| Application | Structure Cabling System |
| Plastic Material | ABS or PBT (94V0) |
| Contact Material | Phosphor bronze or Brass |
| Contact plating | Silver plating with 3u" to 100u" |
| Transmission Performance | TIA 568B CATEGORY 5 MAX |
| Insertion Time | 750 Max |
| Wire Gauge | 22AWG-26AWG |
Features
1.disconnection Module
2.14 years factory,25 years quality assurance
3.3~30 days dliver
4.UL,3P,ETL,UKAS,ISO 9001
| Storage Temperature | -40° ~ +90°C |
| Operating Temperature | -40° ~ +70°C |
| Appearance | Uniform color, W/O crusting and cracks |
| Labels | Clear and complete |
| Insulation Resistance | 105mΩ Mininum |
| Dielectric Strength | 2000V Mininum |
| Wire Contact Resistance | 3 mΩ Mininum |
| Bridge Contact Resistance | 7mΩ Mininum |
| Conductor Diameter | 0.4mm-0.7mm |
| Insulation Diameter | 0.7mm-1.40mm |
| Plastic Housing Material | ABS or PBT |
| Flame Retardant | UL 94V-0 |
| Contact Material | Phosphor Bronze |
