Industry-specific attributes
| Brand Name | QIN/RUBY/OEM |
Other attributes
| Place of Origin | Guangdong, China |
| Model Number | Keystone jack |
| Color | As the customers' requirement |
| Type | RJ45 |
| Application | Structure Cabling System |
| Solid wire | 22-26AWG |
| Category | cat6 |
| Housing | PC 94V-0 |
Features
Electrical:
•According to UL 1863
•Current rating: 1.5 A Max.
•Voltage rating: 150 Volts
•Contact resistance: 20 m-ohm
•Insulation Resistance: 500M-ohm
•Dielectric Withstand Voltage: 1000 V AC RMS, 60Hz 1min
Technique Characteristics:
•Housing and other plastic parts' material: PC UL94V-0
•8 pin of the RJ45 jack: Phosphor bronze with golden plated
•Inserting duration: 750 times.
•IDC Clips: Tinned phosphor bronze pins. Fitting for
•22AWG/23AWG/24AWG cables. Punching duration: 250 times.
•Punching tool: Standard 110 punching tool.
•Testing condition of transmitting capability: 250MHz

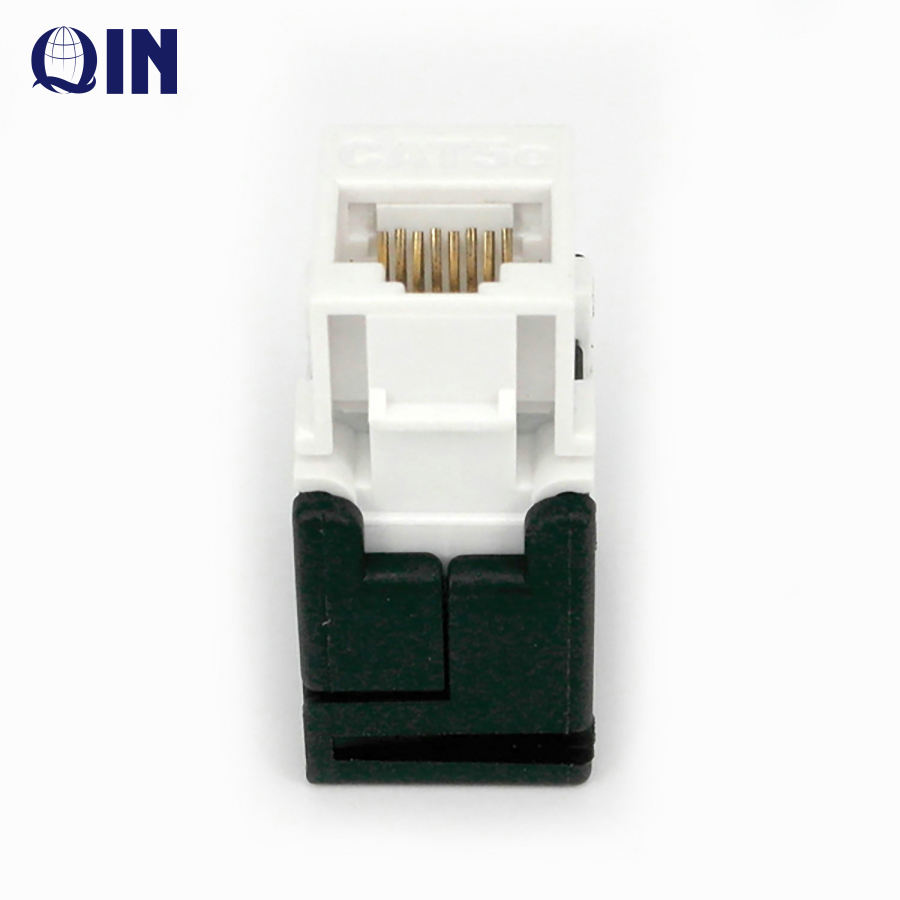

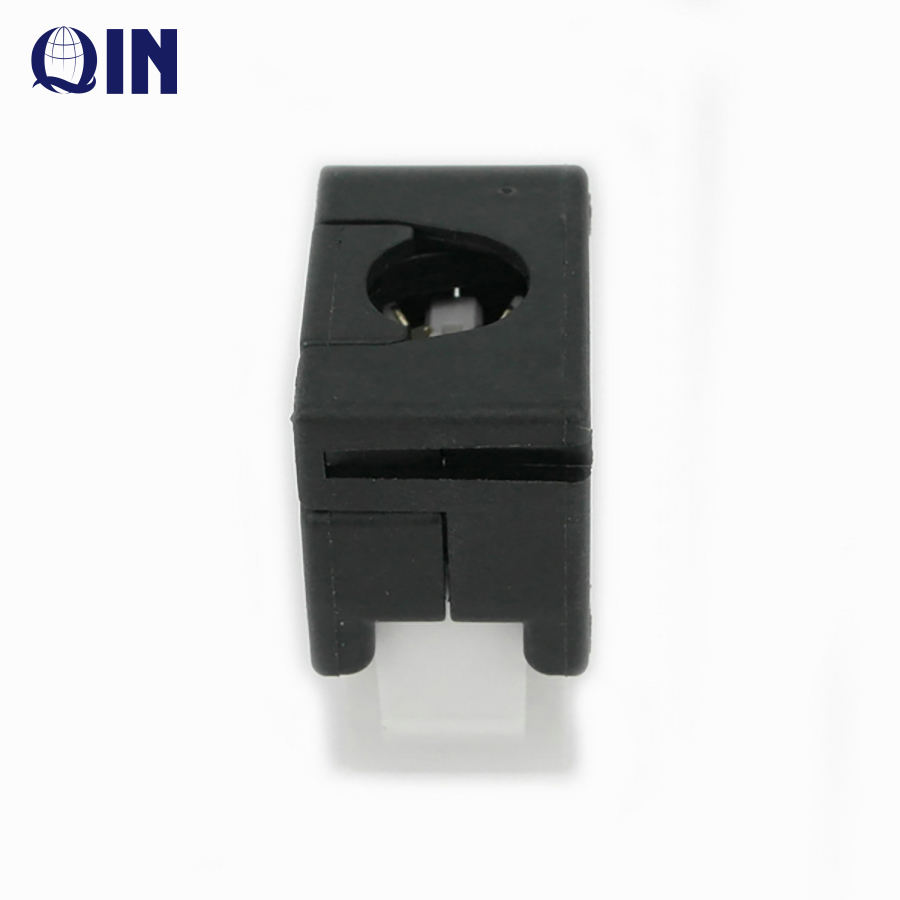

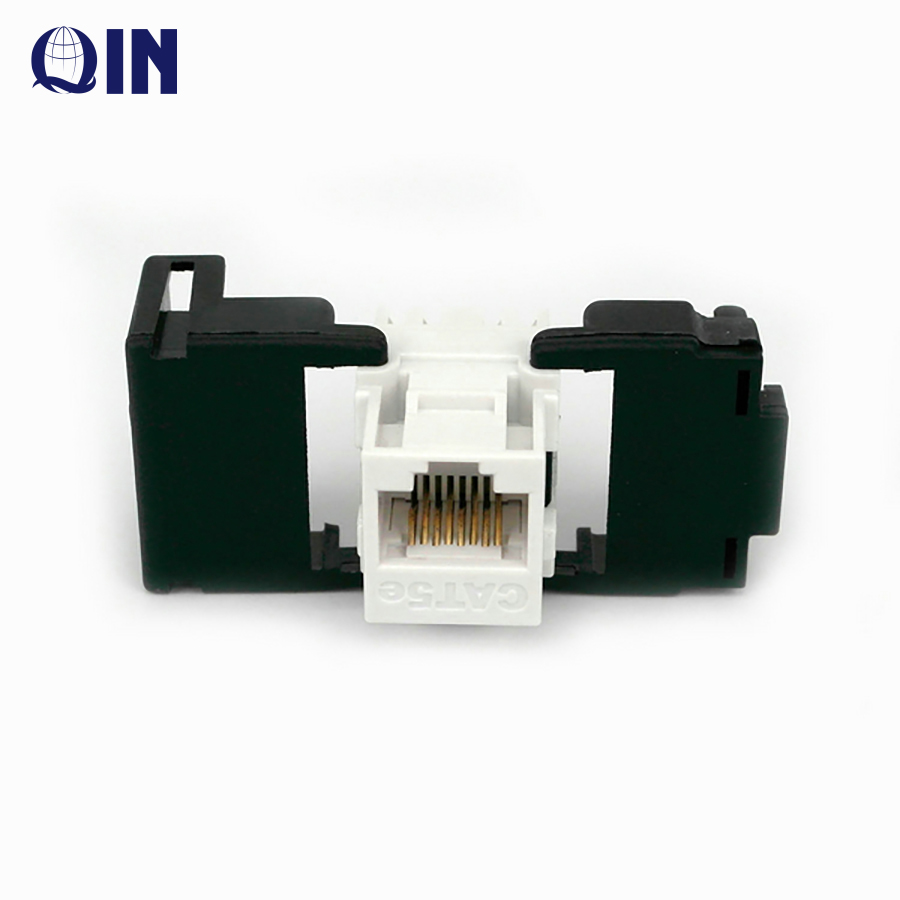

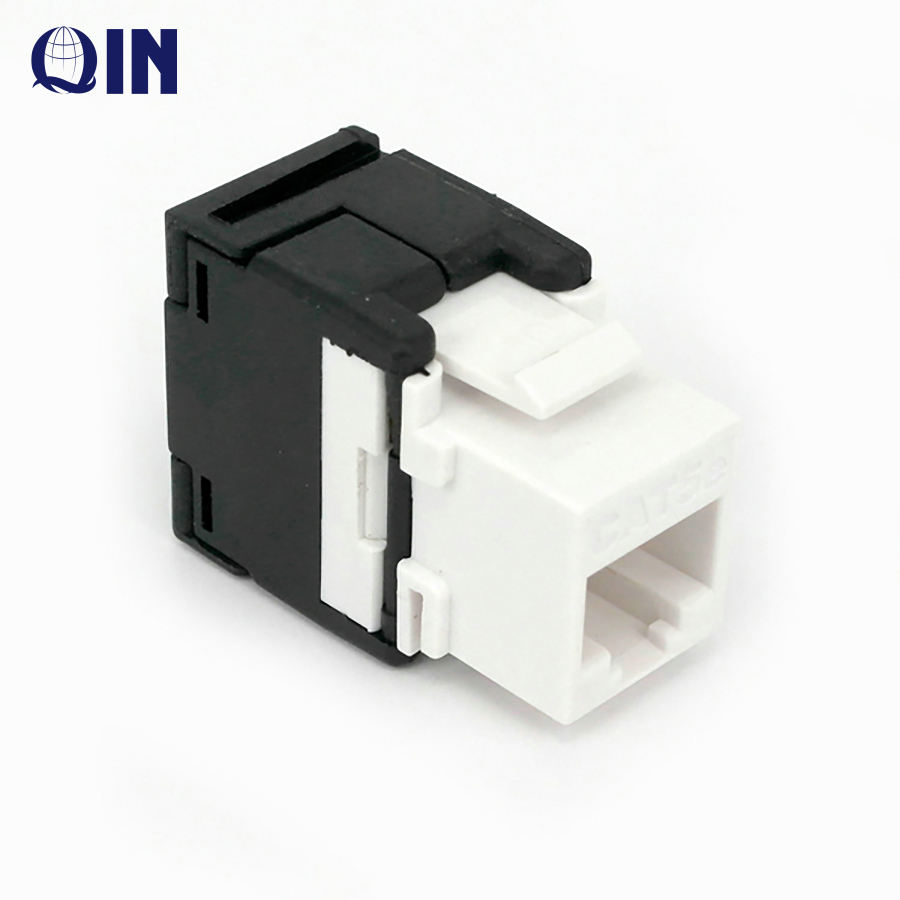

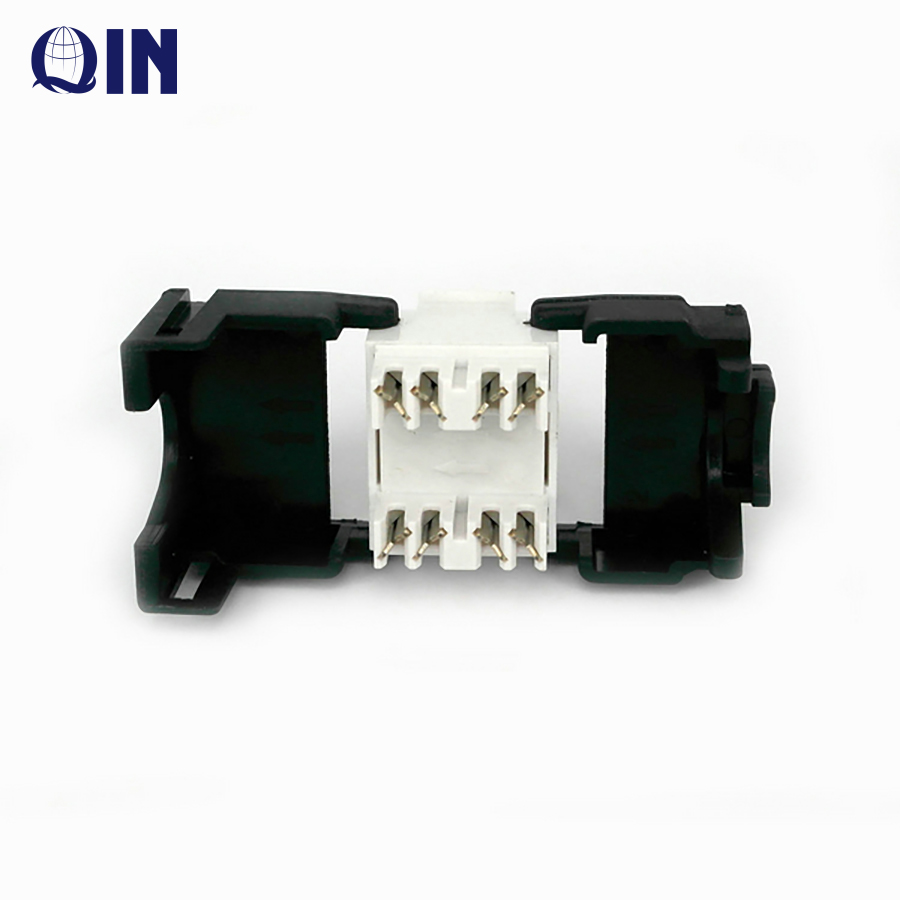

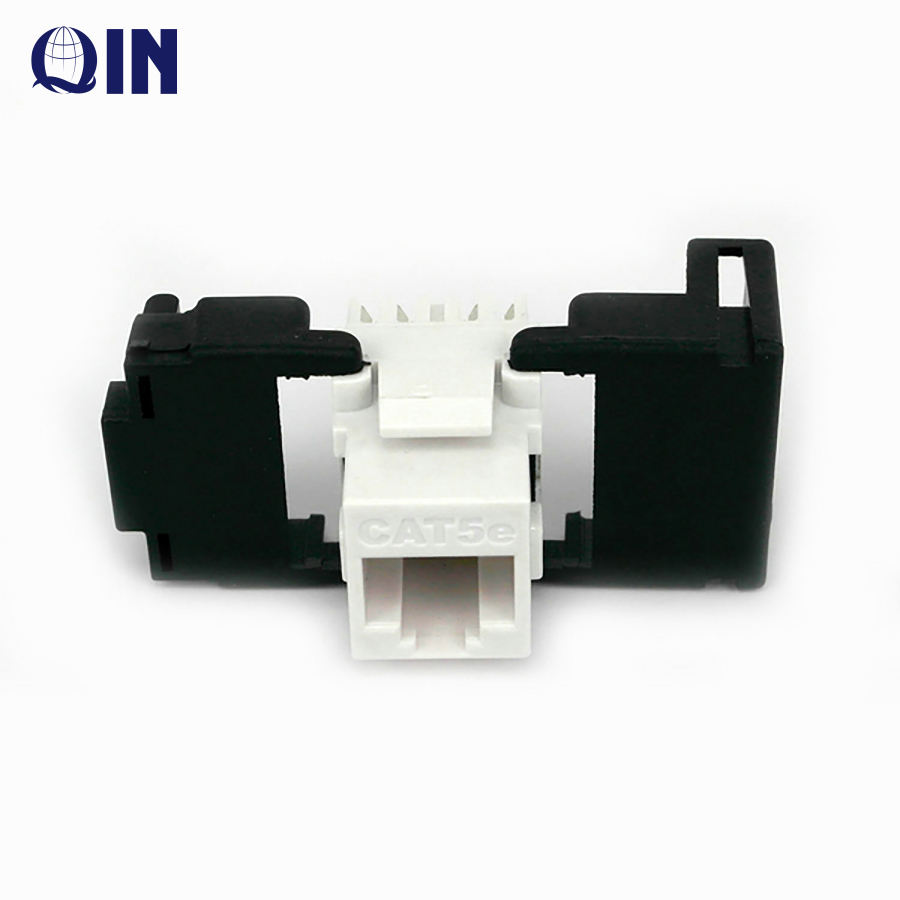

| Item | RJ45 Keystone Jack |
| Material | PC+Phosphor Bronze+Circuit Board |
| IDC Accept | 22-26AWG Solid Wire |
| Angle | 180 Degree |
| Type | Unshielded |
| Insertion Life | ≥1000 Mating Cycles |
| Gold Plating | Phosphor Bronze with Gold Plating 3U" to 50U" |
