Cat6 RJ45 8P8C Unshielded UTP Punch down Keystone Jack Module 90 Degrees Purple Jack 12pcs/Pack
Industry-specific attributes
| Brand Name | Clipsal |
Other attributes
| Type | KEYSTONE JACK |
| Model Number | CAT6 |
| Place of Origin | Guangdong, China |
| Color | Purple |
| Type | UTP |
| Package | 12PCS/BAG |
| Material | ABS |
| Pin | 8P8C |

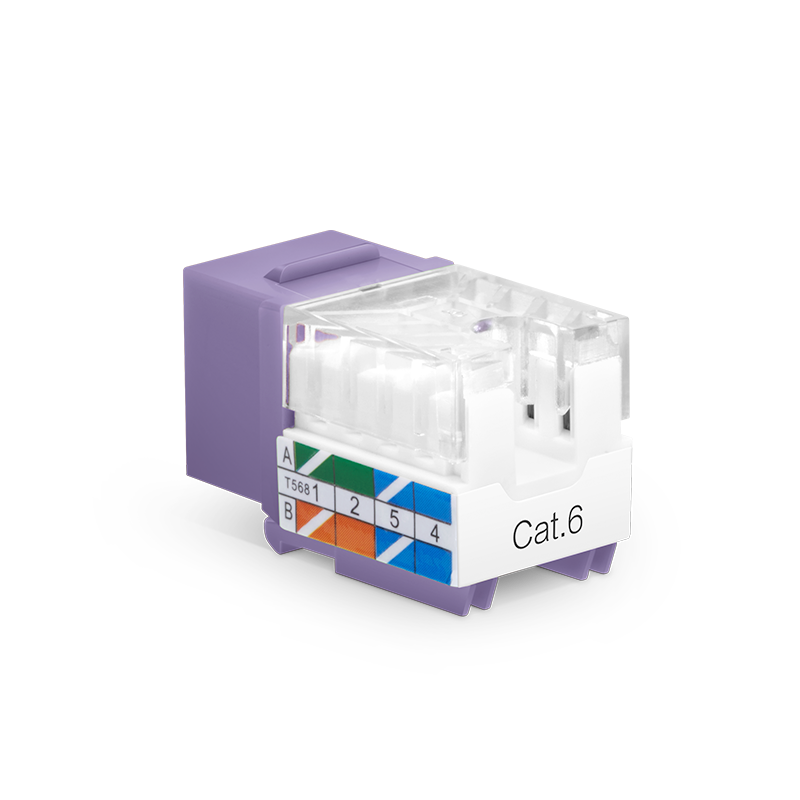

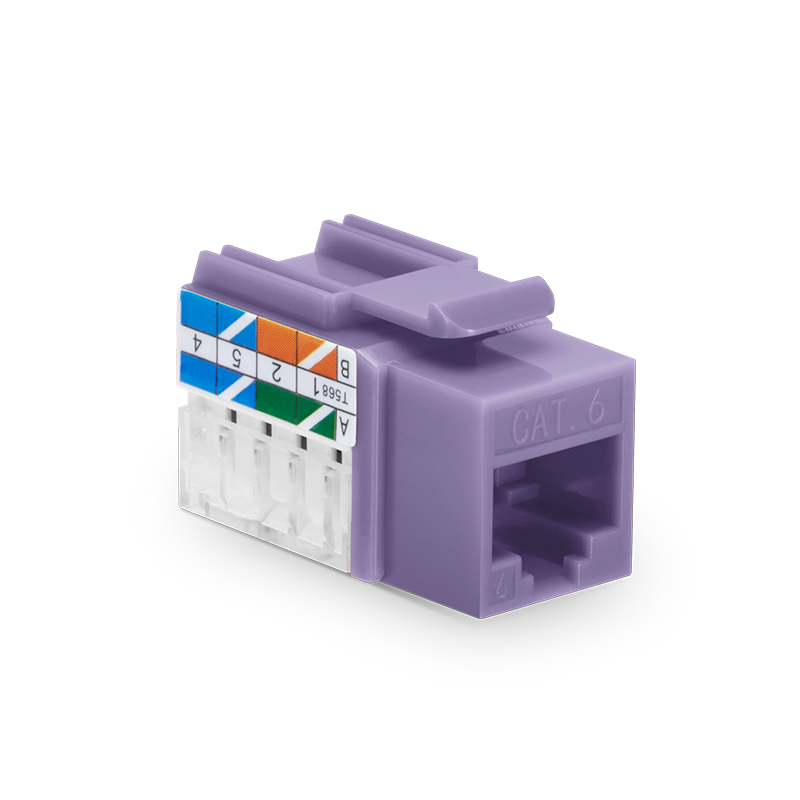

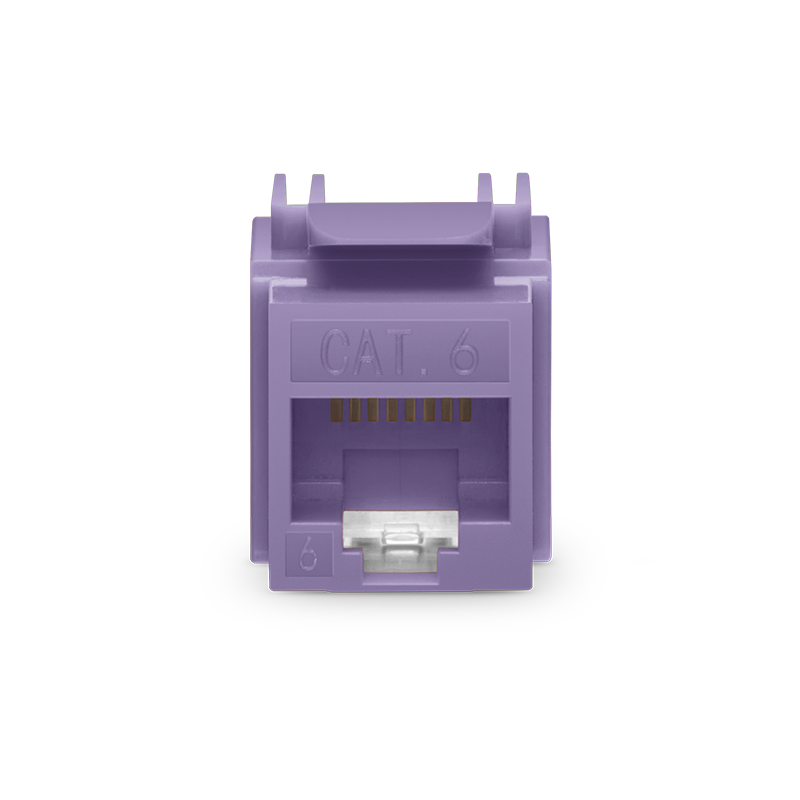

Cat6 RJ45 (8P8C) Unshielded Punch Down Keystone Jack Module

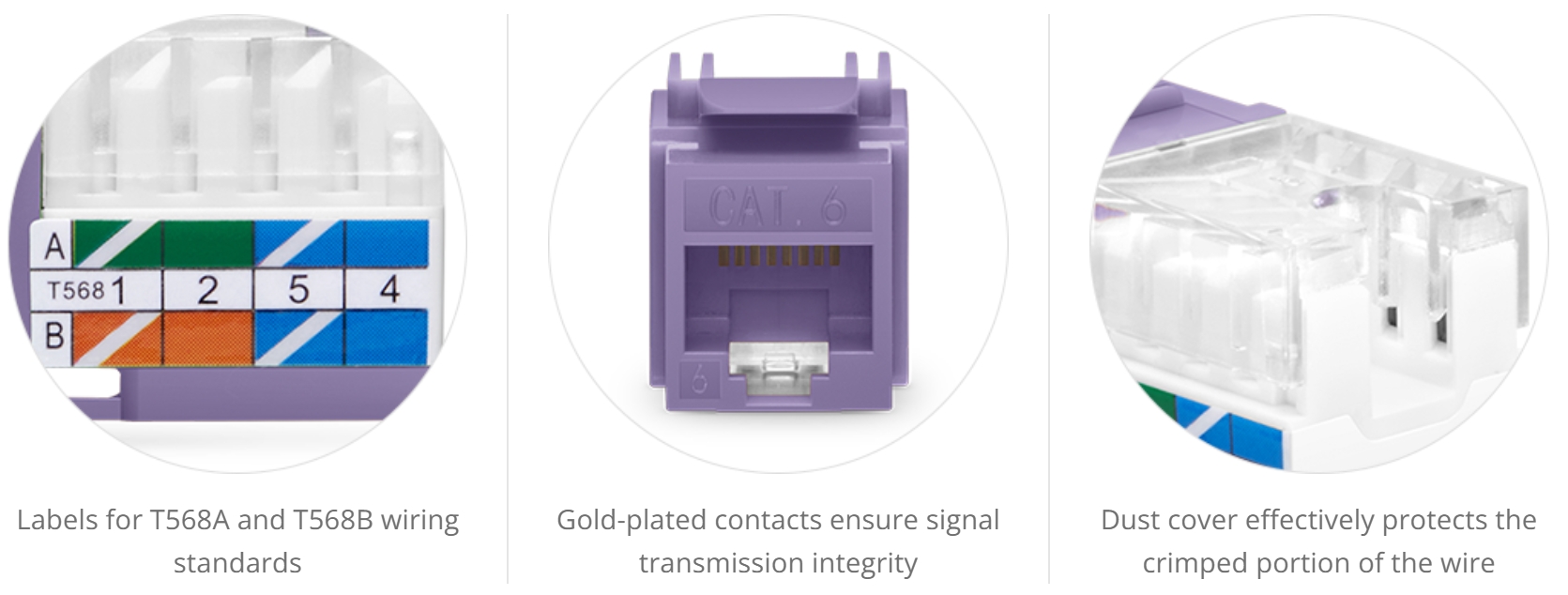

The connector provides network connections for Cat 6 UTP structured cabling systems and supports high megabit applications and meets channel-rated performance according to TIA Cat 6 standards. It also features dual-color-coded labeling made for both 568A and 568B (258A) wiring schemes. Mountable either at 90 degrees (straight) or 45 degrees (angled) in RJ45 wallplate or faceplate.
| roduct Type | Cat6 Keystone Jack | Connector | RJ45 Female |
| Termination Type | Punch Down | Conductor Material | Phosphor Bronze with Nickel Plated |
| Shielding Type | Unshielded | Data Rate Support | 1GBASE-T |
| Wiring Scheme | T568A/T568BWire | Gauge Supported | 22-26AWG Cable |
| Dimensions (HxW) | 0.65''x0.57'' (16.7x14.6mm) | Operating Tem | -20°C to 68°C (-4°F to 154.4°F) |

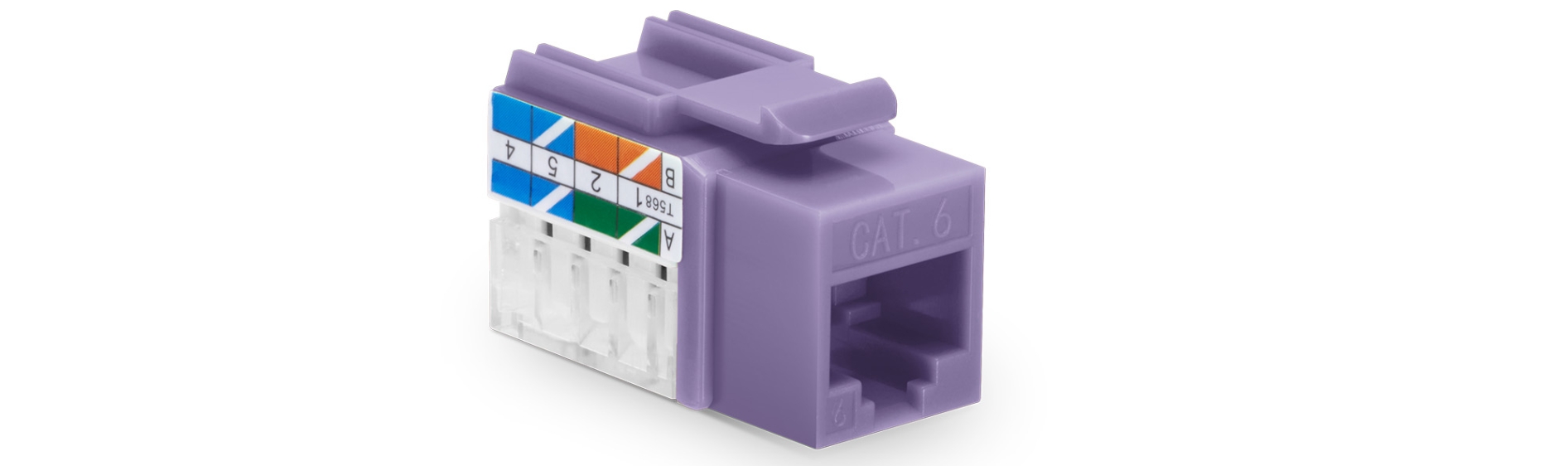

90 Degree Punch-Down Structure Design
Convenient for cable routing and alignment after punching down.

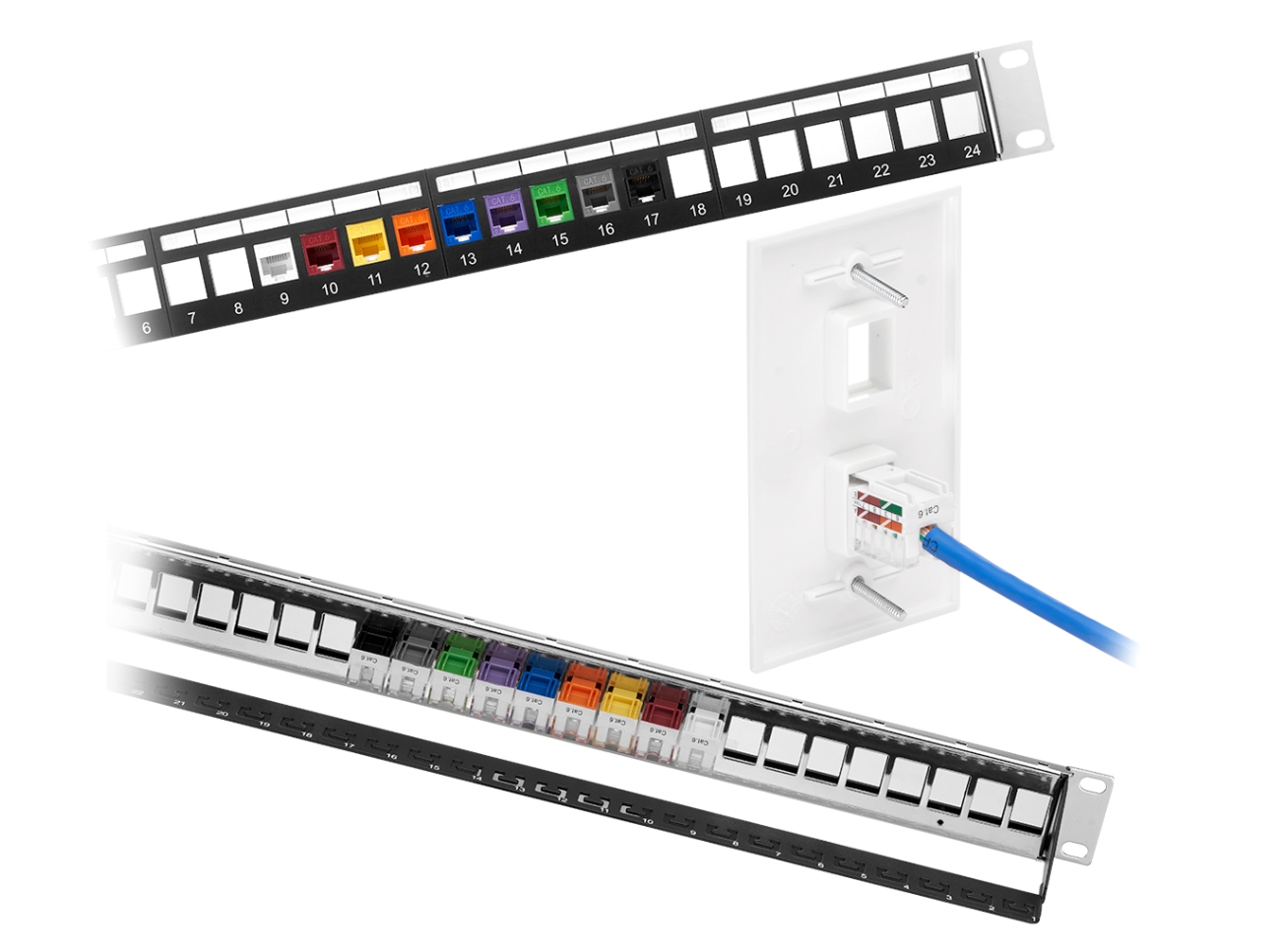

Compatible RJ45 Keystone Interface Devices
Compatible with keystone jack patch panels and keystone jack wall plates.
How to Punch Down Keystone
