Industry-specific attributes
| Type | RJ45 |
| Application | Network cabling |
| Gender | Female |
Other attributes
| Place of Origin | Guangdong, China |
| Brand Name | QIN |
| Model Number | Comscop |

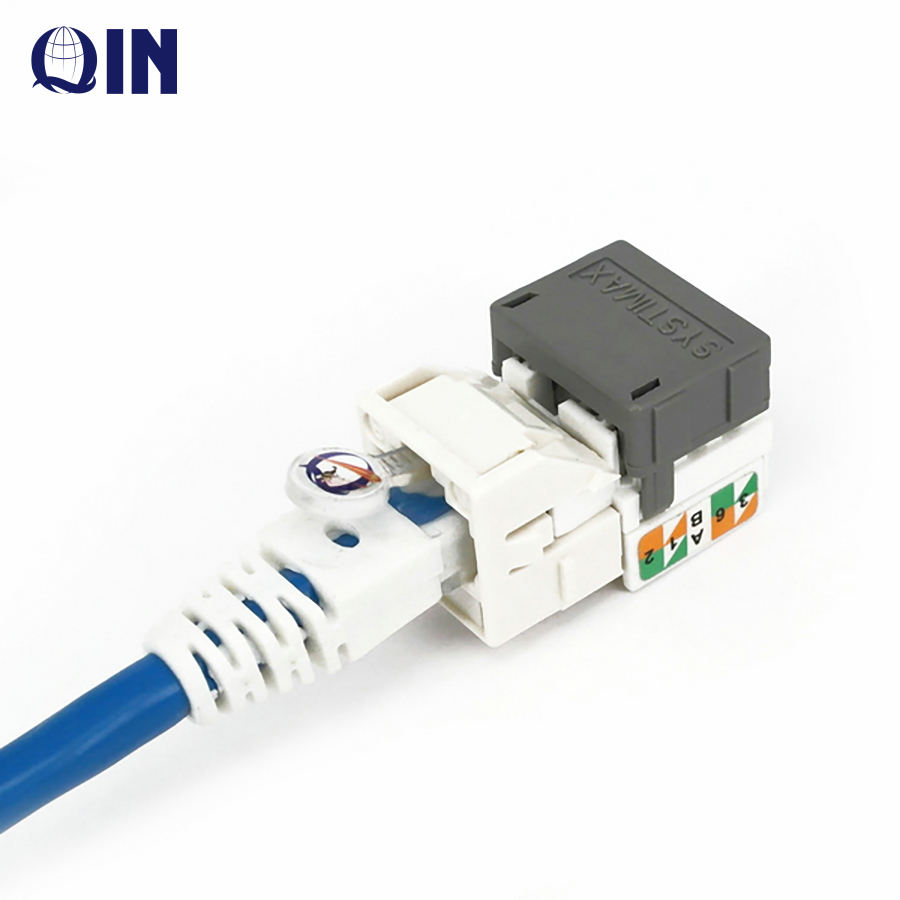

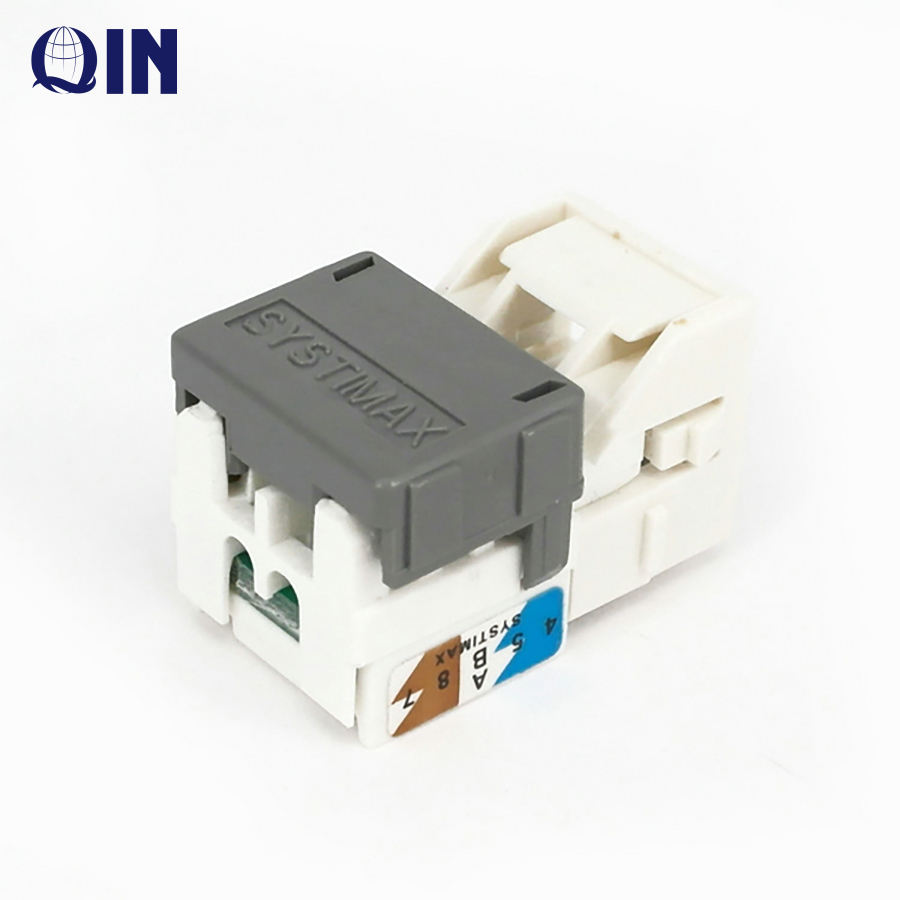

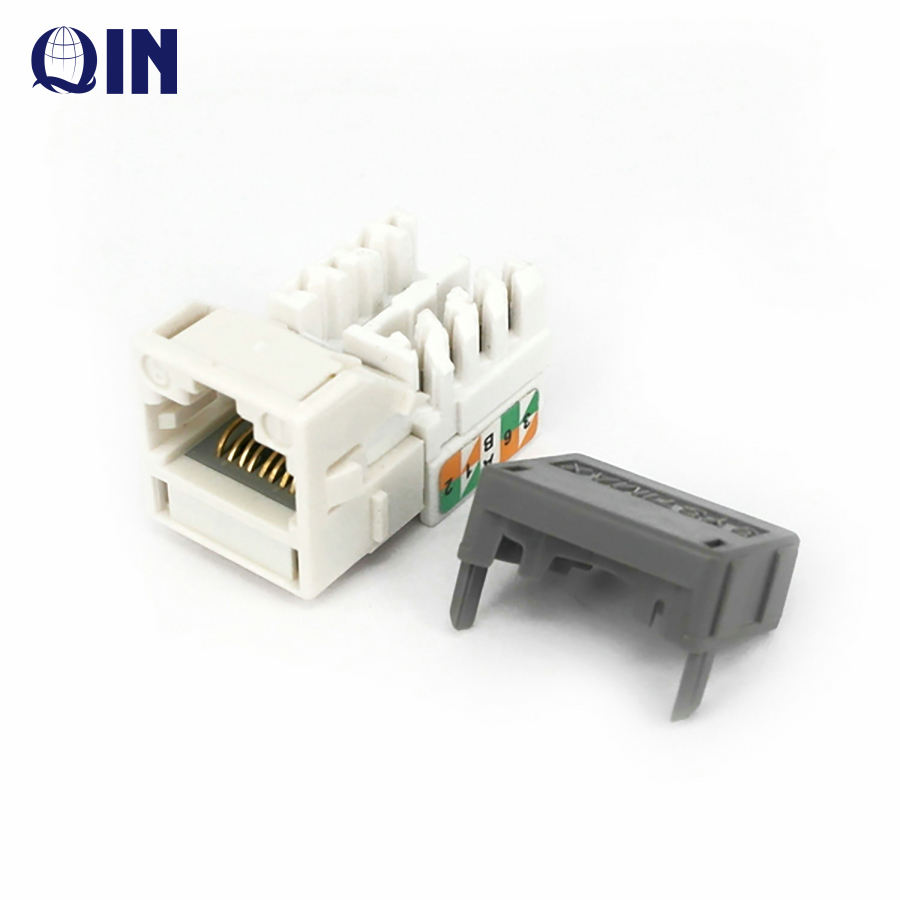

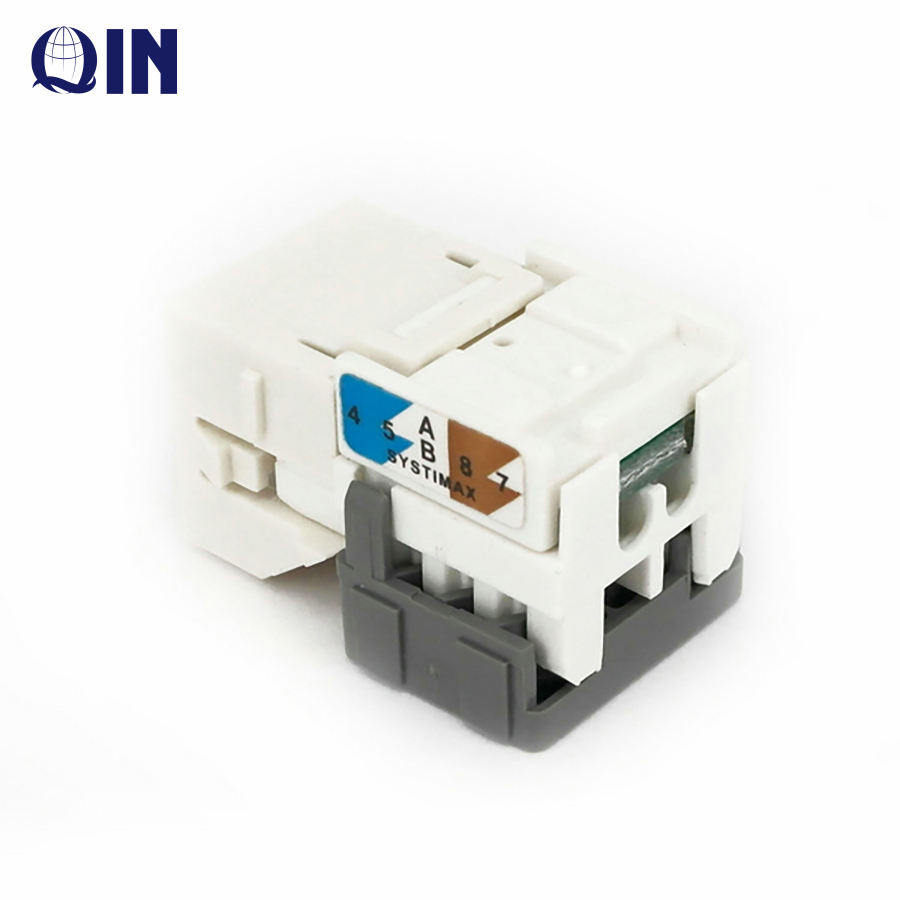

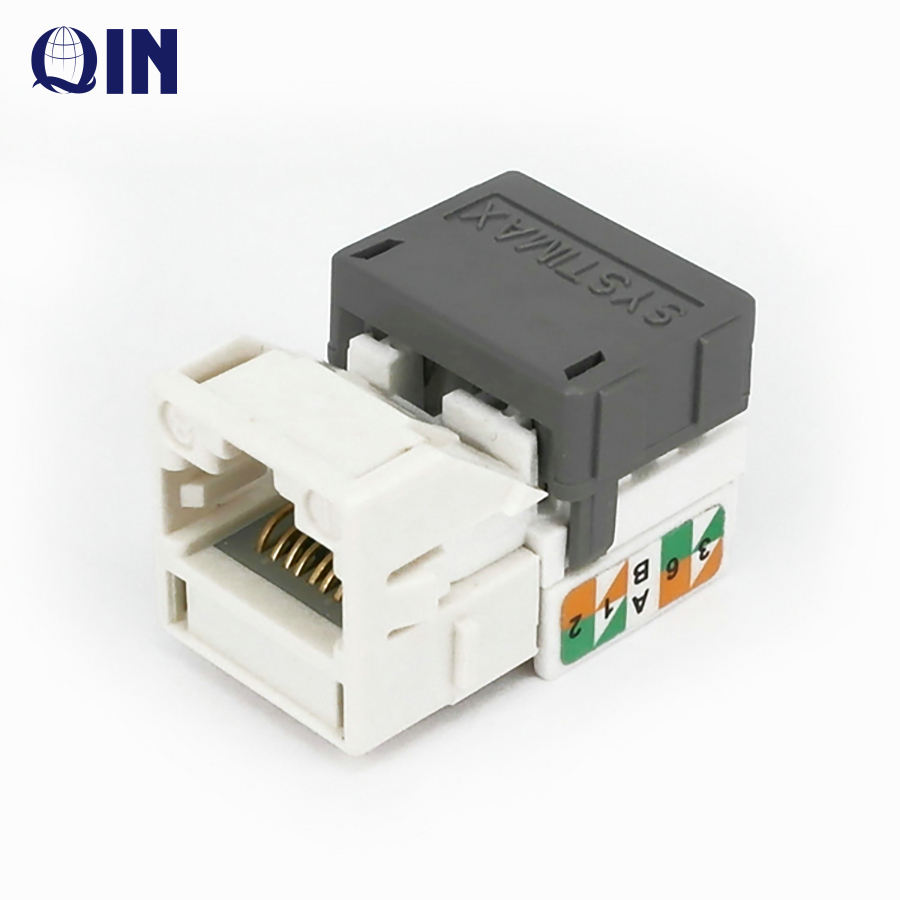

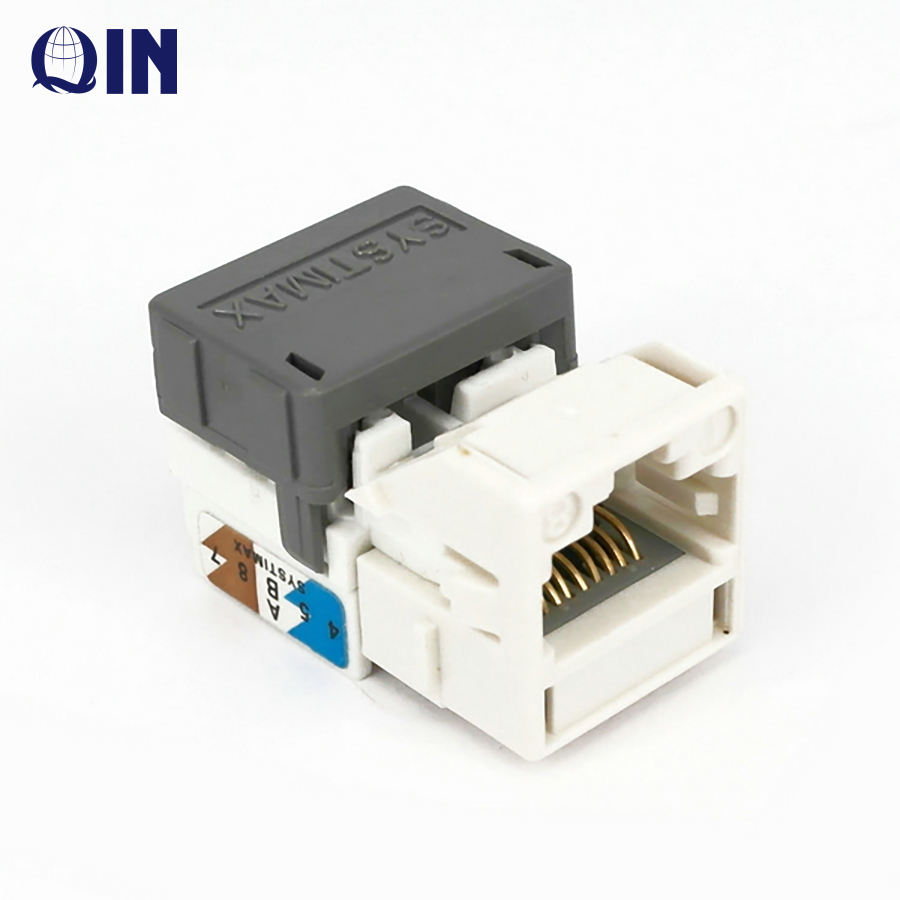

| Product name | Cat6 UTP keystone jack |
| Wire mouting | IDC |
| Wire mounting direction | 180 degree |
| Suitable cable | Cat6 UTP cable |
| Shield type | UTP |
| Connect pin gold plating | 6U" |
| Optional color | Whilte, blue, red, yellow |
| Shell material | PC |
1.100% passed FLUKE DTX-1800 test.
2. Contact resistance: ≥2.5m ohms
3. Contact resistance of linker and lead: ≤ 2.5m ohms
4. Insulation resistance: ≥1,000m ohms
5.Withstand test voltage: DC 1,000V
6.Times of repetitive use: ≥ 750
7.Designed and manufactured in accordance with ISO standards
8.Design exceeds normal requirements
9.Colored component combinations for convenience of identification and network management
10.Many other message modules available for wiring arrangements
Electrical:
Voltage rating: 125V AC RMS
Current rating: 1.5A
Contact resistance: 100mΩ maximum
Insulation resistance: 1,000MΩ minimum at 500V DC
Dielectric strength: 750V AC RMS, 60Hz, 1 minute
Environmental:
Storage temperatures: -40 to 85 degrees
Operation temperatures: 0 to 70 degrees
Conform to TIA/EIA 568B category 5e
Mates with Cat5e/Cat6 modular plug conforming to FCC part 68, Subpart F
Mechanical:
Housing material: PC UL94V-0
Inner material: flame retardant, ABS, UL94V-0
PCB material: FR-4 (thickness: 1.6mm)
Contact material: phosphor bronze stamp PIN T = 0.35mm
IDC contact material: phosphor bronze T = 0.50mm with nickel plating
Wire: AWG 24 to 26
