Cat6a Keystone RJ45 Shielded Coupler Female to Female SFTP Inline Insert Telecom Parts
Industry-specific attributes
| Brand Name | QIN |
Other attributes
| Type | Inline Coupler |
| Model Number | CAT6 |
| Place of Origin | Guangdong, China |
| Color | Silver |
| Type | SFTP |
| Package | 1PCS/BAG |
| Material | Metal |
| Pin | 8P8C |

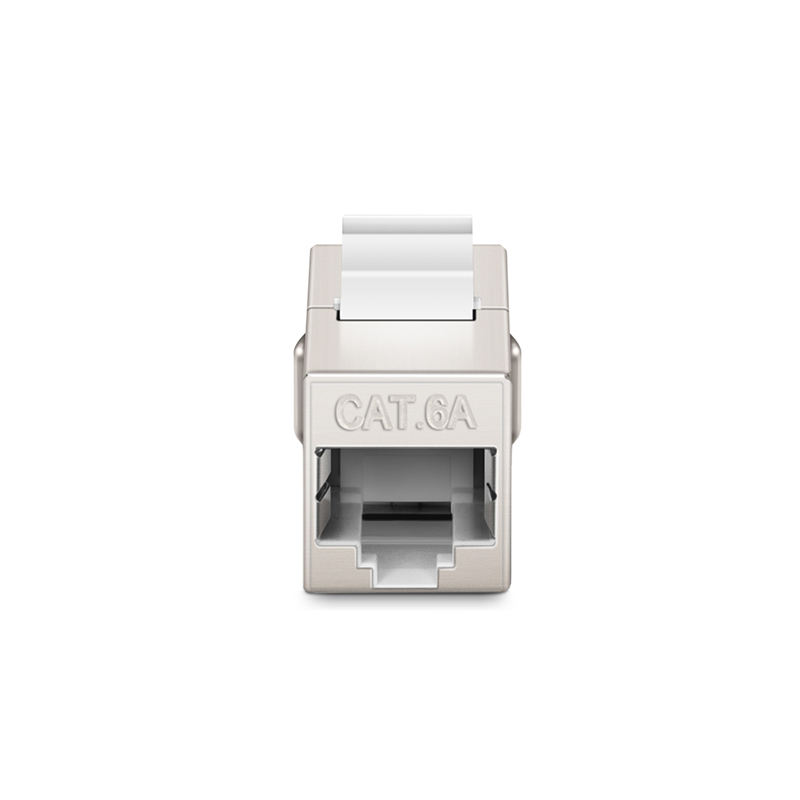

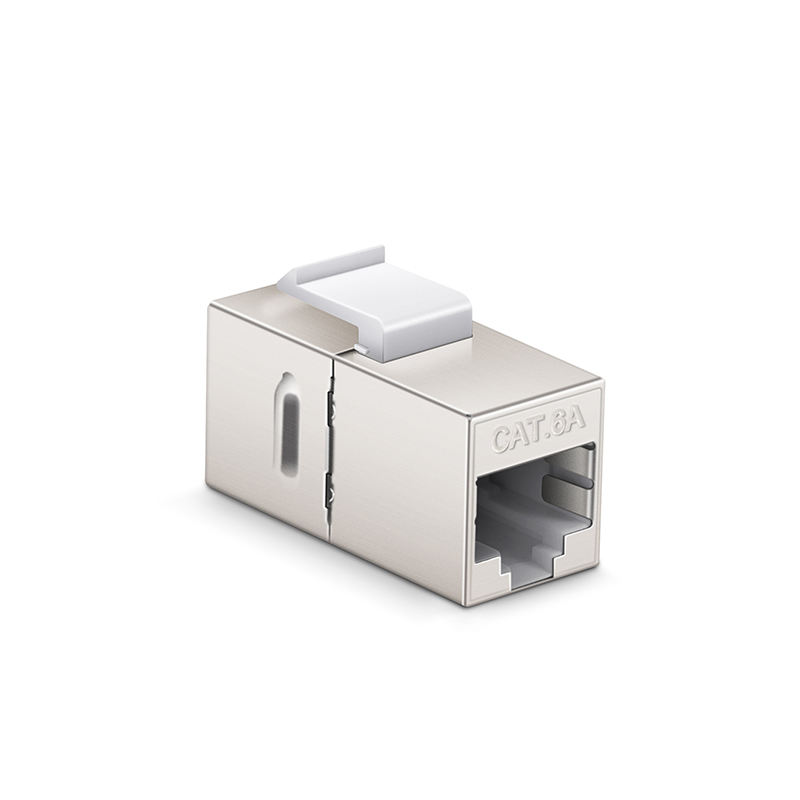

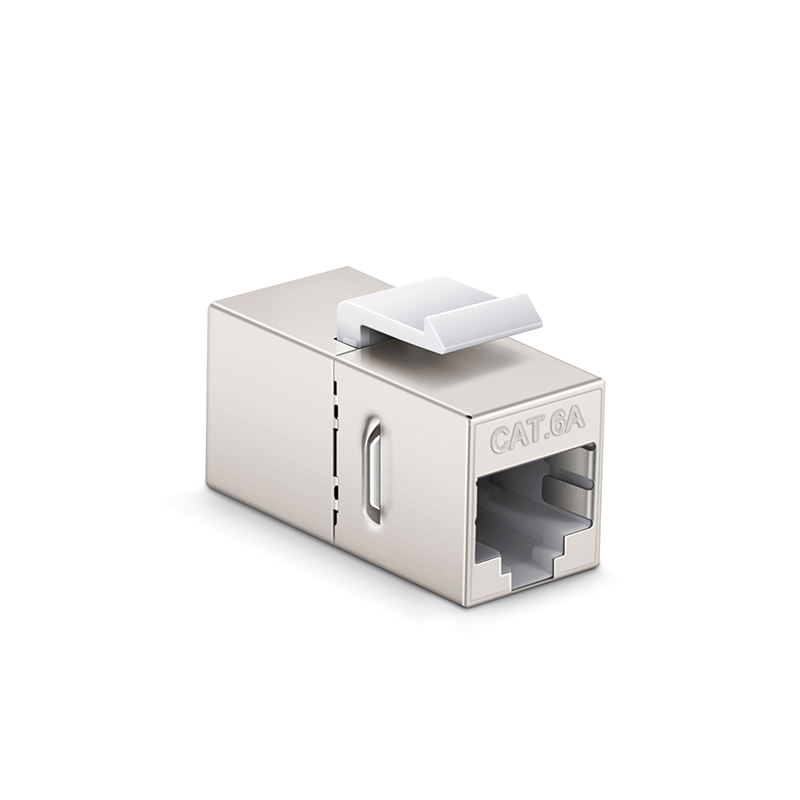

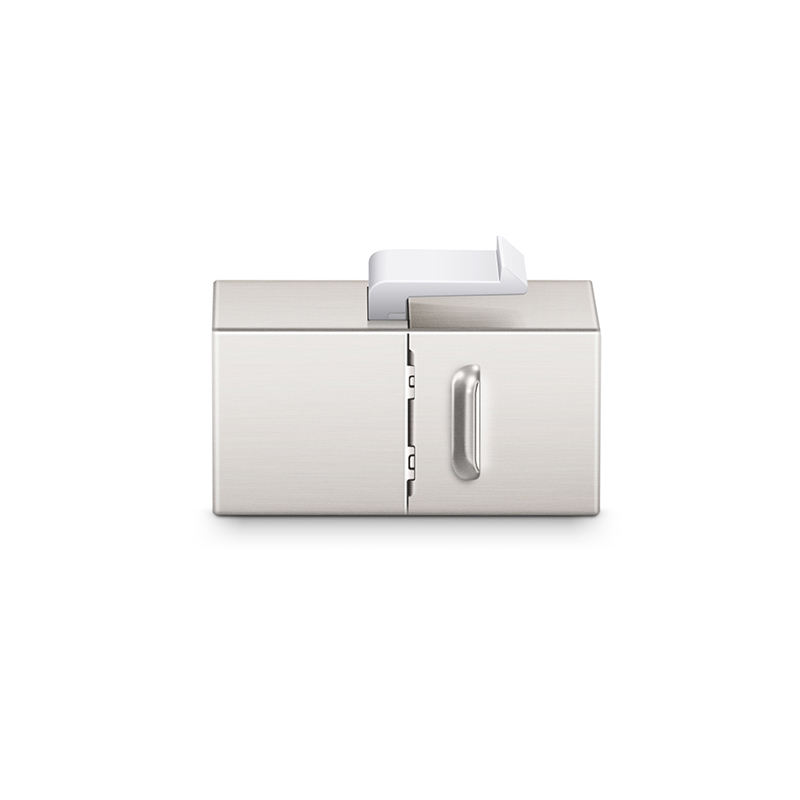

Cat6a RJ45 (8P8C) Coupler Keystone Insert Module
Keystone snap-in modules provide a full range of solution for data centers, telecommunications, home networking, offices, audio/video and more. Provides feed-through patching with compatible patch panel or wall plate and contacts two shielded Cat6a cables to create one longer cable.
Product Highlights
Connect Two RJ45 Patch Network Cables to Make a Longer Patch Cable
Meets EIA/TIA Cat6 Specifications, Backwards Cat6, Cat5e and Cat5 LANs
No Tools Required to Connect Pre-terminated Cables

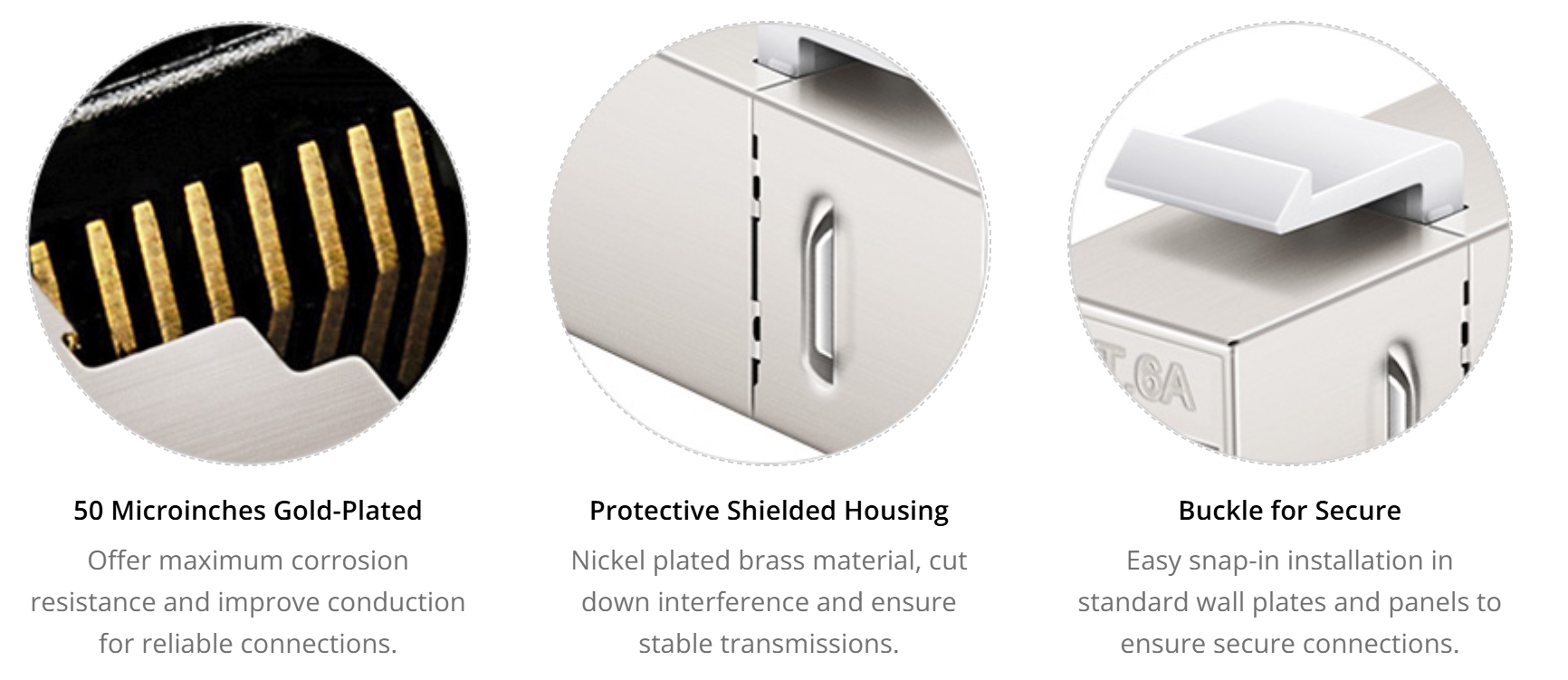

Gold Plated Contacts & Snap-in Retaining Clip for Secure/Corrosion Free Connection
100% Factory Tested to Exceed Industry Standard Performance
| Connector | RJ45 Female | Termination Style | Coupler |
| Category Compatibility | Cat6a/Cat6/Cat5e | Shielding Type | Shielded |
| Data Rate Support | 10GBase-T | Standard Bandwidth | 500MHz |
| PoE Standard | IEEE 802.3af/at | Housing Material | Nickel Plated Brass |

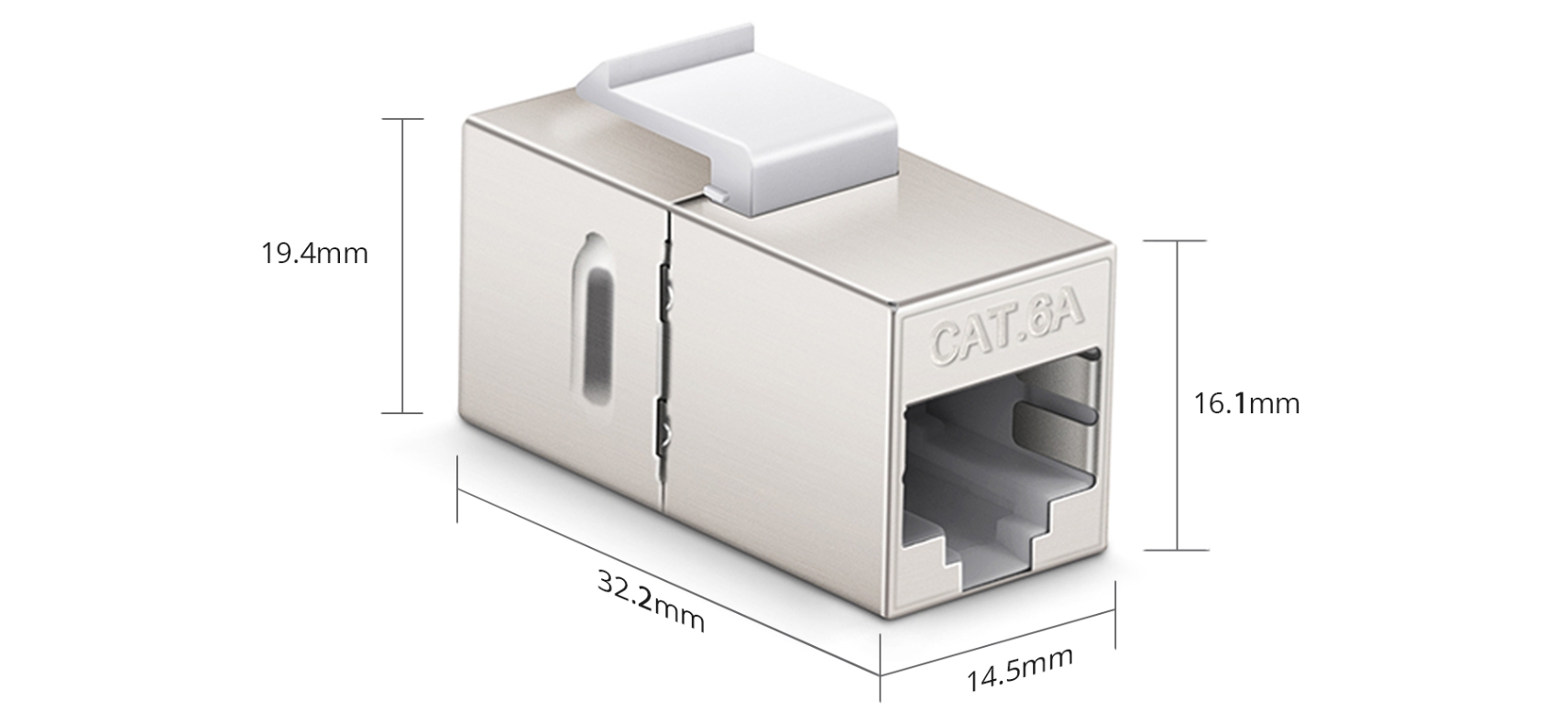

| Wiring Scheme | T568A/T568B | Dimensions (HxWxD) | 0.63"x0.57"x1.27"(16.1x14.5x32.2mm) |
Superior Construction for Superior Performance
Meets EIA/TIA Cat6a specifications, backwards Cat6, Cat5e and Cat5 LANs.

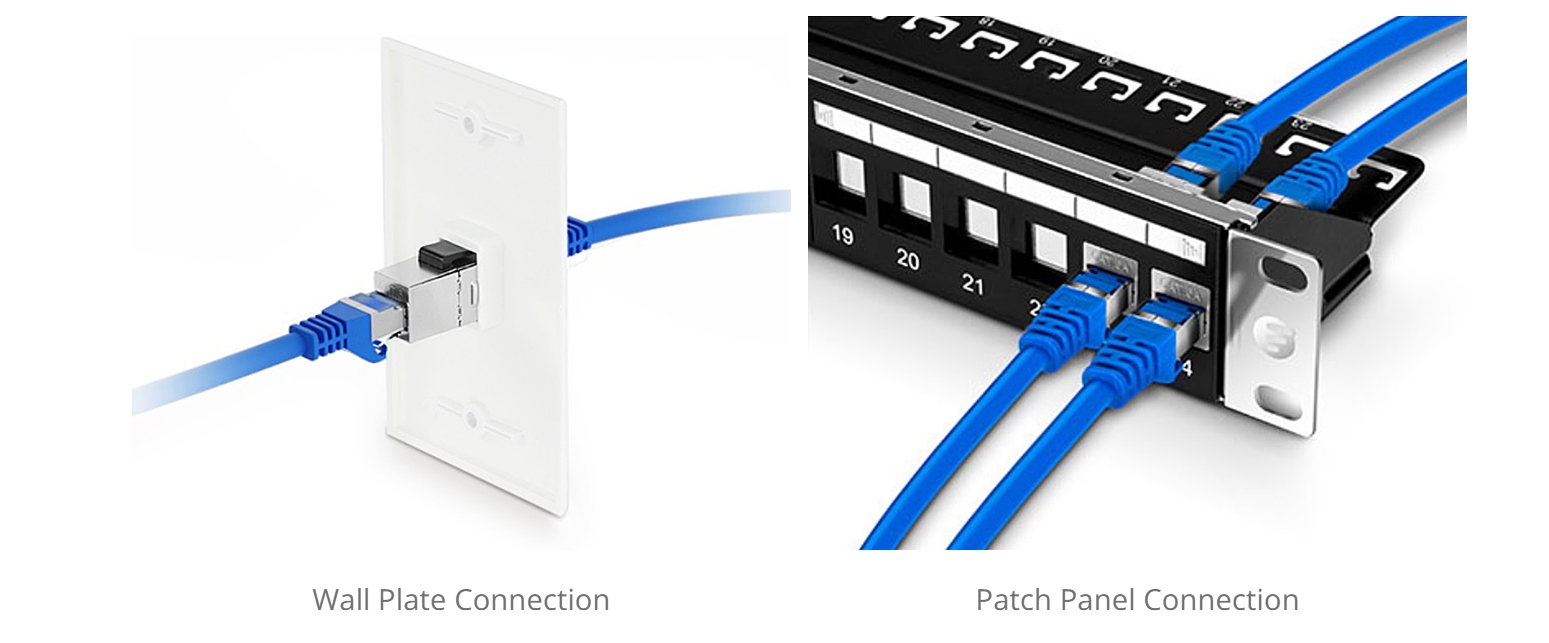

Versatile Installation
The Cat6a Keystone Couplers simply snap into wall plates, patch panels and network cables with no need for tools or punch down, which extend the length of two patch cables in a easy and simple way.

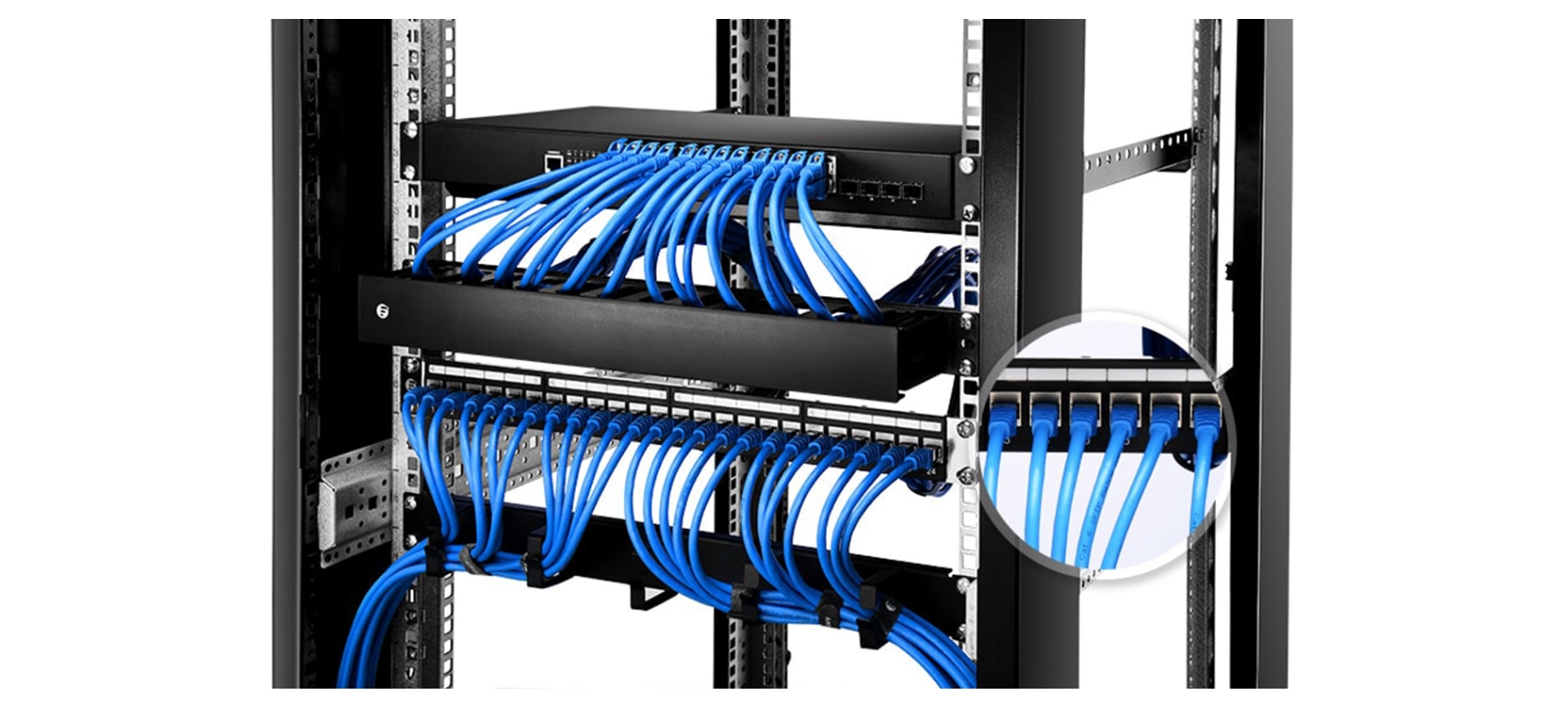

Ideal for 10G Ethernet Connections
With high speeds of data rate and easy installation, the Cat6a Keystone Couplers are ideal for data centers, premise wiring, telecommunications, such as media centers and office conference rooms.
