FTP SFTP Cat6a RJ45 (8P8C) Shielded Toolless 180 Degrees Keystone Jack Telecom Parts Modular Jack
Industry-specific attributes
| Brand Name | Ruby/OEM |
Other attributes
| Type | KEYSTONE JACK |
| Model Number | CAT6A |
| Place of Origin | Guangdong, China |
| Product Name | Cat6a FTP Keystone Jack |
| Application | Cabling system |
| Category | CAT6/CAT6A |
| Material | Zinc alloy |
| Packing | 1pc/polybag |
| OEM | YES |
| Warranty | 15 Years |
Packaging and delivery
| Selling Units | Single item |
| Single package size | XX cm |
| Single gross weight | kg |
Product Highlights
Verified IEC 60512-9-3 & IEC 60512-99-002 Test
The Shielded Keystone Jack, Against EMI/RFI, NEXT, and AXT
Fast Installation Without Any Special Punch Tool or Crimping Tool
Dual-color-coded Labeling for 568A/B Wiring Schemes
24K 50μ”Gold-plated RJ45 Contacts for Optimal Conductivity

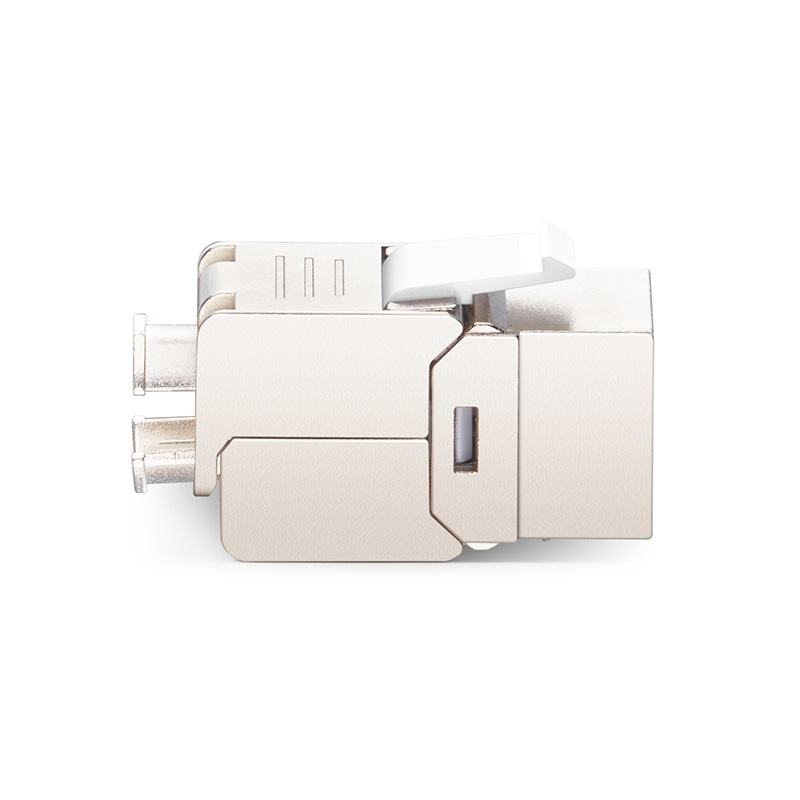

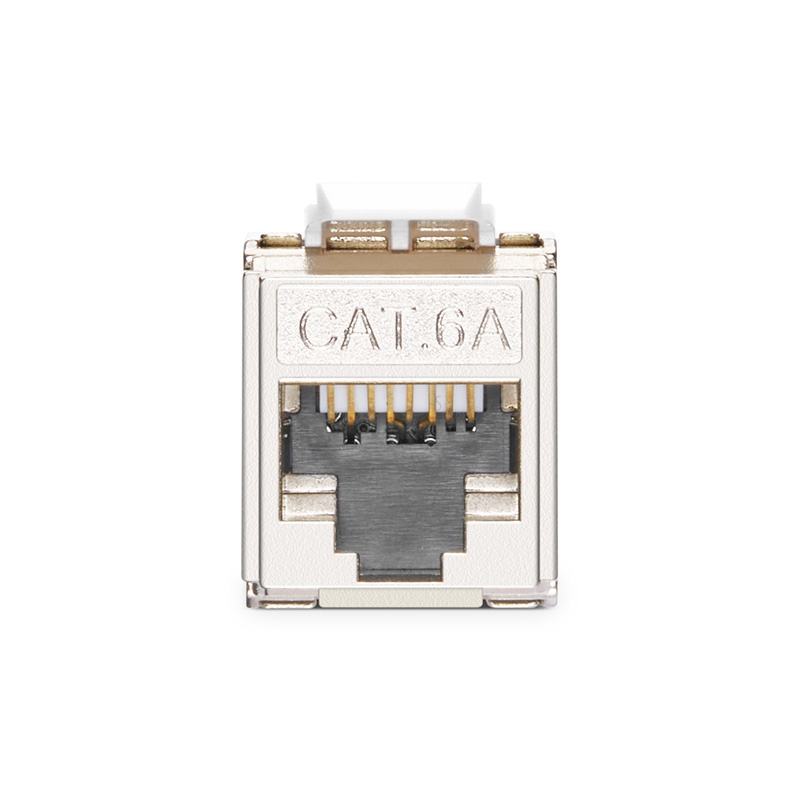

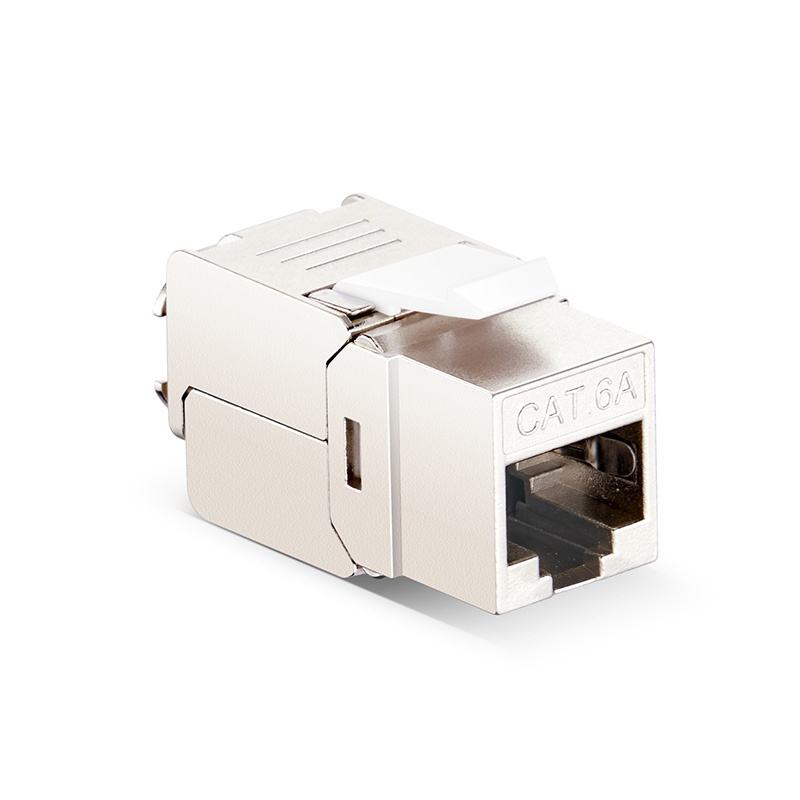

Toolless Shielded Keystone Jack for Cat6A Ethernet Networking
Cat6a STP RJ45 Toolless Keystone Jack Module is designed to terminate 4-pair, 22-26 AWG twisted pair cable with convenient wire separation for easy installation. Each module is factory tested to exceed industry standard performance requirements and support IEEE 802.3af/at/bt. Contacts are plated with 50 microinches of gold for superior performance. Jacks are individually serialized and are compatible with keystone interfaces such as faceplates, modular patch panels and surface mount boxes. The metal keystone jacks are designed for gigabit and 10G copper Ethernet network applications such as enterprise office, home decoration, data center, intelligent park and other types of environment network cabling project, eliminating EMI and crosstalk to ensure peak performance and data integrity.
| Product Type | Cat6a Keystone Jack | Color | Metal silver |
| Connector | RJ45 Female | Termination Style | Toolless |
| Conductor Type | Solid/Stranded | Termination Type | IDC |
| Shielding Type | Shielded | Data Rate Support | 10GBase-T |
| Wire Gauge Supported | 22-26AWG Cable | Wiring Scheme | T568A/T568B |
| Transmission Standards | ANSI/TIA 568-C.2, ISO/IEC11801 | Flammability Rating | UL 94 V-0 |
| Housing Material | Zinc Alloy | Dimensions (HxW) | 0.63''x0.57'' (16x14.5mm) |
| Operating Temperature | -10°C to 60°C (14°F to 140°F) | Contact Plating Thickness | 50 Microinches |

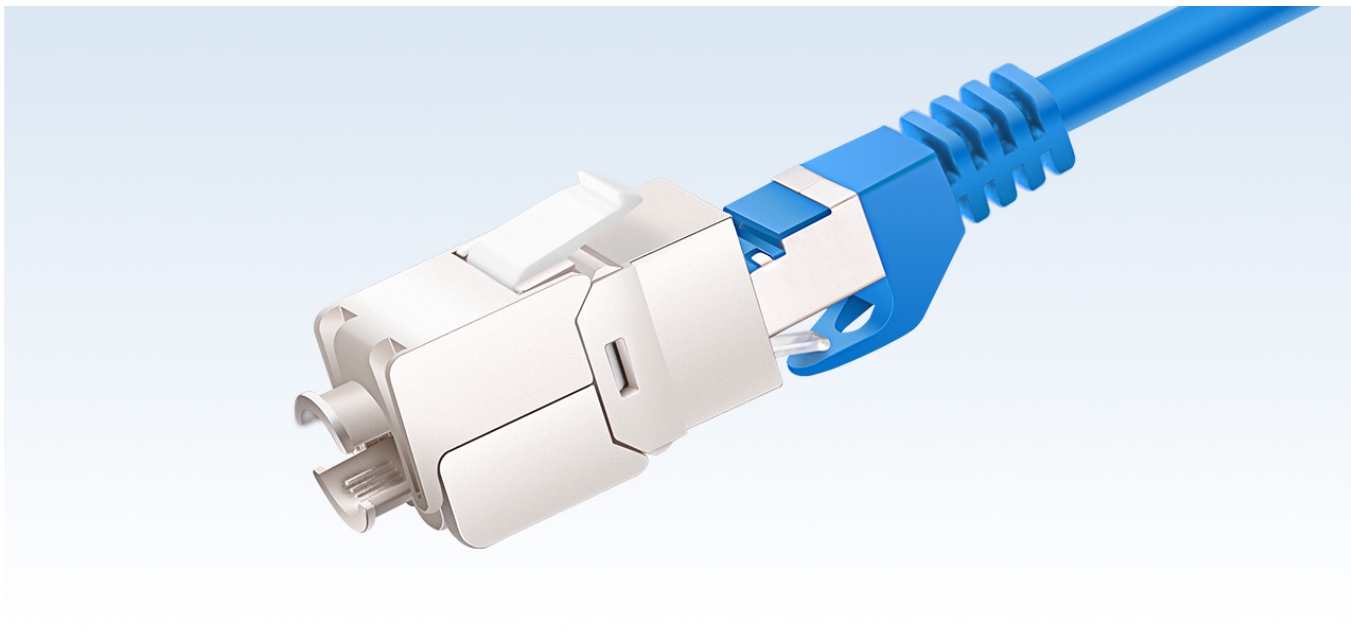

Support 10GBase-T Network Speed for Transmission Stability
Designed for Cat6a, Cat6, Cat5e Cables and ideal for 10GBase-T Ethernet applications. Gold-plated contacts maintain optimum conductivity between two cables, ensuring stable transmission.

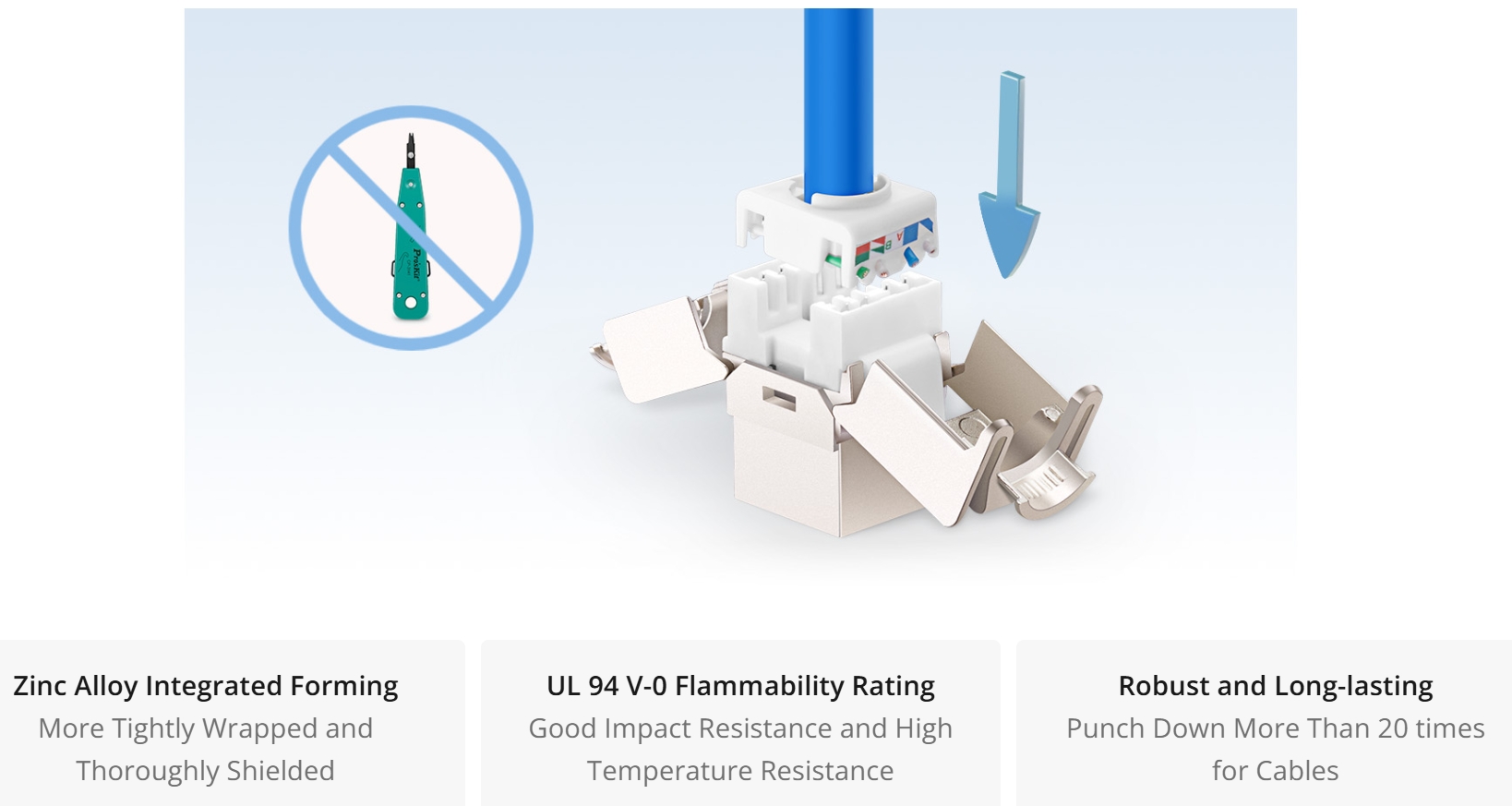

No Punch Down Tool Required

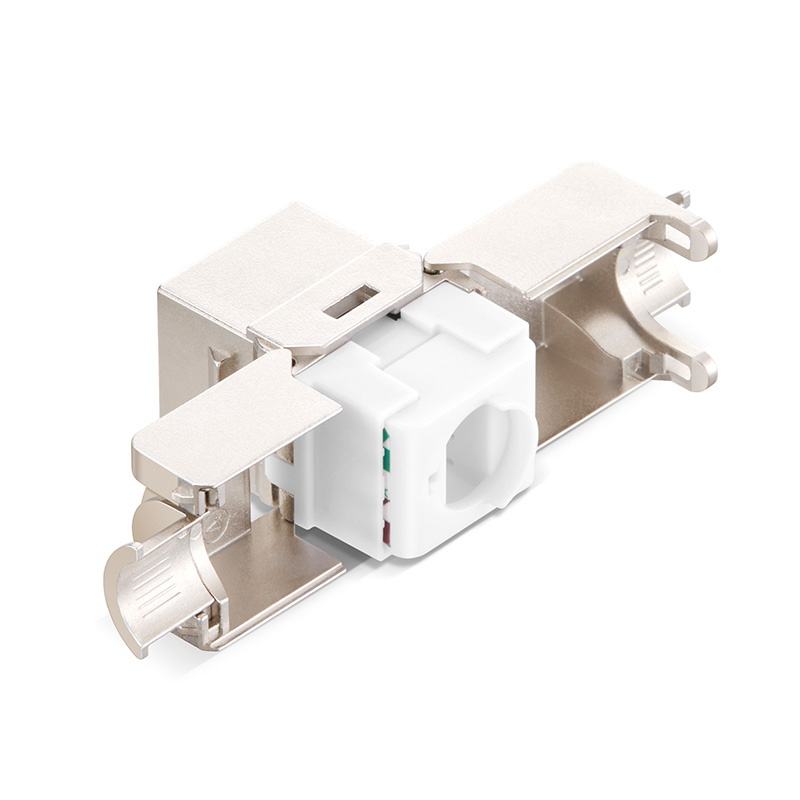

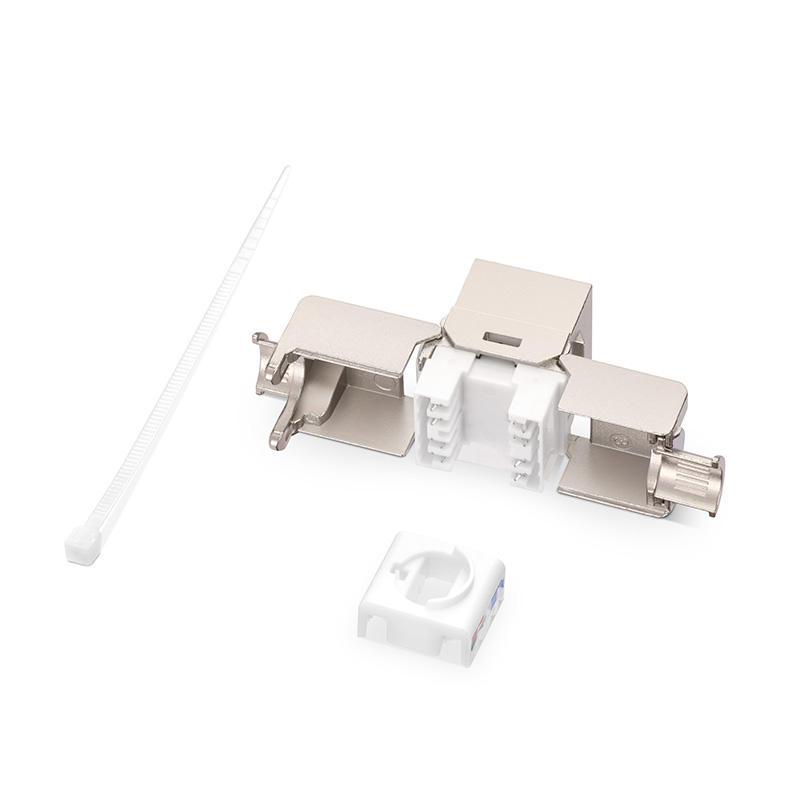

180-degree wide-angle, hinged design provides easy access and termination. Supports reuse to save you time and money.
Pass Information Module Unit Testing
The unit test standard is more stringent than the permanent link test. FS shielding information module single test value exceeds ANSI/TIA 568-C.2 requirements for stable data transmission.

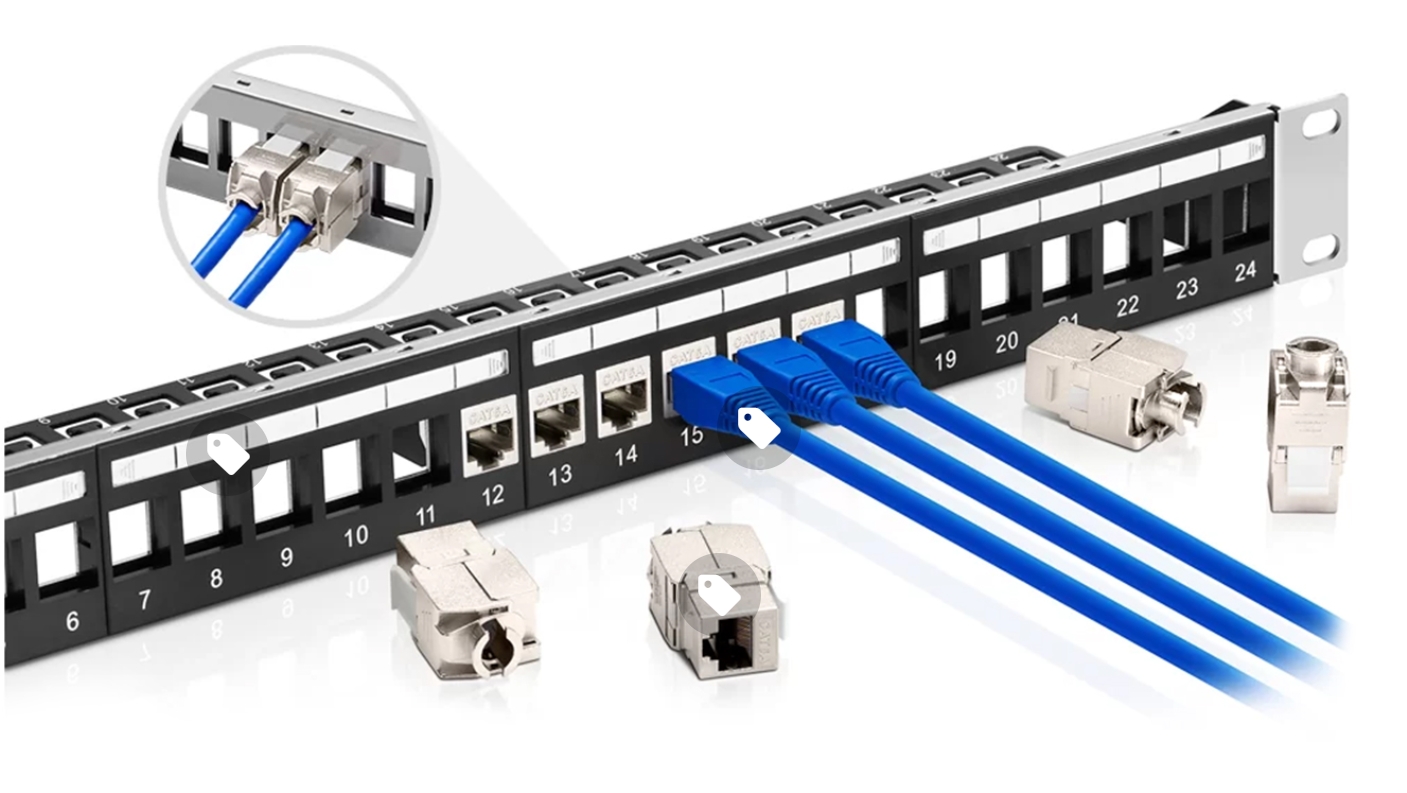

Compatible with Patch Panels and Network Cables
Designed for installation with convenience, and performance well with 1U 24/48 ports patch panels and network cables to improve management efficiency.

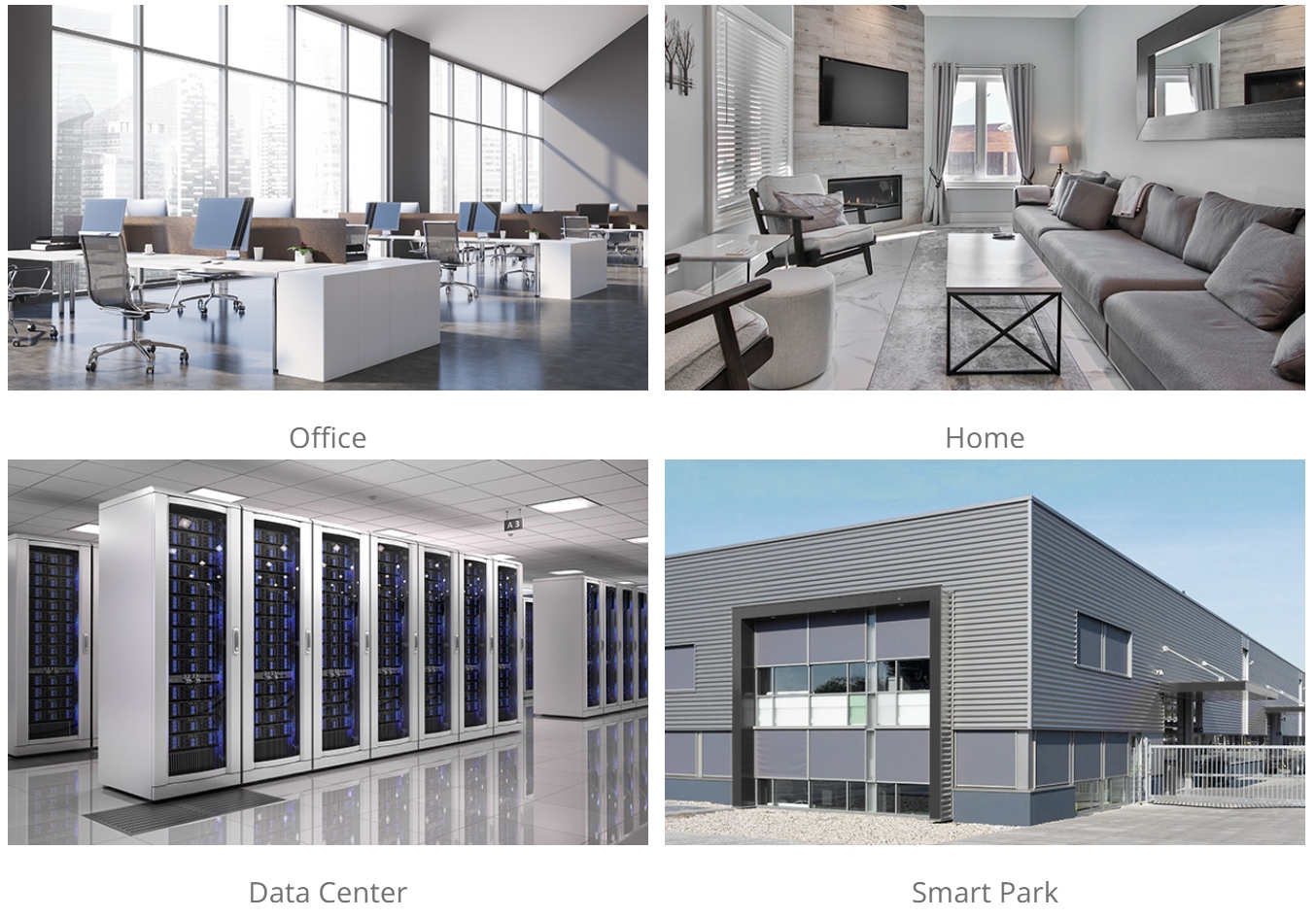

Multi-Scene Application
Enjoy maximum flexibility to meet unique system requirements. Ideal for multiple network applications.

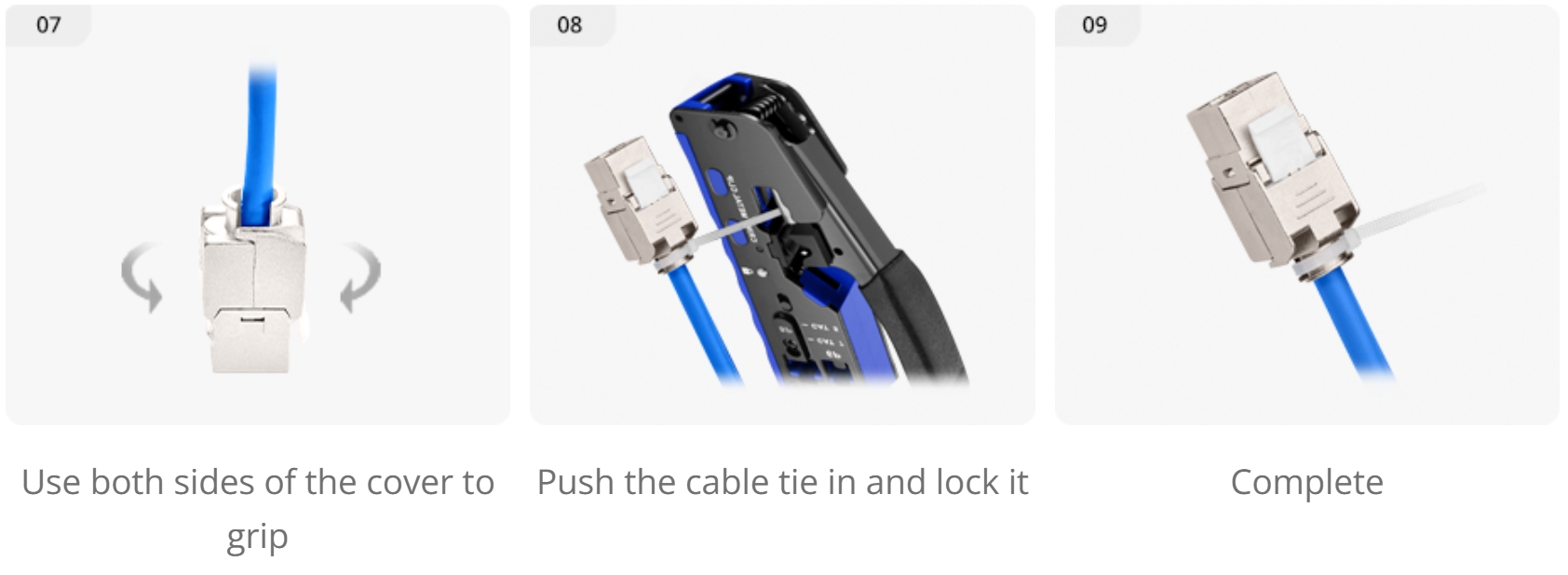

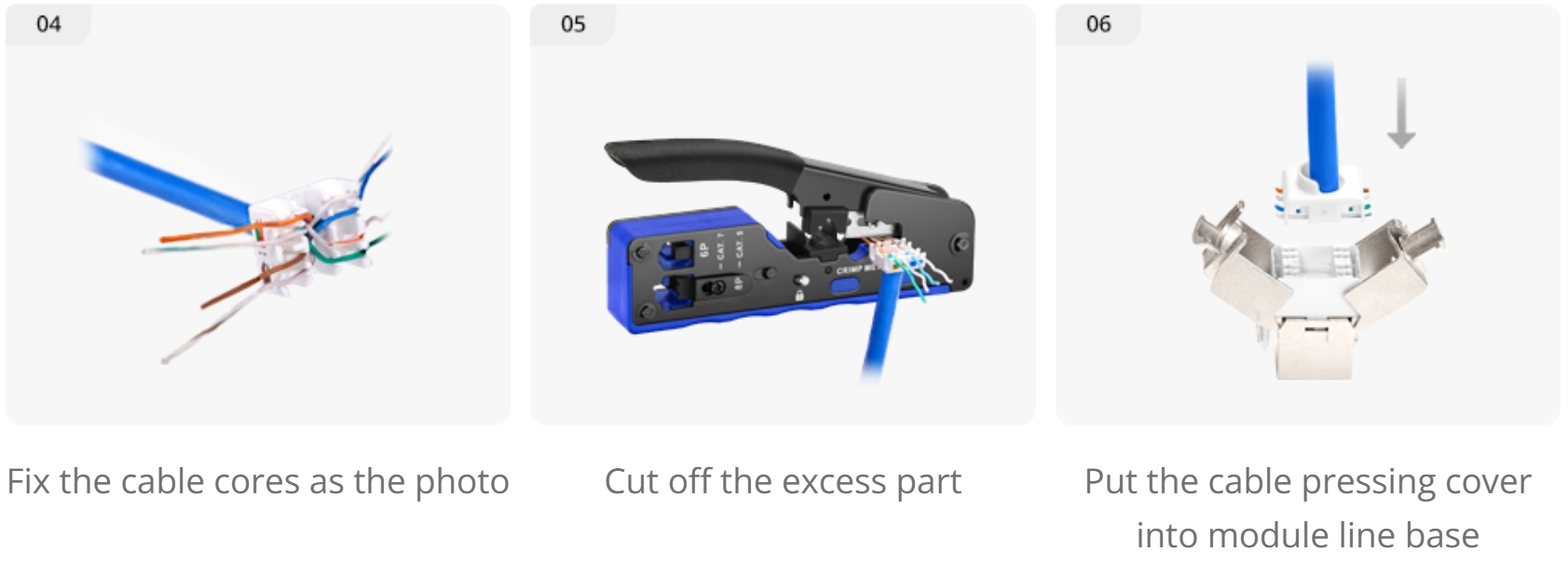

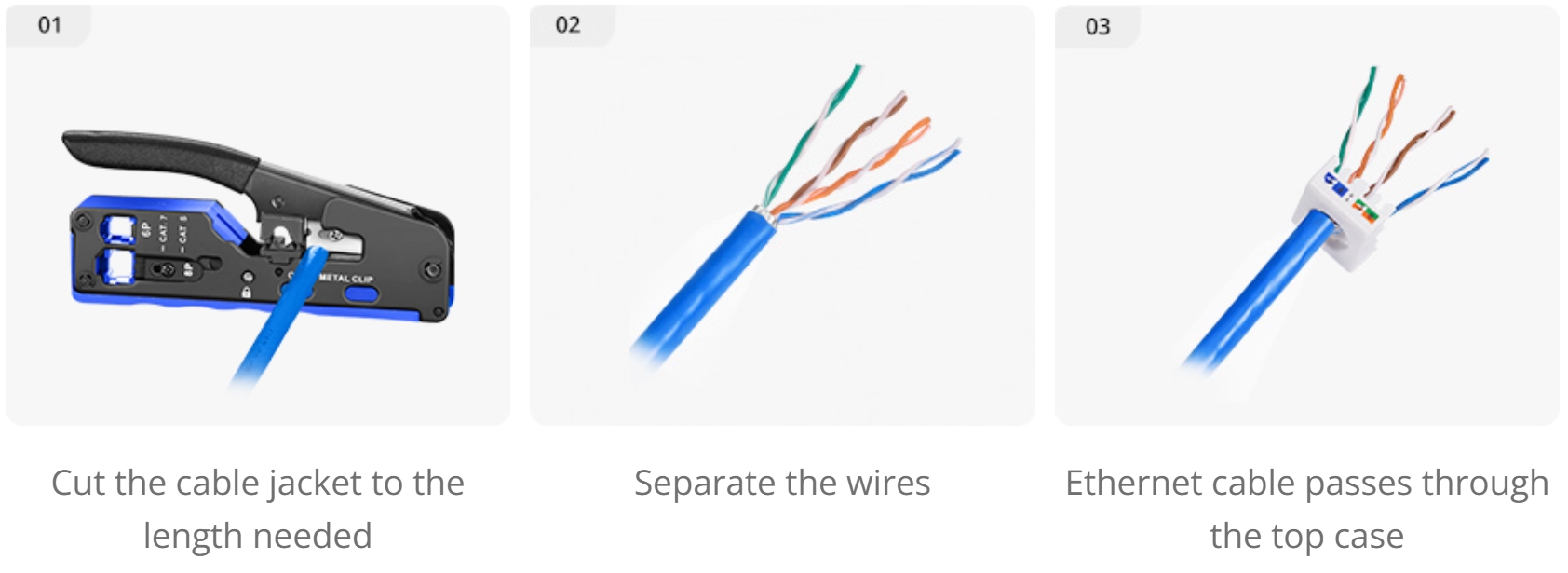

Operating Instructions
FTP SFTP Cat6a RJ45 (8P8C) Shielded Toolless 180 Degrees Keystone Jack Telecom Parts Modular JackFTP SFTP Cat6a RJ45 (8P8C) Shielded Toolless 180 Degrees Keystone Jack Telecom Parts Modular JackFTP SFTP Cat6a RJ45 (8P8C) Shielded Toolless 180 Degrees Keystone Jack Telecom Parts Modular Jack

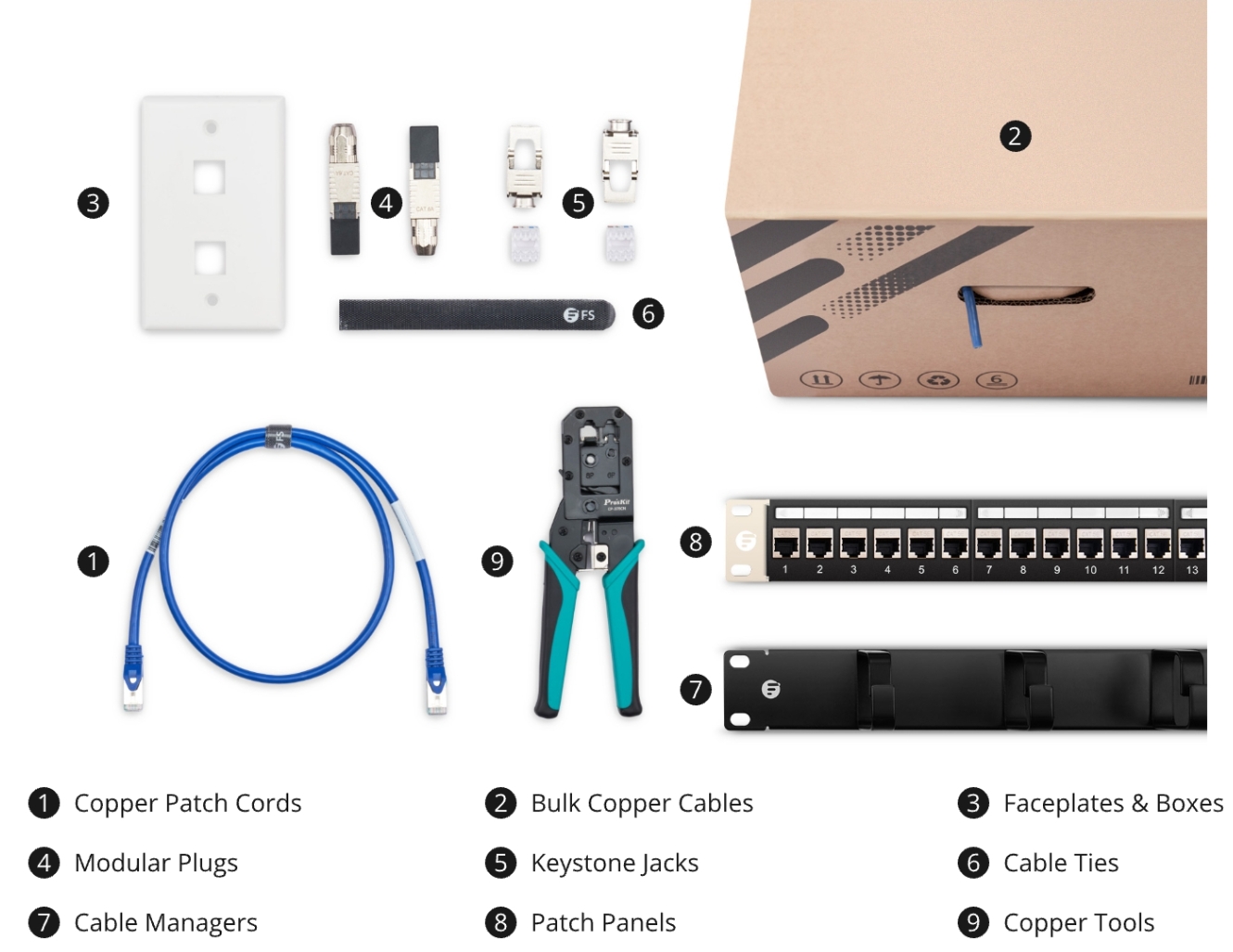

Integrated Solution Covering Network Cabling Needs
Choose high-quality accessories for every detail of network cabling.
