Industry-specific attributes
| Brand Name | QIN/OEM |
Other attributes
| Place of Origin | Guangdong, China |
| Model Number | QT-KJ3406 |
| Brand | QIN/OEM |
| Name | Toolless 180 Degree UTP Cat6 keystone |
| Gold Plating | 6 U" |
| Material | High Impact Thermoplastic PC 94V-10 |
| Wire Connecting Material | Tin plated Phosphor bronze |
| Quality Test | 100% DTX-1800 Passed |
| Contain Pin | Beryllium copper |
| Application | Structure Cabling System |
| Certificate | ROHS CE |
| Numbers of contact pin | 8P8C |

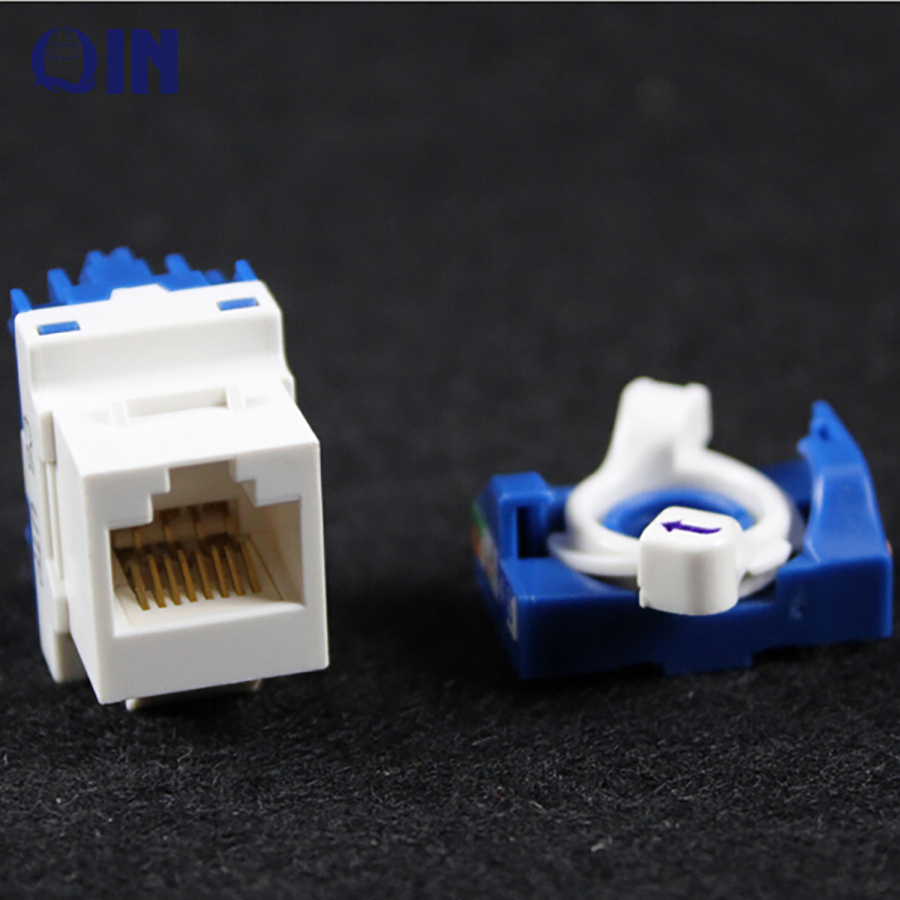

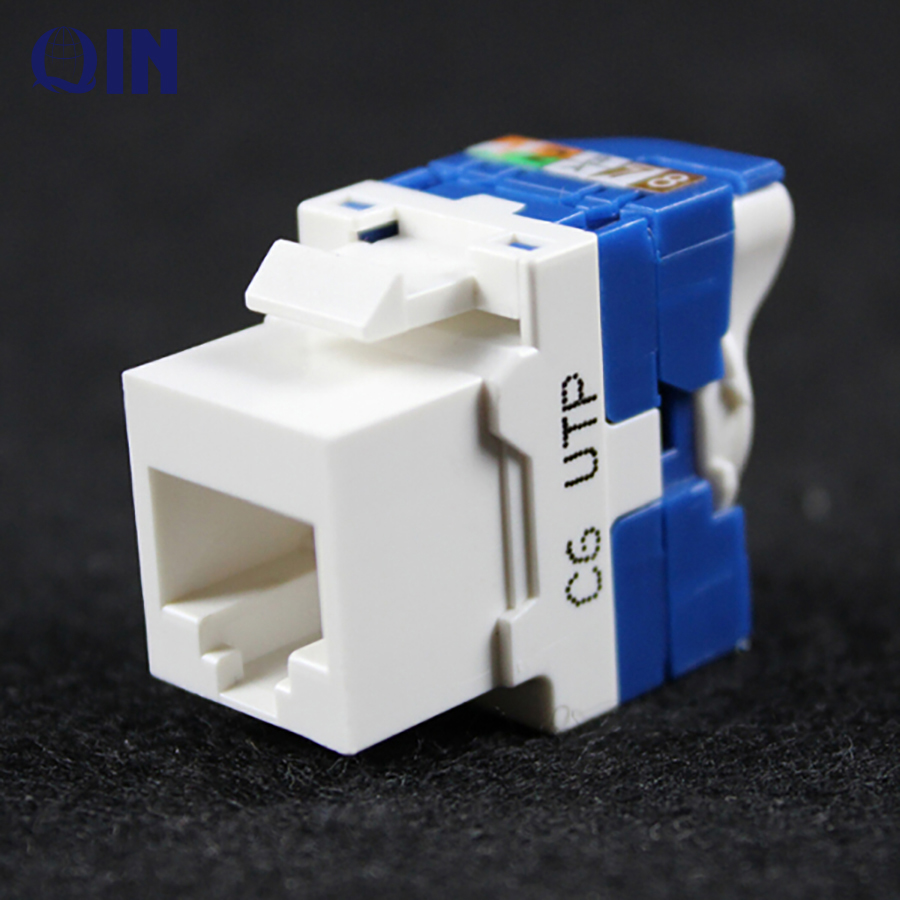

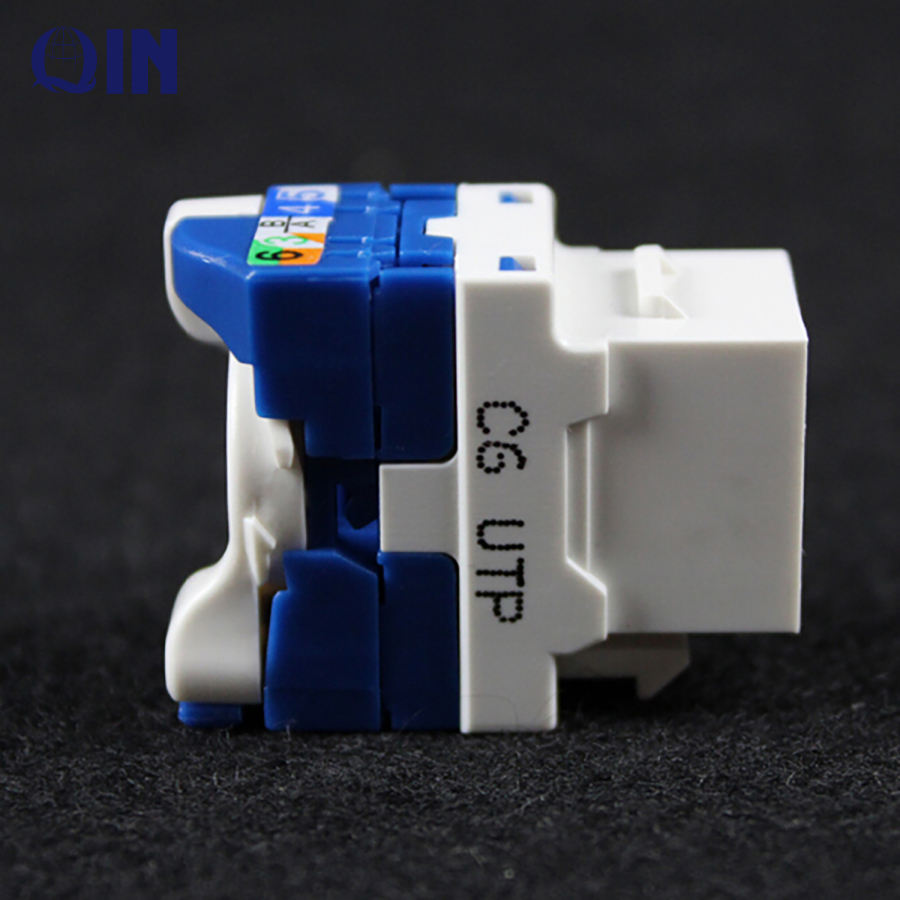

The rotary cat6 keystone jack features a high-impact, flame retardant (UL 94V0) plastic housing
Meets and exceeds the international standard ISO / IEC 11801 and the ANSI/TIA-568-C.2 requirements

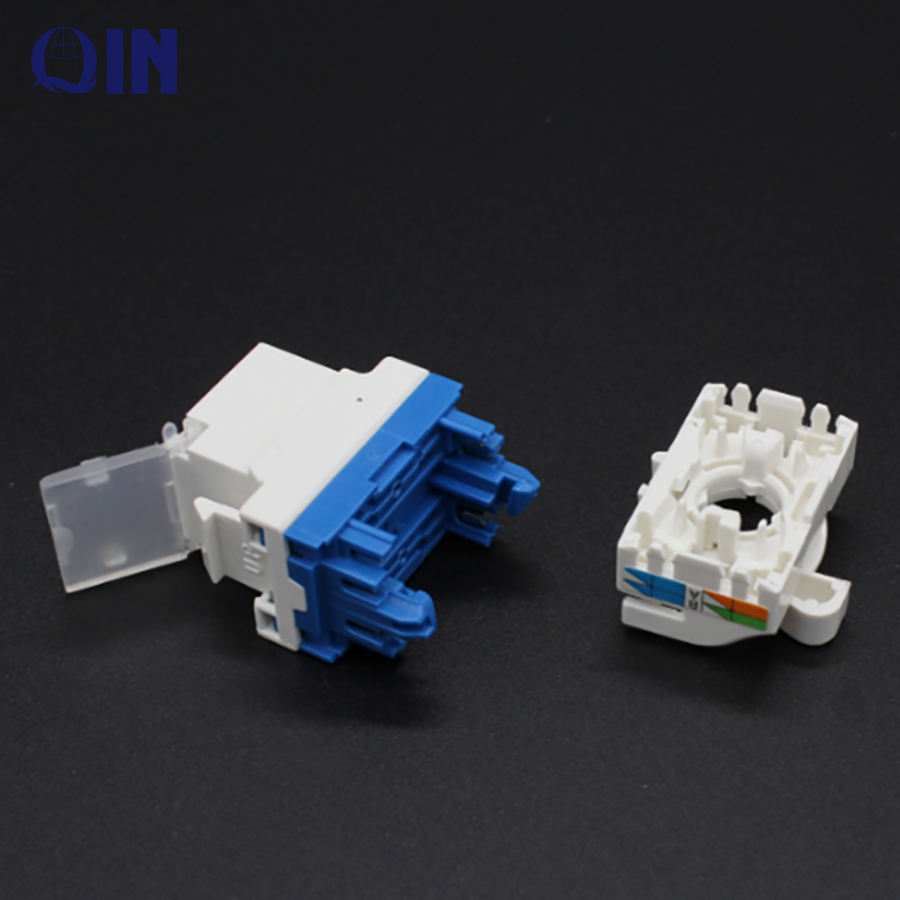

Dual-type IDC connectors, situated 180° relative to the RJ45 ports, toolless type

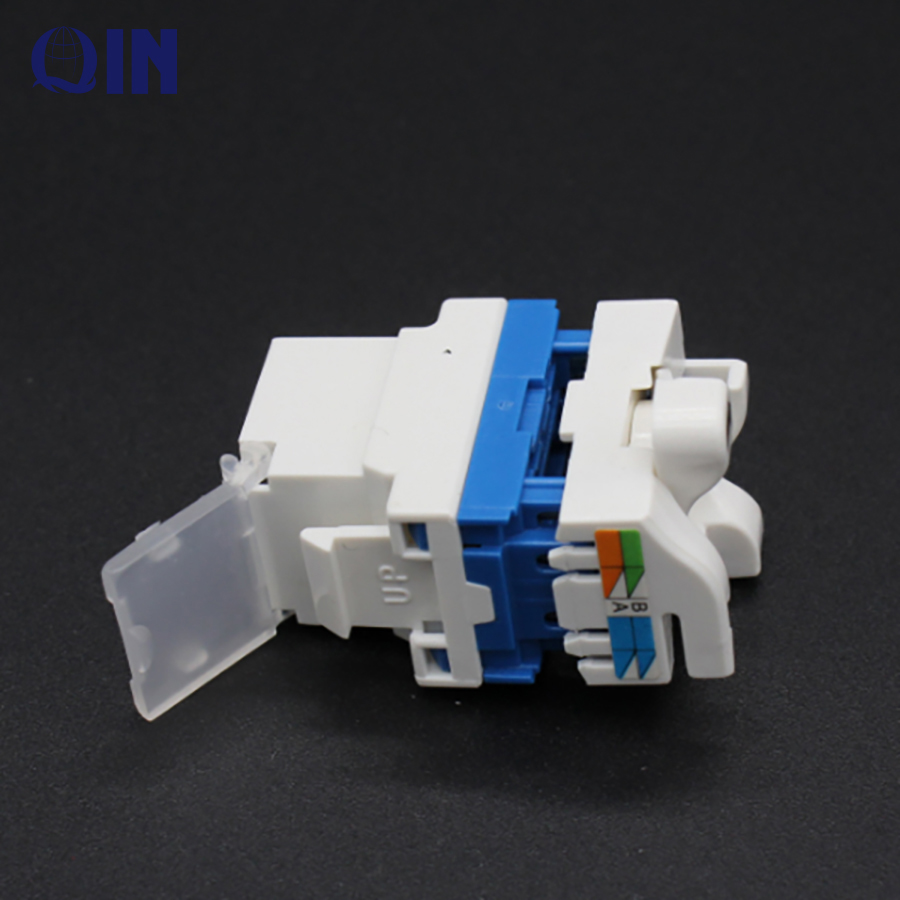

Color coded for both T568A and T568B installations

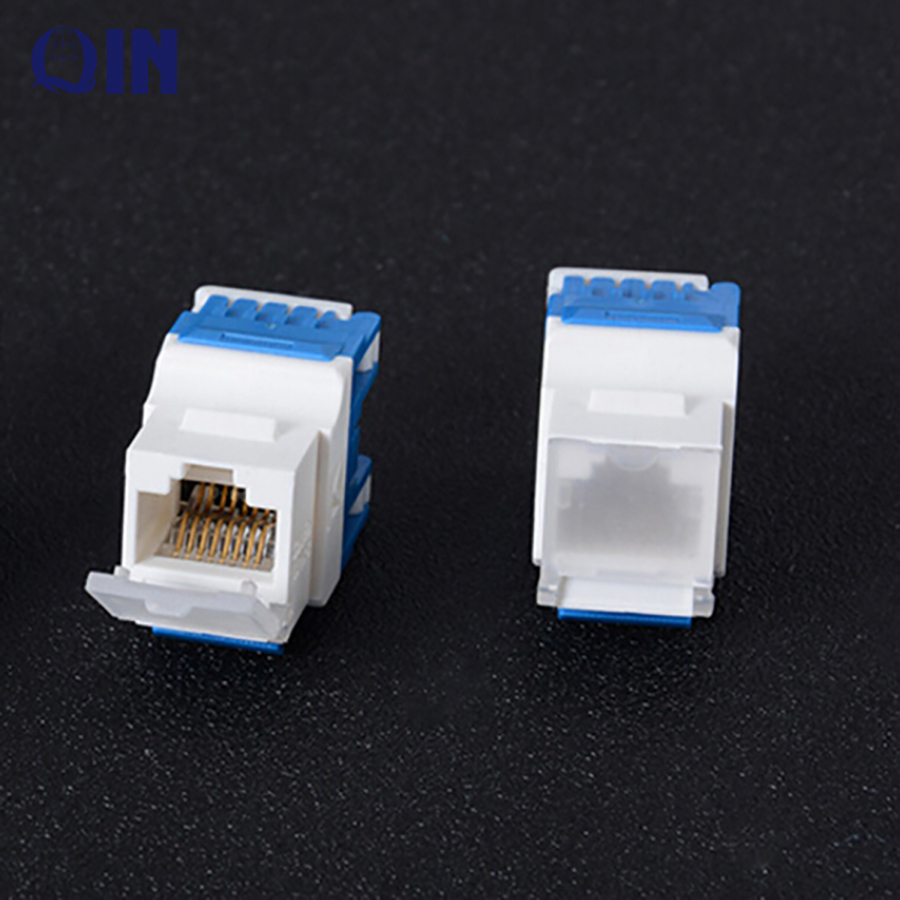

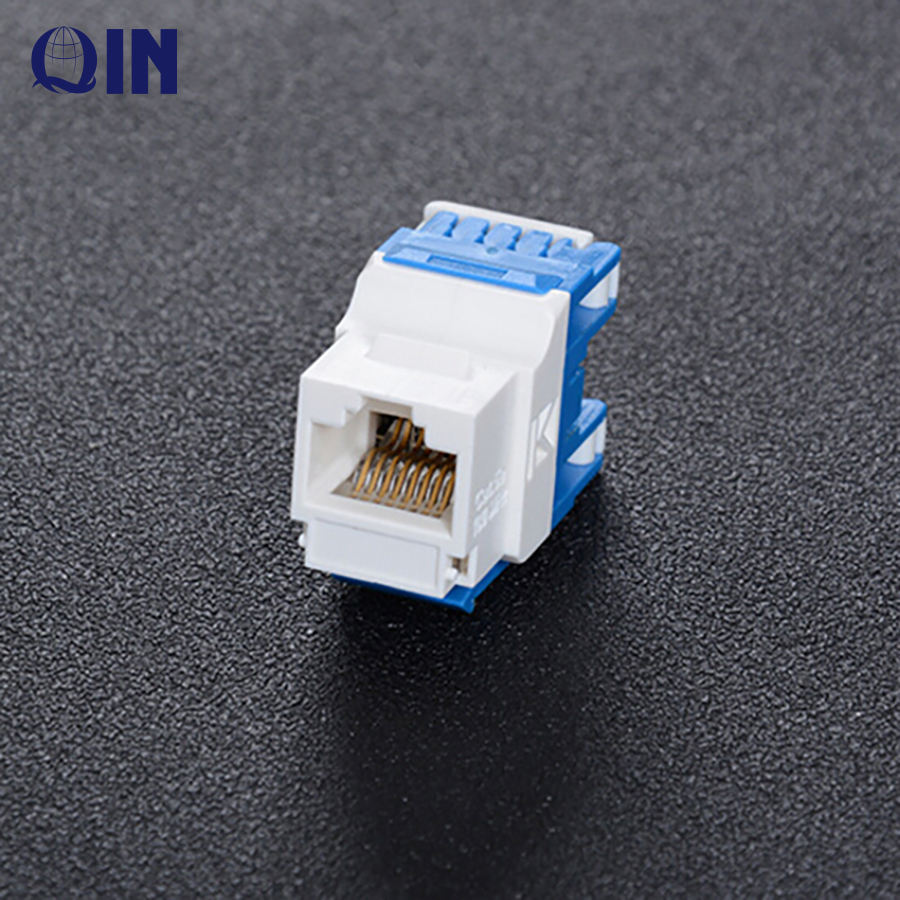

The Cat6 Keystone Jack is designed to snap into wall plates, patch panels, and surface connection boxes for quick, seamless deployment.
Meeting and exceeding the international standard ISO / IEC 11801 and the ANSI/TIA-568-C.2 requirements, this RJ45 keystone jack provides the perfect solution for your Ethernet networks.
Durably constructed of only top quality materials, this Cat6 wall jack is backed by 2 year warranty.
Contact Material = Phosphor Bronze stamping pin at thickness of 0.35mm
Contact Mating Area Plating Material = Gold plating option (3U",6U",15U",30U",50U") over Nickel
PCB material: FR-4 T=1.6mm
IDC contact material: Phospor Bronze at thickness of 0.5mm and Nickel plating
Housing Color = White, Black or According to Customers' request
Housing Material = ABS or PC
Housing Flammability Rating = UL 94V-0
Workable wire gauge: AWG 22~26
Industry Standards:
RoHS compliant
TIA/CAT6
568A/568B
Angle: 180Degree,fit for loading a full STP/UTP 24/48 port patch panel
Termination: Dual IDC Type
Specification:
| Electrinic | Voltage Rating :125 VAC RMS |
| Current Rating : 1.5A | |
| Contact Resistance:110 Milliohs MAX. | |
| Insulation Resistance:1 000 megohms MIN 500 VDC | |
| Dielectric Strength :750 VAC RMS 60Hz ,1 MIN | |
| Environment | Storge: -40~ 85°c |
| Operation: 0~70°c | |
| Machanical | Housing Material: PBT-UL90V-0 |
| Panel Fram: Carbon Steel, Powder Coating in black color | |
| Contact Material: PC-UL90V-0 | |
| Contact: Phosphor Bronze with Nickel Plating | |
| RJ45 Jack:IFE:750 times MIN. | |
| IDC Life :200 times MIN. | |
| Wire:AWG 24-26 | |
| Tia Cat.5e Perm Link Test: Worst Pair NEXT Margin ≥3dB | |
| Retentiveness of insertion structure:50N 60±5s |
