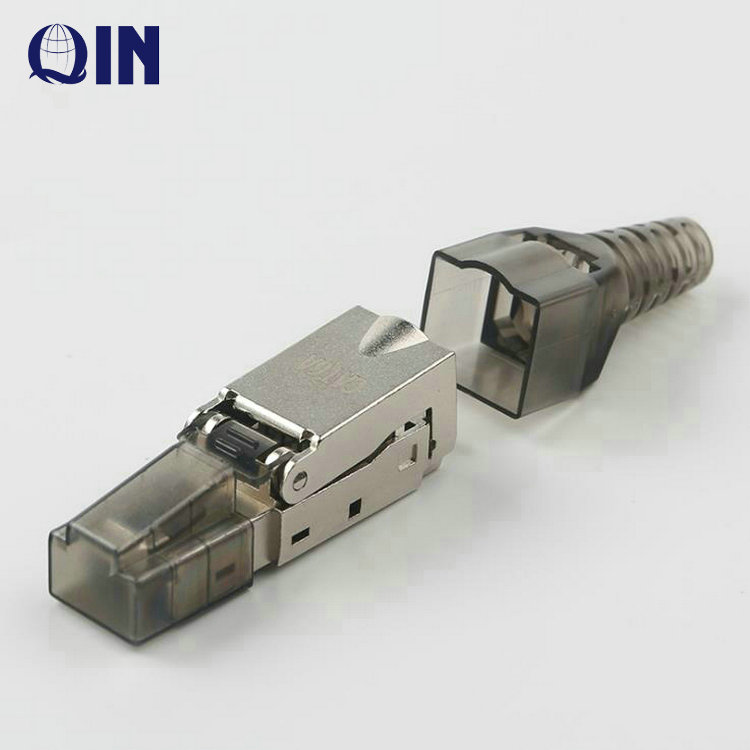

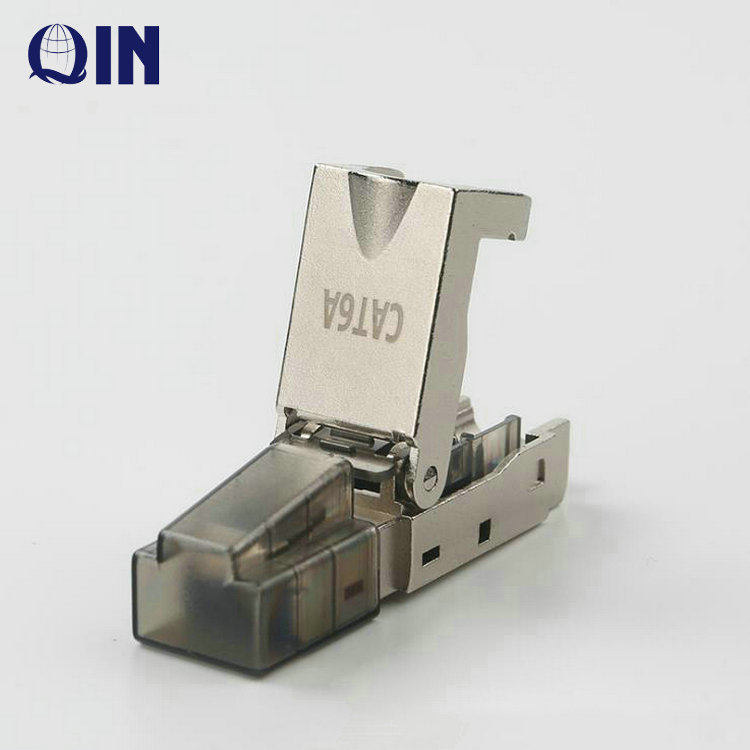

STP Cat.6A Cat7 RJ45 Modular Plug Toolless, Computer Internet LAN Cable RJ45 Toolless Connector Modular
Industry-specific attributes
| Brand Name | RUBY/OEM/QIN |
Other attributes
| Model Number | SFTP Cat6A/ CAT7 Toolless Modular Plug |
| Type | CAT 6A |
| Place of Origin | Guangdong, China |
| Number of Conductors | 8 |
| Name | Cat6a CAT7 STP RJ45 Toolless Connector Modular Plug |
| Rated Voltage | 12V |
| Standard | Complies with EIA/TIA 568B.2-10 |
| Usage | Use with solid round cable AWG 23 - 26 and stranded cable AWG 24 - 26 |
| Cable Dia | Suitable for 6 to 9 mm diameter cables |
| Accessory | Cover and cable gland included |
| Type | RJ45 |
| Material | Brass |
| Package | 1 PIECE /BAG, 50 PIECES/BOX, 500 PIECES/CTN(57*35*22CM) |
| Gender | 8P8C Male |
Packaging and delivery
| Selling Units | Single item |
| Single package size | 28X35X35 cm |
| Single gross weight | 12.000 kg |

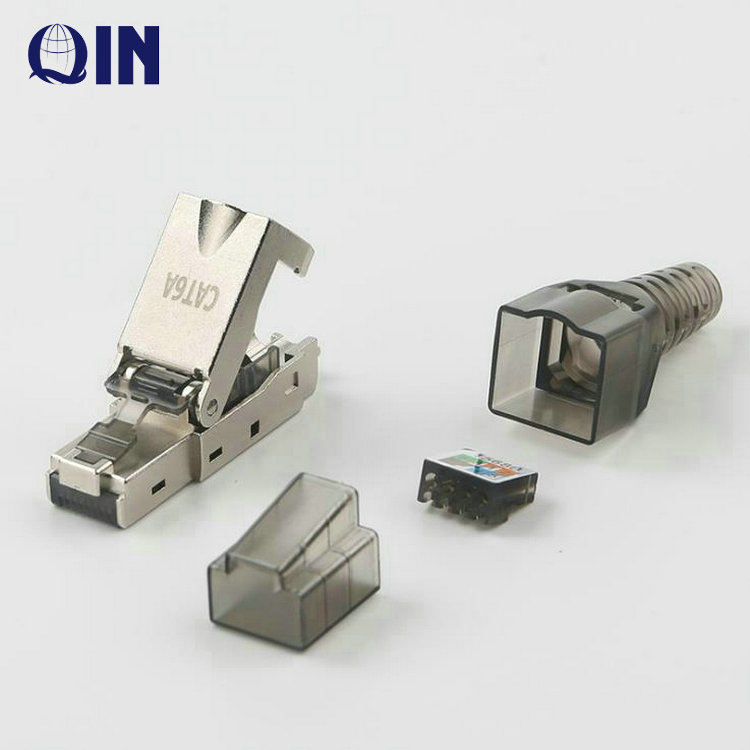

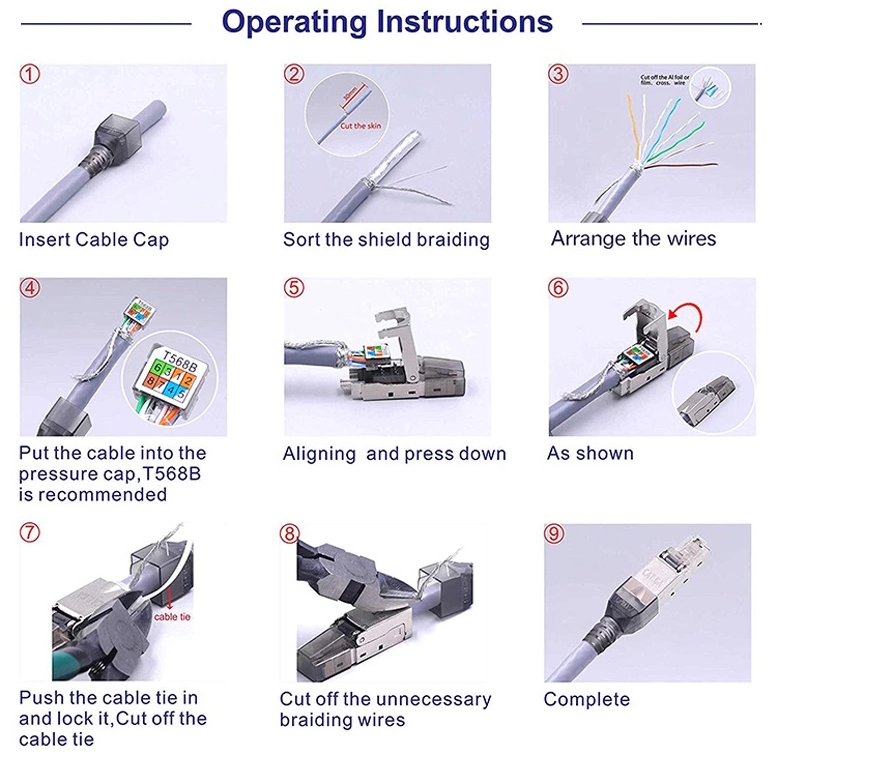

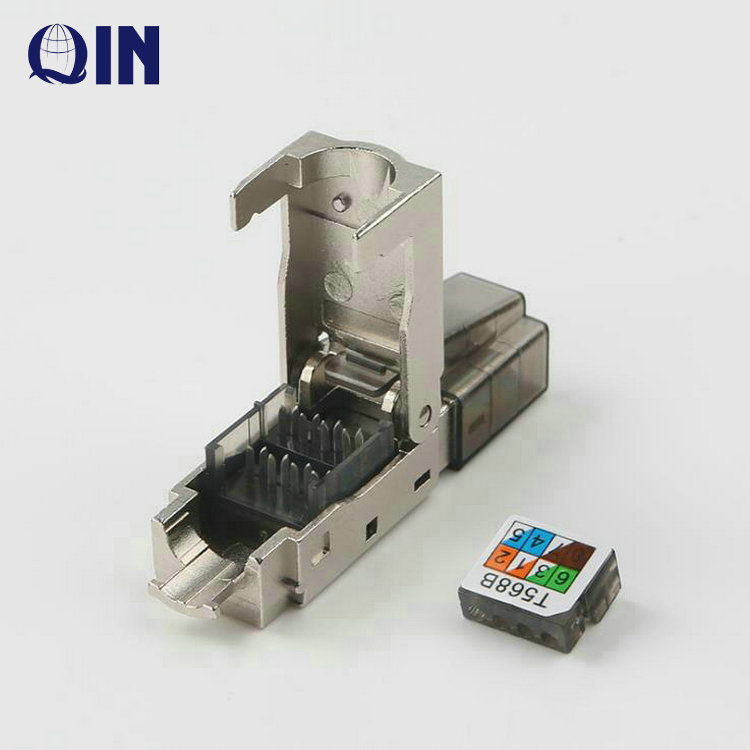

RJ-45 TOOL-LESS modular plug is 8-position 8-conductor (8P8C) and designed for computer networking. The unique toolless design does not require the use of a crimping tool. Simply insert the leads following the color coding, and press down the lid. 568A and 568B color wiring diagram is integrated on the lid for easy installation. The modular plugs are manufactured from high-impact clear poly-carbonate to withstand everyday wear and tear. You can except error-free data transfers.
• Modular Plug RJ45 Cat. 6A
• Easy to assemble without tools
• Shielded
• Complies with EIA/TIA 568B.2-10
• Use with solid round cable AWG 23 - 26 and stranded cable AWG 24 - 26
• Suitable for 6 to 9 mm diameter cables

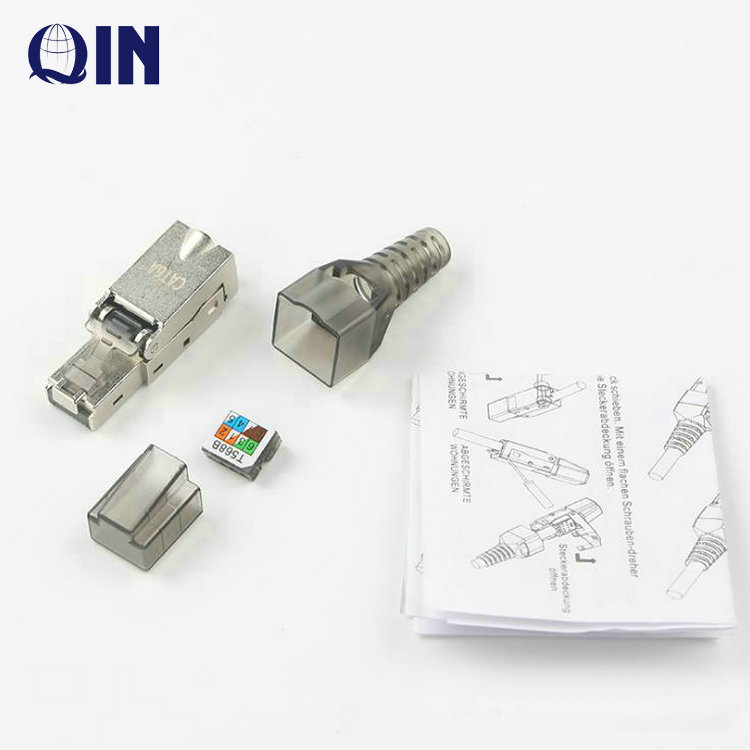

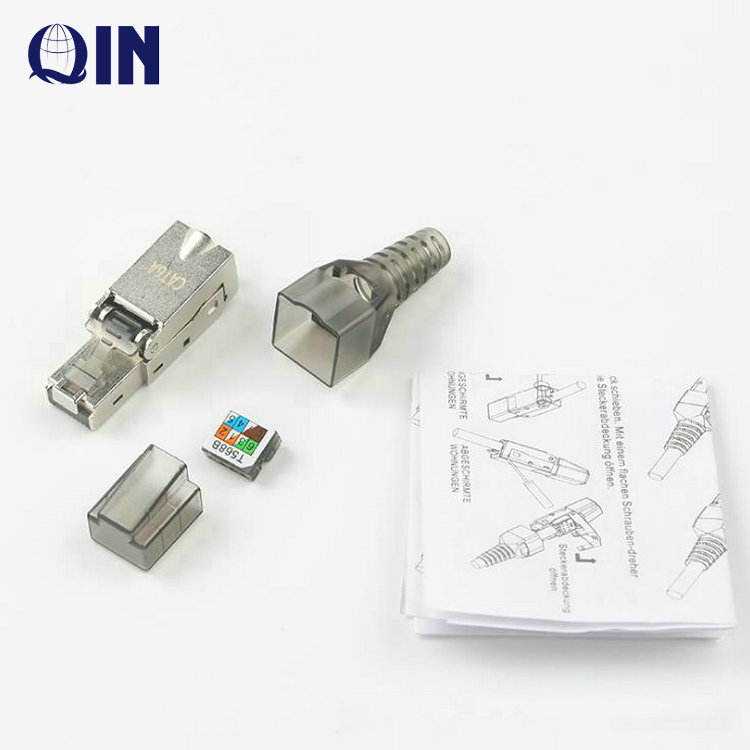

• Cover and cable gland included
Type: Toolless and don't need any tool, easy install.
Conductor: Meets Cat6a and Cat7 Big Cable. OD 1.35mm is available.
Gold Plating: 50u" ( the best gold plating)
Easy Assembly terminate in field in minutes without special tools. Load Bar for Faster and Easier Wire Pattern Termination
Supports Power over Ethernet (PoE, PoE plus, and UPoE)
Wire Connection: Stranded wire AWG 27/7 to 22/7, wire diameter from 0.46 to 0.76 mm or Solid wire AWG 26/1 to 22/1, wire diameter from 0.4 to 0. 76 mm
Complies with class Ea to ISO/EIC 11801 Ed.2.2.2011-06, DIN EN 50173-1:2011-09 10 Gbit IEEE 802.3an
