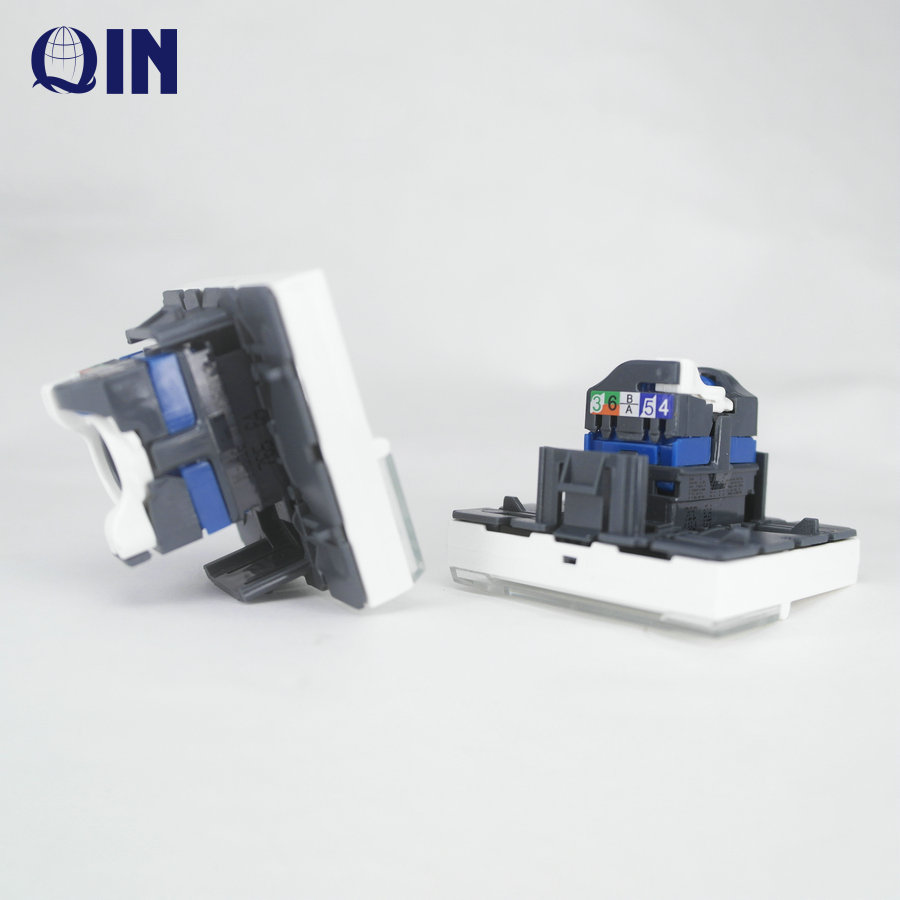

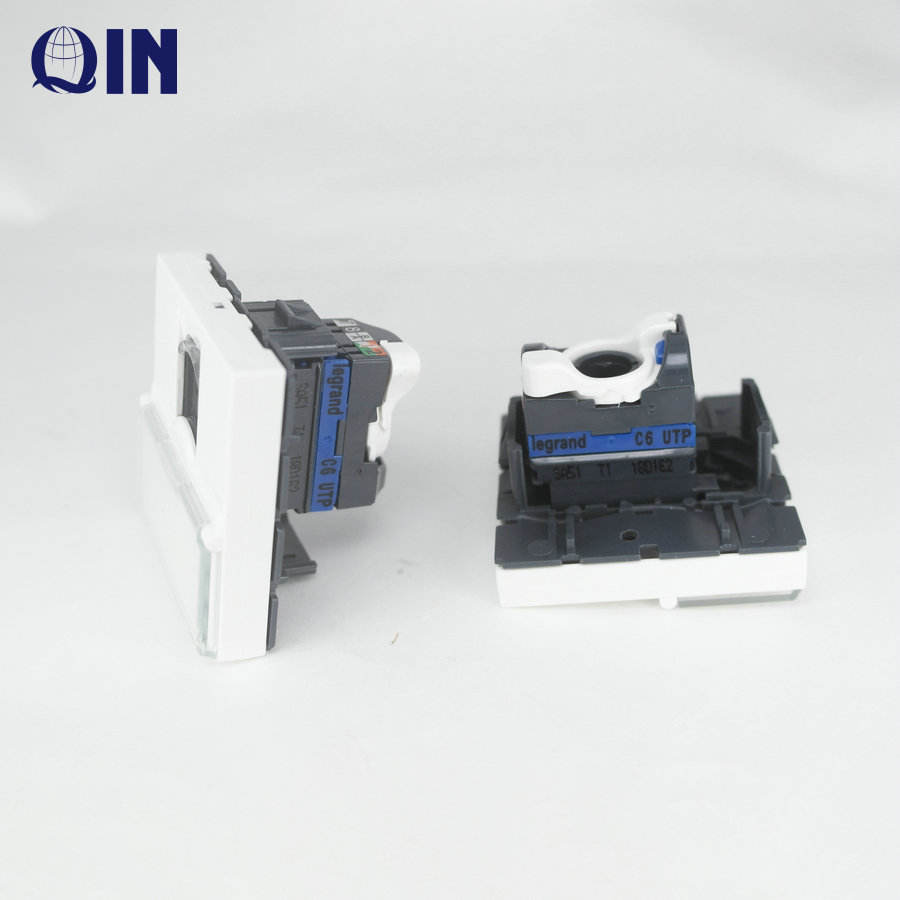

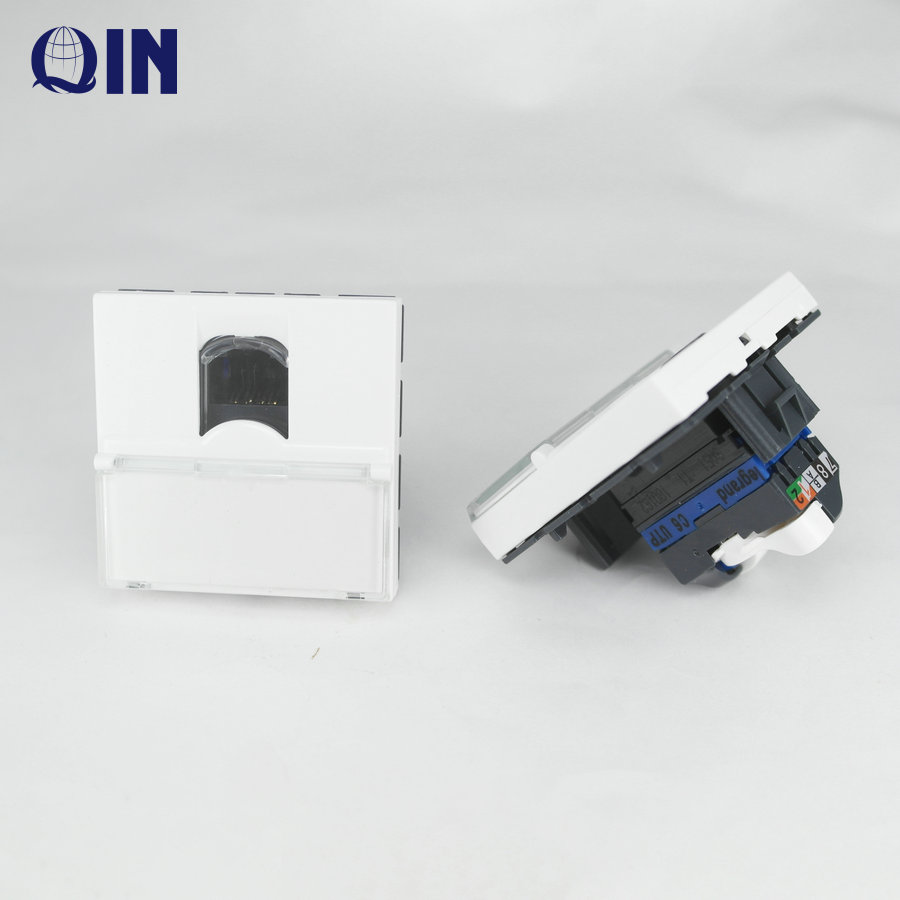

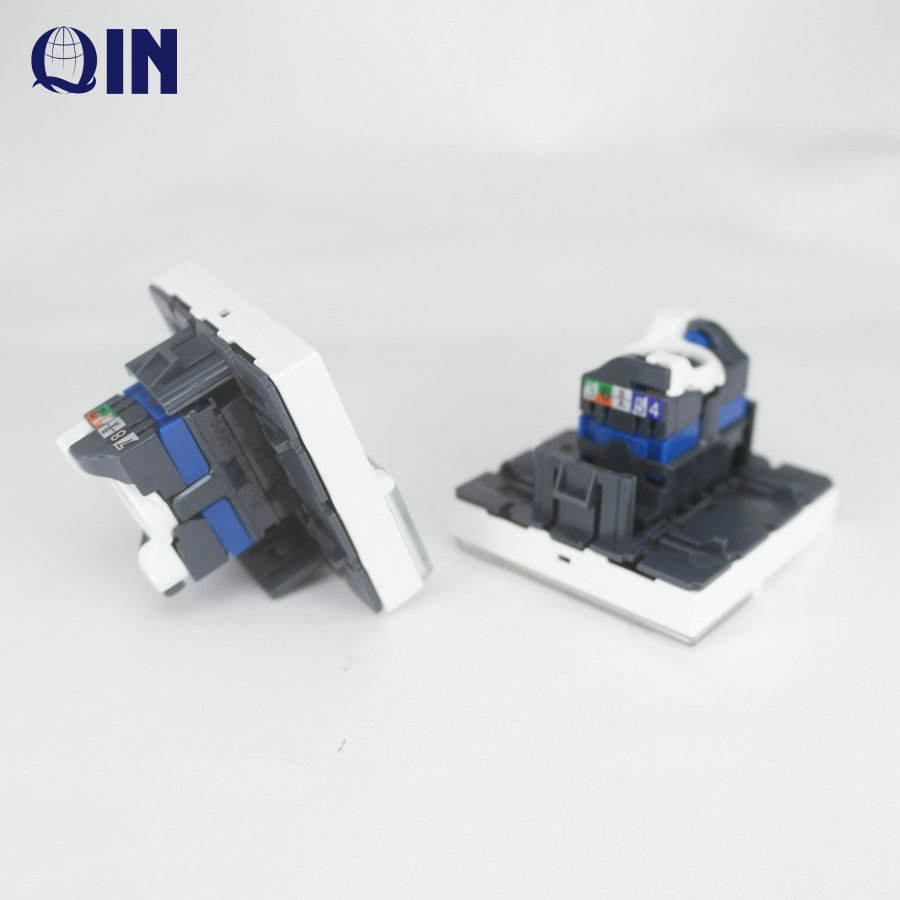

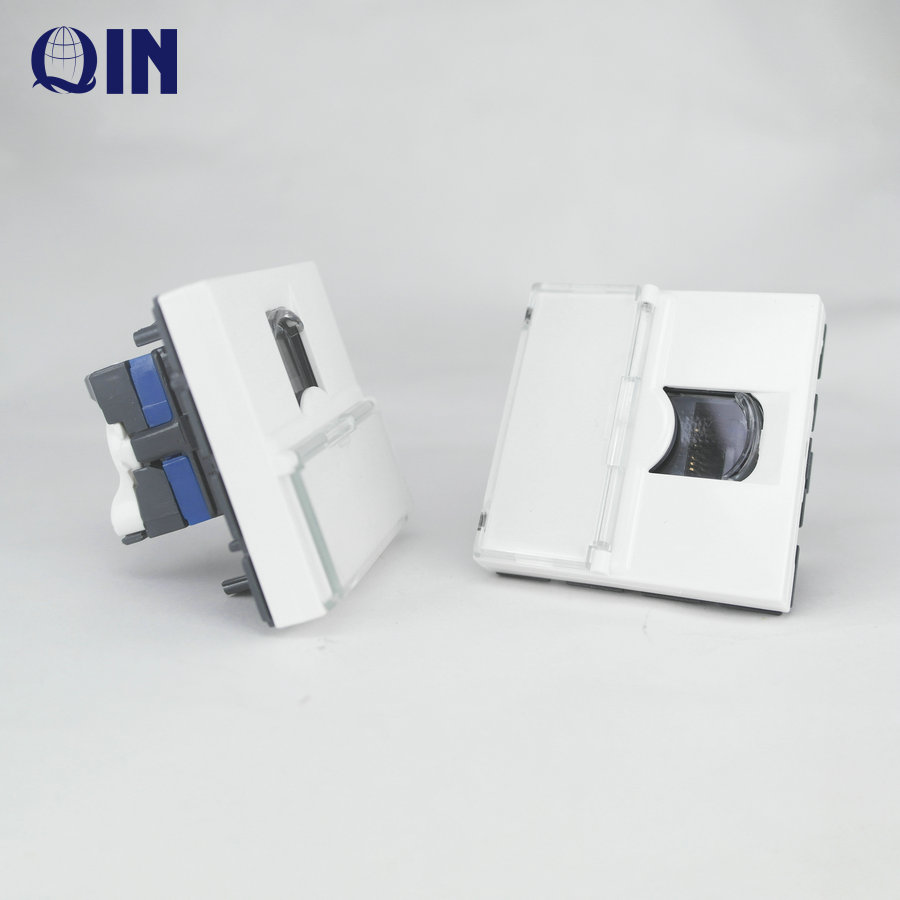

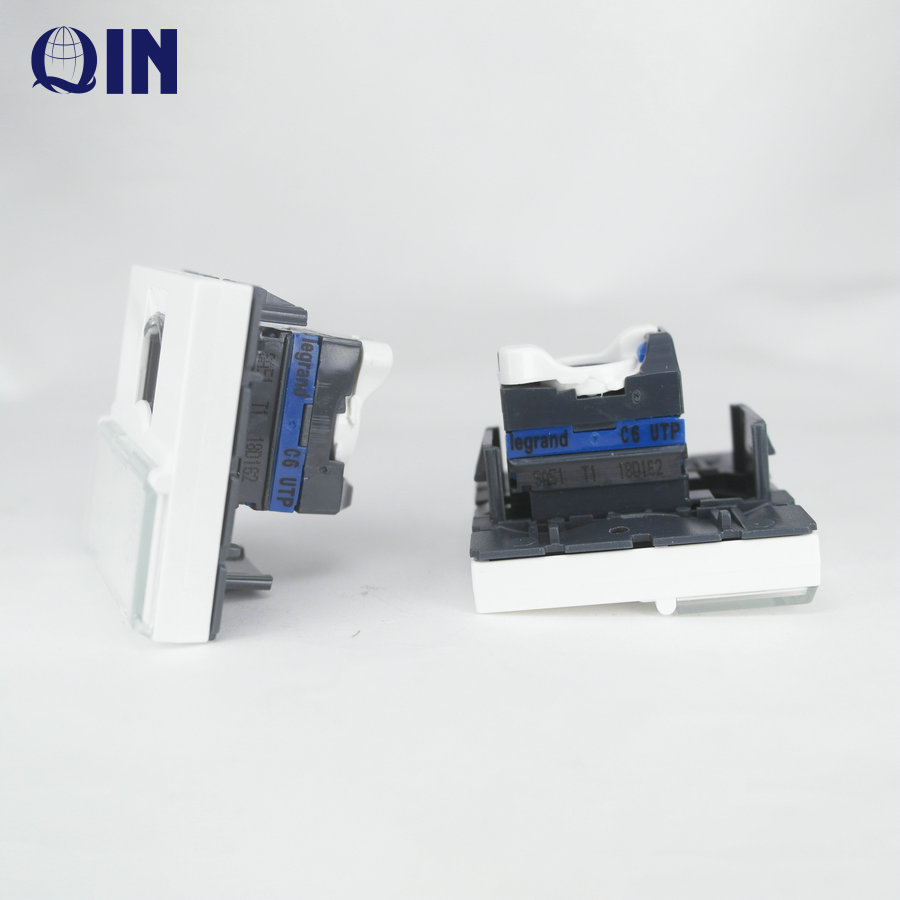

Single Module Cat6 French Type Toolless 6U Gold Plated Keystone Jack Faceplate 76564 RJ45 45*45mm wall outlet
Industry-specific attributes
| Brand Name | QIN/RUBY/OEM |
Other attributes
| Place of Origin | Guangdong, China |
| Model Number | 76564 |
| Package | As the customers' requirements |
| Type | RJ45 |
| Application | Structure Cabling System |
| Category | Cat 6 |
| Name | RJ45 face plate |
| Certificate | ISO 9001 |
| Color | White |
| Model No | 76564 |
Material:
1. Housing:High Temperature Thermoplastic
2. Covered with Metal that provides Well Anti-EMI Performance
3. Contact:Phosphor Bronze , Phosphor Bronze with 6U" Gold Plated.
4. Available in Cat5e, T568A, T568B Wiring, Meeting Every Cable Requirements
5. Accept 22-26AWG Solid with an Insulation Diameter of 0.4-0.6mm
6. Easy to be terminated, Low Attenuation Loss and High Return Loss
7. High Reliability and Superior Performance.
Features:
• Contact Resistance:≥2.5m Ohm
• Contact Resistance of Linker and Lead:≤2.5m Ohm
• Insulation Resistance:≥1,000m Ohm
• Withstand Test Voltage:DC 1,000V
• Times of Repetitive Use:≥750 times
• Designed and manufactured in accordance with ISO Standards
• Design Exceeds Normal Requirements
• Colored Component Combinations for Convenience of Identification and Network Management
• Many other message modules available for Wiring Arrangements
| Name | Faceplate |
| user for | Cat6/Cat6a Jack Face Plate,Shielded Toolless Single Module,French Type.Size:45*45mm |
| Port | 1 Port |
| MOQ | 1000 Pcs |
| Color | White standard FACEPLATE |
| Application | Network/Telecom face plate |
| Category | Cat6A RJ45 face plate |
| Size | 45X45mm |
