Industry-specific attributes
| Brand Name | QIN/RUBY/OEM |
Other attributes
| Place of Origin | Guangdong, China |
| Model Number | Keystone jack |
| Package | As the customers' requirement |
| Color | slivery |
| Jack Type | RJ45 |
| Model Number | RJ45 cat6a keystone jack |
| Certificate | CE ROHS ISO9001 |
| Application | Telecom cable Installation |
| Material | Stainless Steel |
Product characteristics:
•Performance is more superior than TIA/EIA568-C requirements for cat6e
•50 micro-inch gold plating pins
•The circuit board using FR-4 A1CCI (military)
•The special structure of "Die-casting" technology

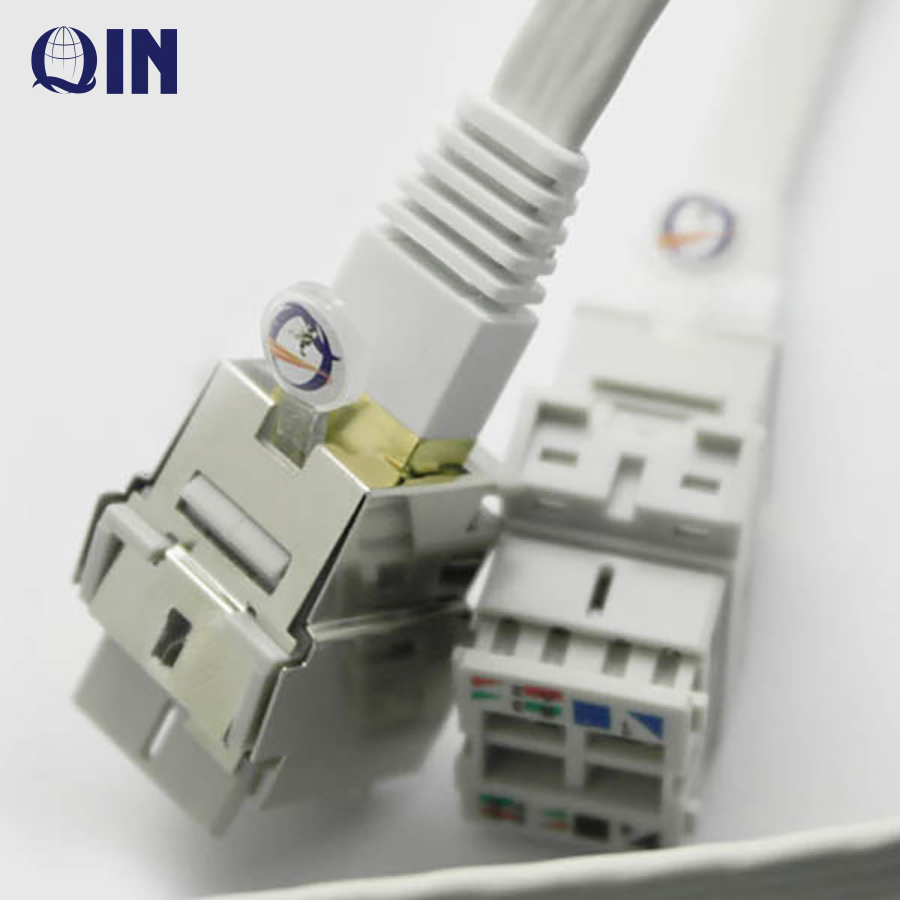

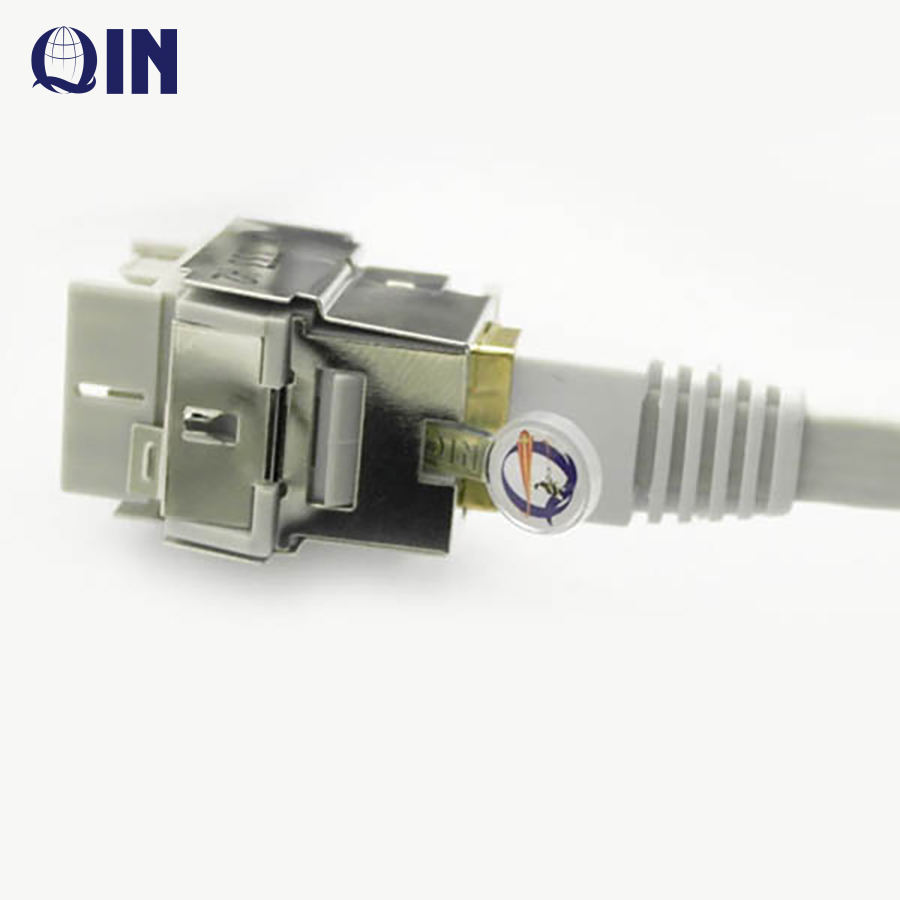

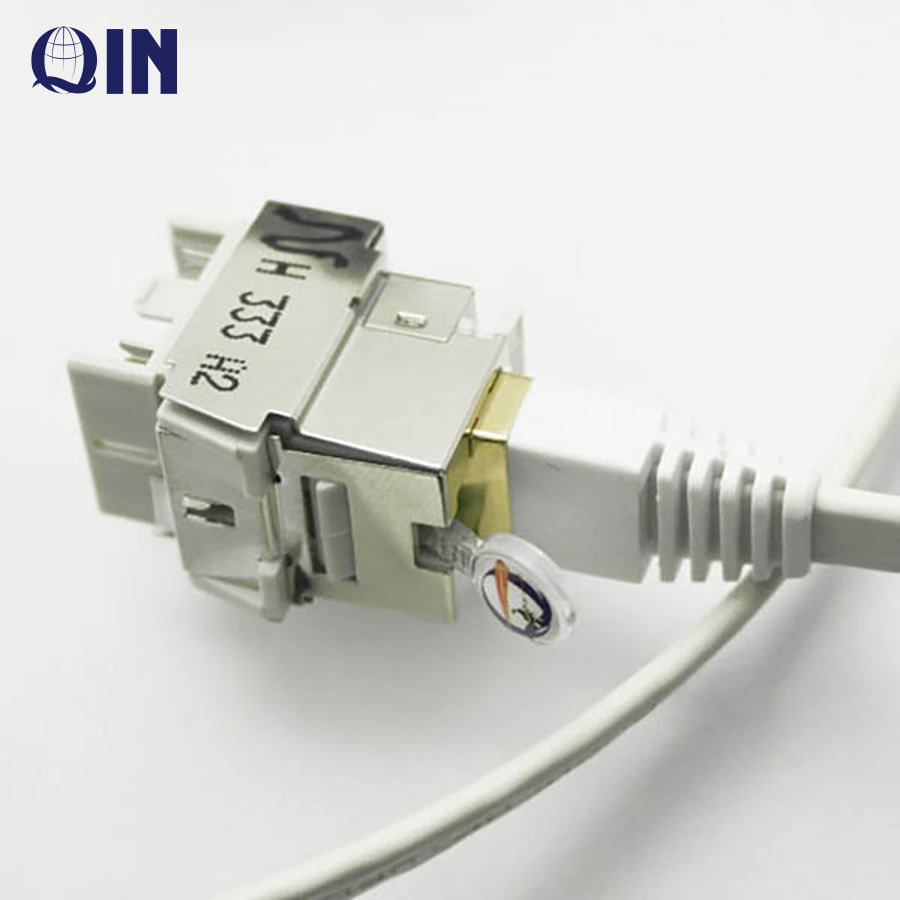

•Die-Casting 180° shielding module made of zinc alloy can achieve 360° Completely shielding, effectively prevent EMI/RFI interference
•Supporting T568A and T568B wiring modes

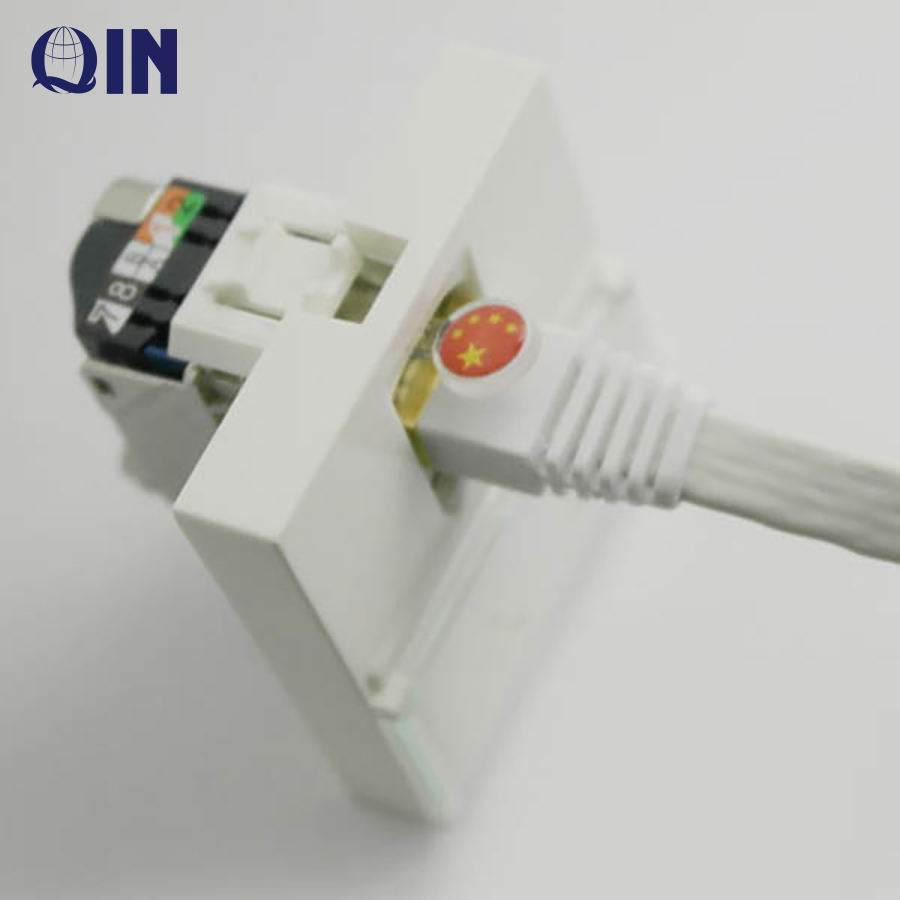

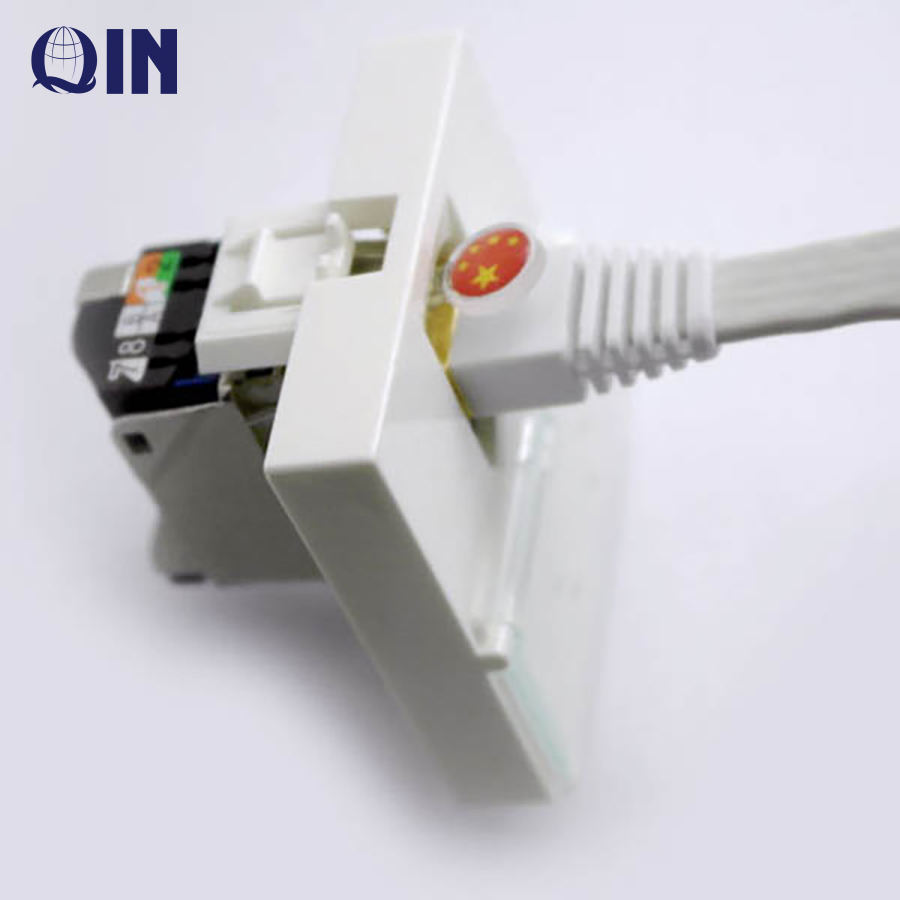

•Can be installed on the modular distribution frame and the panel of the working area
•The compressive strength of DC: 1000V (AC: 750V) no breakdown and flashover phenomenon within 1 min
•Plug/unplug life cycle >2000
•Termination life cycle >750
•IDC – terminal: phosphor bronze, for 22 ~ 26AWG single strand wire and stranded cable;
•500MHZ bandwidth
•Tool free connection makes the wiring easy and quick.
Features:
• TIA/EIA-568-B.2-10,IEEE802.3an for 10GBASE-T requirement.
• 3P verified for 10G Cat.6A 2-Connector Unshield Cabling Solution.
• ISO11801, EN 50173-1 Class EA Specification.
• Complies with CISPR/FCC Class A.
• Flame retardant rating :UL94V-0
Application range:
1000 BASE-T Gigabit Ethernet; 100 BASE-T Fast Ethernet; 10 BASE-T Ethernet; voice, video and other applications in the network work area of voice, data information connection.
Executive standards:
YD/T926.3, ISO/IEC11801, T1A/EIA568-C
