Industry-specific attributes
| Brand Name | QIN/RUBY/OEM |
Other attributes
| Place of Origin | Guangdong, China |
| Model Number | C-KJ-6016H8C5E |
| Brand | QIN/RUBY/OEM |
| No. of Contacts | 8P8C |

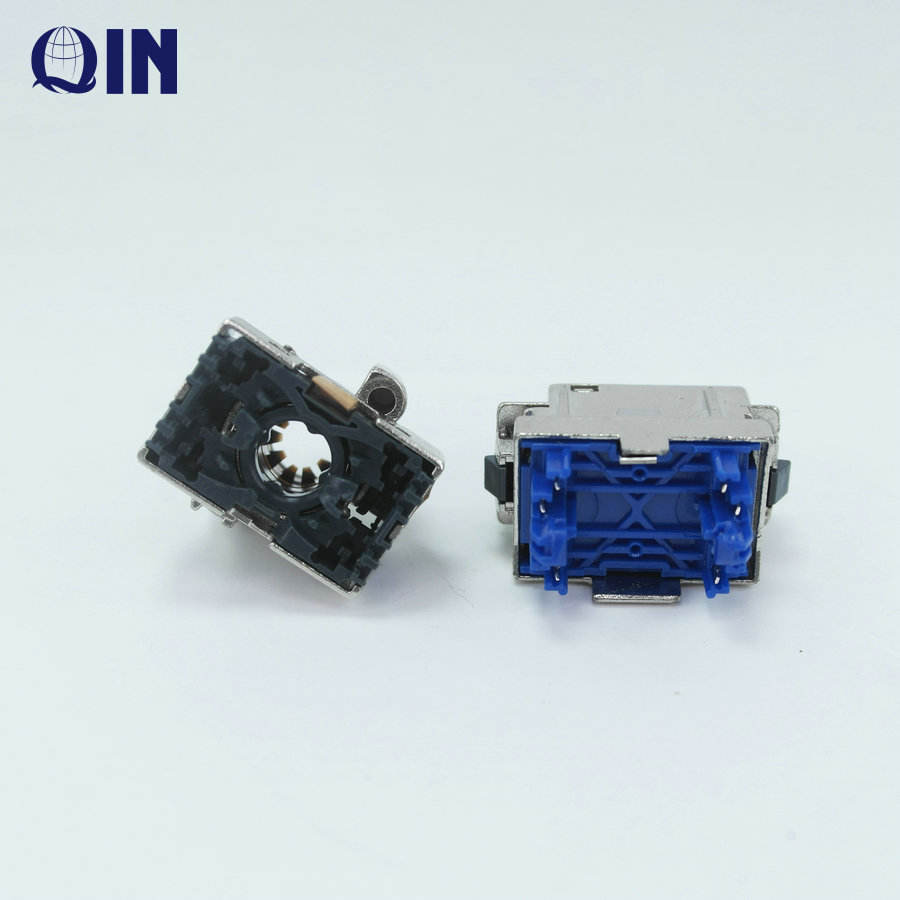

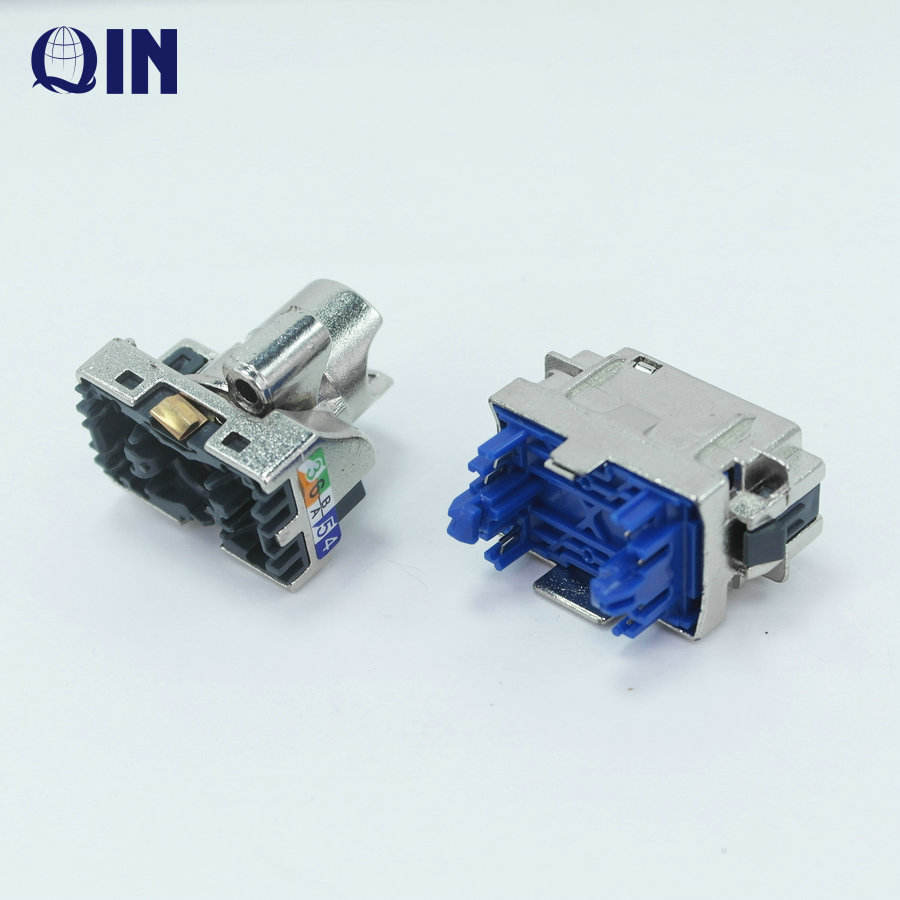

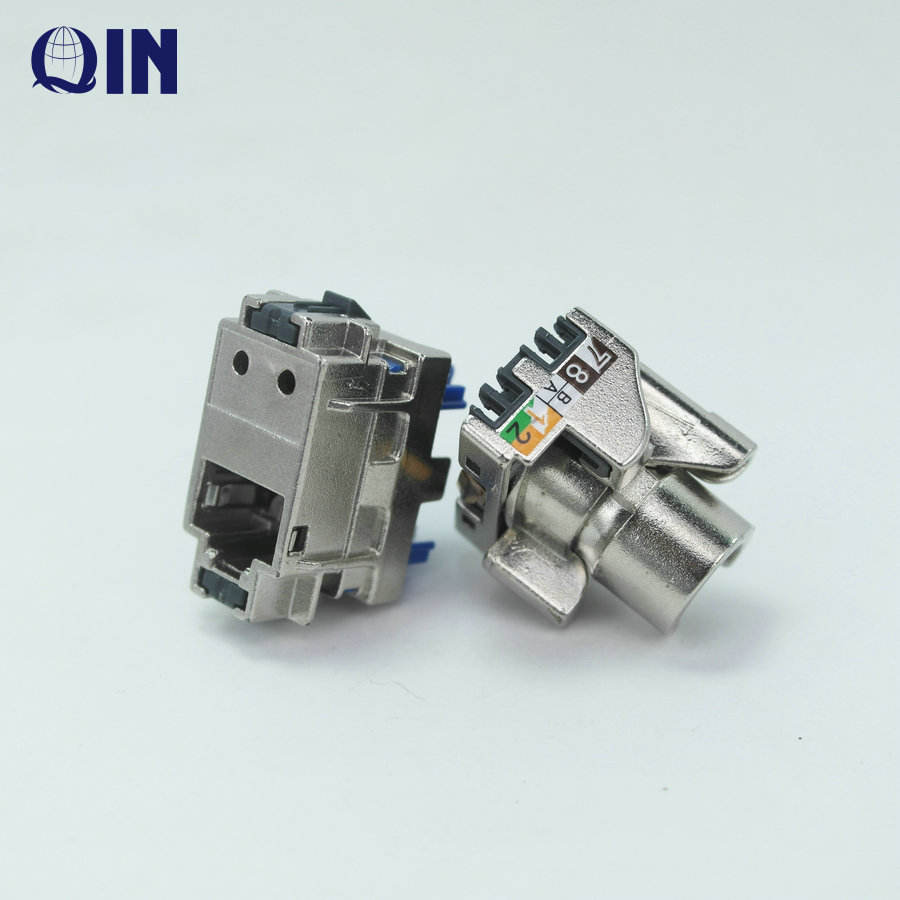

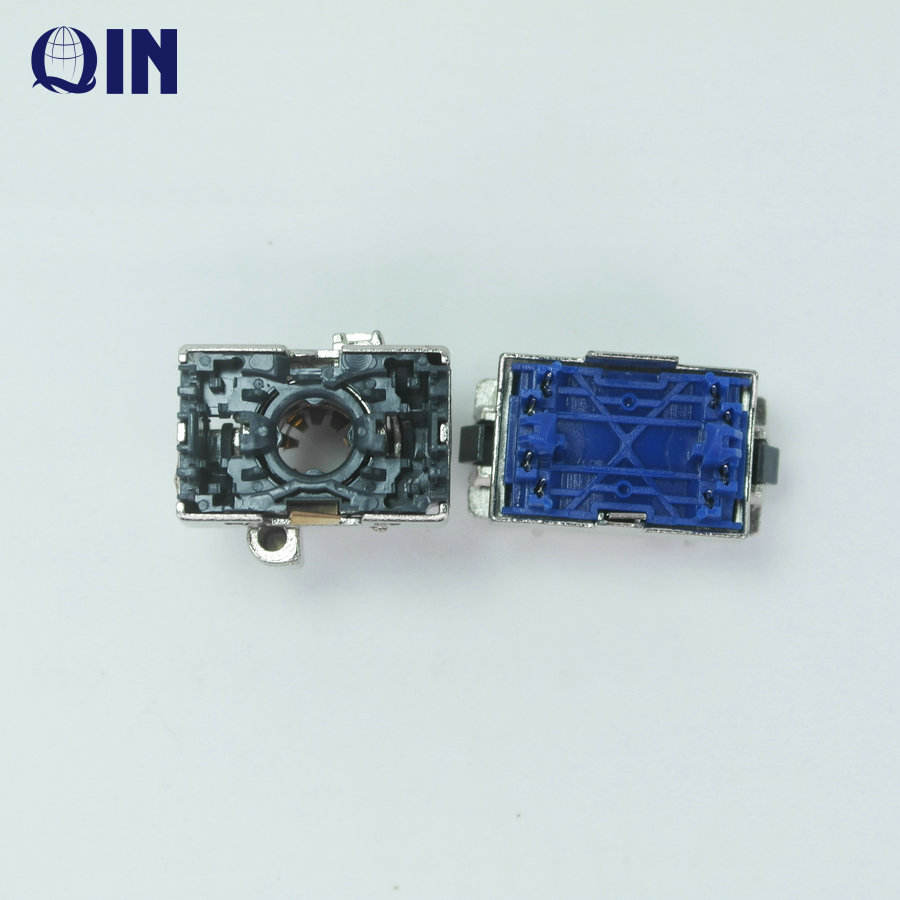

| Product Name | Rotary Cat6a SFTP RJ45 Module |
| Color | Same as Pic. |
| Application | For Cabling System |
CAT6A Performance Speeds of up to 10G
8 Pin x 8 Conductor for Streamlined Connection
High-Density, Slim Profile
Zinc Die-Casting With Nickel Plated Housing Provides Additional Protection Against the Elements and EMI and Alien Crosstalk
Reliable Connector, and Durable Housing
Gold-Plated Nickel Contacts Provide Corrosion Resistance and Signal Conductivity
Easy to Read Wiring Label to Facilitate Installation
Meticulously Engineered to Deliver Exceptional Performance While Streamlining Installations
Small Form-Factor for High-Density Installations
Phosphor Bronze IDC Contacts Ensure Excellent Conductivity, Durability, and Outstanding Resistance Against Wear or Corrosion
Innovative Jack Design Keeps Pairs Together to Streamline the Installation Process
Suitable For Shielded Solid & Stranded 23 AWG to 26 AWG Wire
T568A & T568B Wiring
110 & Krone Punch Down Compatible
Tool-Less Termination When Using The IDC Cap
Meets and Exceeds ANSI/EIA/TIA 568 C.2 Standards
| Product name | CAT6A keystone jack | Material | Zinc housing and UL-94V0 PC |
| Jack Model | RJ45 | Standards | TIA/EIA 568-C-2.1 FCC PART68 |
| DC Resistance | Max.0.1Ω | Cetificate | CE, RoHS, ISO9001 |
| Dielectric Withstand Voltage | 1000VAC RMS@60Hz | Contact Resistance | 20M.Ω |
| Insulation Resistance | 500M.Ω | Plug insertion force | 17KG(MIN) |
| Current Rating | 1.5Amps | IDC | 22-26 AWG WIRES |
| Plug insertion life | 750 cycles(MIN) | Insert time | 200 times(Min) |
