Industry-specific attributes
| Brand Name | QIN/OEM |
Other attributes
| Place of Origin | Guangdong, China |
| Model Number | Cat5e Keystone Jack |

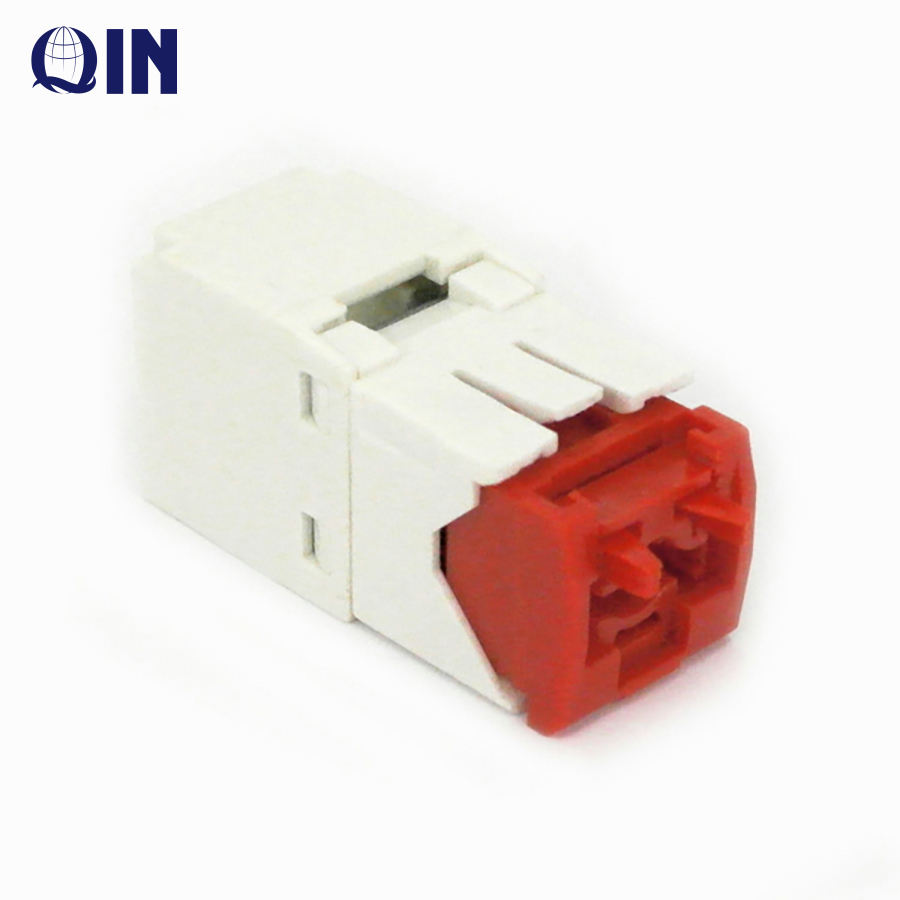

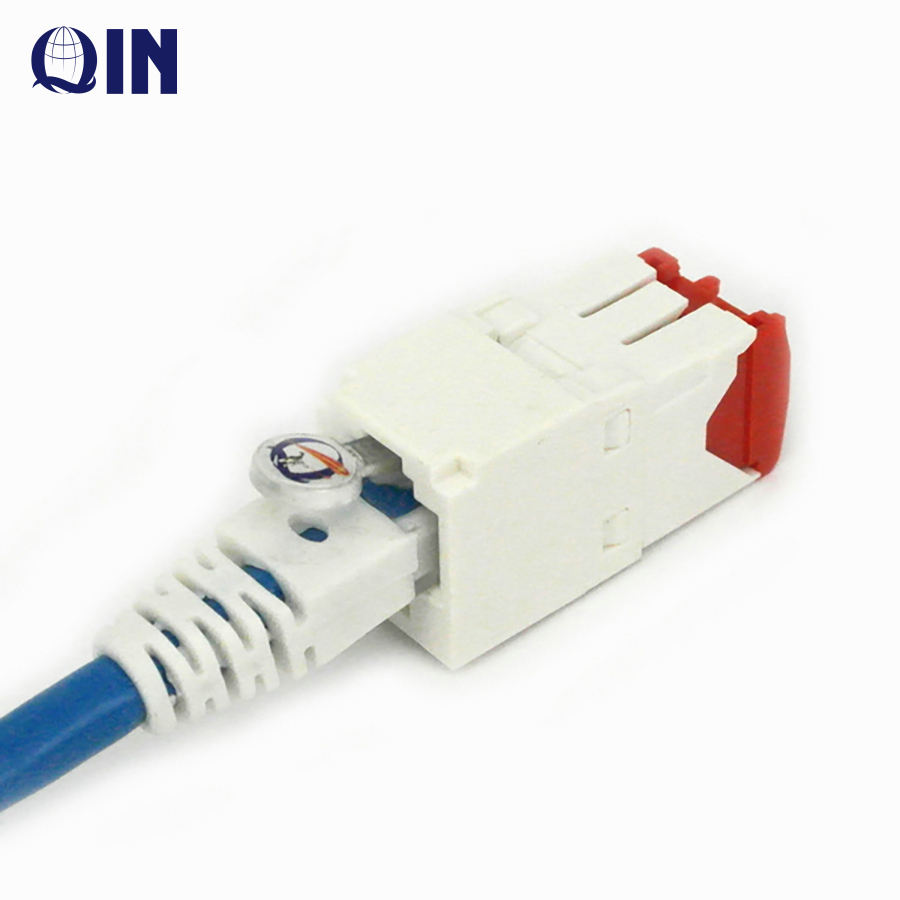

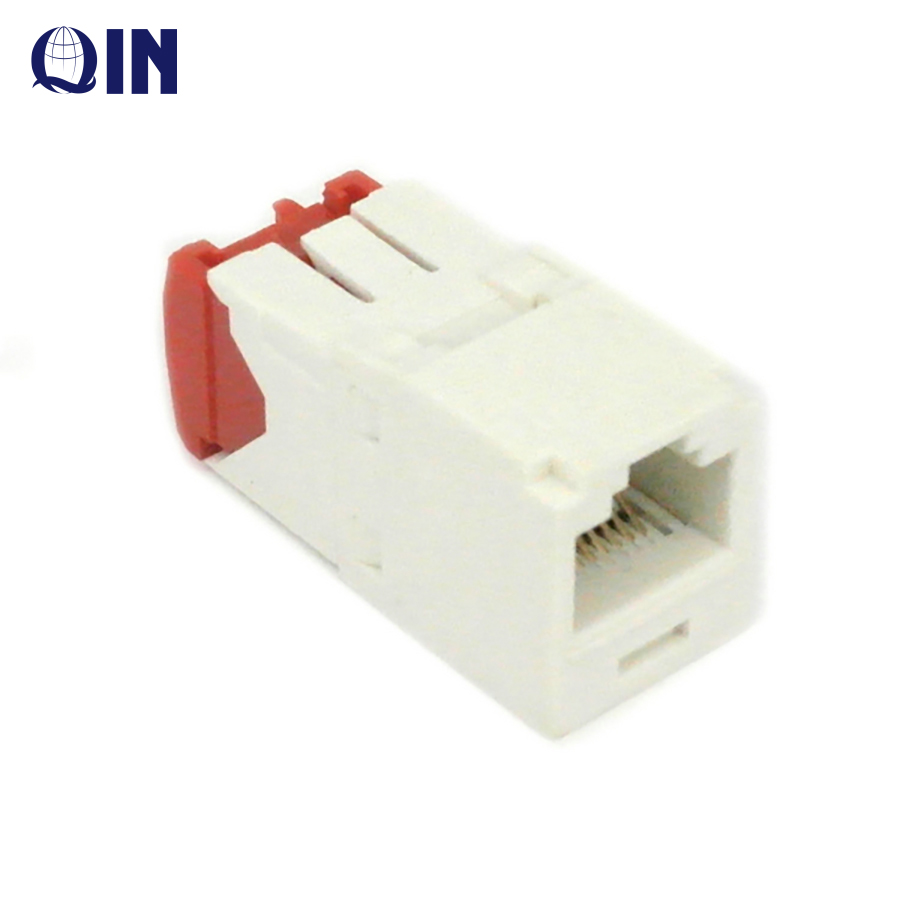

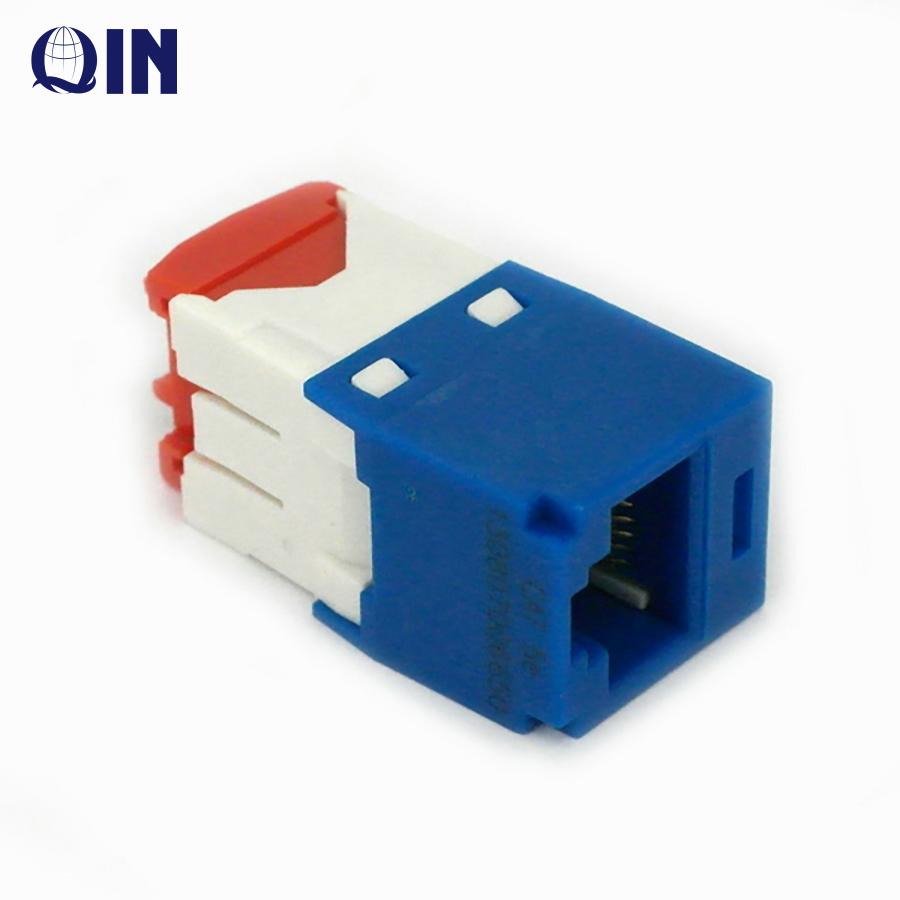

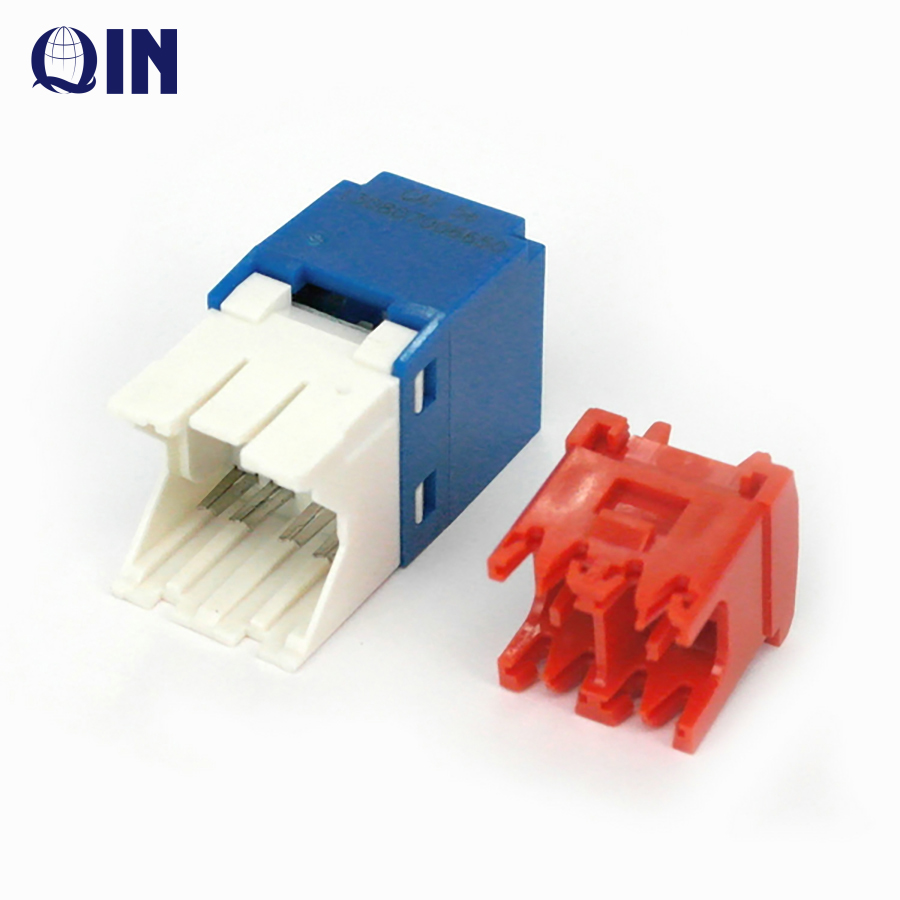

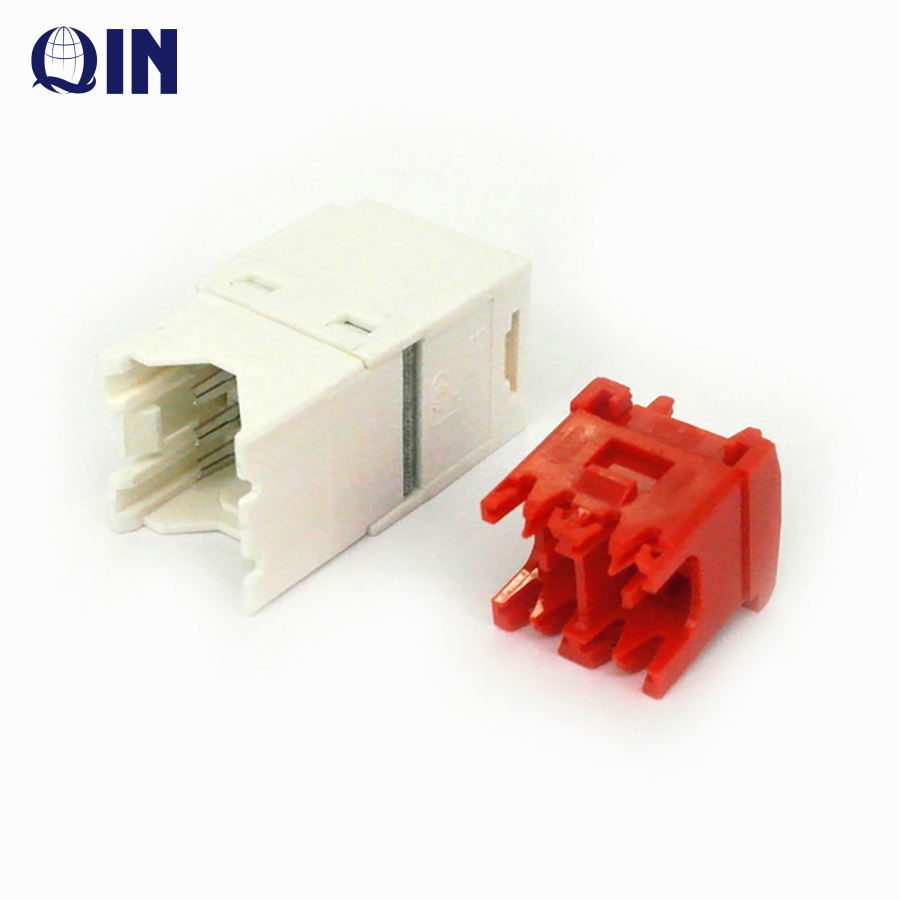

| Product Name | cat5e cat6 toolless keystone jack |
| IDC | Krone,110,Dual |
| Categor | CAT5E,CAT6,CAT6A |
| Certificate | CE,Reach |
| Color | White,Blue,etc |
| Standard | ISO/IEC 11801 ,ANSI/TIA/EIA-568-B |
| Contact | 8 pins 6U Gold-plated |
| Installation | punch down |
| Wire | Phosphor Bronze with pure gold-plated 6u, Flat |
| Quality Test | 100% DTX-1800 Tested |
| Electrinic | Voltage Rating :125 VAC RMS |
| Current Rating : 1.5AMPER | |
| Contact Resistance:110 Milliohs MAX | |
| Insulation Resistance:1 000 megohms MIN 500 VDC | |
| Dielectric Strength :750 VAC RMS 60Hz ,1 MIN | |
| Environment | Storge: -40~ 85°c |
| Operation: 0~70°c | |
| Machanical | Housing Material: PBT-UL90V-0 |
| Panel Fram: Carbon Steel, Powder Coating in black color | |
| Contact Material: PC-UL90V-0 | |
| Contact: Phosphor Bronze with Nickel Plating | |
| RJ45 Jack:IFE:750 times MIN. | |
| IDC Life :200 times MIN. | |
| Wire:AWG 24-26 | |
| Tia Cat.5e Perm Link Test: Worst Pair NEXT Margin ≥3dB | |
| Retentiveness of insertion structure:50N 60±5s |
The wall jack features a high-impact, flame retardant (UL 94V0) plastic housing
Meets and exceeds the international standard ISO / IEC 11801 and the ANSI/TIA-568-C.2 requirements
Dual-type IDC connectors, situated 180° relative to the RJ45 ports, terminated using 110-type punch tool
Color coded for both T568A and T568B installations
The Cat6 Keystone Jack is designed to snap into wall plates, patch panels, and surface connection boxes for quick, seamless deployment.
Meeting and exceeding the international standard ISO / IEC 11801 and the ANSI/TIA-568-C.2 requirements, this RJ45 keystone jack provides the perfect solution for your Ethernet networks.
Durably constructed of only top quality materials, this Cat6 wall jack is backed by 2 year warranty.
Contact Material = Phosphor Bronze stamping pin at thickness of 0.35mm
Contact Mating Area Plating Material = Gold plating option (3U",6U",15U",30U",50U") over Nickel
PCB material: FR-4 T=1.6mm
IDC contact material: Phospor Bronze at thickness of 0.5mm and Nickel plating
Housing Color = White, Black or According to Customers' request
Housing Material = ABS or PC
Housing Flammability Rating = UL 94V-0
Workable wire gauge: AWG 22~26
Industry Standards:
RoHS compliant
TIA/CAT6
568A/568B
Angle: 180Degree or 90 degree,fit for loading a full STP/UTP 24/48 port patch panel
Termination: Dual IDC Type.
