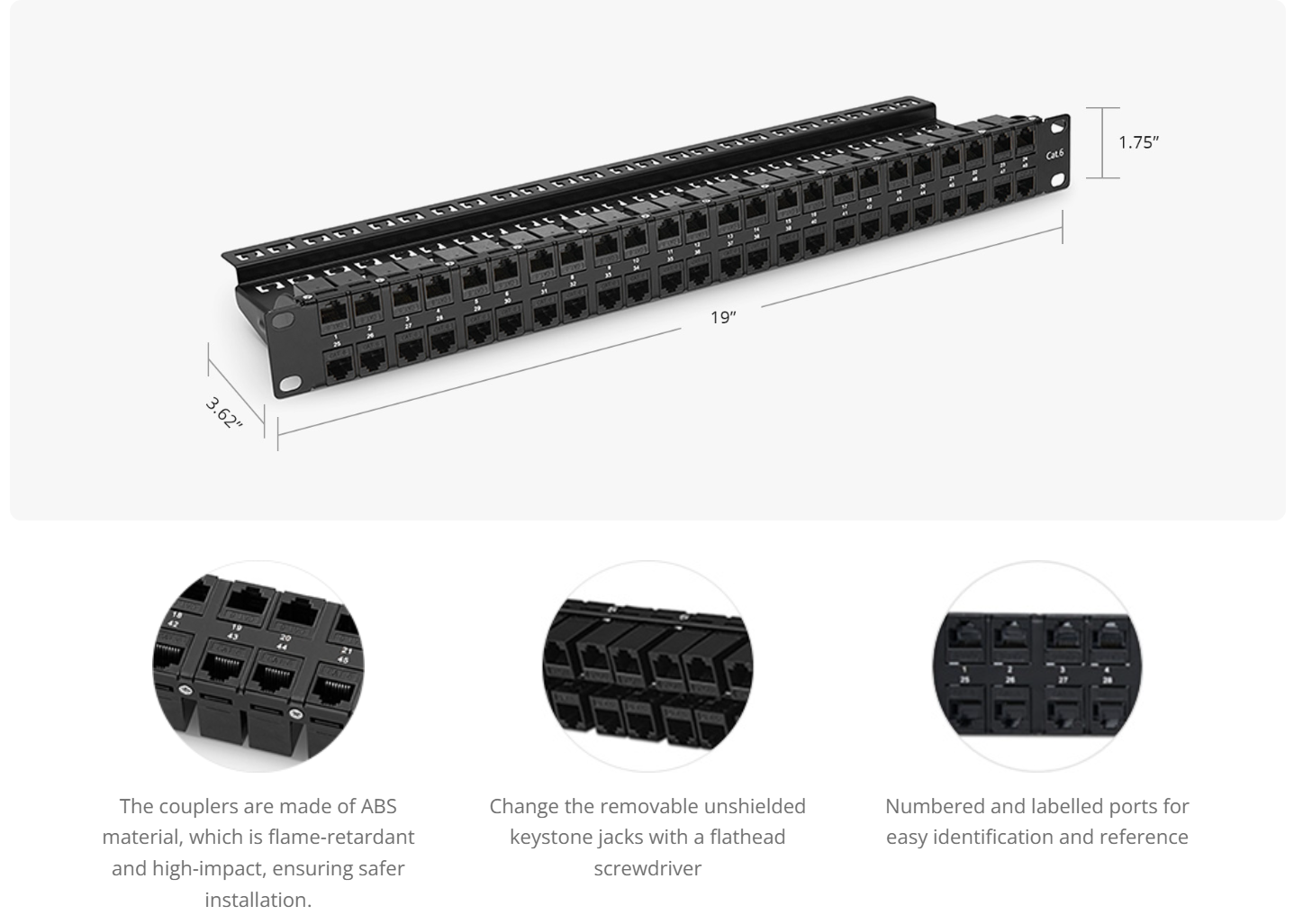

Flat Full Loaded Cat6 UTP Coupler Patch Panel ,48-Port, 1U, Cable Management Bar Included, Black
Product Highlights
Support 1G/10G-T Speed and PoE/PoE+/PoE++ (IEEE 802.3af/at) up to 100 Watts
High Density for More Modules Per Rack Space
ISO/IEC11801 and TIA/EIA568 Standards at Swept Frequencies 1 to 250 MHz
Compatible with Cat5e/6 UTP Couplers Snap In and Out of the Patch Panel for Easy Moves, Adds and Changes
24K 50μ'' Gold-plated Contacts with Stable Transmission Performance
48-port Cat6 patch panel for high density and easy patching solutions in data centres. Maximize space with the high density patch panel.
The Cat6 Ethernet patch panel is designed for use in 19'' racks and ideal for 10/100/1000Base-T and 10GBase-T Ethernet applications. The patch panel performance exceeds the TIA Category 6 Patch Panel Standards. Backwards compatible with 6/8p RJ45 UTP patch cords and Cat5e UTP couplers with T568A/B wiring schemes.
The patch panel bundles the networks together to connect incoming and outgoing lines and improve the organisation of a wired network. The optional labels and icons on the front and back of the network patch panel enable quick and easy port identification of cable runs, and the detachable cable management bar keeps Ethernet cables neat and tidy. Cable ties for strain relief are included.
Specifications
Ingenious Design, Flexible Cabling
This panel delivers excellent performance and facilitates quick and easy installations, and it is the ideal way to create a standards-based, flexible, and reliable copper platform in your data centre.
Up to 10G Speed via 24K 50μ'' Gold Plated Contacts
RJ45 patch panel is equipped with 24K 50μ'' gold plated inline keystone jacks which provide 1/10G speed.
Ideal for High-Density and Easy Patching Solutions
48-port Cat6 patch panel for high-density and easy patching solutions in data centres. Maximize space for more modules per rack with the high-density patch panel.
Widely Compatible with Cat5e/Cat6 Cabling
This Cat6 feed through patch panel is widely compatible with Cat5e/Cat6 Couplers/Cables, ideal for Ethernet, Fast Ethernet and Gigabit applications. Meets ISO/IEC11801 and TIA/EIA568 Standards at Swept Frequencies 1 to 250 MHz.

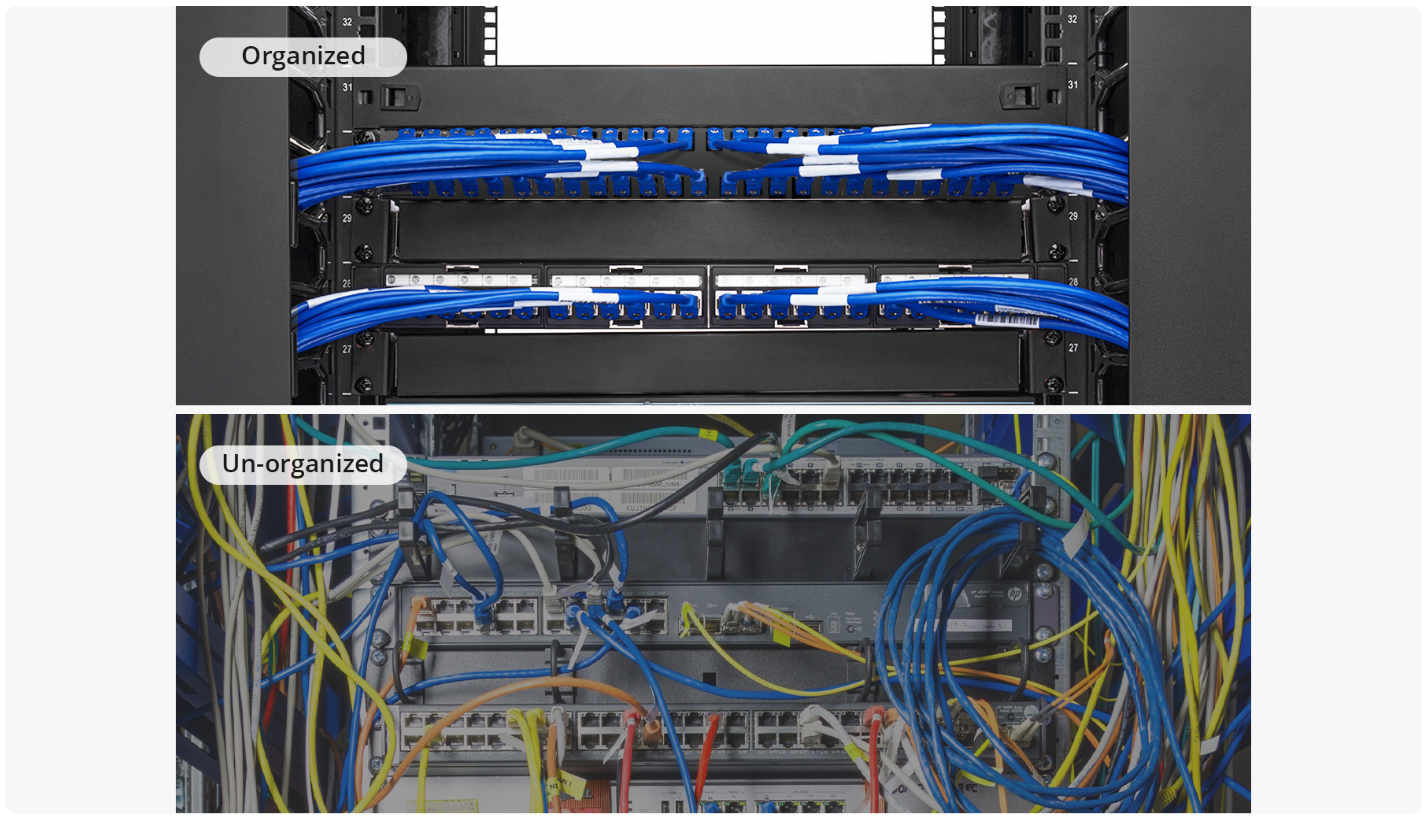

Clean up the Look of Your Rack in 10 Minutes

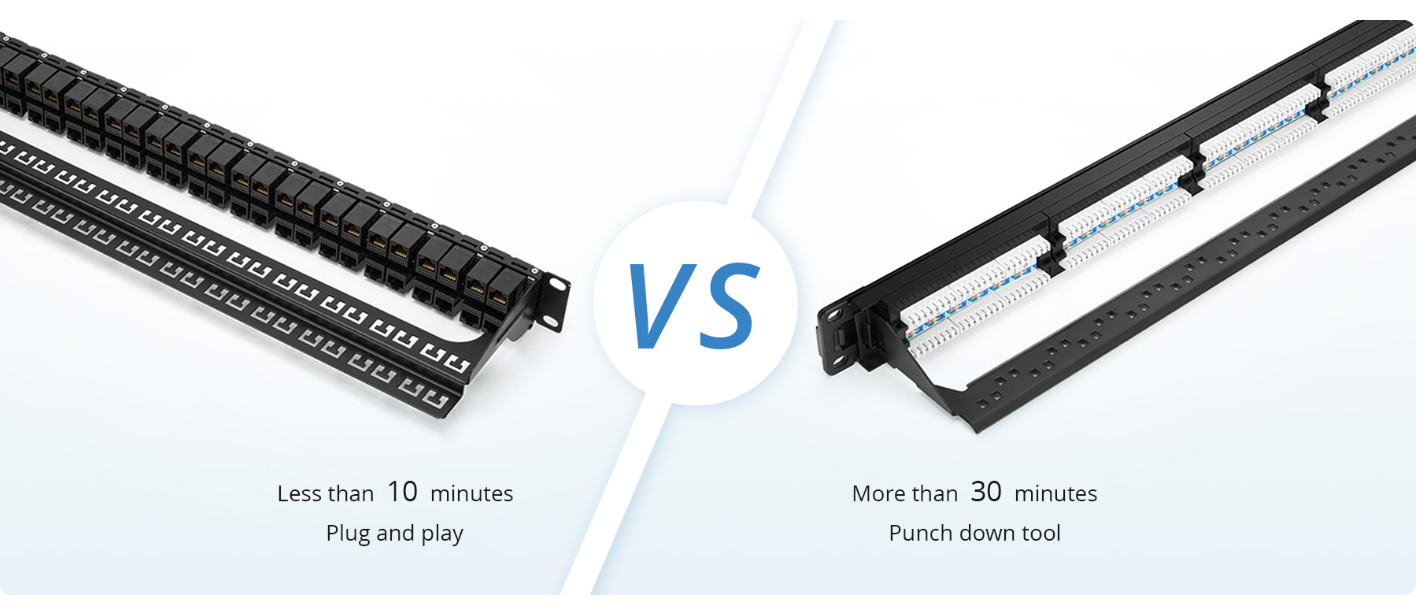

Inline modular patch panel is much better than punching down keystones. These Cat6 patch panels were easy to install and use. Pass-through design is more friendly to non-professional people since it uses terminated cables and plugged directly into switches. Coupler patch panel lets you not have to spend time wiring Cat5e/6 in order to get your system up and running.
Built for Easy Use, Reliable Connectivity
This Cat6 patch panel contains a detachable back bar. With cable ties, the back bar helps with cable management and takes some stress off the coupler, improves the working stability of the network connection port, and avoids keystone losses and the occurrence of network failures.

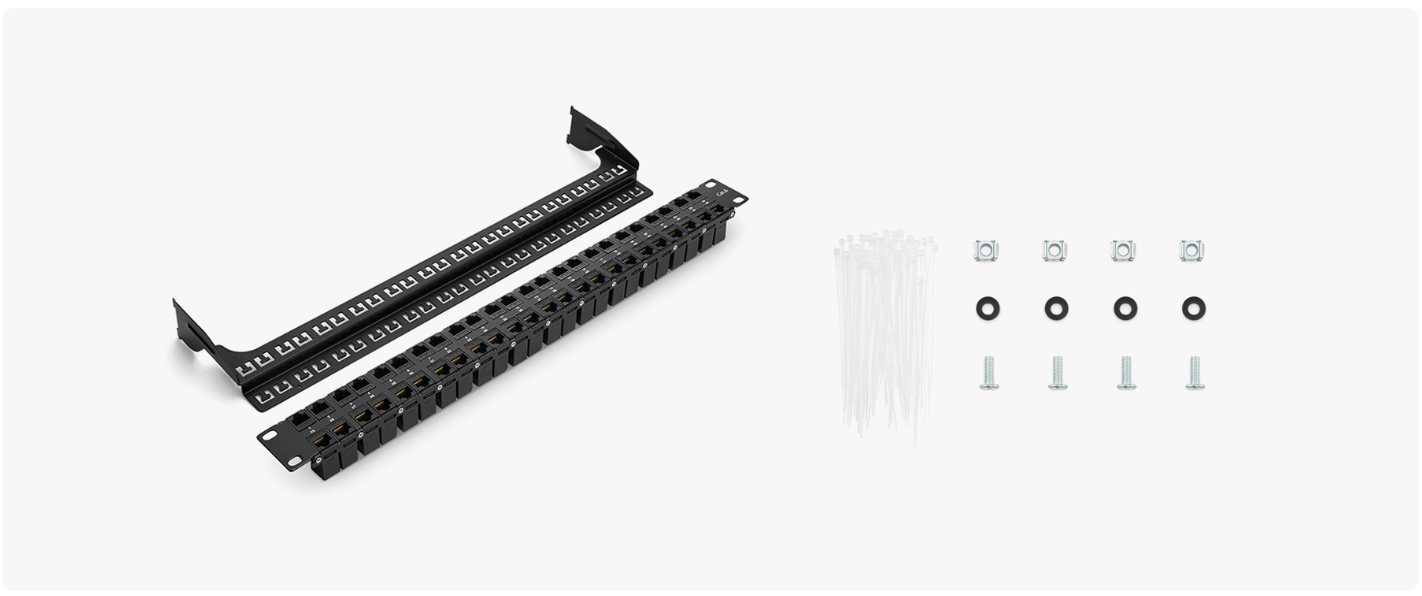

Accessories Included
The package includes 48x Cat6 keystone coupler, 48x cable tie, 4x screw, 1x 48 port keystone patch panel and 1x detachable back bar.
