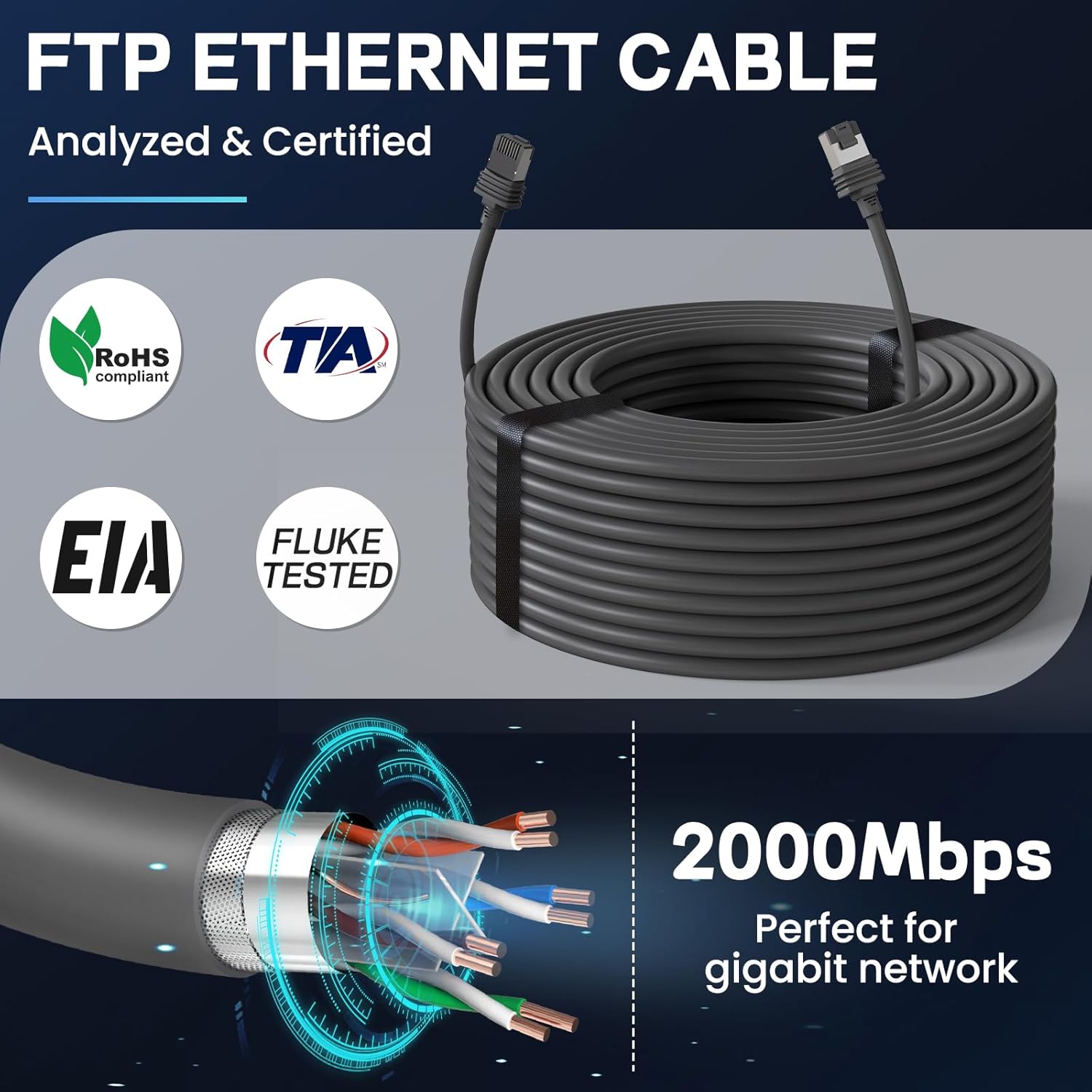

Cat8 Shielded Network Patch Cord

　　The Cat8 (Category 8) shielded network patch cord is a premium copper cabling solution engineered to deliver the highest performance available in twisted-pair technology, making it ideal for enterprise networks, data centers, and high-performance computing (HPC) environments that demand ultra-fast, low-latency connectivity. As the latest copper category standard, Cat8 supports a maximum bandwidth of 2000 megahertz (2GHz) and data transmission speeds of up to 40 gigabits per second (40Gbps) over distances of up to 30 meters—more than enough to handle bandwidth-intensive applications such as real-time AI/ML training, 8K video streaming, large-scale database migrations, and high-frequency trading. What sets Cat8 apart from lower-category copper cables (e.g., Cat6a, Cat7) is its robust shielding, which provides exceptional protection against electromagnetic interference (EMI) and radio frequency interference (RFI), ensuring signal integrity even in the most crowded network environments.

　　The shielding design of Cat8 patch cords is typically SFTP (Screened Foil Twisted Pair) or SSTP (Screened Shielded Twisted Pair), both of which combine multiple layers of protection. SFTP Cat8 cables feature an inner foil shield around each individual pair of twisted copper conductors and an outer braided shield (usually made from tinned copper) that surrounds all four pairs. The inner foil shield eliminates crosstalk (signal leakage between pairs) and blocks localized EMI, while the outer braided shield acts as a barrier against external interference from sources like power distribution units (PDUs), server fans, and adjacent high-voltage cables. SSTP variants add an extra layer of braided shielding, further enhancing interference protection—making them ideal for industrial data centers or enterprise server rooms with extreme EMI levels. Many Cat8 shielded patch cords also include a drain wire attached to the outer shield, which is grounded to dissipate accumulated electrical charge, reducing the risk of signal degradation or equipment damage.

　　In terms of construction, Cat8 shielded patch cords are built to withstand rigorous use. The copper conductors are typically 22 AWG or 23 AWG—thicker than those in lower-category cables—to minimize electrical resistance and ensure efficient signal transmission at 2GHz. The conductors are twisted at an extremely tight ratio (often 1.5 to 2 twists per centimeter) to further reduce crosstalk and signal loss. The insulation around each conductor is made from high-performance materials like fluorinated ethylene propylene (FEP) or polyethylene (PE), which offer excellent thermal stability (operating temperatures ranging from -40°C to 85°C) and resistance to chemical damage, ensuring consistent performance in harsh environments. The outer jacket is almost exclusively LSZH (Low Smoke Zero Halogen), a flame-retardant material that emits minimal smoke and toxic fumes in case of fire—critical for safety in enclosed data centers and server rooms.

　　Cat8 shielded patch cords feature specialized connectors to support their ultra-high-speed capabilities. Most use Cat8-compliant RJ45 connectors (known as RJ45 Type T) with enhanced shielding and thick gold plating (50 microns or more) to ensure a low-resistance, corrosion-resistant connection that maintains 40Gbps performance. These connectors are designed to fit standard RJ45 ports but include additional shielding to prevent signal leakage at the connection point. Many cables also include strain-relief boots and snagless designs to protect the connector from damage during installation or maintenance. Compatibility is another key advantage: Cat8 shielded patch cords work seamlessly with 25Gbps and 40Gbps Ethernet devices, including switches, NICs, and servers, and are backward compatible with lower-speed devices (10Gbps, 1Gbps), allowing organizations to upgrade incrementally. For enterprises and data centers looking to future-proof their networks against growing bandwidth demands, the Cat8 shielded network patch cord is an essential investment that delivers unmatched speed, reliability, and interference protection.
