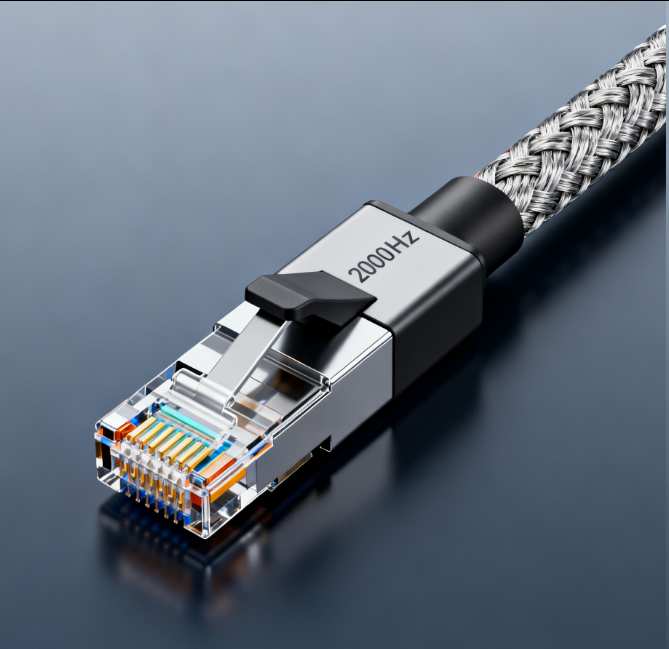

2000MHz SFTP Network Patch Cord

The 2000MHz SFTP network patch cord—where SFTP stands for Screened Foil Twisted Pair—is a cutting-edge cabling solution engineered to handle the most demanding high-speed network environments, including large enterprises, data centers, cloud computing facilities, and high-performance computing (HPC) labs. Operating at an impressive bandwidth of 2000 megahertz (2GHz), it is primarily associated with Category 8 (Cat8) standards, which support data transmission speeds of up to 40 gigabits per second (40Gbps) over distances of up to 30 meters and 25Gbps over 100 meters. This makes it ideal for applications that require ultra-fast, low-latency connectivity, such as real-time AI/ML model training, 8K video production and streaming, large-scale database migrations, and high-frequency trading platforms.

The SFTP shielding design is the standout feature of this patch cord, providing exceptional protection against electromagnetic interference (EMI) and radio frequency interference (RFI)—common challenges in dense network environments with hundreds or thousands of interconnected devices. The shielding consists of two layers: an inner foil screen that wraps around each individual pair of twisted copper conductors, and an outer braided shield (typically made from tinned copper) that surrounds all four pairs. The inner foil screen eliminates crosstalk (signal leakage between pairs) and blocks localized EMI, while the outer braided shield acts as a robust barrier against external interference from sources like power distribution units (PDUs), server fans, and adjacent high-voltage cables. Many models also include a drain wire attached to the outer shield, which is grounded to dissipate any accumulated electrical charge, further enhancing interference protection and signal integrity.

In terms of construction, the 2000MHz SFTP network patch cord is built to the highest standards of durability and performance. The copper conductors are usually 22 AWG or 23 AWG—thicker than those in lower-category cables—to minimize electrical resistance and ensure efficient signal transmission at 2000MHz. The conductors are twisted at an extremely tight ratio (often 1.5 to 2 twists per centimeter) to further reduce crosstalk and signal loss. The insulation around each conductor is made from high-performance materials like fluorinated ethylene propylene (FEP) or polyethylene (PE), which offer excellent thermal stability (operating temperatures ranging from -40°C to 85°C) and resistance to chemical damage, ensuring consistent performance even in harsh environments. The outer jacket is almost exclusively LSZH (Low Smoke Zero Halogen), a flame-retardant material that emits minimal smoke and toxic fumes in case of a fire—critical for safety in enclosed data centers and server rooms.

The 2000MHz SFTP patch cord also features specialized connectors to support its ultra-high-speed capabilities. Most models use Cat8-compliant RJ45 connectors (known as RJ45 Type T) with enhanced shielding and gold plating (often 50 microns or thicker) to ensure a low-resistance, corrosion-resistant connection that maintains 40Gbps performance. These connectors are designed to fit standard RJ45 ports but include additional shielding to prevent signal leakage at the connection point. Many cables also include strain-relief boots and snagless designs to protect the connector from damage during installation, handling, or routine maintenance, extending the cable’s service life.

Compatibility and future-proofing are key benefits of this patch cord. It works seamlessly with 25Gbps and 40Gbps Ethernet devices, including switches, network interface cards (NICs), storage area network (SAN) controllers, and high-performance servers. It is also backward compatible with lower-speed devices (10Gbps, 1Gbps, 100Mbps), allowing organizations to upgrade their networks incrementally without replacing existing hardware. Its ability to support 40Gbps speeds over 30 meters makes it an ideal choice for top-of-rack (ToR) and end-of-row (EoR) data center configurations, where short-range, high-speed connections between switches and servers are critical. For enterprises and data centers looking to build a network that can handle the bandwidth demands of emerging technologies like 5G, IoT, and edge computing, the 2000MHz SFTP network patch cord is an essential, future-proof investment that delivers unmatched speed, reliability, and interference protection.
