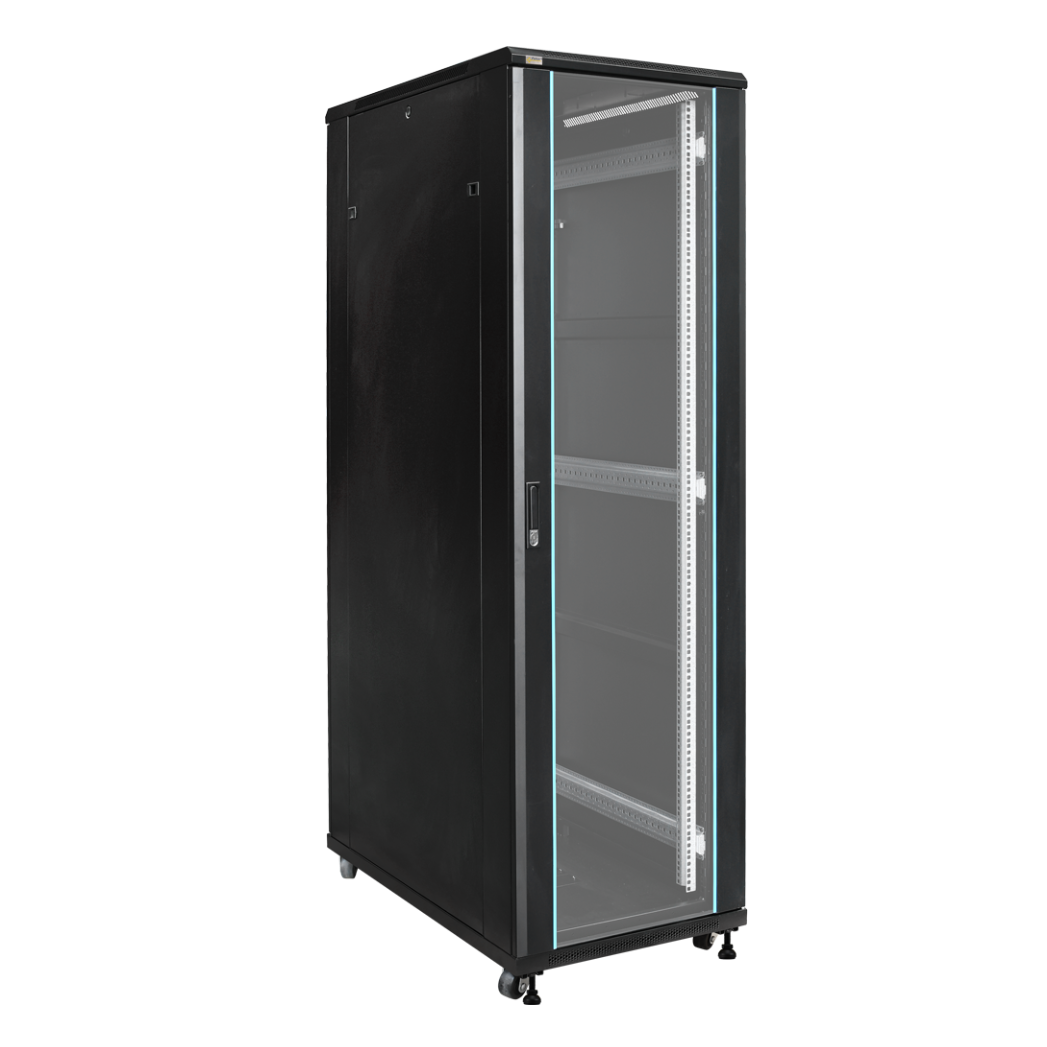

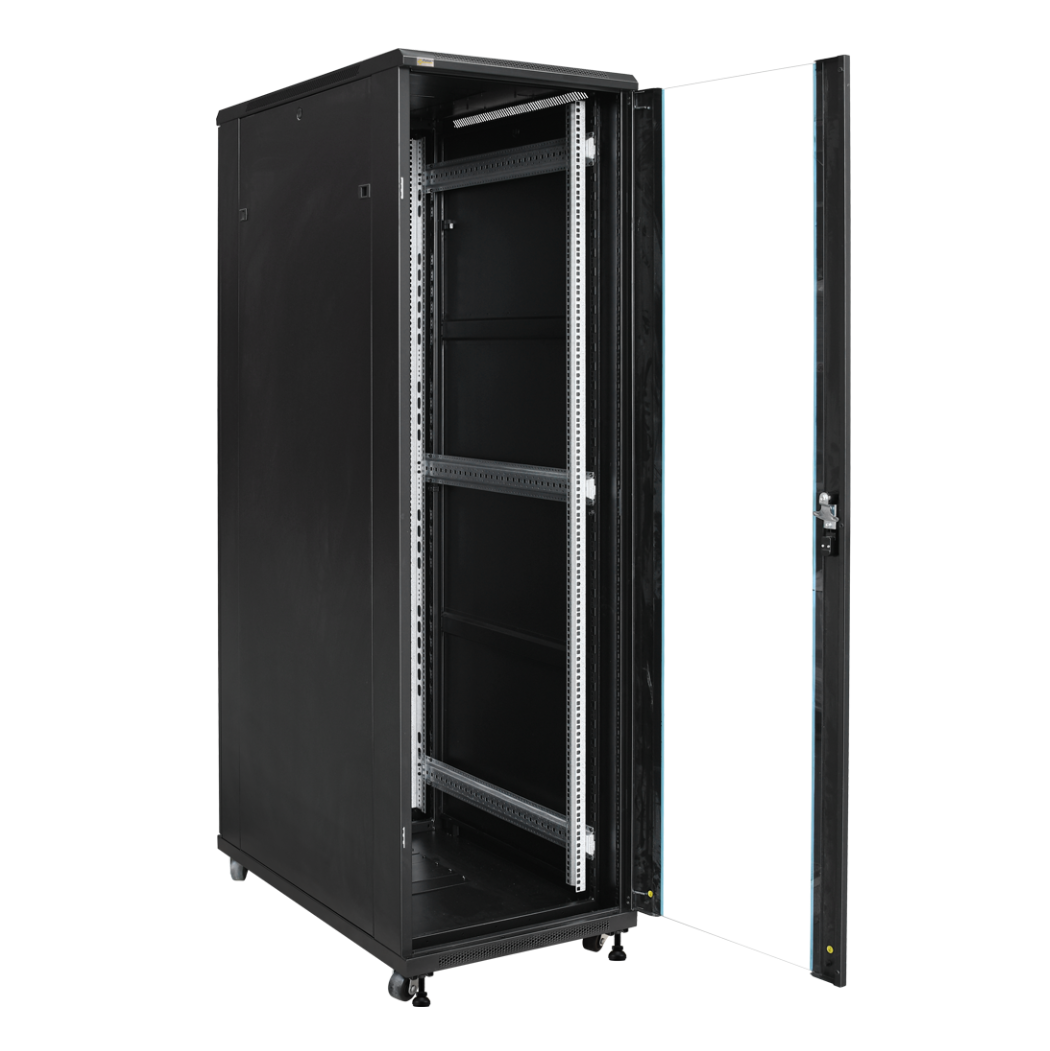

1000x600x42U Server Cabinet, Floor Standing Cabinet with Glass Front Door

1000x600x42U Server Cabinet, Floor Standing Cabinet with Glass Front Door

(More size availeable,pls contact with sales team if you need more size cabinet)

(600x600/600x800/600x1000/600x1200)

(800x800/800x1000/800x1200)

(1000x1000/1000x1200/1200x1200)

Creative Ruby Server Cabinets offer flexible and comprehensive solutions for your server installations. Our service starts with the shipping condition – get the completely assembled cabinet delivered or save space and money with the flatpack version.

Numerous 19″ options are available for housing, all with an installation depth of 1000 mm & 1200 mm. Cabinet heights range from 26 to 47 units in either black (RAL9005) or gray (RAL7035) color, so there's a solution for every need. The removable side panels and the lockable doors make cabling and component exchange particularly easy. Perforations on front and back provide excellent airflow.

We provide top quality in materials and workmanship, including a cold-rolled steel frame, zinc-plated 19″ mounting rails and antistatic powder coating on all panels.

Ideal for all 19 inch. rackmount applications

Maximum static load of 600 kg

Tempered-glass door

Zinc-plated 19 in. mounting rails

Antistatic powder coating on all panels

Panels with up to 2 mm steel thickness

IP20-rated housing

Easily removable side and rear panels

Multi-point door lock

Two apertures allow cable inlet from top or bottom

Ships flatpacked

Physical Specifications

Product net weight: 117.2 kg

Product gross weight: 127.5 kg

Dimensions: 1000 (L) x 600 (W) x 2033 (H) [mm]

Packaging type: Brown Box

Dimensions

Internal: 950 (D) x 603 (W) x 1898(H) [mm]

External: 1000 (D) x 600 (W) x 2033 (H) [mm]

Adjustable Depth Range: 123 to 973 mm

Package Contents

Four depth-adjustable mounting rails

Four adjustable supporting feet

Installation hardware
