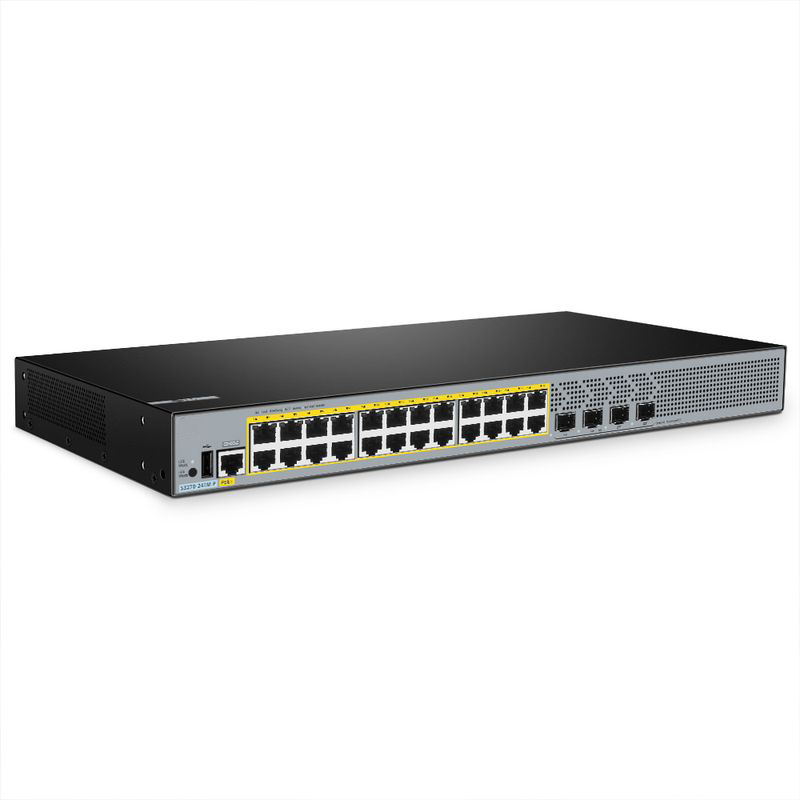

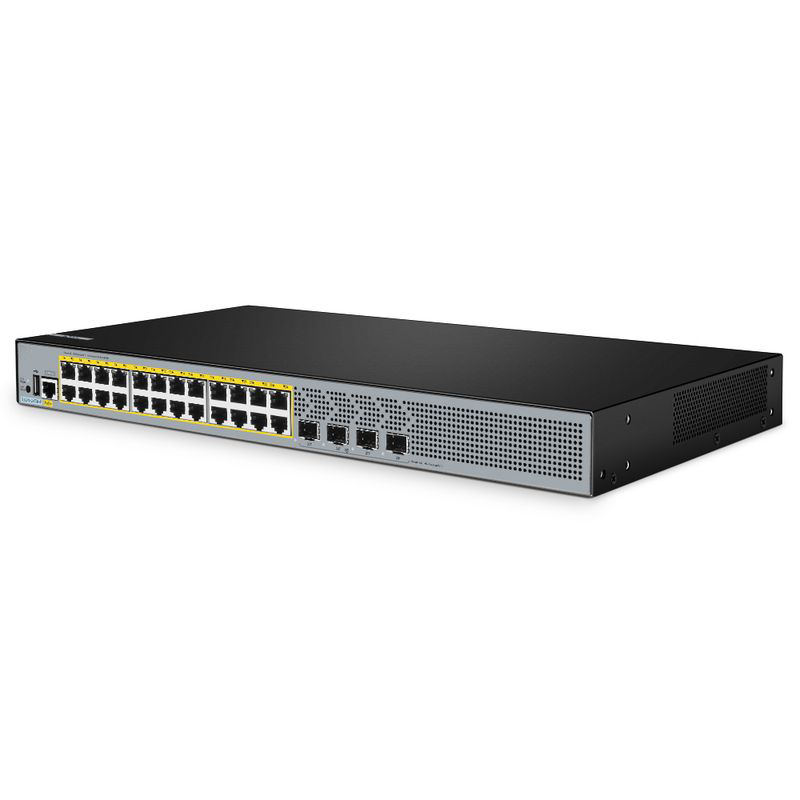

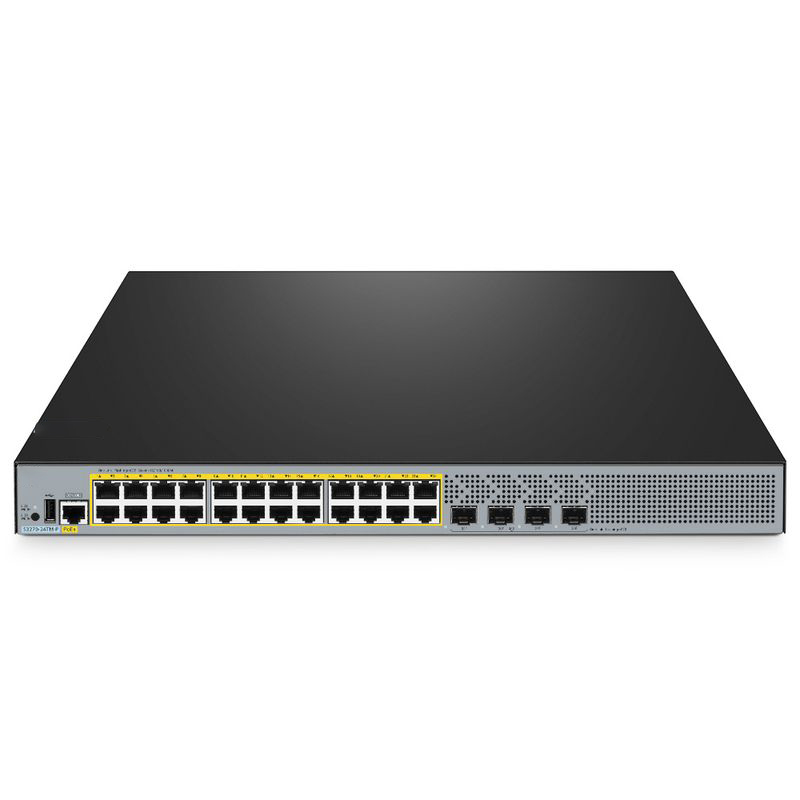

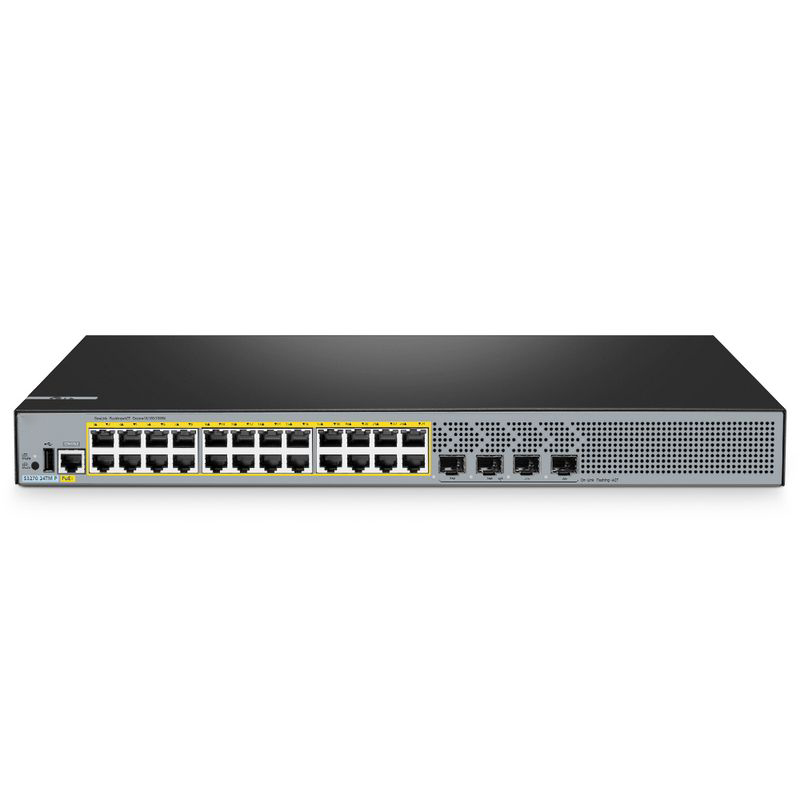

24-Port Gigabit Ethernet L2+ PoE+ Switch, 24 x PoE+ Ports @370W, with 4 x 1/2.5Gb SFP Uplinks, Broadcom Chip
Product Highlights
Up to 24 PoE+ Ports, Total Budget 370W
Broadcom BCM53547 Chip
2 Built-in Fans and Single Power Supply
Support ERPS, Voice VLAN, QoS, OSPF, DHCP Server, etc.
Support SSH, ACL, AAA, 802.1X, RADIUS, TACACS+, etc. for Security
Advanced Network Monitoring Using SFlow
Support Airware Cloud/CLI/WEB/SNMP for Flexible Operation
≥10KV Lightning Protection, Innovative Anti-wave and Anti-surge Design
24-Port Gigabit Ethernet L2+ PoE+ Switch, 24 x PoE+ Ports @370W, with 4 x 2.5Gb SFP Uplinks, Broadcom Chip

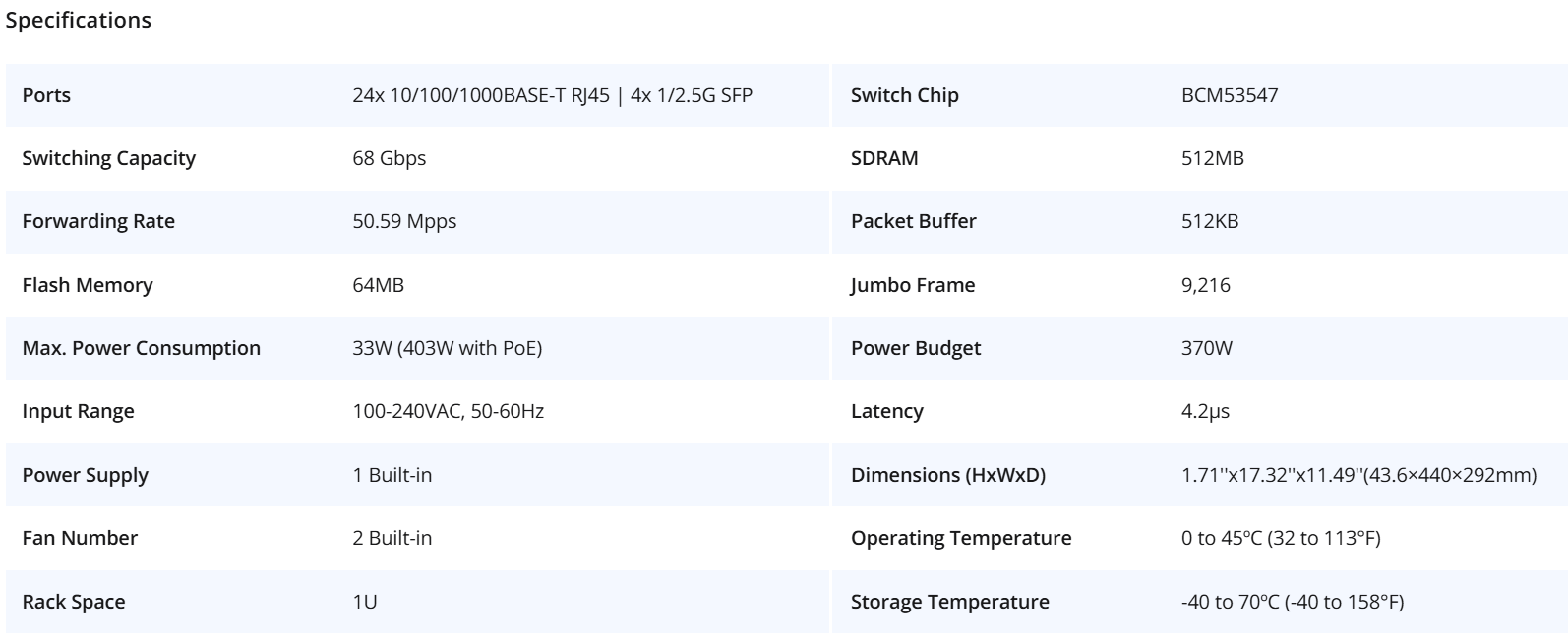

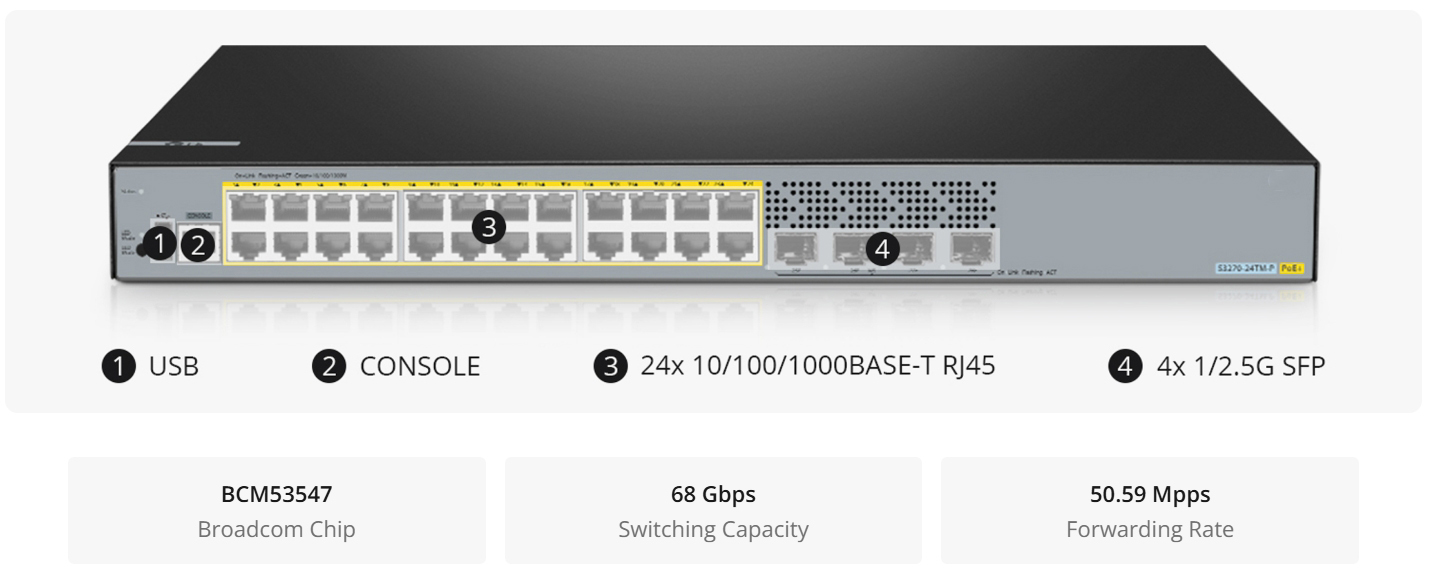

24-port switch is equipped with 24x 10/100/1000M RJ45 ports, 4x 2.5Gb SFP uplinks. The Ethernet all-optical network adopts point-to-point transmission. The high-quality signal is transmitted without external interference and the data is forwarded more steadily. This switch delivers 68 Gbps switching capacity and 50.59 Mpps forwarding rate.
This access switch delivers a compact, cost-effective solution for carrier's IP MAN and enterprise networks. Based on the high-performance hardware and FSOS platform, it supports functions such as ACL, QinQ and QoS. Its simple management mode and flexible installation can meet the requirement of any complicated scenario.

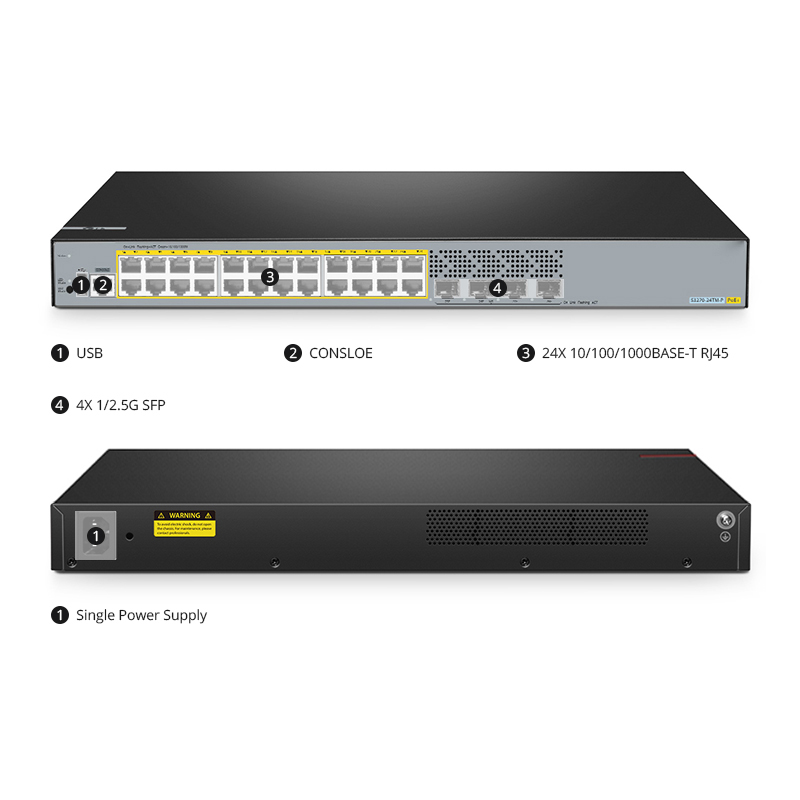

It provides 24x 10M/100/1000MBASE-T ports, 4x 2.5G uplink optical ports, rich interfaces, and is PoE+ compatible, supporting the full-service expansion

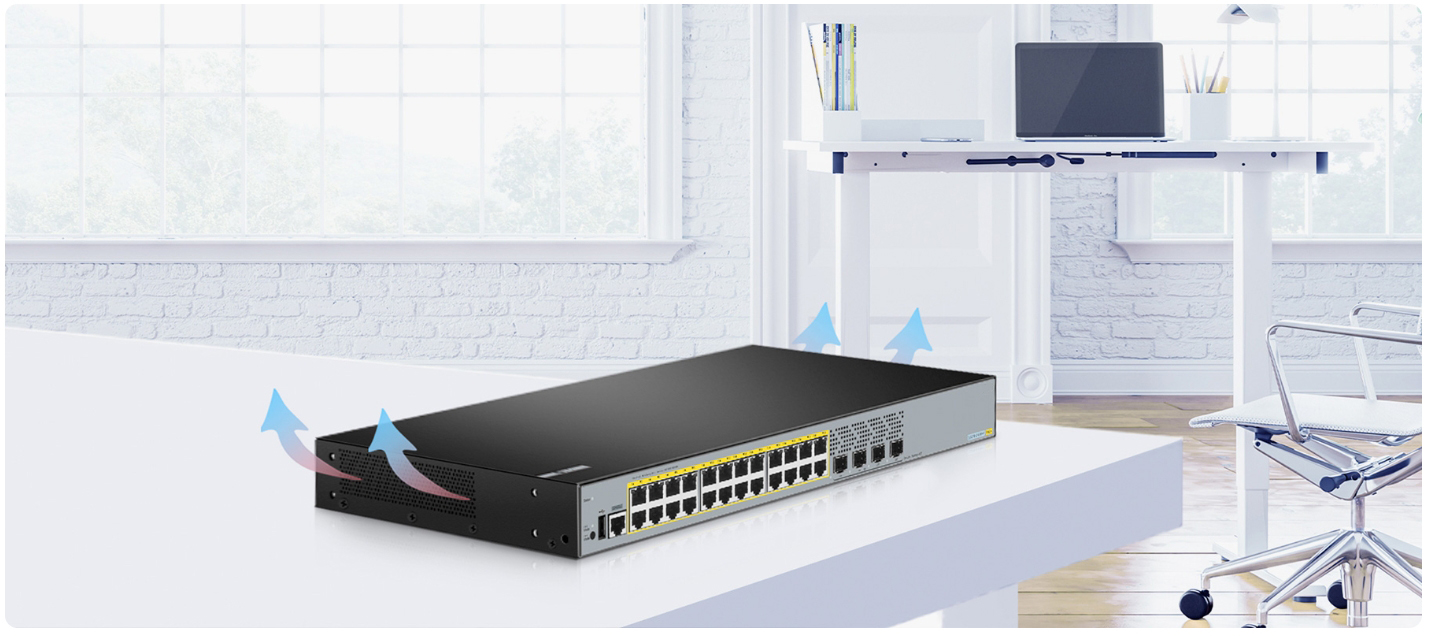

Real-time monitoring of equipment temperature can effectively reduce the speed, prolong the service life of the fan, and reduce noise pollution
Provides different priorities to different applications, users, or data flows to reduce packet loss, latency, and jitter on a network.
Plug-and-play without a need for IT know-how or support. Wired network is available after plugging an Ethernet cable effortlessly without time-consuming operations.

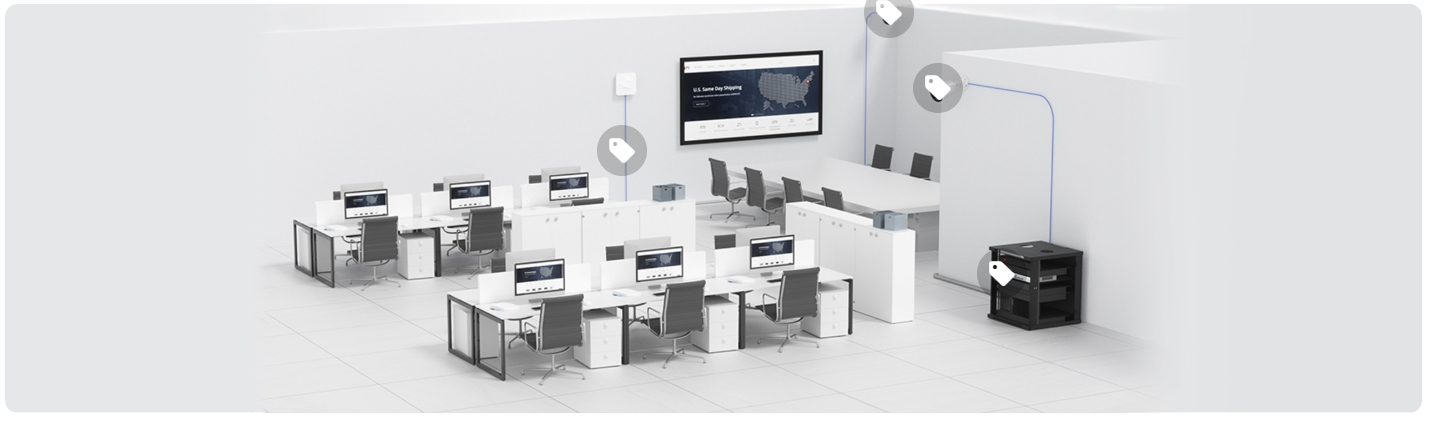

The switch has a wide range of applications, such as surveillance, teleconferencing, WiFi coverage, etc. Terminal devices such as IP cameras, computers, printers, etc. can be easily integrated into the network.
Supporting SNMP, CLI, WEB, SSH and other methods to deliver a streamlined experience for the devices conveniently maintain and network management without additional cost.
The switch supports IEEE 802.3az which cuts down on power consumption during periods of low data activity, put the unused port into sleep mode, saving a substantial amount of power.

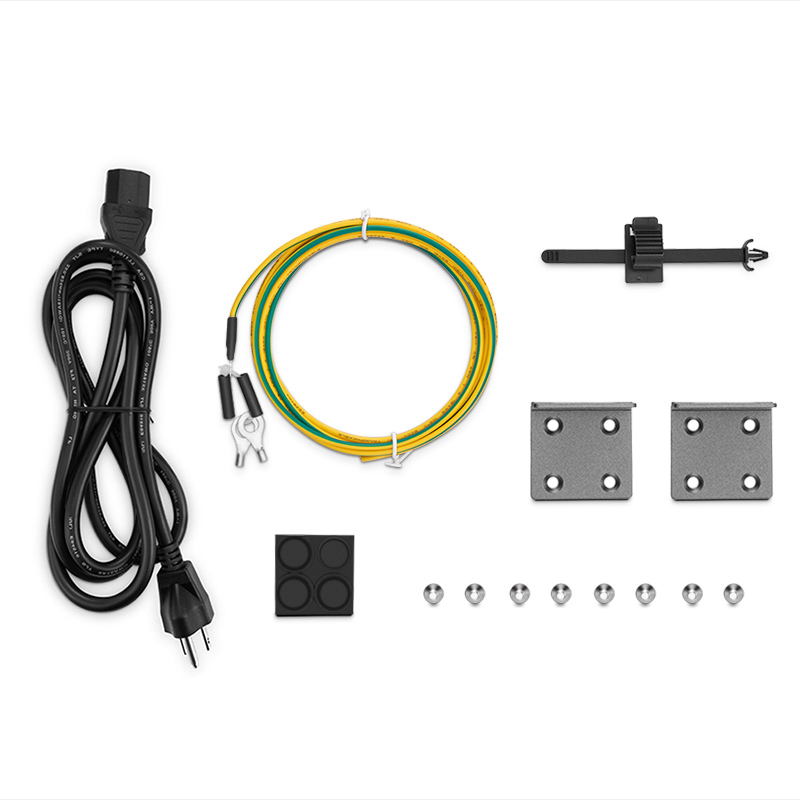

With multiple mounting options, this compact switch is ideal for use in space-constrained environments.
