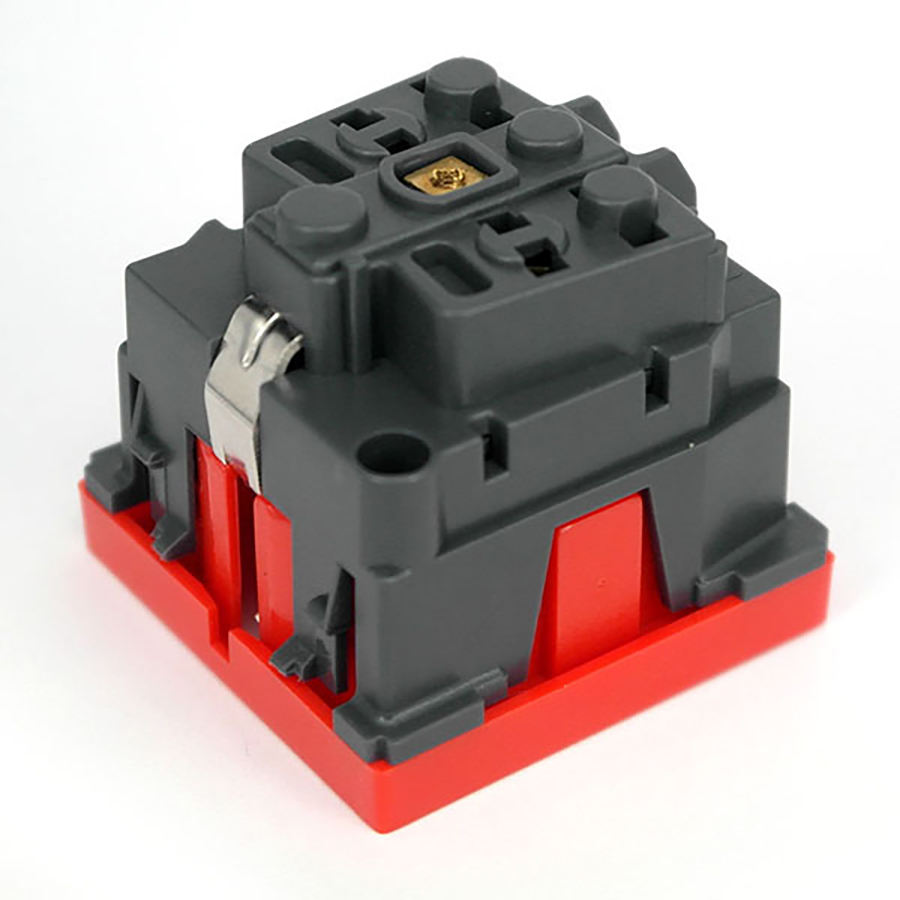

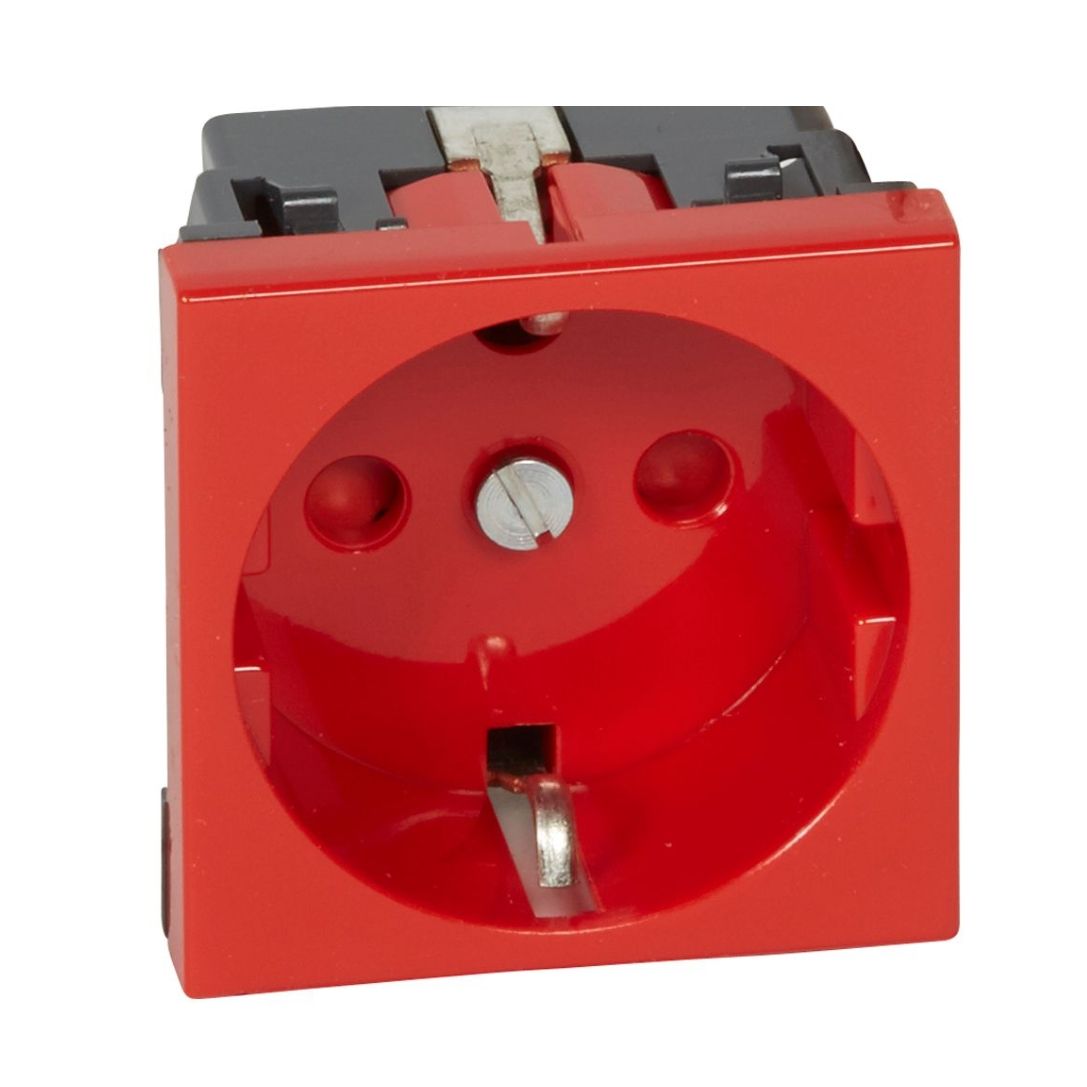

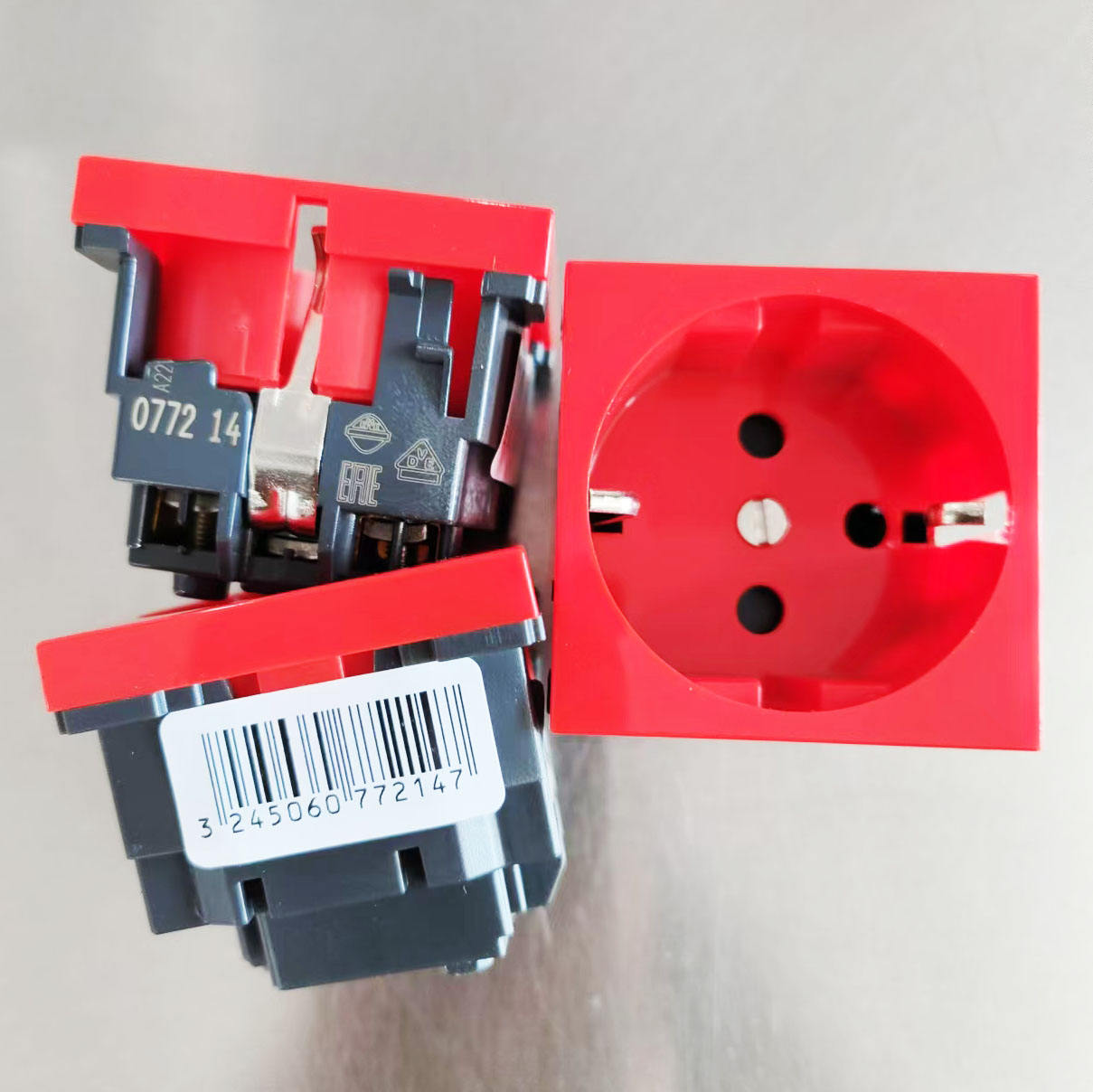

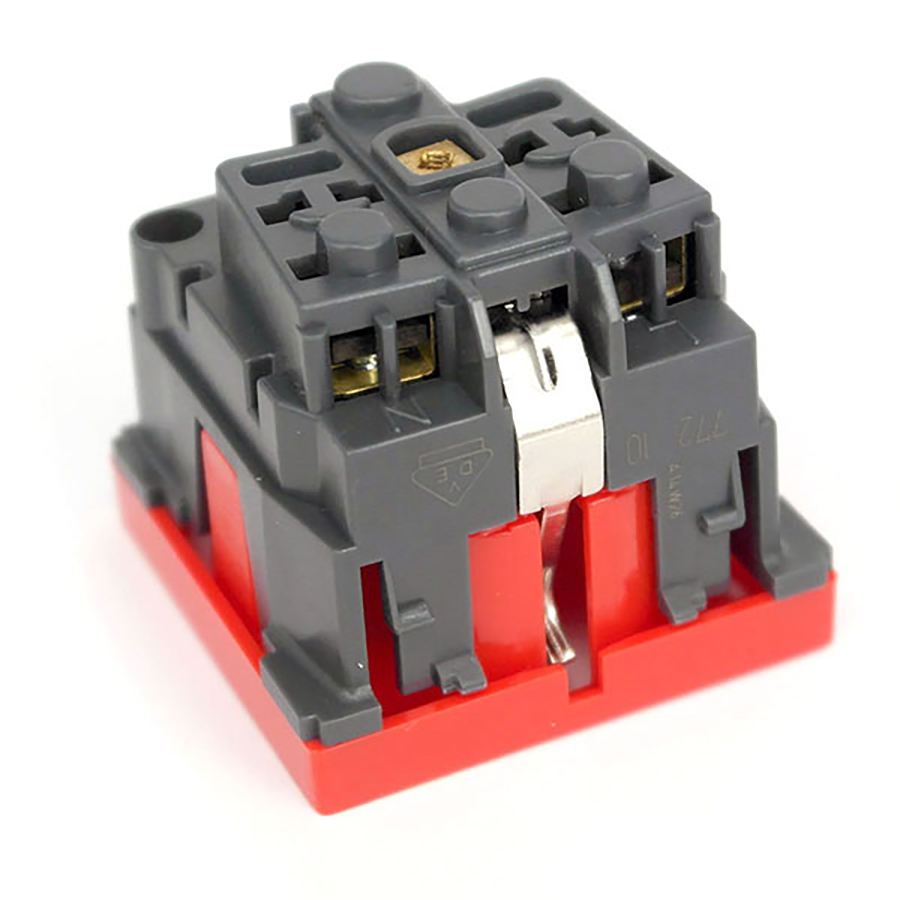

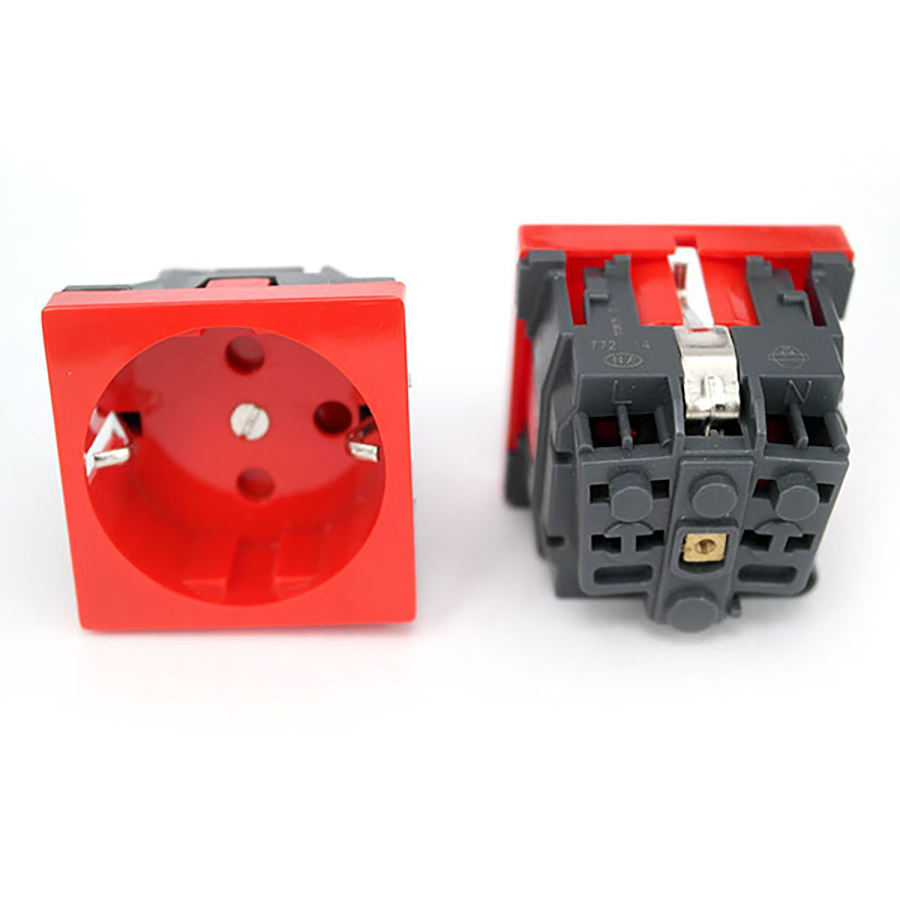

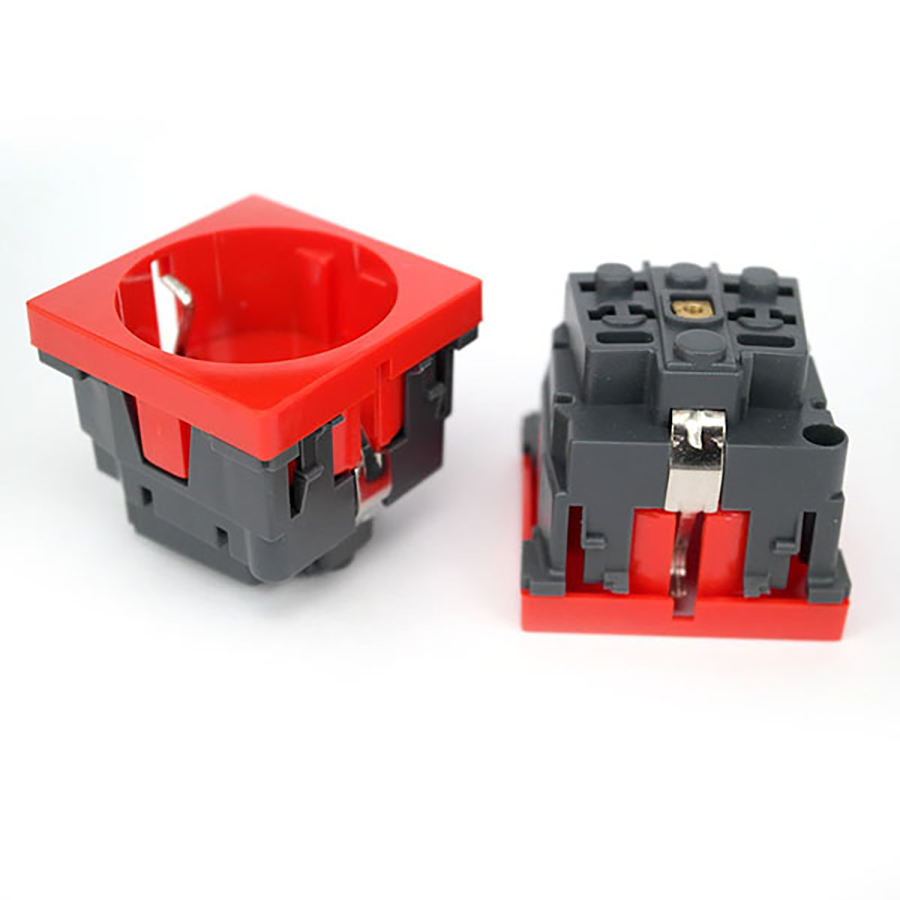

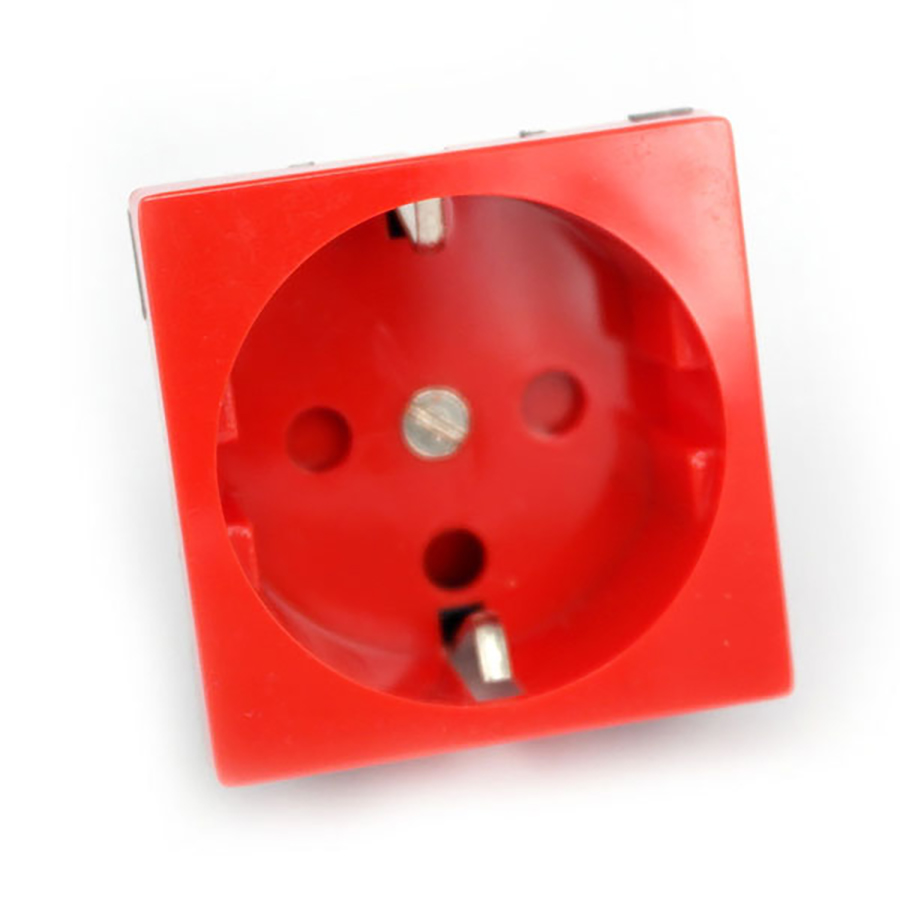

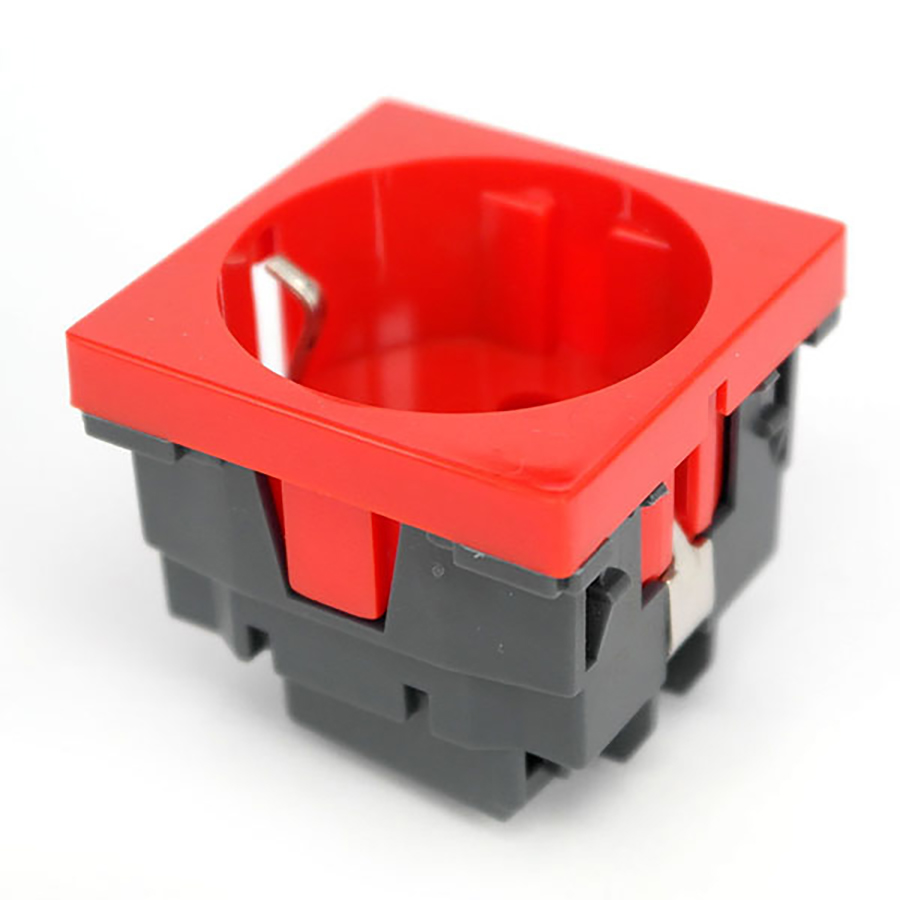

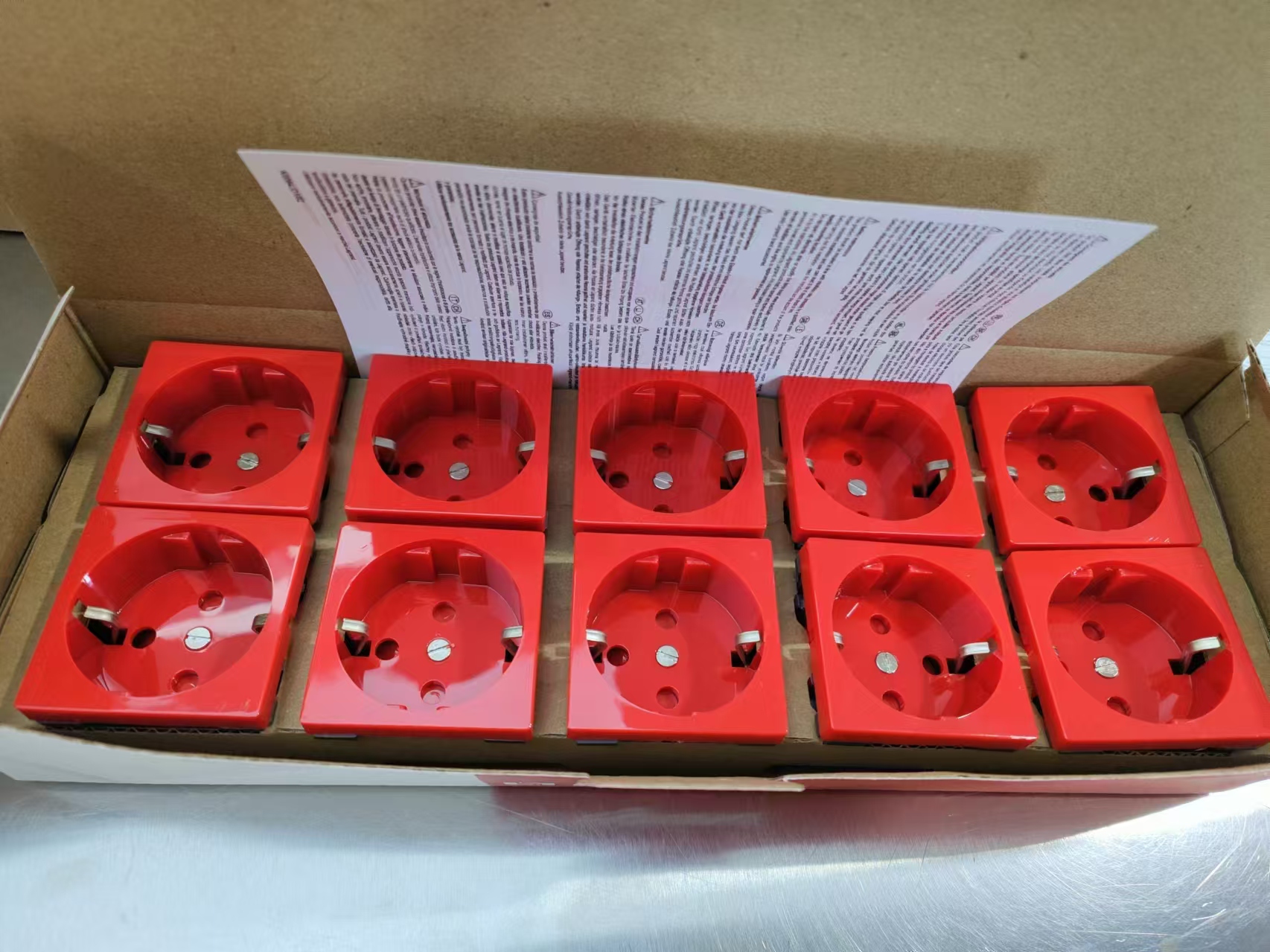

EU German Shuko European Standard Model 77214 Multi-support Single Socket Mosaic -German Std-2P European Wall Outlet
Hot
Hot
US$0.00
Industry-specific attributes
| Rated Voltage | 250VAC |
| Rated Current | 16A |
| Application | Residential / General-Purpose |
| WIFI | NO |
Other attributes
| Place of Origin | Guangdong, China |
| Brand Name | OEM |
| Model Number | 77214 |
| AC outlets quantity | 1 Outlets |
| Network | SDK, NFC |
| Type | wll outlet Socket |
| Grounding | Standard Grounding |
| USB A output ports | 0 |
| IP level | IP22 |
| Model Number | German outlet 77214 |
| Rated Voltage | 250V |
| Rated Current | 16A |
| Application | Wall Power Socket |
| Wifi | None |
| Style | wall outlet |
| Plating | Nickel |
| Standard | EU/German |
| size | 45*45 |
Packaging and delivery
| Selling Units | Single item |
| Single package size | XX cm |
| Single gross weight | kg |
Features
multi-support single and multiple sockets: German standard 77214
multi-support single and multiple sockets: German standard
Multi-support single sockets - German standard - For installation in flush-mounting box, surface-mounting box, floor box, column module, desktop multi-outlet extension, office module and trunking2P+E tamperproof - Red - screw terminals - To be used with the tamperproof insert Cat.No 0 502 99 - Can be installed in receptacles for floor sockets
| Model | Socket outlet CEE 7/3 (type F) |
| Protective contact | Other |
| Number of active contacts (round) | 1 |
| Number of active contacts (flat) | 0 |
| With complemantary luminous signal | No |
| Number of ports USB-A | 0 |
| Number of ports USB-C | 0 |
| Number of units | 1 |
| Number of modules (module system) | 2 |
| Number of socket outlets switchable | 0 |
| Number of phases | 1 |
| Imprint/indication | None |
| Connection type | Screwed terminal |
| With hinged lid | No |
| With enhanced contact protection | Yes |
| Label space/information surface | No |
| Colour | Red |
| RAL-number (similar) | 3020 |
| Metallic colour | No |
| Transparent | No |
| Lockable | No |
| Eject-mechanism | No |
| Insulated mounting | No |
| With function lighting | No |
| With orientation lighting | No |
| Over voltage protection | No |
| Fault current protection | No |
| With miniature fuse | No |
| Special power supply | Additional safety power supply (red) |
| Mounting method | Module frame |
| Type of fastening | Snap mounting (engagement) |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen free | Yes |
| Surface protection | Untreated |
| Surface finishing | Glossy |
| Antimicrobial treatment | No |
| With loop through function | Yes |
| With on/off switch | No |
| Colour of switch operator | Red |
| Rotated central insert | No |
| Nominal current | 16 A |
| Nominal voltage | 250 V |
| Frequency | 50-60 Hz |
| Suitable for degree of protection (IP) | IP20 |
| Degree of impact strength (IK) | IK04 |
| Device width | 45 mm |
| Device height | 45 mm |
| Device depth | 40 mm |
| Min. depth of built-in installation box | 40 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Amazon Alexa | No |
| Compatible with Google Assistant | No |
| IFTTT support available | No |
| With Wi-Fi signal repeater | No |
| With built-in bluetooth speaker | No |
| For heavy conditions according to VDE | No |
| Built-in depth | 31.5 mm |
| Operating / setting temperature | -5-35 °C |
| Storage temperature | -10-70 °C |
| Voltage type | AC |
| Power Delivery | No |
| Cable nature for connection | Flexible or rigid |
| Cable section | 4-4 mm² |
| Cable support | Other |
| Assembly arrangement | Basic element with central cover plate |
| Connected object | No |
