Patented technology and marked RJ45 crystal head

        The patented technology of Shenzhen Qintong Technology in the field of network cabling and the advantages of the marked RJ45 crystal head form a deep complementarity. The combination of its core patent features and the marking function can significantly improve the reliability and management efficiency of the network system, which is embodied in the following aspects:

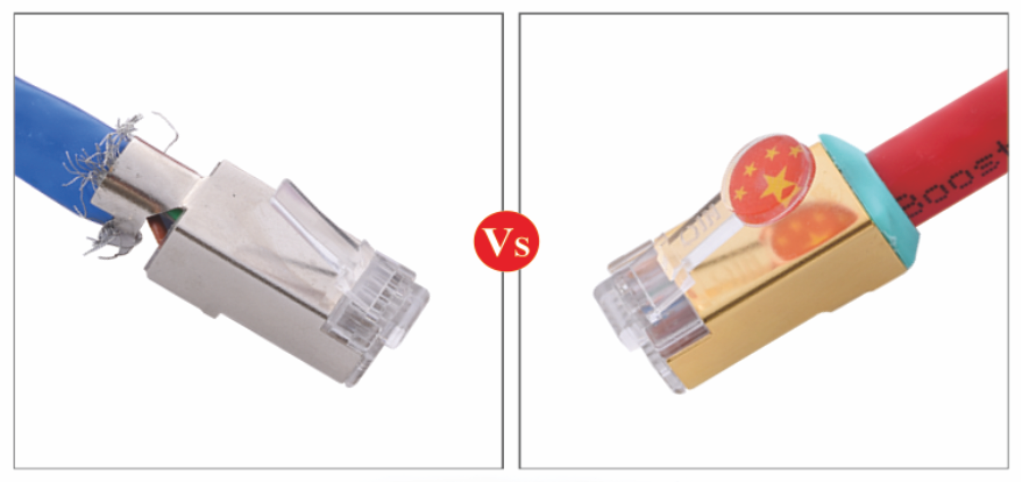

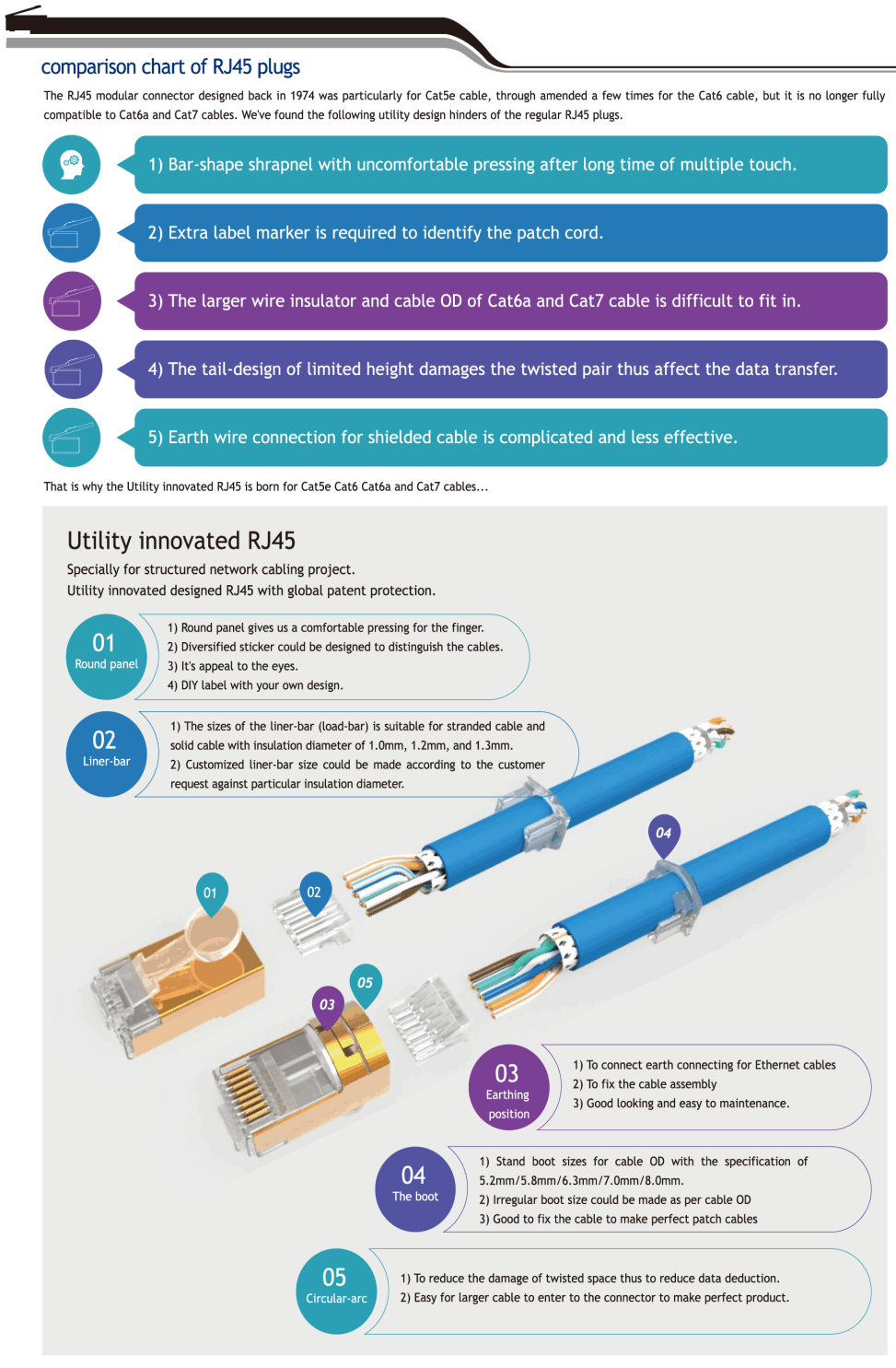

        **Enhanced Signage Functionality Through Patented Technology** 1. **High-Stability Structural Design** Qintong Technology's patented designs (e.g., CN201620379833.8) optimize the crystal connector opening structure to expand cable insertion space, minimizing damage to twisted-pair cable spacing. This innovation not only improves signal transmission stability but also provides robust physical support for signage areas. For instance, signage modules can be integrated into the anti-misalignment structure of the crystal connector housing, preventing displacement or detachment caused by crimping or insertion/拔出操作, ensuring long-term visibility of signage. 2. **Modular and Replaceable Design** The "replaceable plug" structure (e.g., CN201620379833.8) mentioned in the patent allows adjustment of opening dimensions according to cable diameter, offering flexibility for signage systems. Users can select different types of signage modules (e.g., paper labels, electronic tags) based on requirements, enabling quick replacements through modular design to reduce maintenance costs. 3. **Material and Process Advantages** Qintong Technology's crystal connectors utilize military-grade phosphor bronze material with dual-sided nickel plating, achieving contact resistance below 0.01Ω while demonstrating corrosion resistance. These material properties make them suitable for signage applications. For example, metal signage plates are integrally formed with crystal connectors, enhancing wear resistance and preventing detachment caused by material differences.

        **Collaborative Value Between Labeling Function and Patent Technology** 1. **Rapid Positioning and Error Prevention** The "Anti-Deception Terminal" design in Qintong Technology's patents (e.g., CN202021515213) restricts plug insertion direction through special structures. Combined with label-equipped crystal connectors, this design significantly reduces connection risks caused by labeling errors. For instance, incorporating directional arrows or color codes with anti-deception mechanisms ensures users can complete connections quickly and accurately in complex wiring environments. 2. **Reliability in Complex Environments** Qintong Technology's crystal connectors pass UL94-V0 flame retardant certification, featuring environmentally friendly PC materials that maintain structural integrity even in high-temperature conditions. This characteristic enhances the labeling system's stability in industrial settings or data centers. For example, transparent or semi-transparent designs in labeling areas (such as the spring-pressed component in Qintong's patents) utilize heat-resistant materials to ensure clear visibility under extreme temperatures.

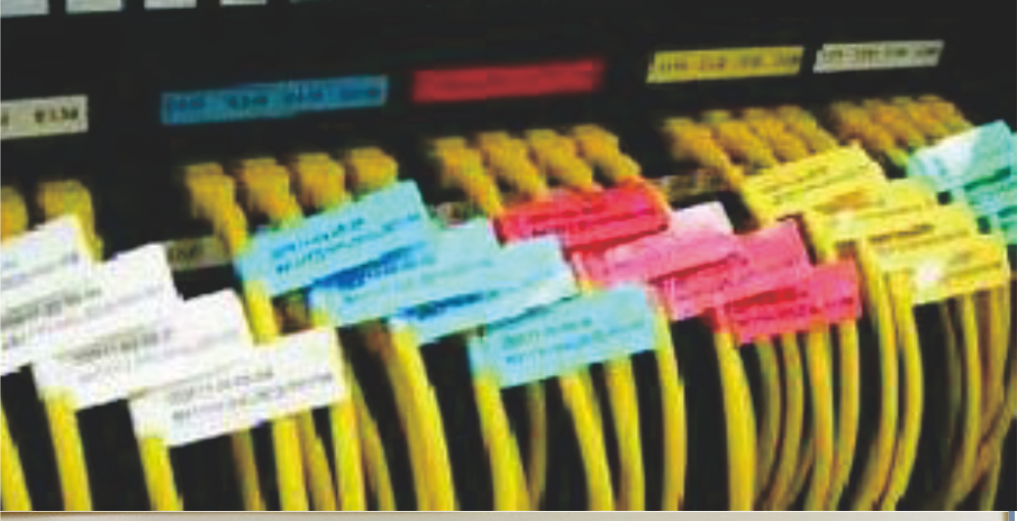

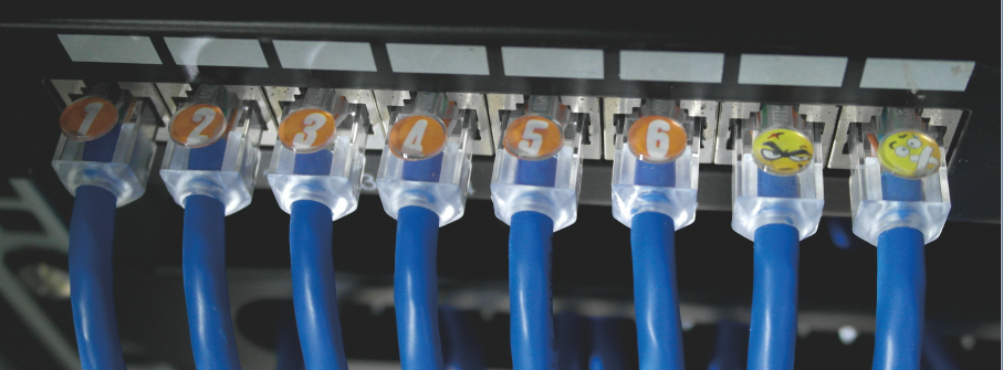

        **Comprehensive Application Scenarios and Benefits** 1. **Large-Scale Network Deployment** In data center or office building cabling systems, Qintong Technology's high-stability RJ45 connectors with label integration significantly reduce failure rates caused by ambiguous markings or loose connections. For example, color-coded zones (blue for server areas, yellow for office spaces) combined with anti-deception structures and electronic tags enable rapid fault localization, improving maintenance efficiency by over 30%.2. **Industrial Automation Environments** In high electromagnetic interference environments like factory workshops, Qintong Technology's shielding designs (e.g., CN201620379833.8) paired with label functionality ensure stable signal transmission while enabling precise equipment-to-circuit matching through metal labels or electronic tags, minimizing production disruptions from worn labels. 3. **Intelligent O&M Management** Qintong Technology's network products support remote monitoring and testing. When integrated with electronic tag-equipped RJ45 connectors, they form an "identification-connection-monitoring" integrated system. For instance, label readers automatically collect circuit status data and synchronize with network management platforms to enable preventive maintenance and optimized resource allocation.
