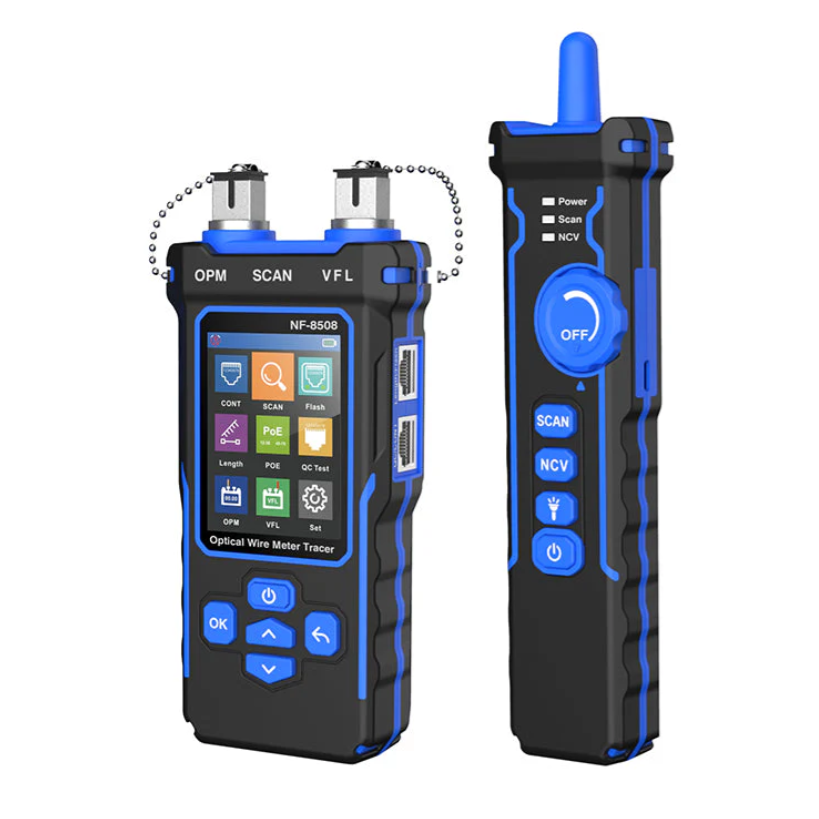

NF-8508 Fiber Optic Tester Digital Cable Tester Rechargeable Network Line Finder PoE

NF-8508 Fiber Optic Tester Digital Cable Tester Rechargeable Network Line Finder PoE

Features

Fiber Optic Meter - Checks fiber faults by emitting red lasers and tests the optical power and light attenuation value.

Wiremap - Test for short circuit, open circuit, and gap faults in a LAN network.

Anti-jamming receiver - You can quickly and accurately locate a target wire in a multitude of wires with the receiver's anti-jamming probes, NCV, and adjustable sensitivity. LED lights are ideal for dark work environments.

Port Flash - Determine the corresponding connection port by observing the same flashing frequency on the switch/router port where the destination cable is connected.

Length Test - Measures the length of CAT5/CAT6 cables up to 200m, which can be measured in meters, yards or feet.

PoE Test - Can test the information of a standard PoE device such as PoE voltage, power supply polarity, power mode, and also the PSE type.

HD Screen - Compared with previous models, NF-8508 has a better high-definition screen with visual icons, which makes it easier to observe the detailed parameters of different modes, such as cont, scan, port flash, length, VFL, OPM, etc.

QC Test - Test the crimping quality of crystal heads.

Longer battery life - Customize the backlight off time and auto power off time, and charge the built-in lithium battery with a universal Type-C cable.

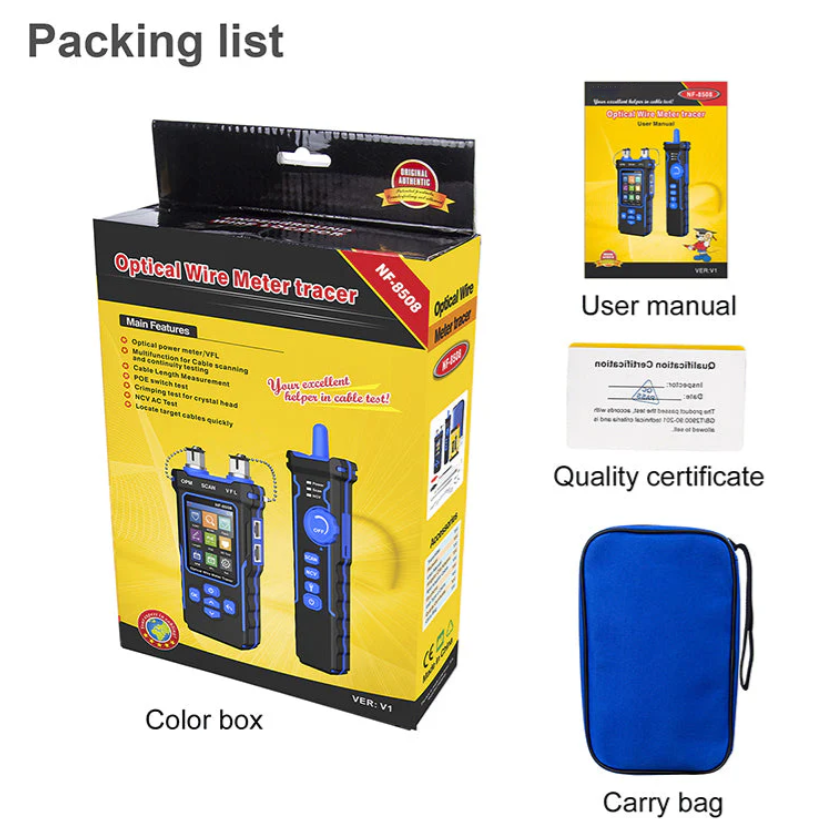

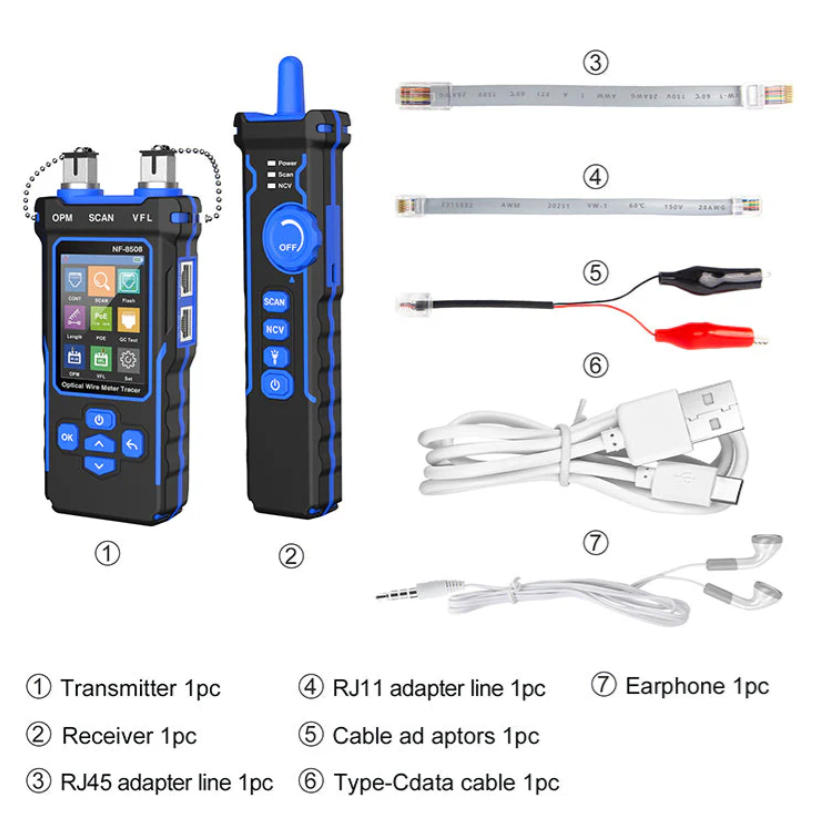

Box contents - Emitter*1, Receiver*1, RJ11 cable adapter*1, RJ45 cable adapter*1, Alligator clip*1, Earphone*1, Type-c cable*1, User manual*1

Quick Details

Model: NF-8508

Cable Type: CAT5/CAT6

Voltage Protection: 60V

Check RJ45 Fault: Yes

Max Range: 300m

STP/NTP: Yes

PoE Test: Yes

Flash Port: Yes

Digital Mode & Analog Mode: Yes

Adjustable Sensitivity: Yes

NVL: 10Mw Power Meter: 850/1300/1310/1490/1550/1625

VFL - Visual Fault Locator

Transmit a 10mW red light source (1Hz, 2Hz, Hold) throughout the fiber optic cable. Quickly determine if the cable is working properly and locate the break.

(Wavelength)

NCV: Yes

Lamp: Yes

Lower Voltage Warning: Yes

Crimp: RJ45-8 Colors

Power Supply: 3.7V 1500mAh Polymer Lithium Battery

Product specifications

Cable type:  CAT5/CAT6

Voltage protection:  60V

CONT function details:

Scanning frequency:  455 KHz

Flash port: √

Function Details Length:

Accuracy:  ≤20M+/-1.6M, 20M~100M+/-2.4M, >100M+/-3.2M

POE Function Details:

Standard/Non-Standard

End connection/intermediate jumper/8-core powered

PoE power supply

NVL:  10 Mw

OPM:  1310/1550/1625 (singlemode wavelength)

Crimping:  RJ45-8 cores, minimum length is 210 cm

Power supply:  3.7V 1500mAh lithium polymer battery

Charging:  Type C connector

NCV: √

Lamp:  √

Lower voltage warning:  √

Multifunctional Cable Tester

Buy one device, you can test LAN networks, trace network cables, measure cable length, locate ports, check PoE, test fiber optics, test QA heads, etc.

OPM - Optical Power Meter

Measure SM MM fiber optic wavelengths such as 1310, 1550, 1625 with a test range of -70dBm to +10dBm

VFL - Visual Fault Locator

Transmit a 10mW red light source (1Hz, 2Hz, Hold) throughout the fiber optic cable. Quickly determine if the cable is working properly and locate the break.

Cable tracking

Quickly and accurately locate a target cable in a cable stack using the receiver's high-sensitivity anti-jamming probe and tone generator.

PoE Verification

Perform a thorough check on PoE devices for identity, power source, voltage, polarity, and PSE standards.

Flash port

Change the cable blink frequency on the router and server ports to find the correct cable port.

Cable length

First, disconnect the cable from both ends. Plug it into the NF-8508 and activate the Measure feature. Any cable longer than 2.5m or shorter than 200m will be accurately measured.

Continuity Test

Test the continuity of the Lan network cable, identify the exact fault and provide the location of the fault point.

Quality control testing

Cable connector identification is based on the correct 568A/B standard sequence. The QC Test function allows you to determine whether the RJ45 connector has been properly crimped.

NCV

Find out whether cables, ports, and other objects conduct electricity. Reduce the risk of injury during maintenance and repairs.

Built-in LED

When tracing or testing a cable in the dark, turn on the light on the receiving device. Finish your work without hassle.

Rechargeable battery

Both the Sender and Receiver devices are installed with a 3.7V 1500mAh lithium polymer battery. Fully charge and use for long hours.
