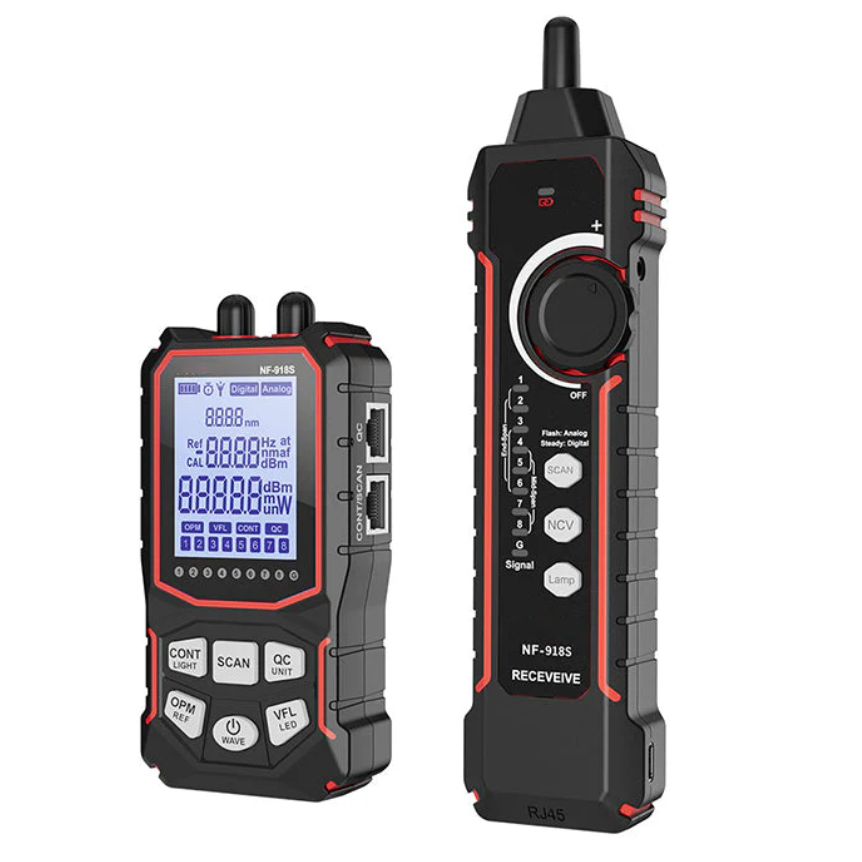

NF-918S Network Cable Tester with Optical Power Meter
Features and Benefits:
Comprehensive Cable Testing : This advanced tool allows you to test a wide variety of cable types, including Ethernet cables (RJ45), coaxial cables, and telephone lines, making it suitable for a variety of networking and telecommunications applications.
Accurate Cable Length Measurement : The NF-918S can accurately measure cable length, helping you identify cable runs and detect any discrepancies or faults quickly. It supports cable length measurements up to 500 meters (1,500 feet).
Cable Fault Detection : Easily detect cable faults such as open circuits, short circuits, and crosstalk issues, allowing you to efficiently troubleshoot connectivity issues.
Tone Generator and Probe : The integrated tone generator and probe kit enables cable tracing and identification, simplifying cable location and labeling in complex network configurations.
PoE Detection : With Power over Ethernet (PoE) detection capabilities, you can identify PoE switches and determine the power available on the network cable, making it useful for IP cameras and VoIP phone installations.
Backlit LCD Display : The NF-918S features a clear, backlit LCD that provides essential information and test results even in low-light conditions.
User-friendly design : This cable tester is designed with ease of use in mind, featuring a handheld design with intuitive controls, ensuring that both beginners and experienced technicians can use it effectively.
NF-918S Network Cable Tester with Optical Power Meter
Features and Benefits:
Comprehensive Cable Testing : This advanced tool allows you to test a wide variety of cable types, including Ethernet cables (RJ45), coaxial cables, and telephone lines, making it suitable for a variety of networking and telecommunications applications.
Accurate Cable Length Measurement : The NF-918S can accurately measure cable length, helping you identify cable runs and detect any discrepancies or faults quickly. It supports cable length measurements up to 500 meters (1,500 feet).
Cable Fault Detection : Easily detect cable faults such as open circuits, short circuits, and crosstalk issues, allowing you to efficiently troubleshoot connectivity issues.
Tone Generator and Probe : The integrated tone generator and probe kit enables cable tracing and identification, simplifying cable location and labeling in complex network configurations.
PoE Detection : With Power over Ethernet (PoE) detection capabilities, you can identify PoE switches and determine the power available on the network cable, making it useful for IP cameras and VoIP phone installations.
Backlit LCD Display : The NF-918S features a clear, backlit LCD that provides essential information and test results even in low-light conditions.
User-friendly design : This cable tester is designed with ease of use in mind, featuring a handheld design with intuitive controls, ensuring that both beginners and experienced technicians can use it effectively.
Product specifications
Product Model: NF-918S
Voltage protection: 60V
Charging: Type C recharge

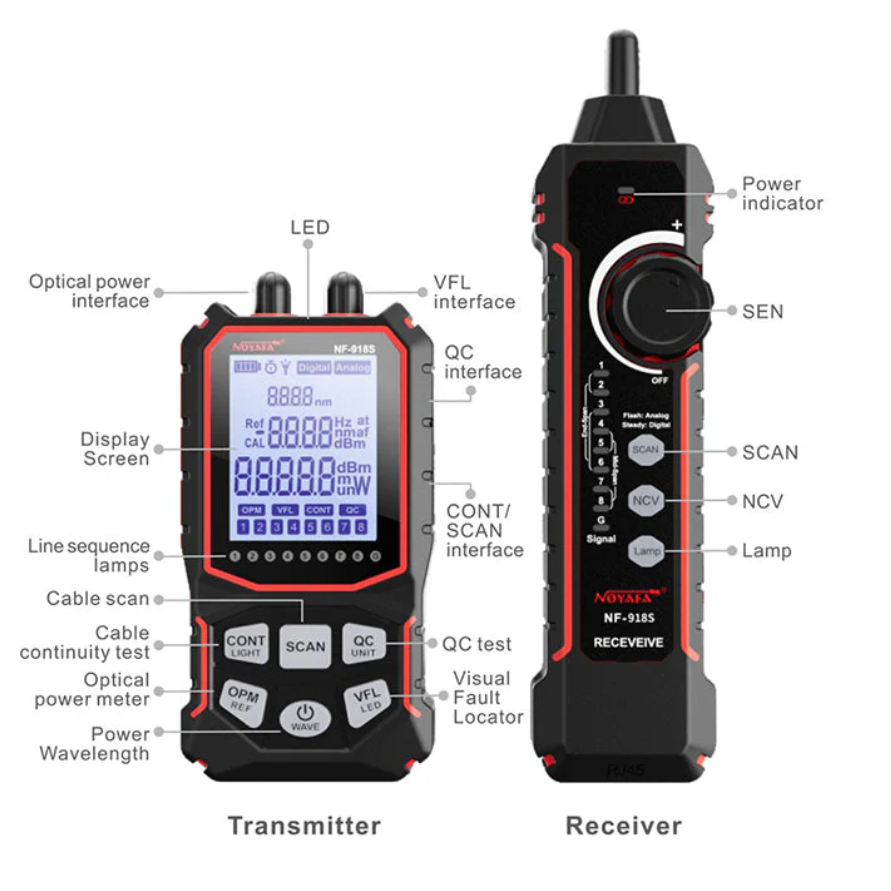

Transmitter
CONT (RJ45 and PoE switch): Short, Open, Cross;
SCAN: Analog/Digital
VFL: 10mw
Wavelength: 850/1300/1310/1490/1550/1625
Optical power range: -70 to 10dbm
QC Test: RJ45-8P/RJ11, the shortest length≥10cm
Low voltage alert: The indicator light flashes when the power is lower than 3.5V
Auto power off: 30 minutes

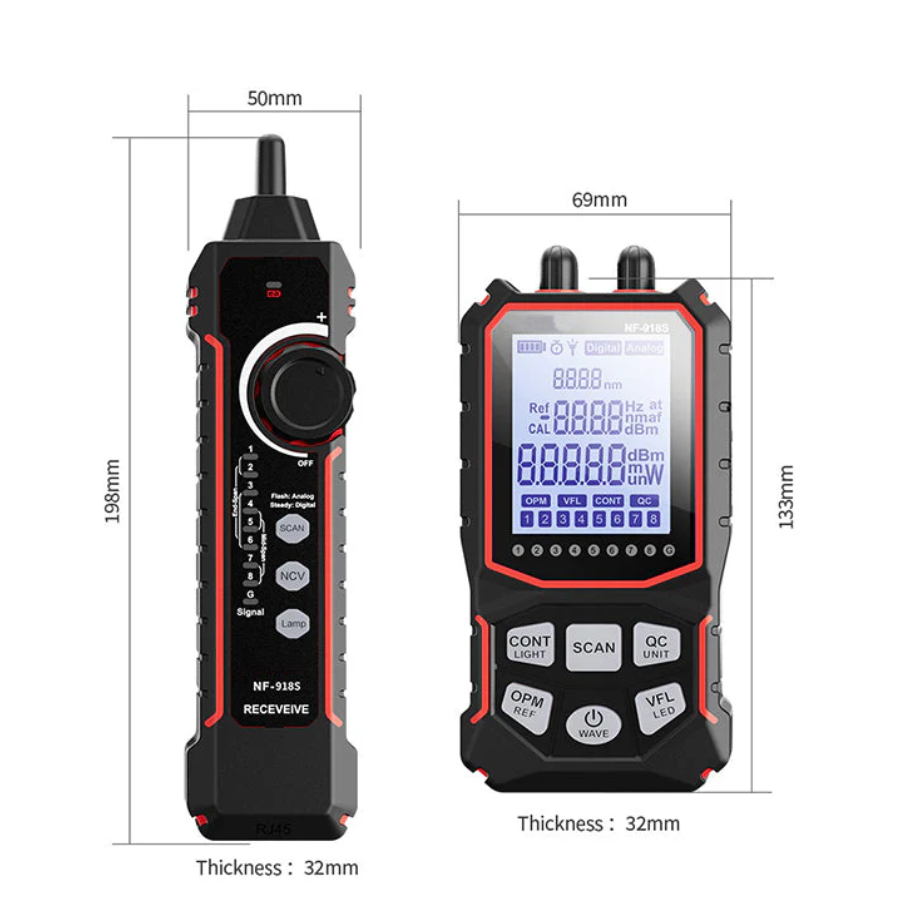

Size: 133*69*32mm
Receiver
Adjustable sensitivity: Yes
NCV: Yes
LED lighting: Yes
Low voltage alert: Yes
Power supply: 3.7V 1400mAh lithium battery
Size: 198*50*32mm
