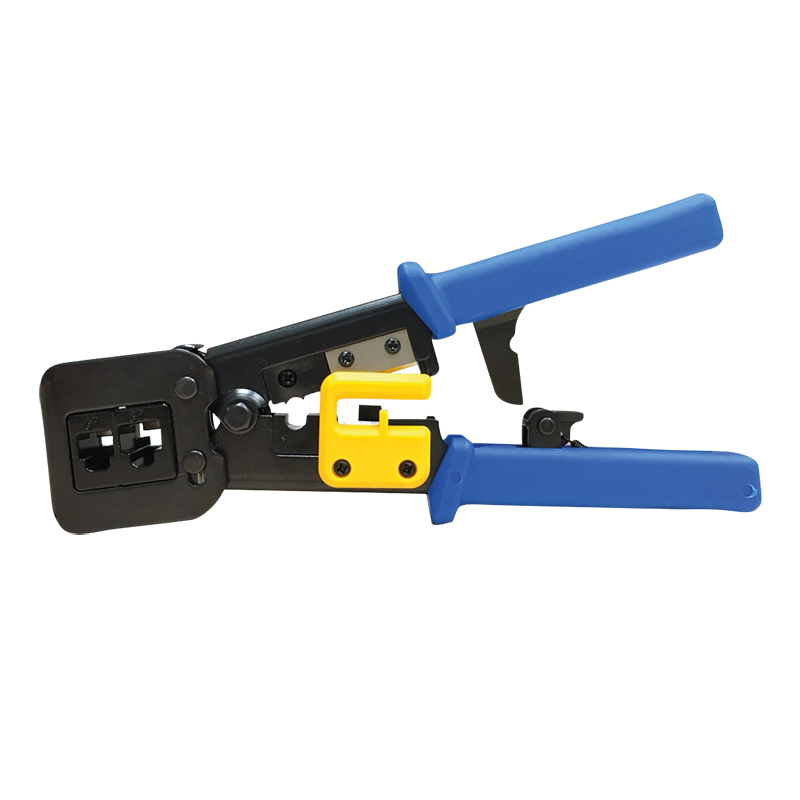

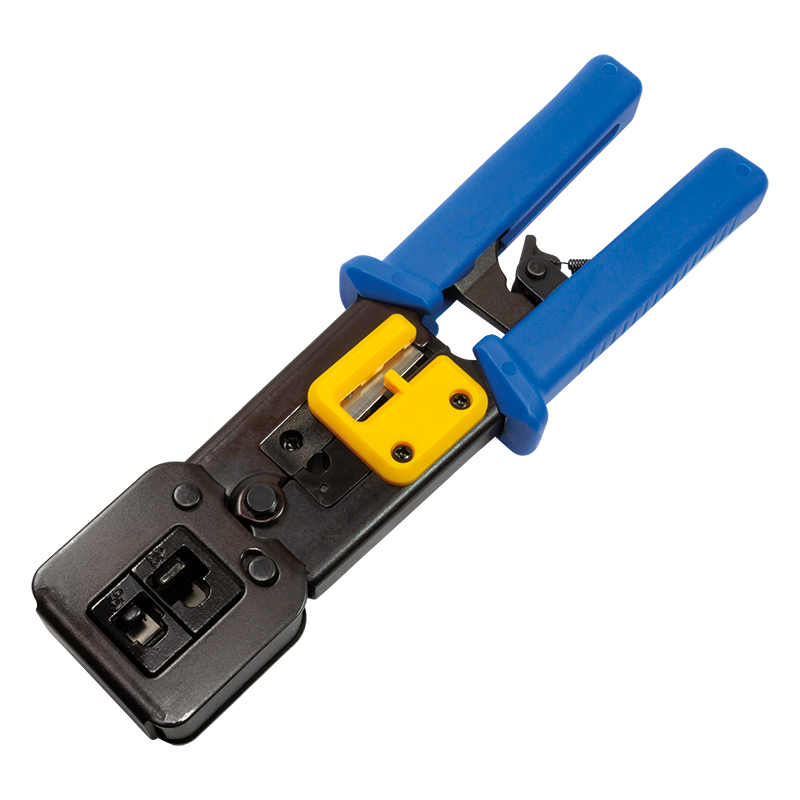

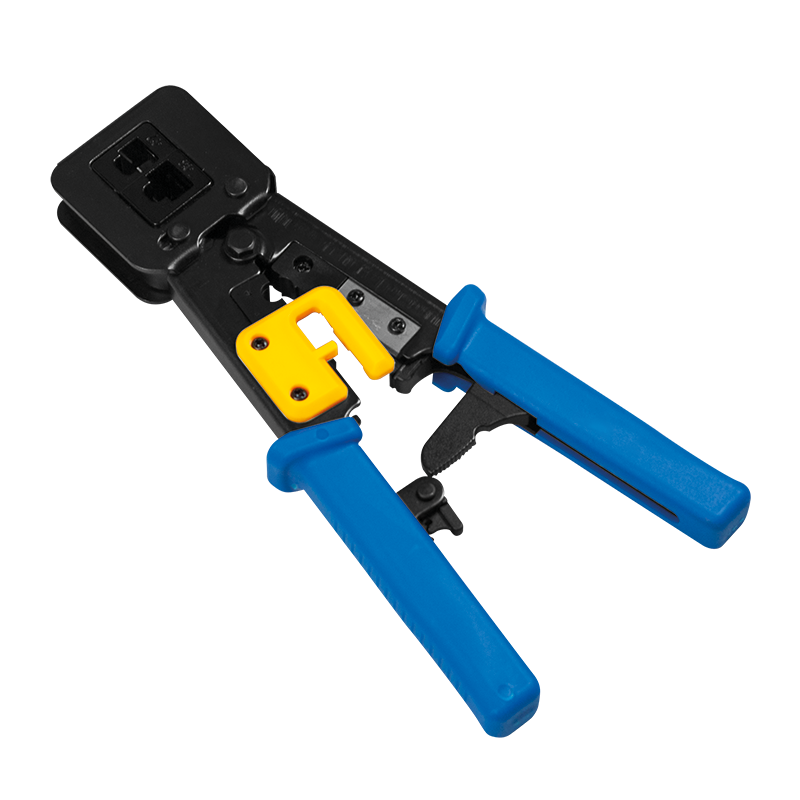

Crimping Tool for Pass Through Connectors, with cutter

Crimping Tool for Pass Through Connectors, with cutter

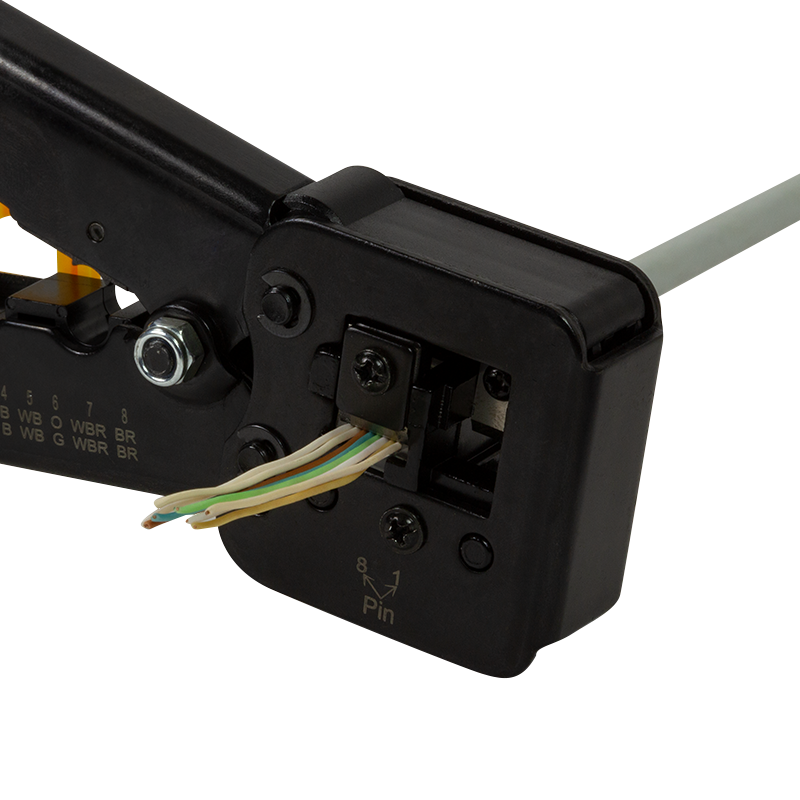

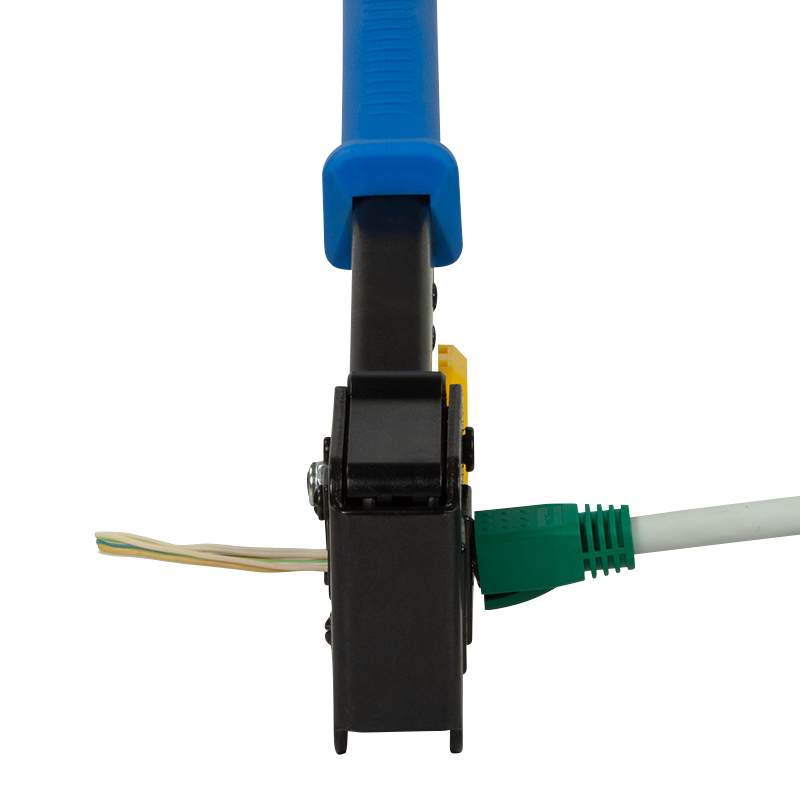

The crimping tool is ideal for professional installers. It features a ratchet that allows quick and reliable connections continuously. This high-quality crimping plier is suitable for all standard RJ45 and RJ12 plugs and especially useful for cables with solid wires, which are normally difficult to process. The WZ0037 is also well suited for the LogiLInk's MP0027 Cat.6 connector plugs, which are open at the front.

Professional Must-have Wire Terminal Tool

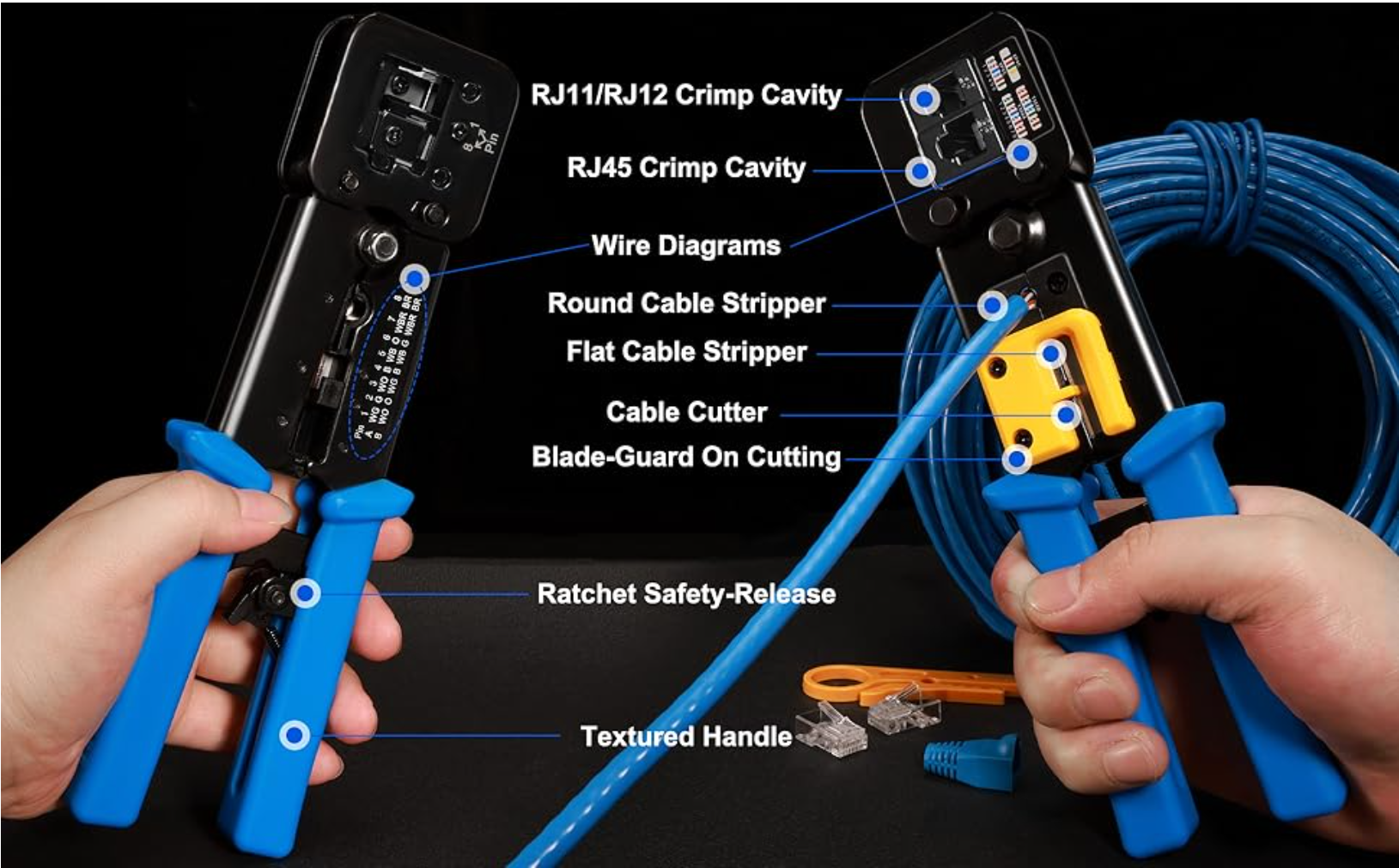

RJ45 Crimping Tool provides 360 degrees of connector support during the crimping cycle, as it cuts, strips and terminates RJ11/12 and RJ45 extended copper wires with a precision die head.

Fast, reliable crimp tool with steel body for durability

Functions for 8P/RJ-45 and 6P/RJ-12, RJ-11

Cuts, strips and crimps Twisted Pair, Ethernet, RJ45 voice and data cables

Crimping dies are precision ground from high-carbon steel

Ratchet safety-release and a blade-guard on cutting and stripping knives reduce the risk of injury

Compact size, easy to handle

General product data:

Weight: 0.49 kg

Height: 5.1 cm

Width: 2.3 cm

Length: 22 cm

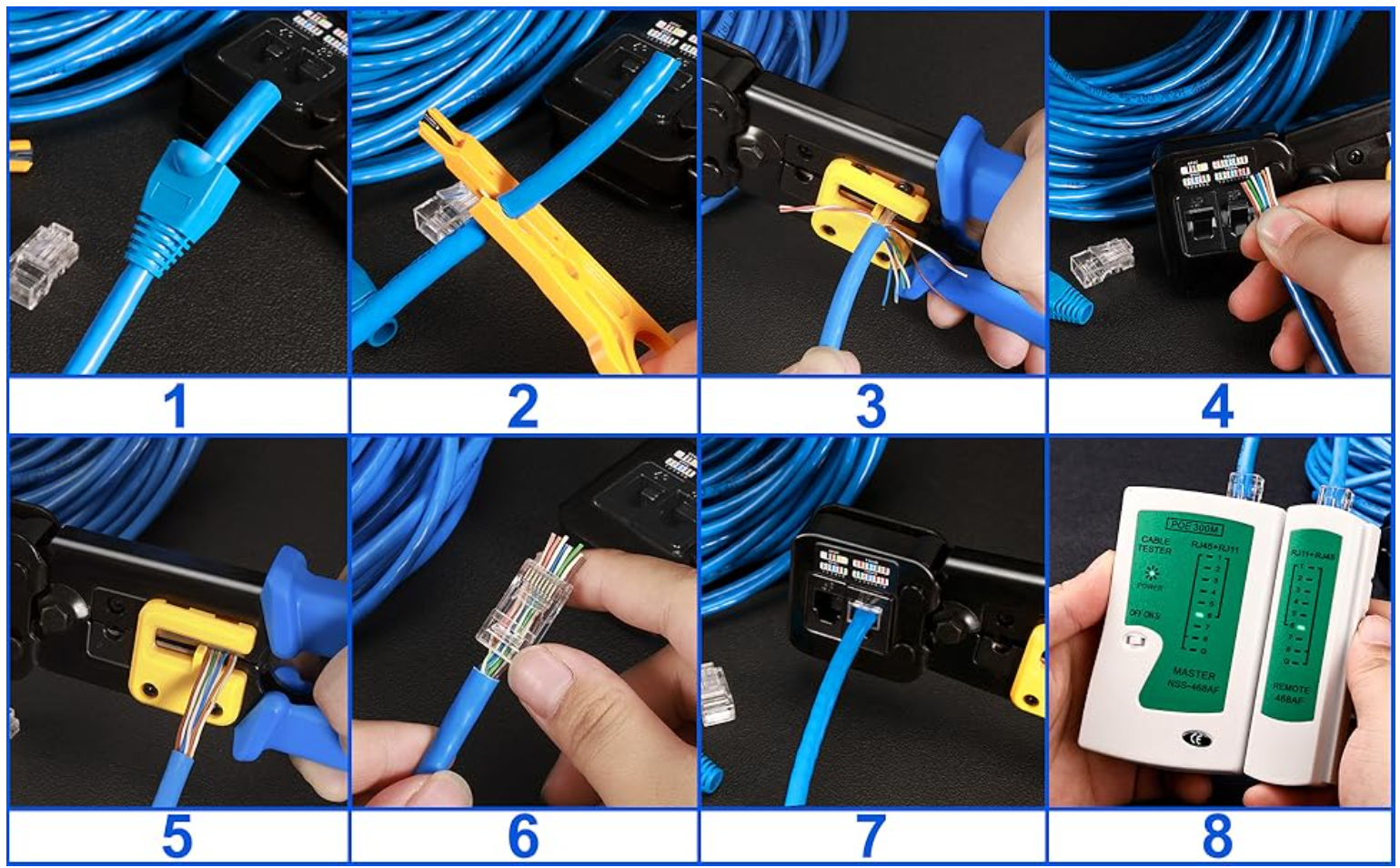

How to make a RJ45 ethernet cable connector

Put the cable into the stripping port of the rj45 ethernet crimper.

Hold the rj45 ethernet crimper and rotate the cable on 360 degrees to strip the cable. (Note: Don't crimp too much tightly to avoid damaging the internal cable).

Line up the eight colors of the cable according to T568A standard or T568B- (T568B Standard used in home more widely).

After line up the eight colors of the cable, you should cut the wires neatly through the cutting port blade of the rj45 ethernet crimper.

Please insert the sequential cable into the end of the crystal connector. When inserting the cable into the crystal connector, hold the cable tightly to avoid the wrong sequence.

Insert the network cable with crystal connector into the 8P crimping port.

Squeeze the handle hard and release then, pull out the crystal connector.

The rj45 Ethernet Cable connector is completed.
