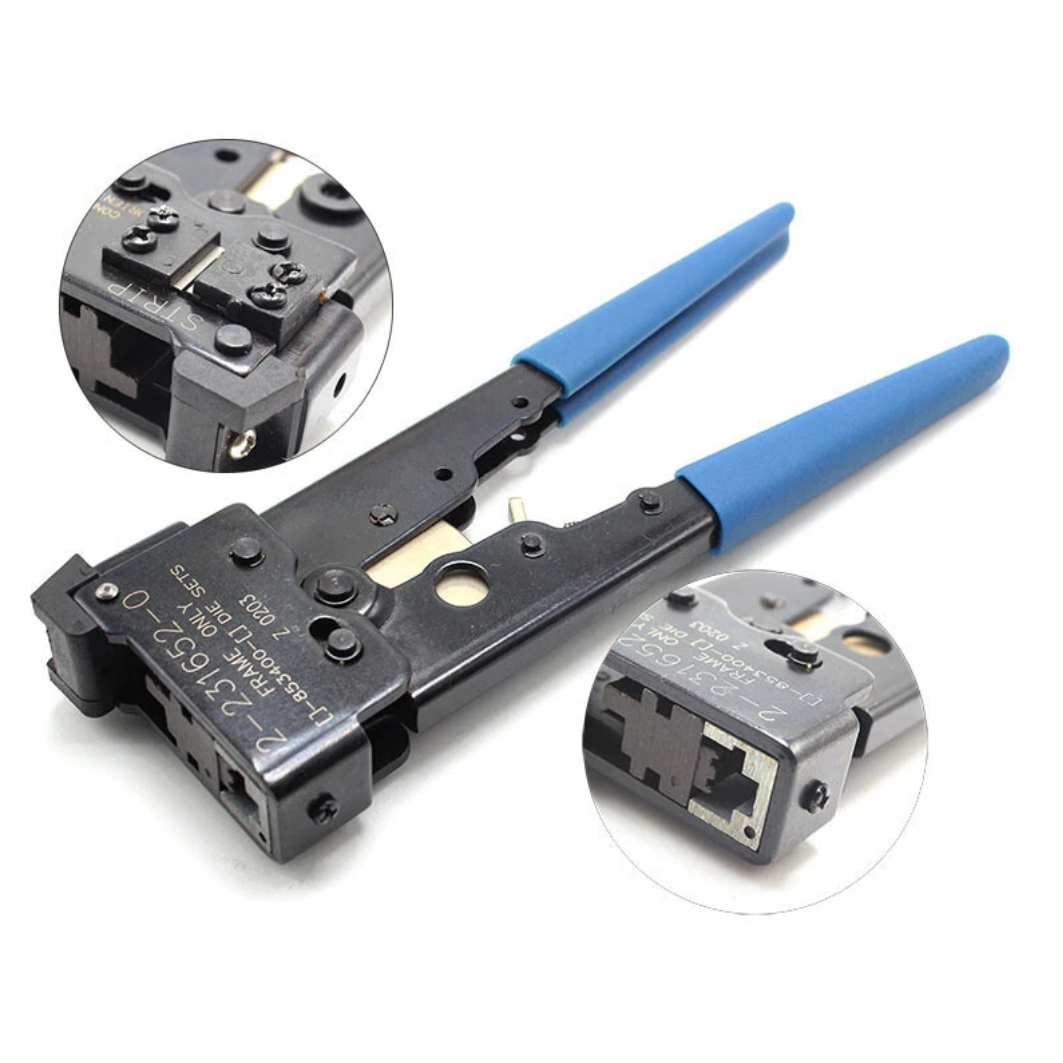

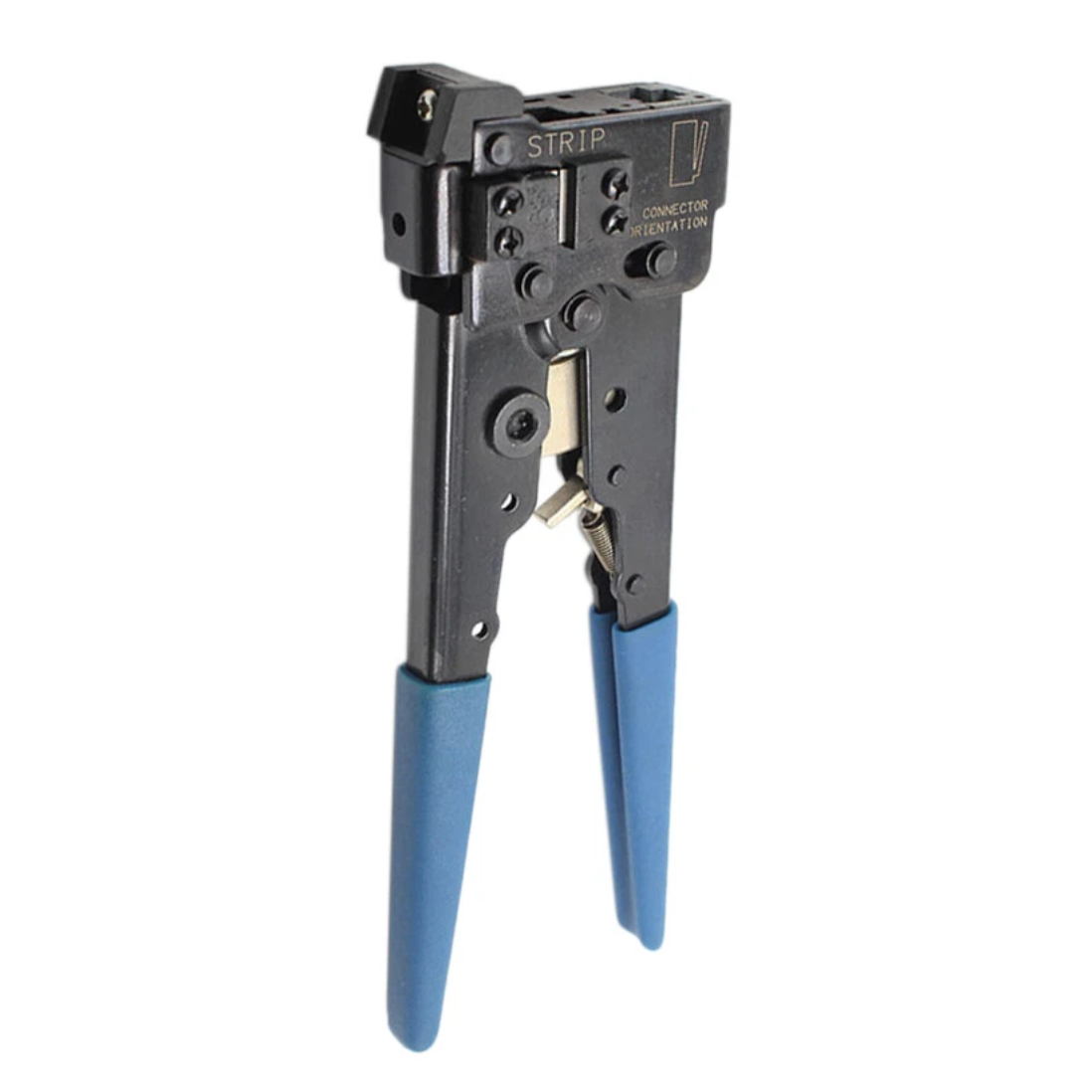

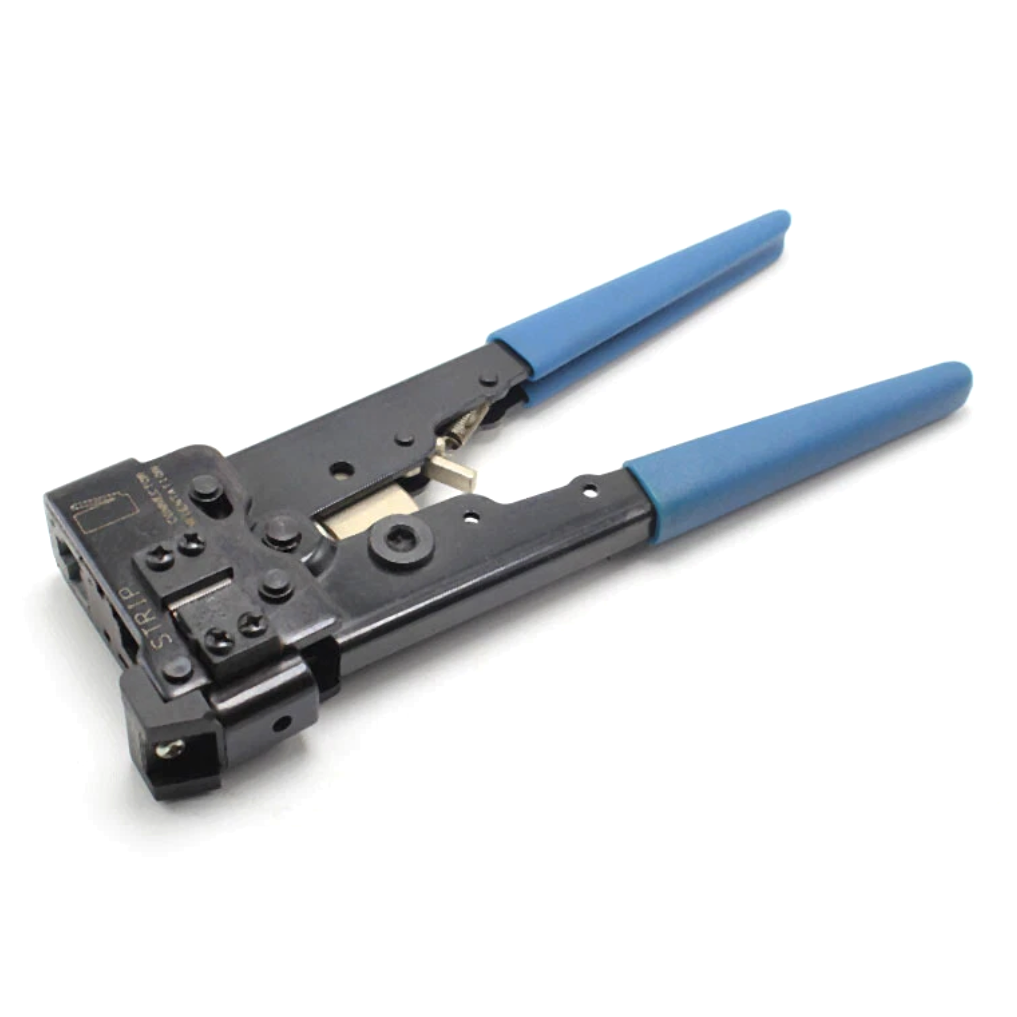

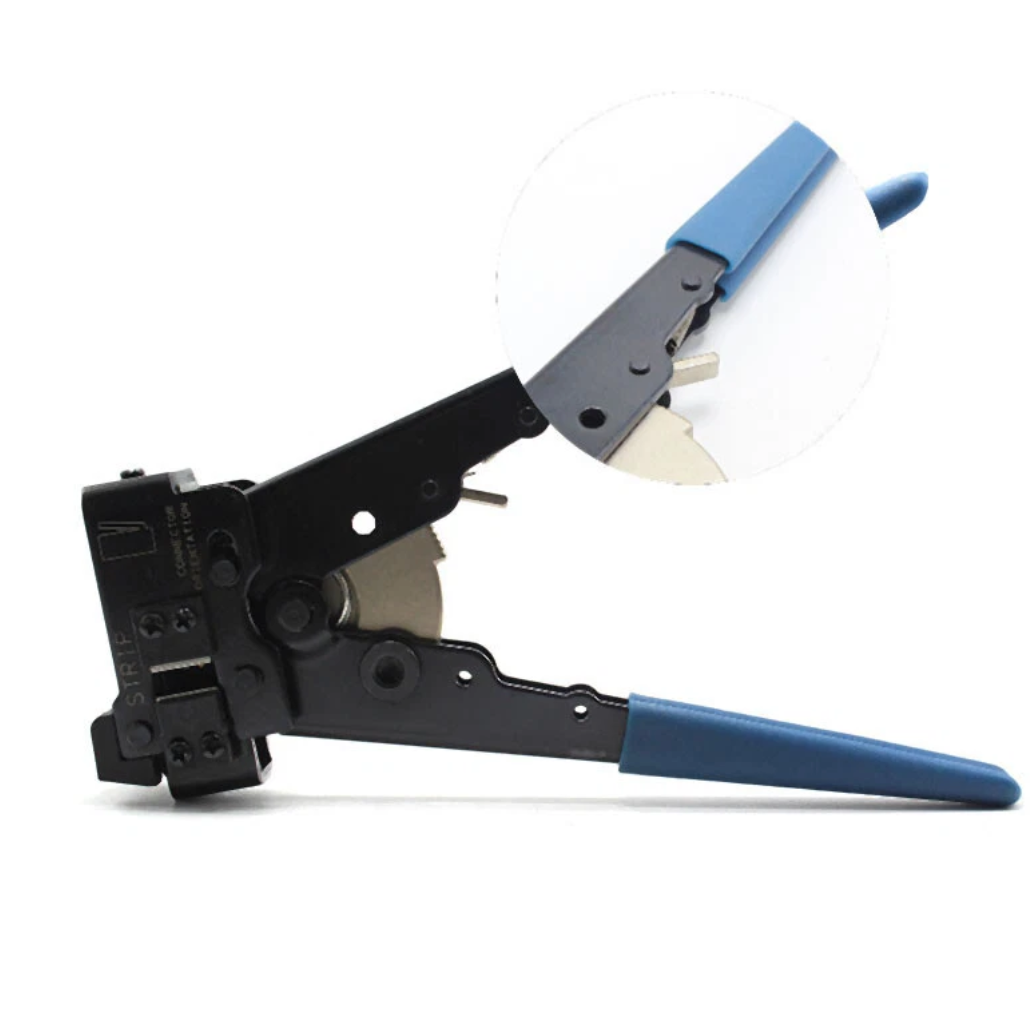

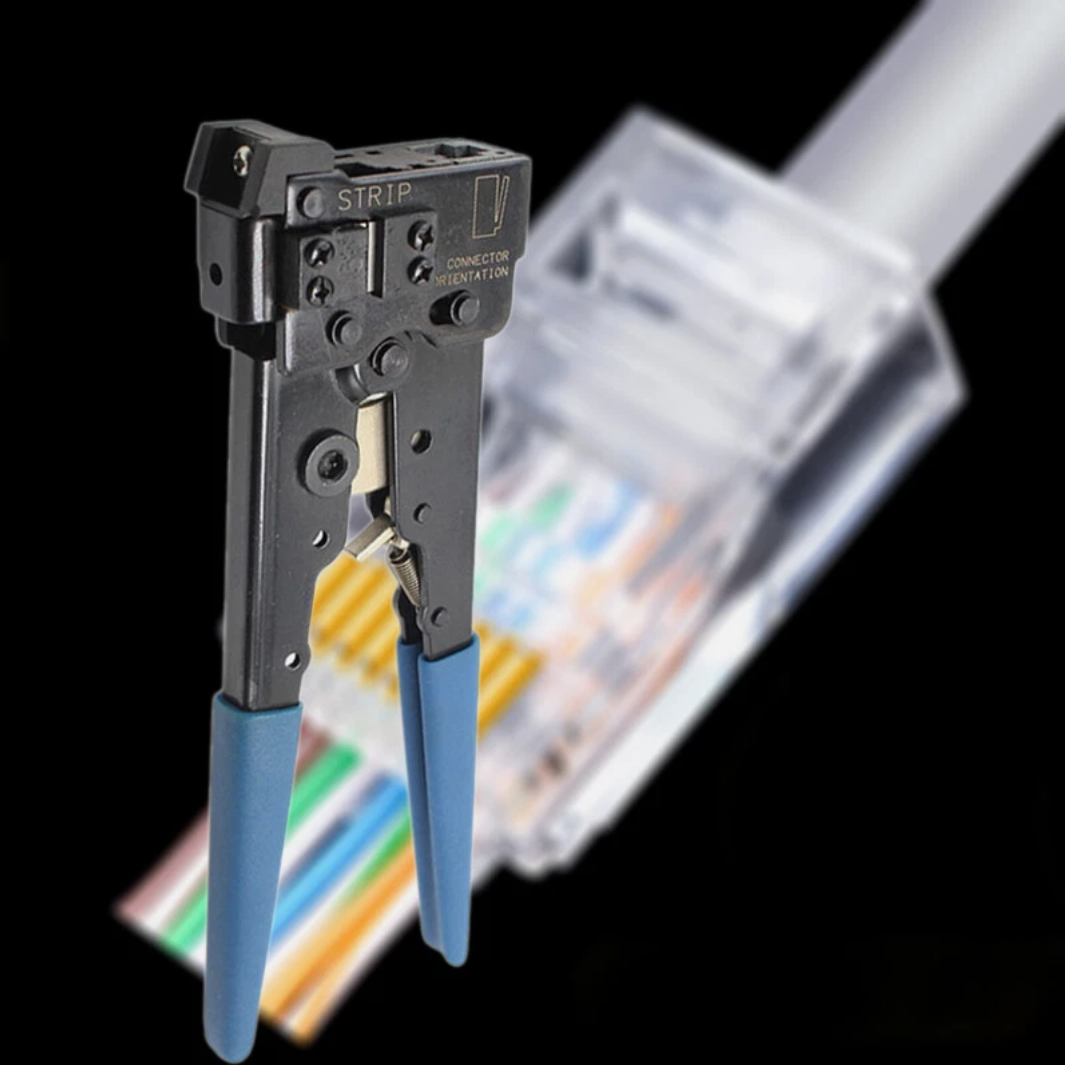

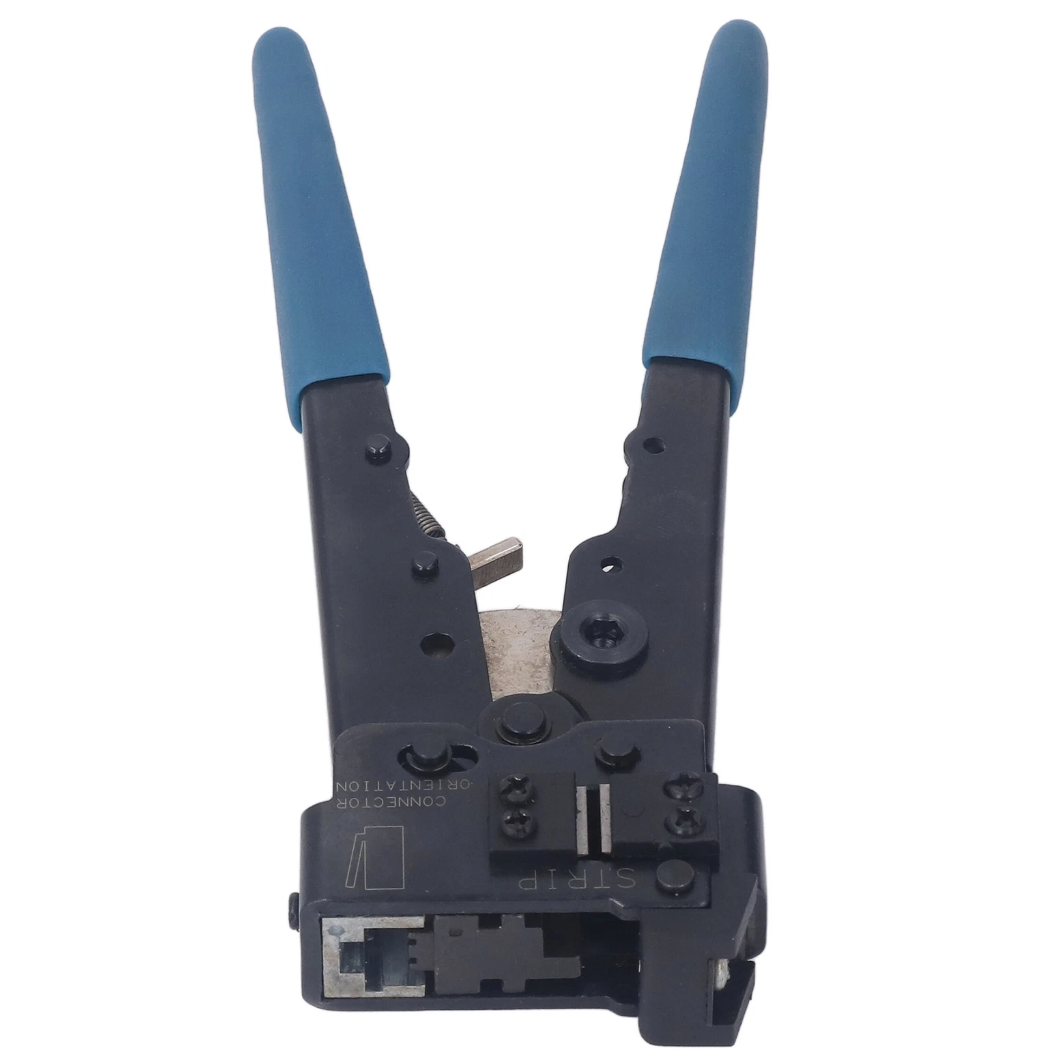

AMP Modular Plug Hand Crimp Tool 2-231652-0 Crimping Tool For RJ45 Patch Cord
Highlights:
The Tyco Electronics/AMP 2-231652-0 Modular Crimping Tool with die set 1–853400–0 (RJ45 8 pin) is a high-quality hand tool used for crimping electrical connections.
Made by Tyco Electronics, this tool is designed for precision and efficiency in crimping tasks.
The modular design and die set make it versatile for various crimping applications, making it a valuable addition to any electrical toolkit.
AMP Modular Plug Hand Crimp Tool 2-231652-0 Crimping Tool For RJ45 Patch Cord

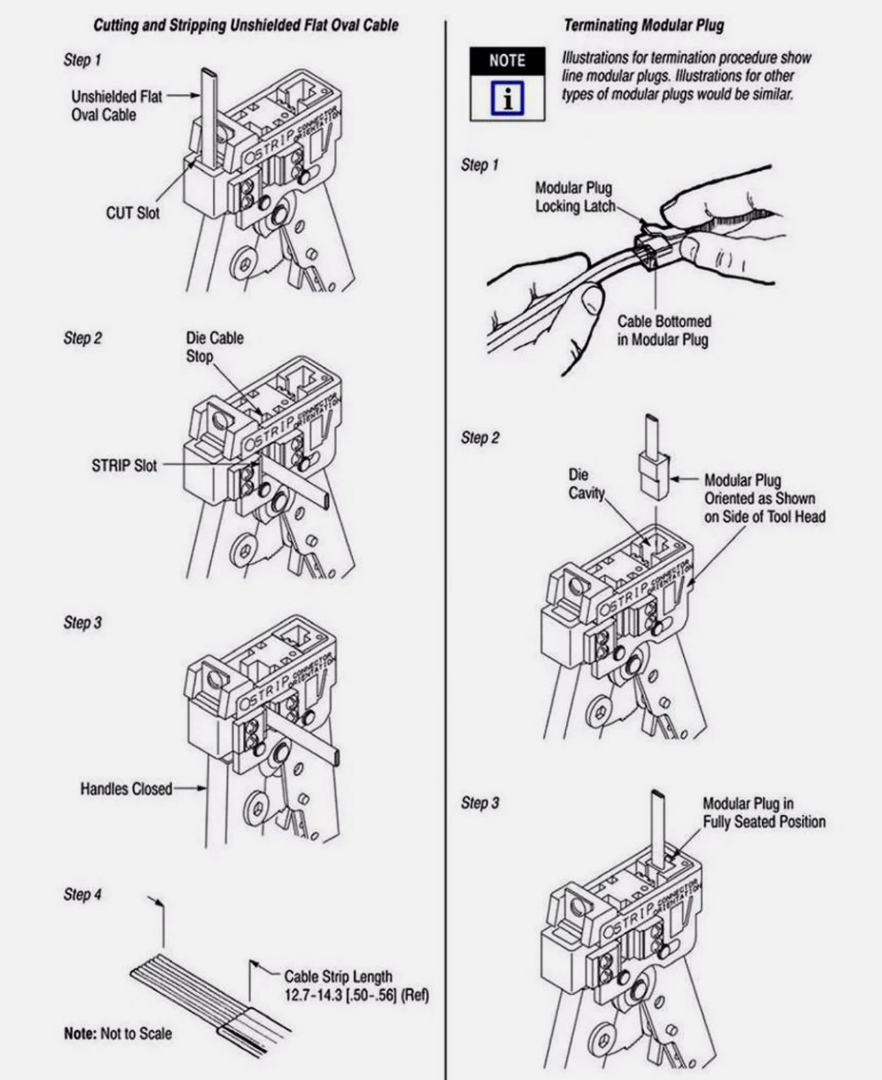

Cutting Modular cable:
1.Place the single-bladed side of the tool's cutter facing you and cut the modular cable to the desired length. Make sure to cut the ends of the cord straight across, not diagonally.
2.Stripping modular cable (Flat cable)
2a. Insert 6P Cable into the two-bladed side of the tool's stripper until it Presses the stop guide.2b. Insert the 8P Cable into the two-bladed side of the tool's stripper and let it extend a little past the lower cut blade.
3. Squeeze handles until it stops cable must be perpendicular and then pull from the tool.
4. Remove the outer jacket, insert the stripped cable into the plug and be sure the left wire at one and matches the right wire at the other end.
5. Place modular plug with cable into the tool's holder. Be sure the stripped wire is between the tab and good contact. Squeeze handles until it stops.
6. Remove the crimped plug from the tool.
Suitable for: Dedicated for 8P/8P8C/RJ45
1.Place the single-bladed side of the tool's cutter facing you and cut the modular cable to the desired length. Make sure to cut the ends of the cord straight across, not diagonally.
2. Squeeze handles until it stops cable must be perpendicular and then pull from the tool.
3.Remove the outer jacket, insert the stripped cable into the plug and be sure the left wire at one and matches the right wire at the other end.4.Remove the outer jacket, insert the stripped cable into the plug and be sure the left wire at one and matches the right wire at the other end.5.Dedicated for 8P/8P8C/RJ45
Colour:Blue + black
Material:Steel + plastic
