Cat6A Network Socket STP 1xRJ45 Shielded Pure White Vertical Cable Feed
Network combination box for use as a surface-mounted box or flush-mounted box with mounting accessories and instructions (English language not guaranteed). Ideal for installation cables / network cables via LSA+ technology. 1 x RJ45 socket for patch cable
1 x RJ45 connectors 8P8C fully shielded, LSA connection technology, cable entry: horizontal, fully shielded data socket - metal pressure housing. For installation cables and patch cables CAT5 CAT6 CAT6a CAT7 CAT8
1 port Gigabit network socket CAT.6 consisting of flush-mounted box with surface-mounted frame - combination box / universal network LAN socket, gigabit transmission, internal strain relief via metal clip
Suitable for Gigabit and Ethernet networks (10/100/1000/10,000 Mbit/s), colour-coded LSA connection strips according to TIA-568A/B assignment
Colour: RAL 9003 signal white
Cat6A Network Socket STP 1xRJ45 Shielded Pure White Vertical Cable Feed
Description
The Cat.6a wall jacks fulfil the Cat.6/Class EA Permanent Link Standard and are ideal for gigabit ethernet networks

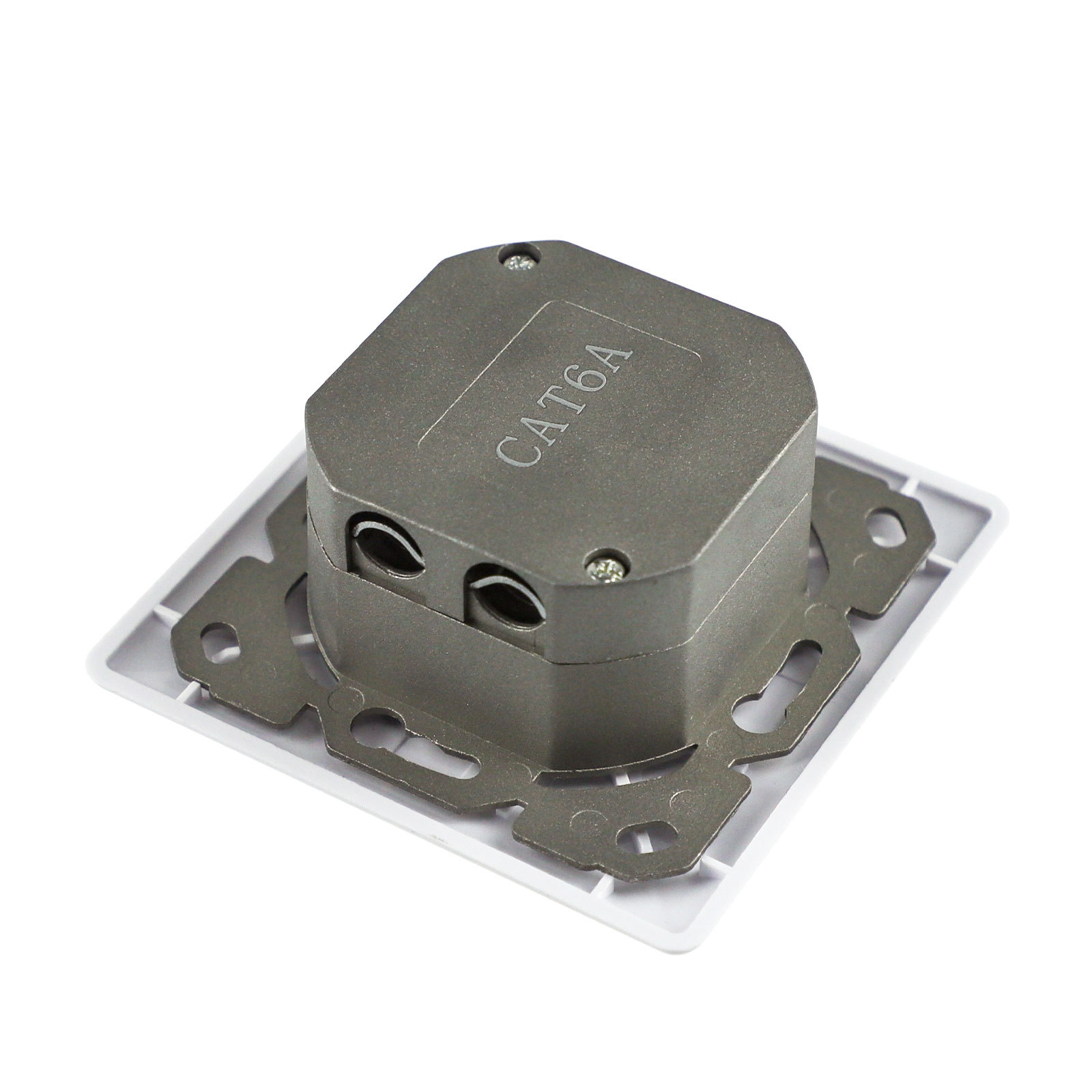

Fully screened box in a metal housing, provides security against EMI (shielded version)
Cable assembly takes place using LSAplus piercing terminals with colour coding on the top in accordance with EIA/TIA 568
Specifications
Product type:Connection box Cat.6A
Colour:white
Shield type:Screened
Transfer quality:Cat6A / Class EA
Wall fixening:Flush mount
Quantity of ports:1
Assembly cable connection:Krone LSAplus
Modular assembly:no
Material (casing):metal
Shield contacts:Yes
Connection direction:45°-inclination
Operating temperature min.:0 °C
Operating temperature max.:70 °C
Height:80 mm
Width:80 mm
Depth:39 mm
Weight:172.8 g
Height of packaging (single piece):80 mm
Width of packaging (single piece):90 mm
Depth of packaging (single piece):100 mm
Package weight (single piece):0.158 kg

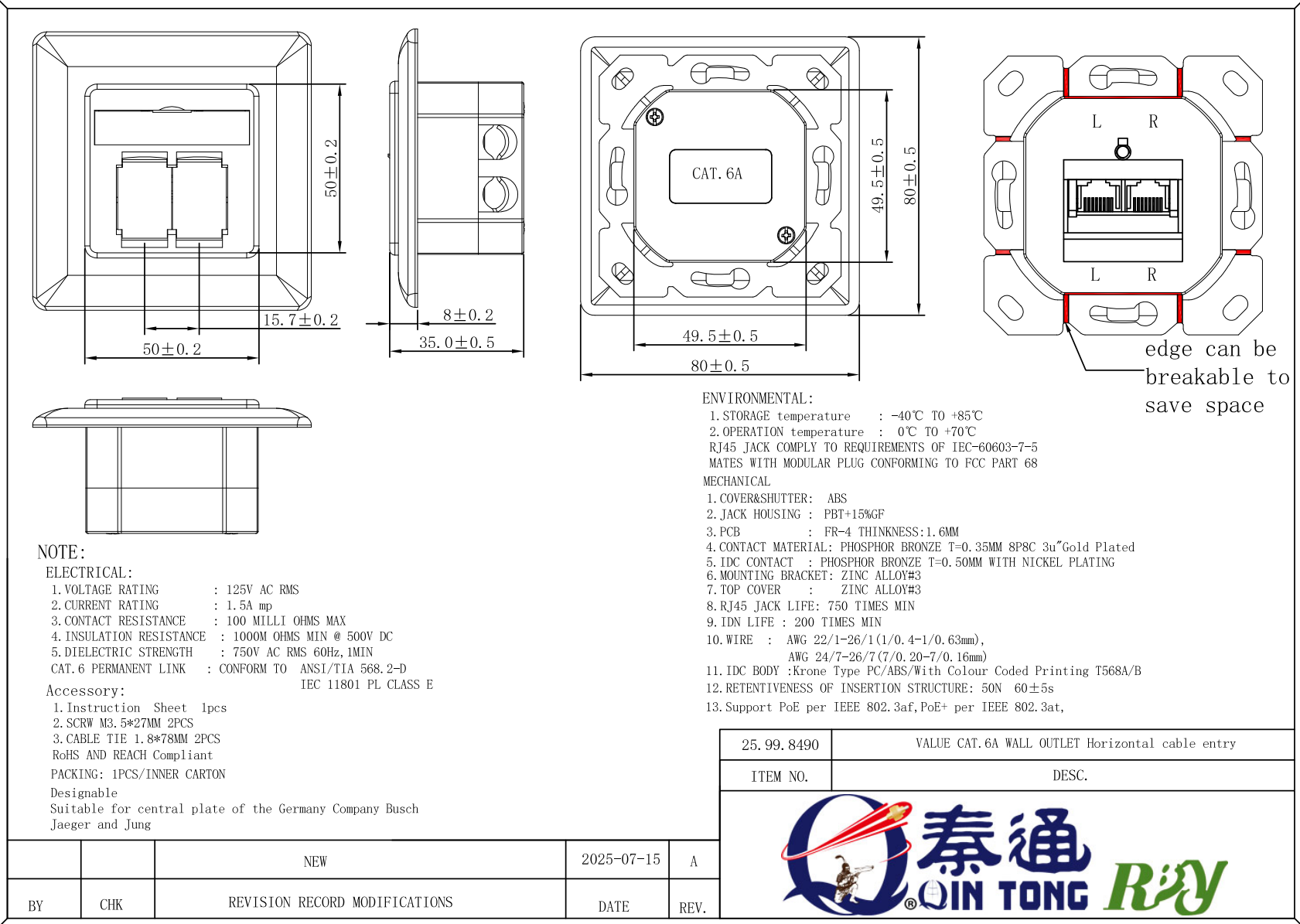

Datasheet

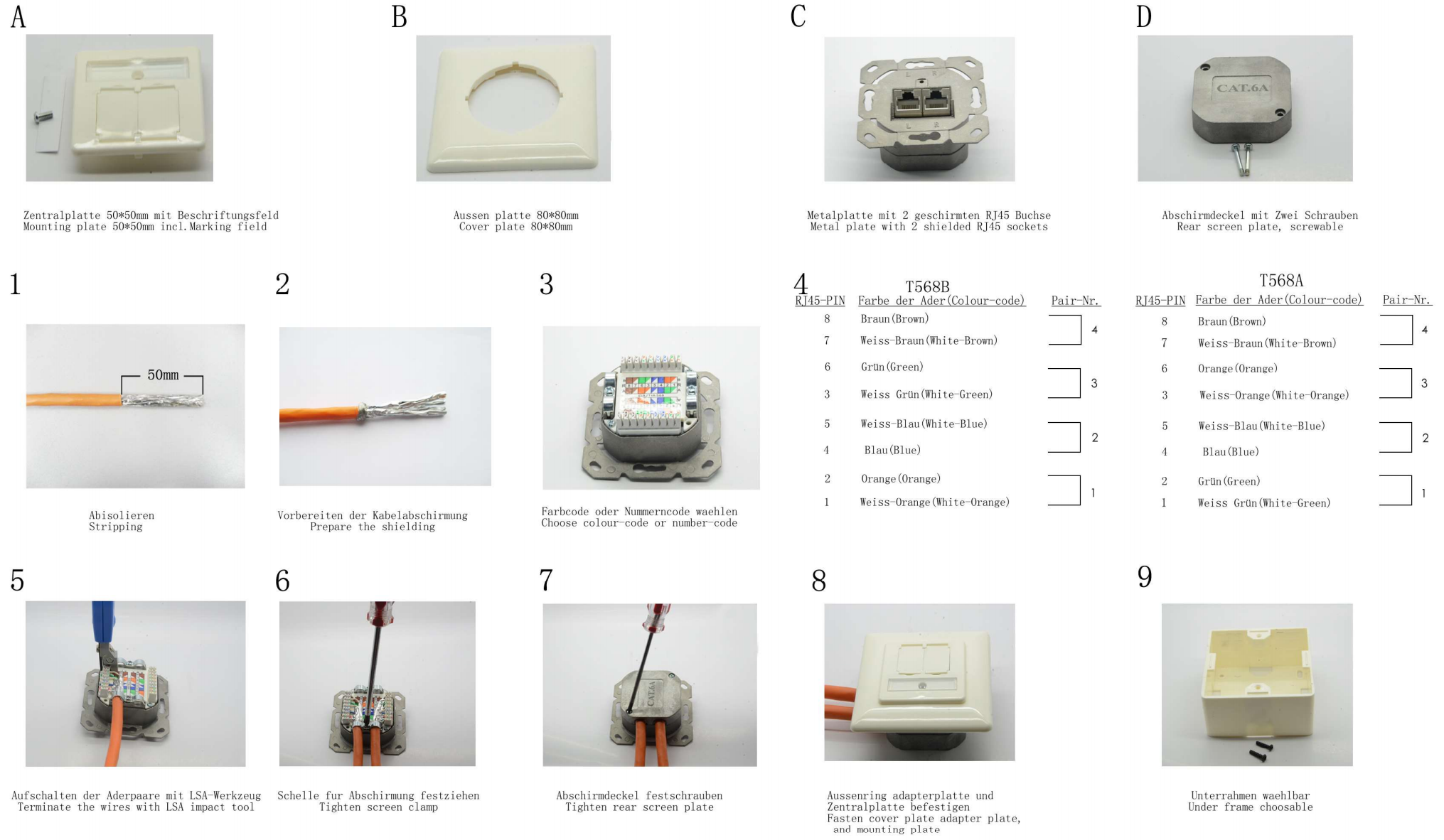

Installation guide
