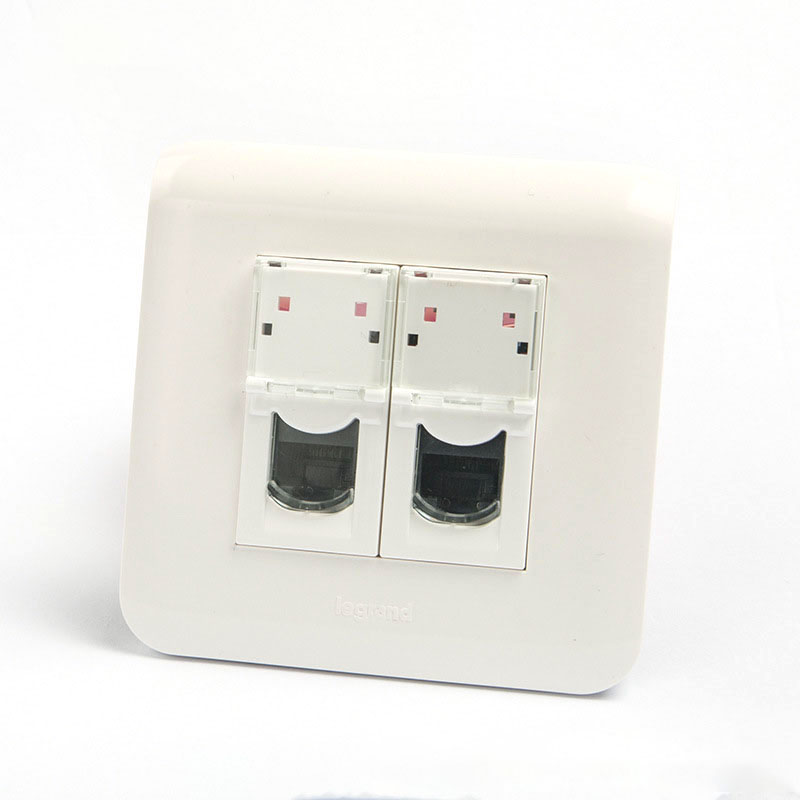

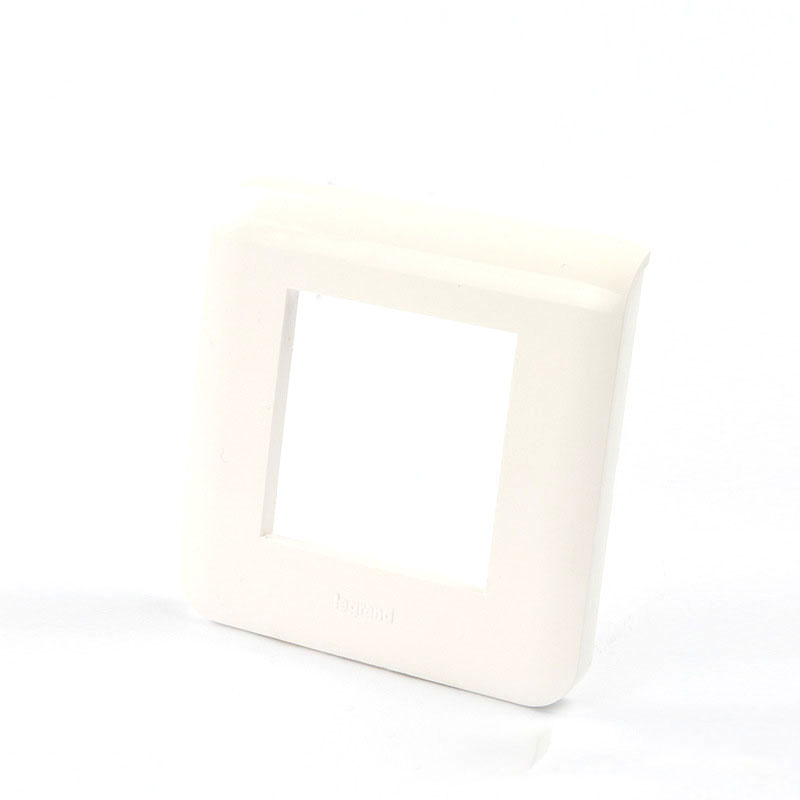

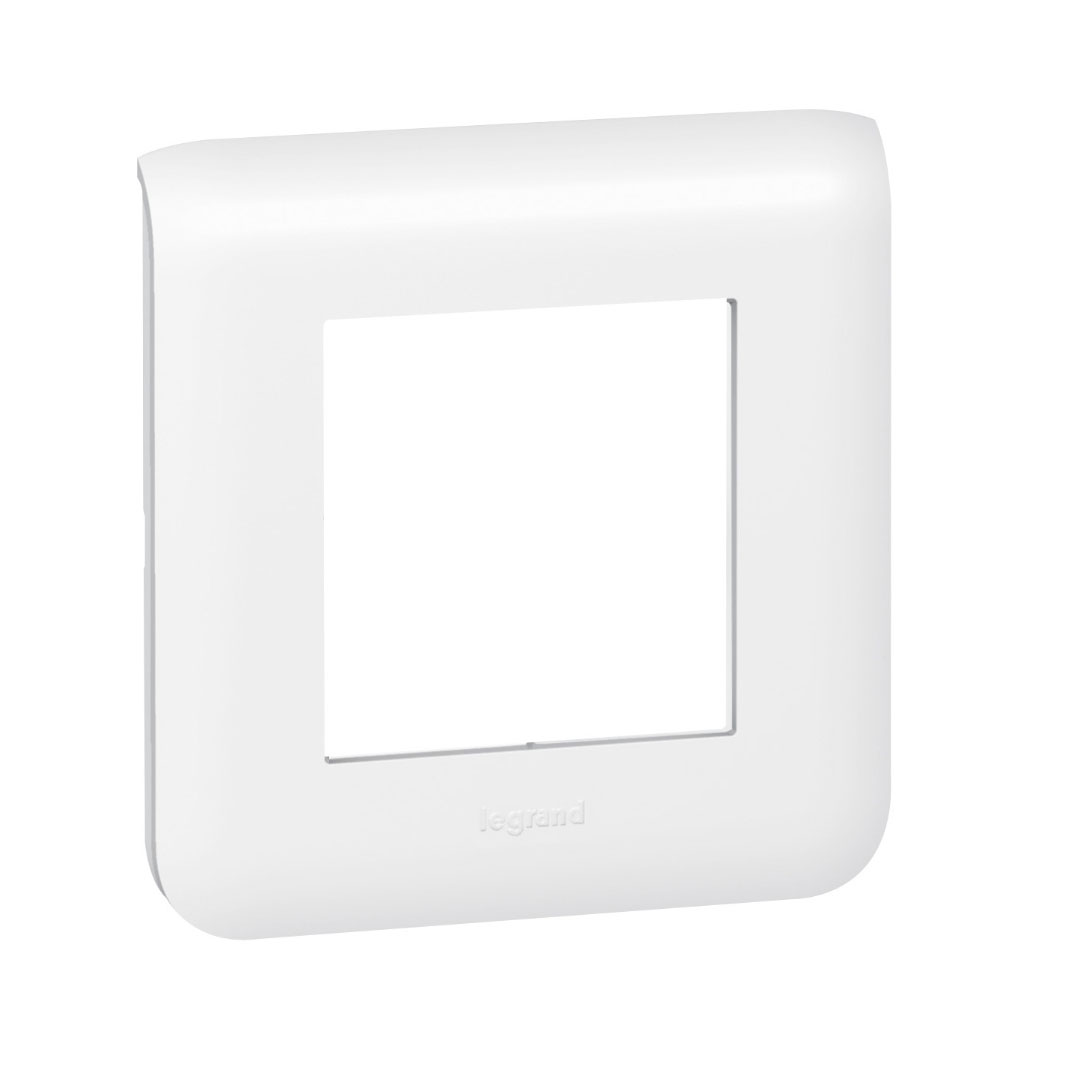

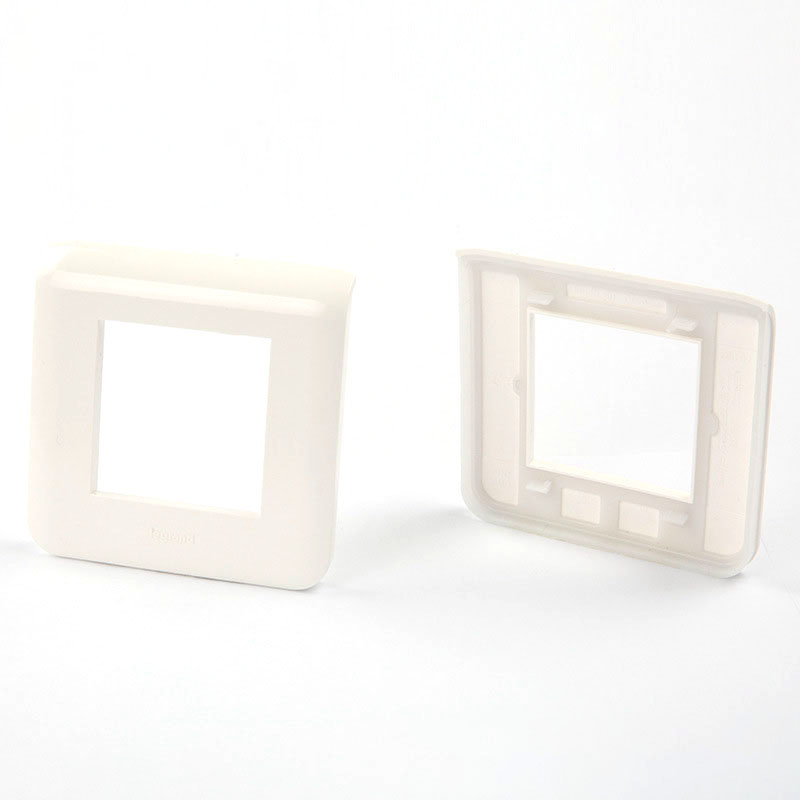

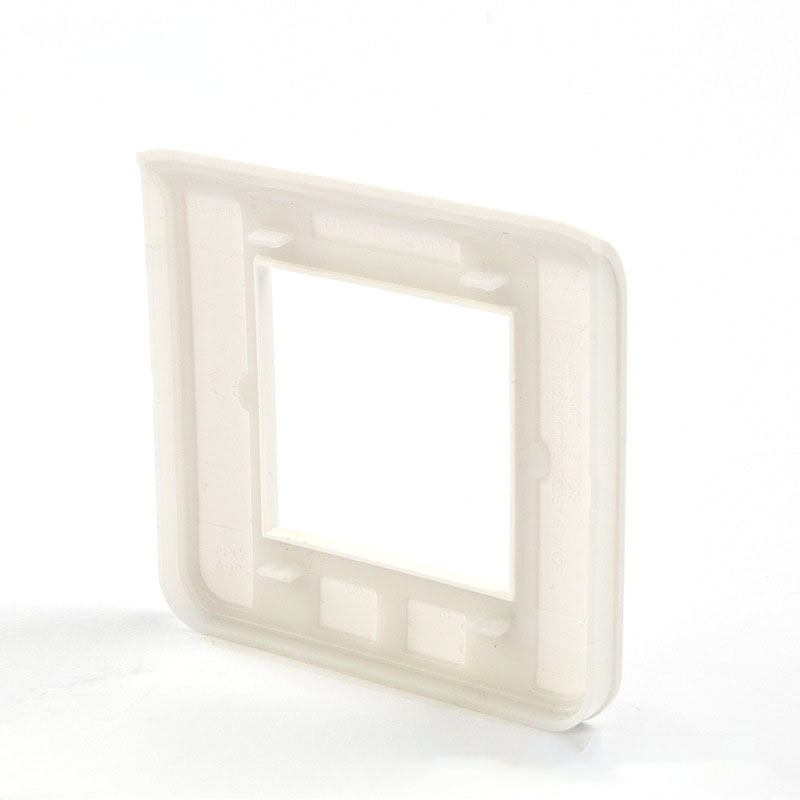

78802 Faceplate Frame Plate 2 modules white

Hot
Hot
US$0.3~0.4

Plates for covering mechanisms with 1 to 2 x 10 modules. And cover plates with integrated label holder for 2 to 3 x 2 module mechanisms.

Specifications

78802 Faceplate Frame Plate 2 modules white

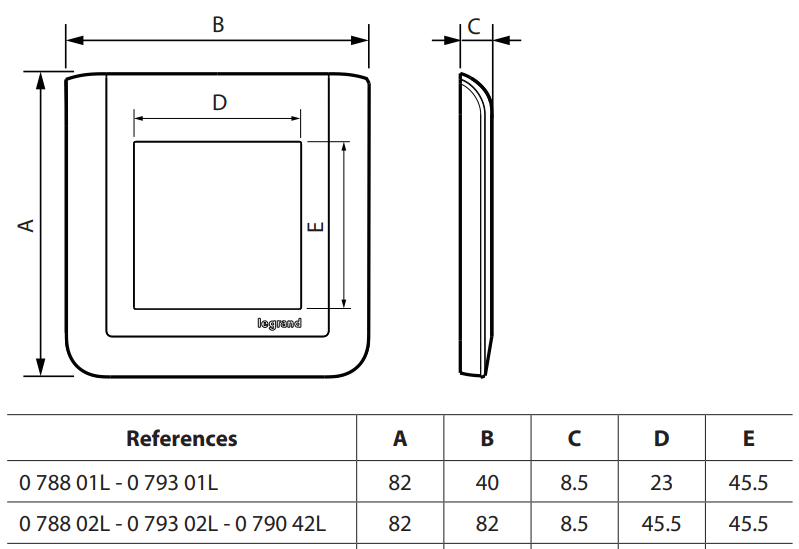

DIMENSIONS (mm)




Use


Plates for covering mechanisms with 1 to 2 x 10 modules. And cover plates with integrated label holder for 2 to 3 x 2 module mechanisms.


4.TECHNICAL CHARACTERISTICS

4.1 Mechanical characteristicsImpact test: lk 04

4.2 Material characteristics

Halogen-freeUV-resistant

Material of plates: ABS White (RAL 9003) polyglass appearanceABS painted Aluminium varnished glitteryABS Painted Matt Black satin fnish RAL 9017

Material of subplates: PC

Self-extinguishing: 650° C/30 s

4.3 Climate characteristicsStorage temperature: -10'C to +70CUsage temperature: -5'C to +35°C


5.CLEANING

Surface cleaning with a cloth.

Do not use: acetone, tar remover, trichloroethylene.


14347587721_551402197

Our Services:

1) Warranty year is 1 year under normal use! The warranty period is a year from the date of original purchase.

2) NOTE: Return policy is exchange only, buyer must pay return shipping fee for item.

3) All message will be replied within 48 hours.


Shenzhen Creative Ruby Co., Limited is a professional network products manufacturer with 16 years R&D production experience. We design and produce fiber optic cables, electrical cables, industrial cables, special cables, electronic cables and cable accessories. We have two factories for production and one design team for product integration.

Our products can meet different market demands in Europe, Southeast Asia and many other countries and regions around the world. Our products can reach and exceed National Standards, such as TIA/EIA 568B and EIV50173. We have got ISO9001, CE, RoHS and other certificates. We have our own design department, production lines, quality inspection, marketing integration and OEM/ODM Center. More and more worldwide partners have joined us.


Contact us:

Shenzhen Creative Ruby Co., Ltd

Seller: Elena

Tel: 86 0755 83950655

Phone/Whatsapp: +86 13410987419
