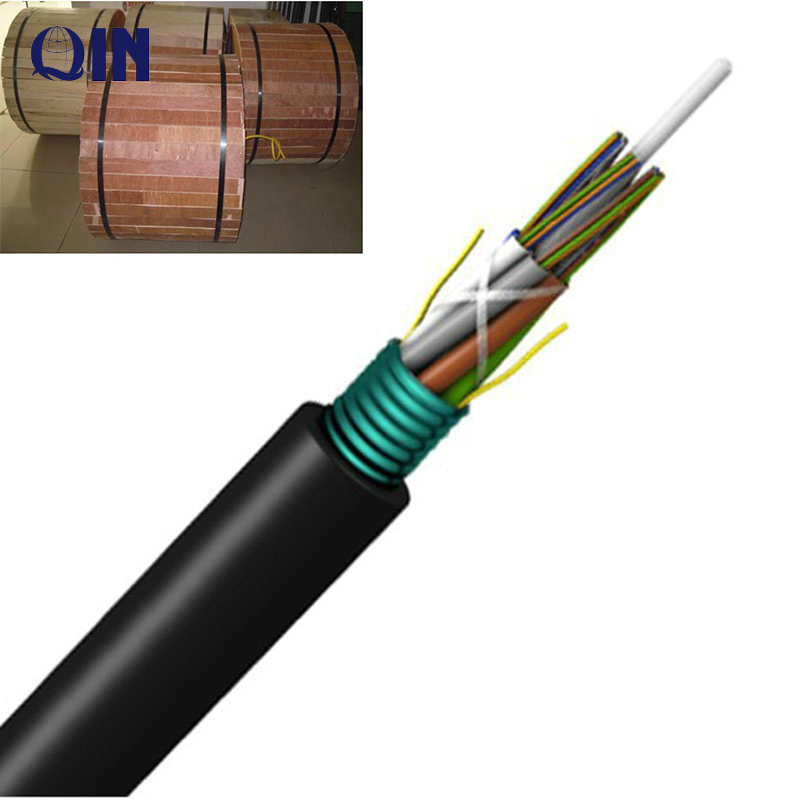

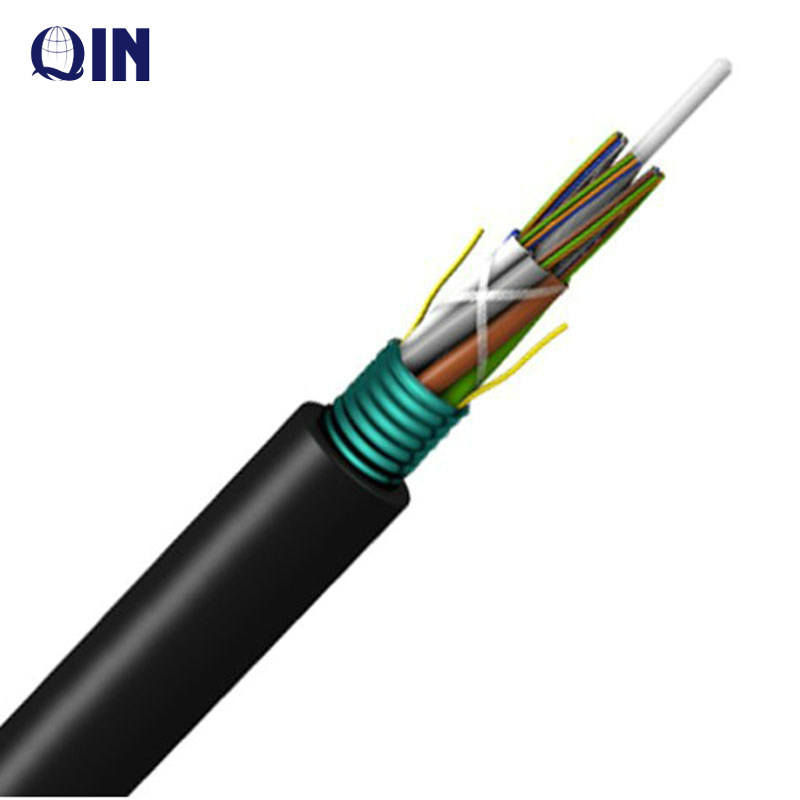

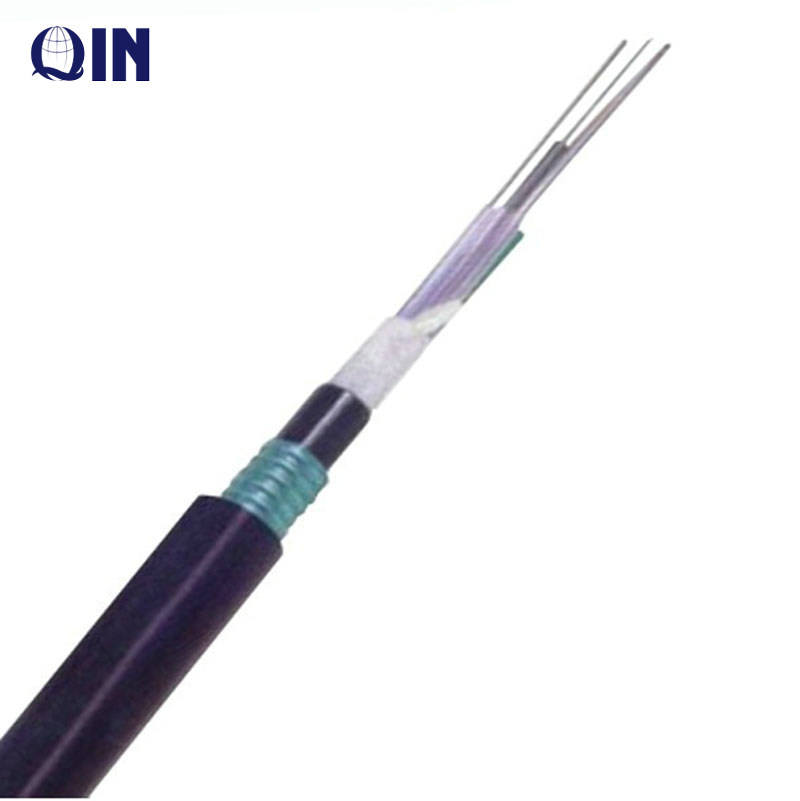

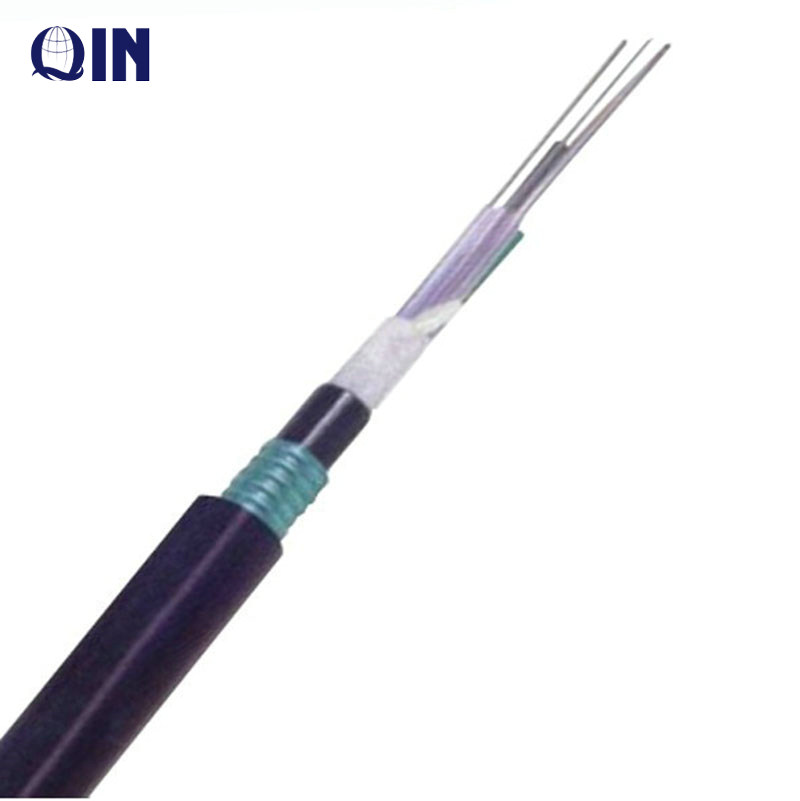

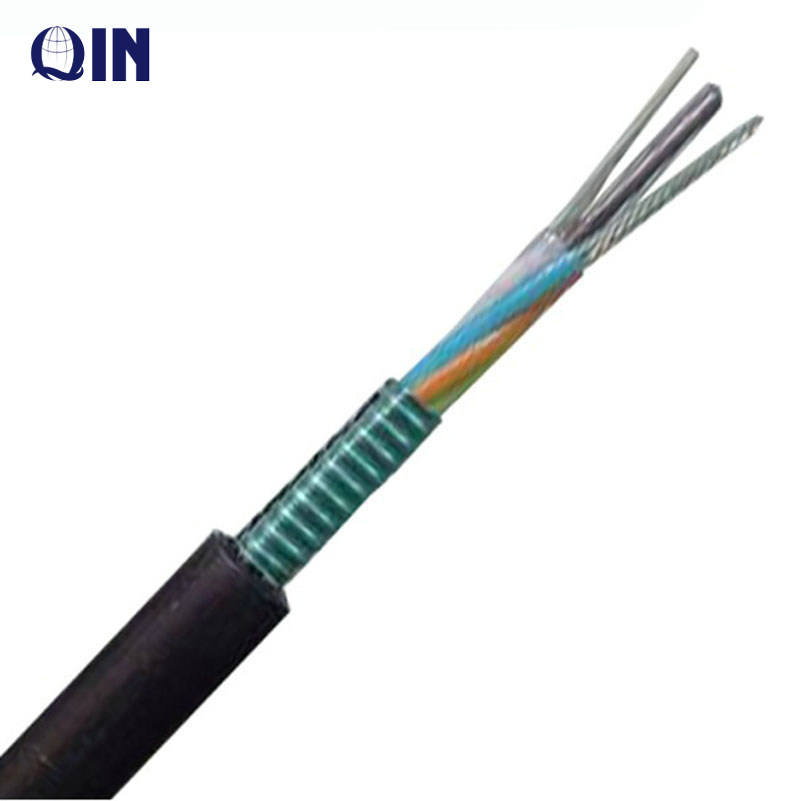

GYTS Corrugated steel tape Armored duct aerial single mode fiber optical cable
Industry-specific attributes
| Brand Name | QIN/RUBY/OEM |
Other attributes
| Model Number | GYTS |
| Type | Fiber Cable |
| Place of Origin | Guangdong, China |
| Number of Conductors | 6 |
| Name | GYTS steel armored Fiber Cable |
| Fiber Type | Single Mode G652D |
| Package | 3km/roll |
| Jacket Material | PVC LSZH PE |
| Color | Black |
| Temperature Range | -40°~60°C |
| Customized logo | available |
| Application | Direct Buried/Duct/Aerial |
| Armoured Material | Steel Tape |
| Certificate | ISO9001 |

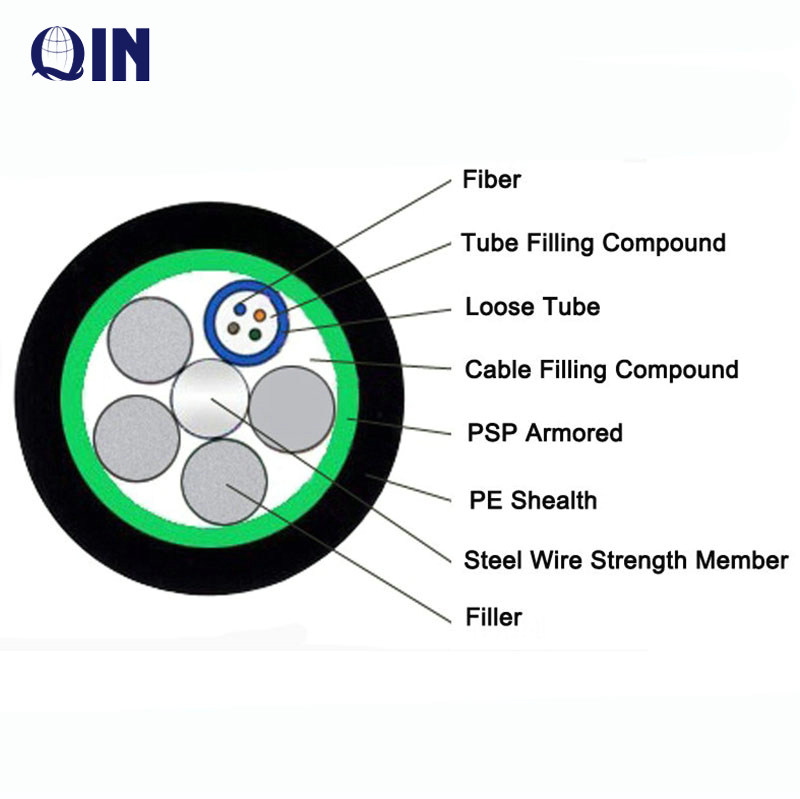

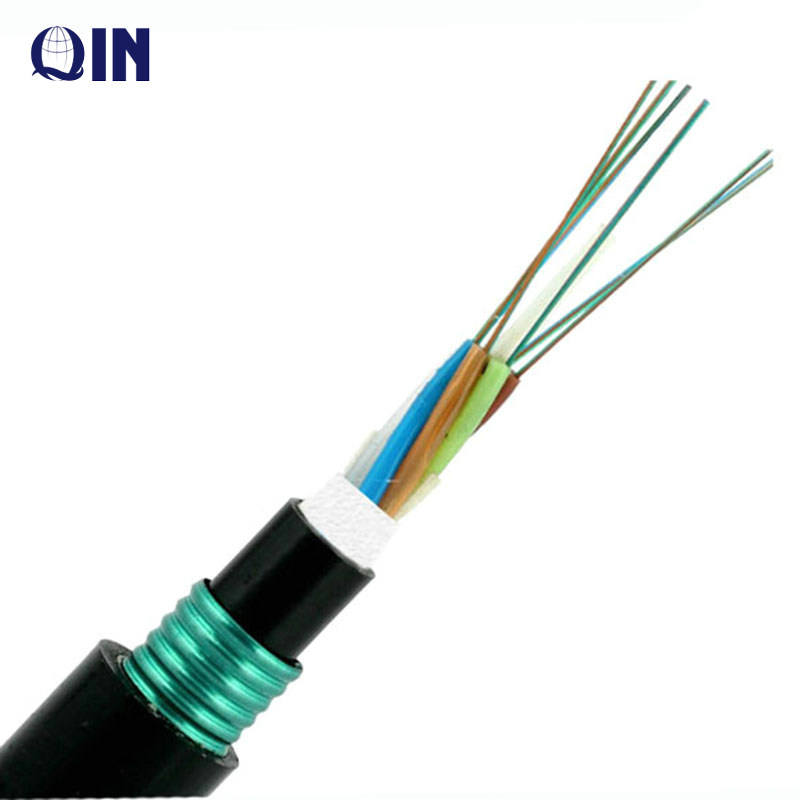

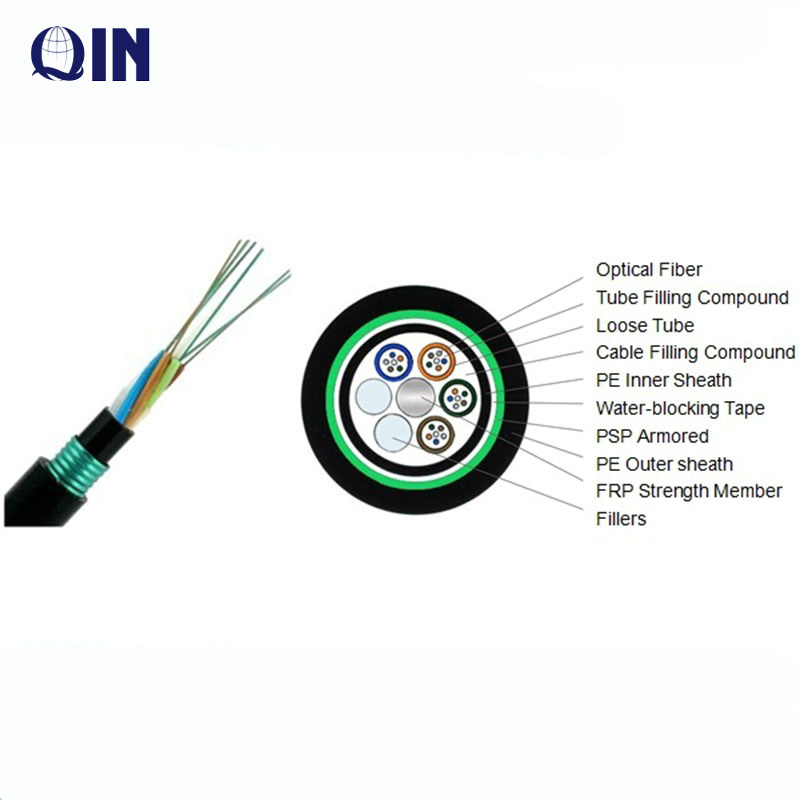

Armored Loose Tube Single Jacket/Single Armor fiber optic cable with fibers placed in loose buffertube stranded around central strength member.The cable core is protected with jelly to prevent water intrusion and migration,with a corrugated steel tape armorwhich provides rigid protection, rodent resistance and cover with a black Polyethylene out jacket.
Fiber:
2-288 fibers
Loose tube gel-filled
Armor:
Corrugated steel tape
Central Strength Member:
FRP or Steel Wire
Outer Jacket:
Black UV-and moisture-resistant polyethylene(PE)
Features
Up to288 fibers.
Loose tube gel-filled construction for superior fiber protection.
Corrugated steel tape armorto protect cable from mechanical damage and rodent protection.
UV and moisture-resistant design.
Applications
Backbones and Access.
Installed in ducts, underground conduits.
Dry core structure is available, usd“-DC” suffix.
OpticaL Charateristics
| Fiber Type | G.652 | G.655 | 50/125^m | 62.5/125^m | |
Attenuation (+20X) | 850 nm | <3.0 dB/km | <3.3 dB/km | ||
| 1300 nm | <1.0 dB/km | <1.0 dB/km | |||
| 1310 nm | <0.36 dB/km | <0.40 dB/km | |||
| 1550 nm | <0.22 dB/km | <0.23 dB/km | |||
| Bandwidth | 850 nm | >500 MHz-km | >200 Mhz-km | ||
| 1300 nm | >500 MHz-km | >500 Mhz-km | |||
| Numerical Aperture | 0.200±0.015 NA | 0.275±0.015 NA | |||
| Cable Cut-off Wavelength cc | <1260 nm | <1450 nm | |||
Structure and Technical Specifications
| Fiber Count | Nominal Diameter (mm) | Nominal Weight (kg/km) | Max Fiber Per Tube | Max No. of (Tubes+fillers) | Allowable Tensile Load (N) | Allowable Crush Resistance (N/100mm) | ||
| Short Term | Long Term | Short Term | Long Term | |||||
| 2~30 | 9.7 | 96 | 6 | 5 | 1500 | 600 | 1800 | 800 |
| 32~48 | 10.7 | 111 | 8 | 6 | 1500 | 600 | 1800 | 800 |
| 50~72 | 11.6 | 136 | 12 | 8 | 2000 | 600 | 1800 | 800 |
| 74~96 | 13.0 | 166 | 12 | 10 | 2000 | 600 | 1800 | 800 |
| 98~144 | 15.1 | 228 | 12 | 12 | 2000 | 600 | 1800 | 800 |
Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact our sales people for more detailed information.
Our Services:
1) Warranty year is 1 year under normal use! The warranty period is a year from the date of original purchase.
2) NOTE: Return policy is exchange only, buyer must pay return shipping fee for item.
3) All message will be replied within 48 hours.
