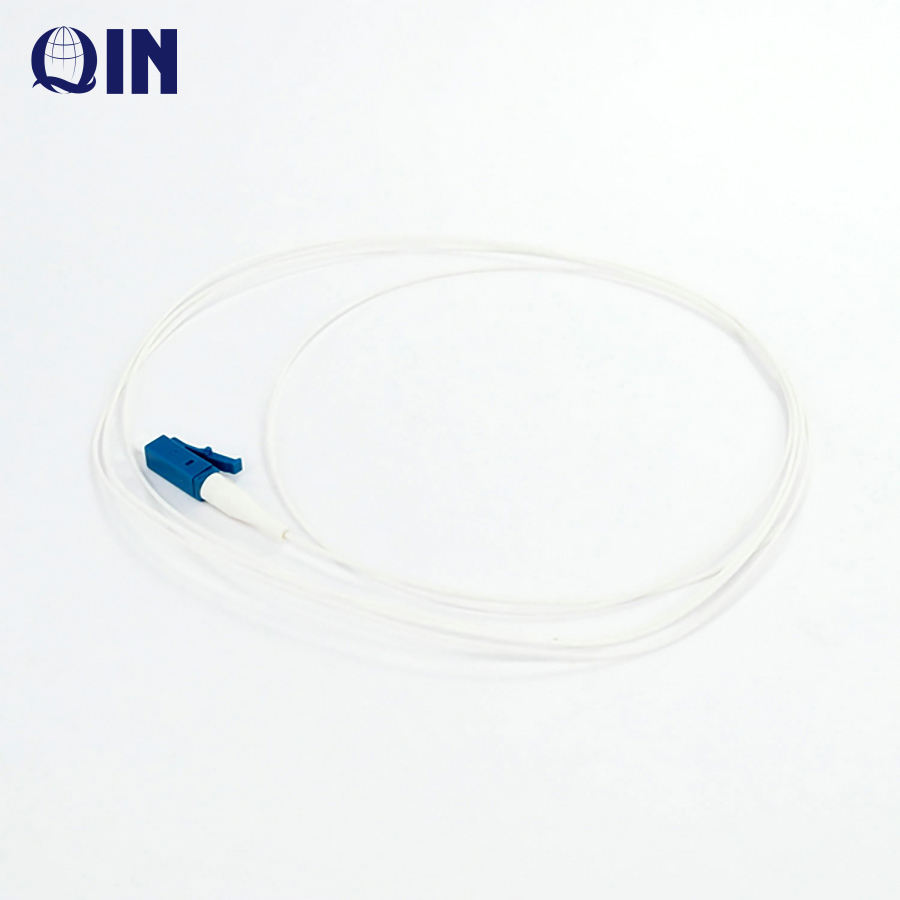

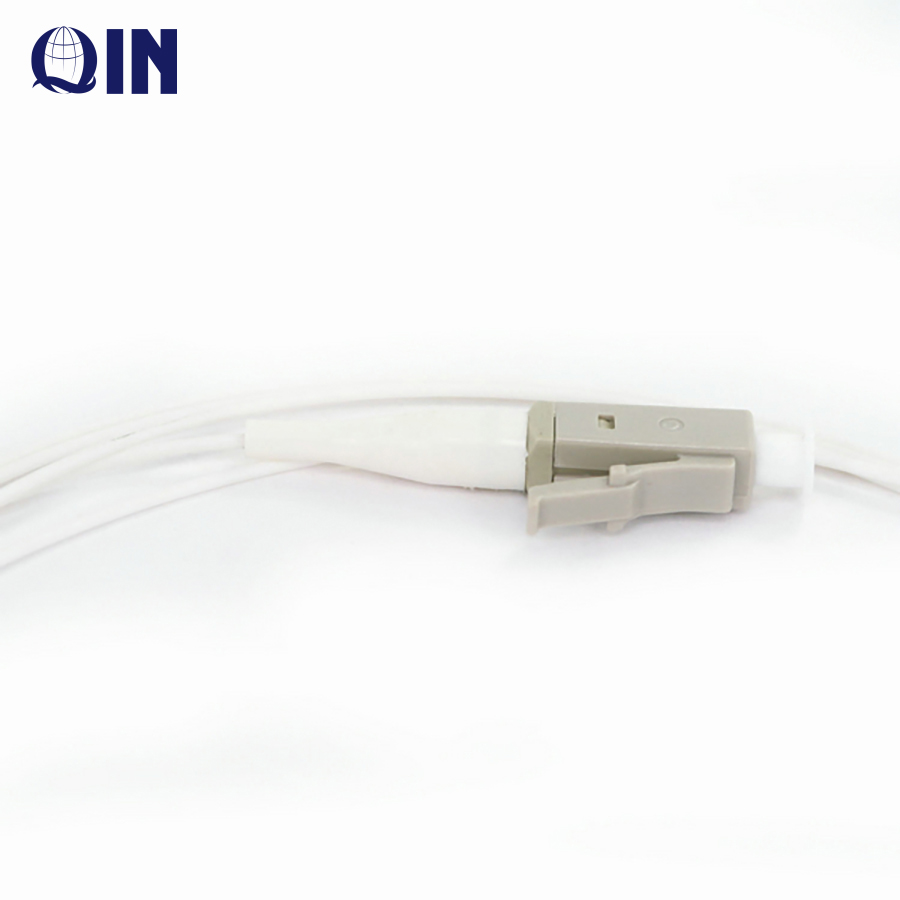

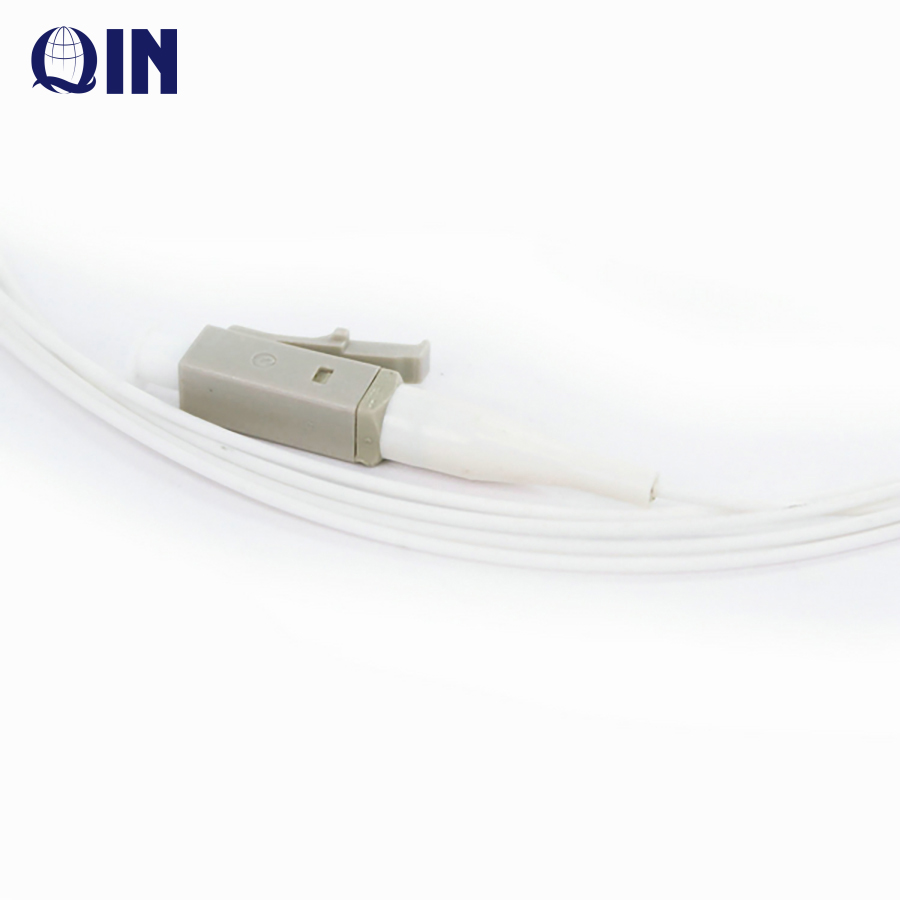

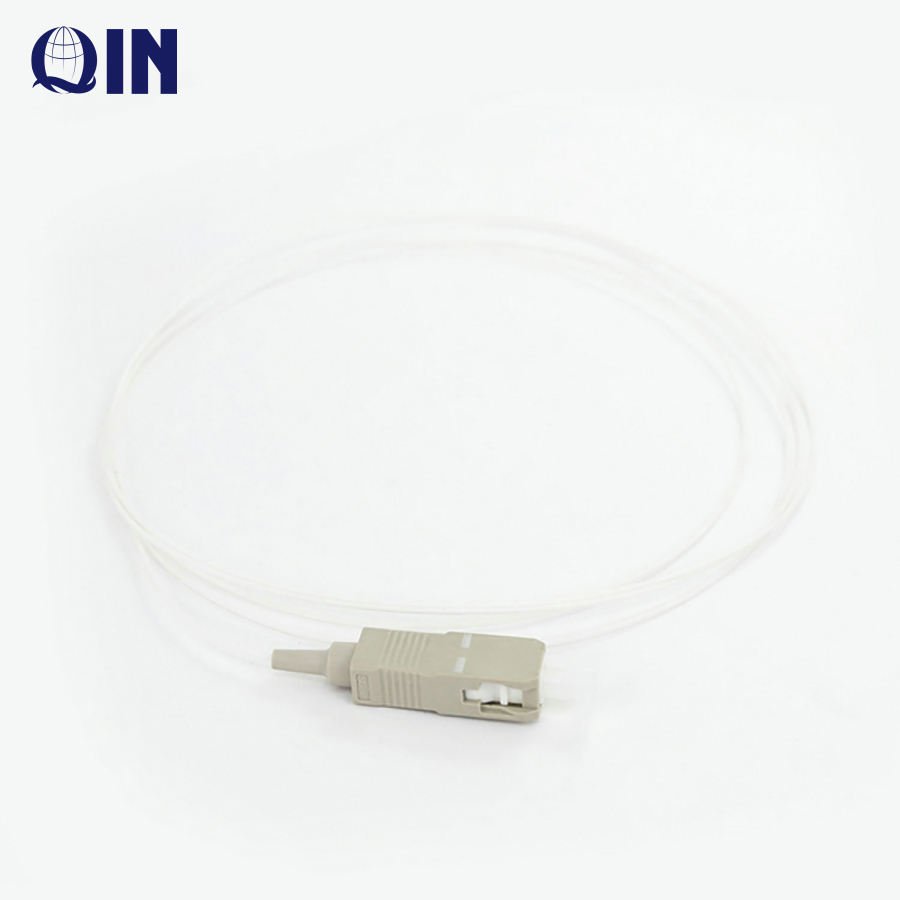

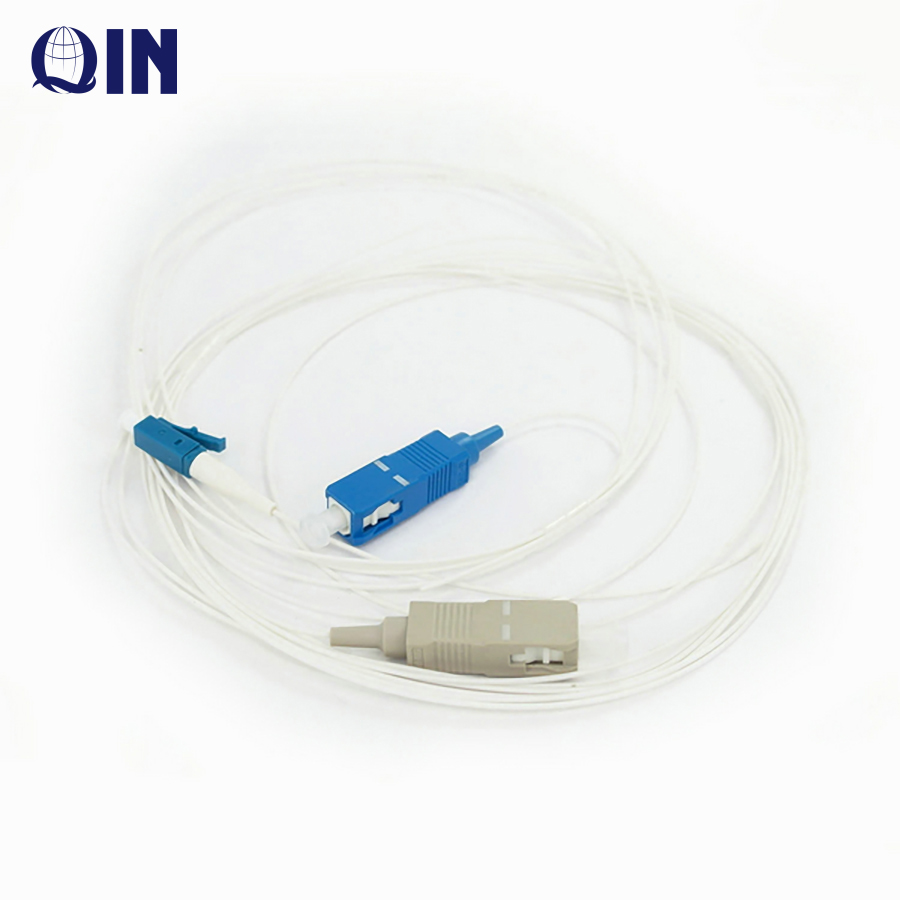

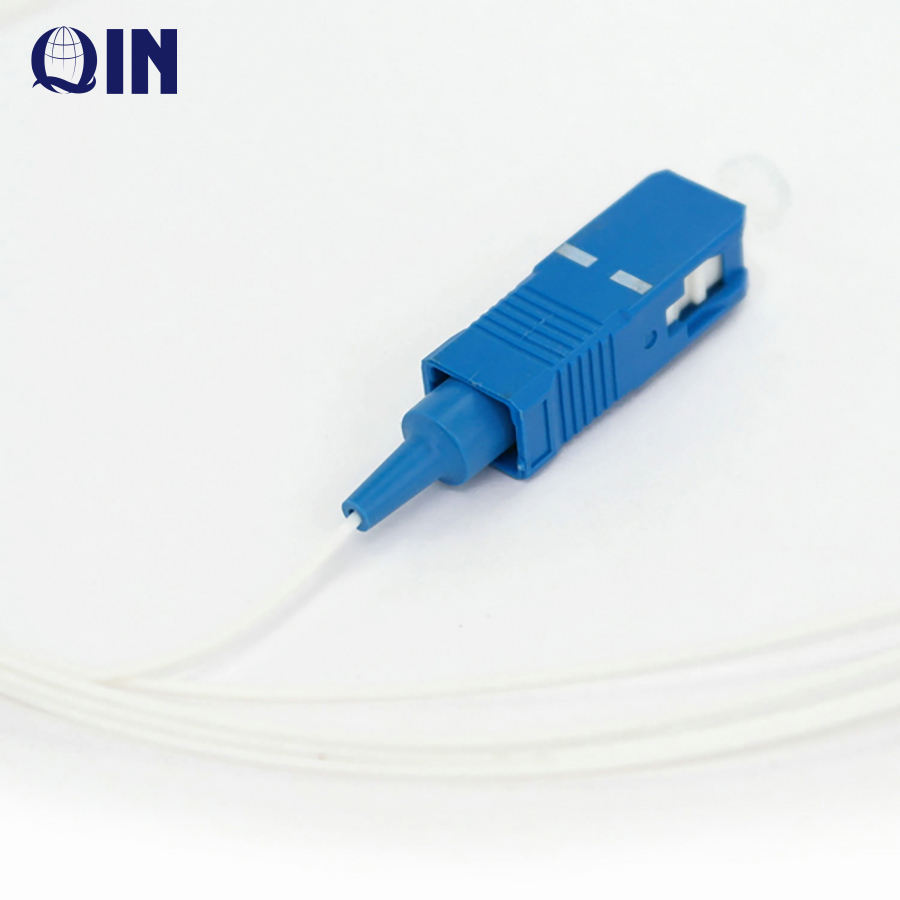

LC/ SC Single Mode Simplex Fiber optical Patch Cord
Industry-specific attributes
| Type | Fiber optic patch cord |
Other attributes
| Model Number | LC-SC Patch Cord Fiber |
| Place of Origin | Guangdong, China |
| Brand Name | QIN/RUBY/OEM |
| Color | White or as Customer request |
| Name | SM Optical Patch Cord |
| Core type | Singl-Mode |
| Polishing | PC/ UPC/ APC |
| Diameter | 0.9mm,2.0mm,3.0mm |
| Length | customized |
| Material | PVC LSZH OFNR |
| Connector | SC, FC, LC, ST |
| Fiber Length | 0.5m,1m, customized |
| Connector Type | LC FC SC ST/APC,UPC,PC |
Fiber optic FC 12 core pigtail/optical fiber pigtail
Low insertion and return loss
Good exchangeability
High temperature
fiber optic FC 12 core pigtail/optical fiber pigtail
FC/PC 12-Fiber Bundle Cable
Connection pattern:plug-in securing
Insertion loss:I.L.≤0.2dB(typical)
Return loss:R.L.≤-50dB(typical)(single-mode)
2mm or 0.9mm optical cable
Long or short boot
Suitable for connection between 12N fiber cable termination and ODF
Parameter table:
| Descriptions | SM(PC) | SM(APC) | MM(PC) |
| Insertion loss | <0.3dB | <0.3dB | <0.3dB |
| Return loss | ≥50dB | ≥60dB | ≥35dB |
| Repeatability | ≤0.1 | ≤0.1 | ≤0.1 |
| Durability | <0.1dB typical change,1000 mating | ||
| Interchangeability | ≤0.2dB | ||
| Operating Temperature | - 40 to + 80 | ||
