NF‑8108‑M Cable Length Tester,LCD Display Network Network Cable Tester Electrical Equipment
Features and Benefits
Multi-Function - RJ11 Trace / RJ45 Trace / Electronic Wire Trace / PoE Trace / Wiremap / Against 60V / PoE Test / TEL Test / Lighting / Headset.
Multi-function test mode - Supports open, short and cross LAN cable, STP cable included.
PoE Switch Test - Supports power supply by switch. D1D2 lighting, means PIN I and 2 supply power.
Wire Tracking - For RJ11/RJ15/electronic cables.
Against DC60V - Say no to burning.
Telephone line status detection - Polarity and status testing (idle, ringing, talking).
LED lighting - It's easier to work in dark environments.
Headphone Function - Help you work well in a noisy environment.
NF‑8108‑M Cable Length Tester,LCD Display Network Network Cable Tester Electrical Equipment
Features

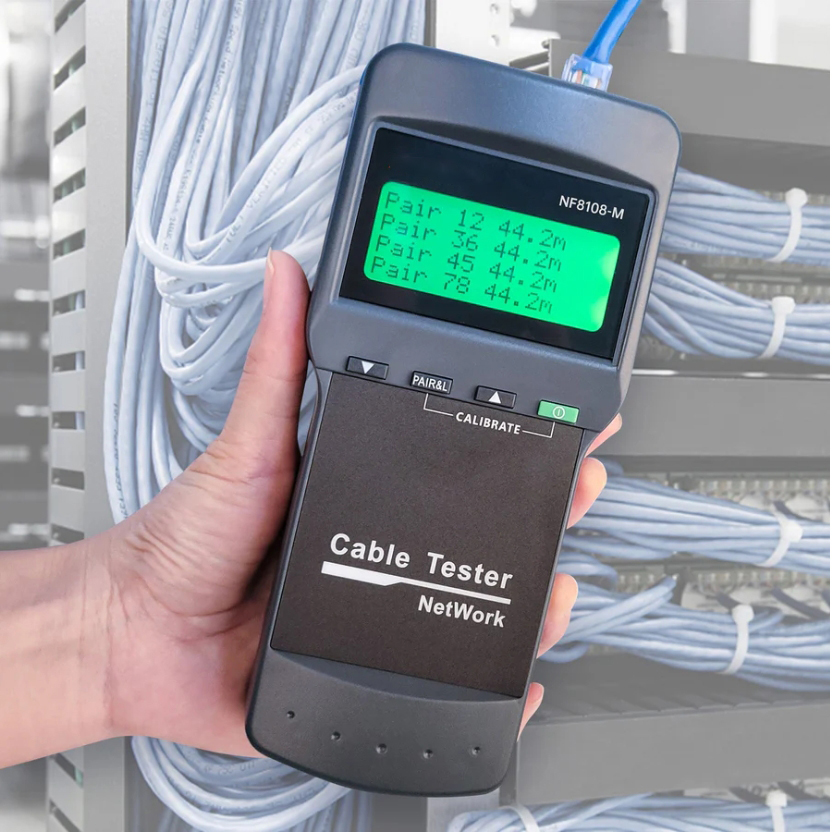

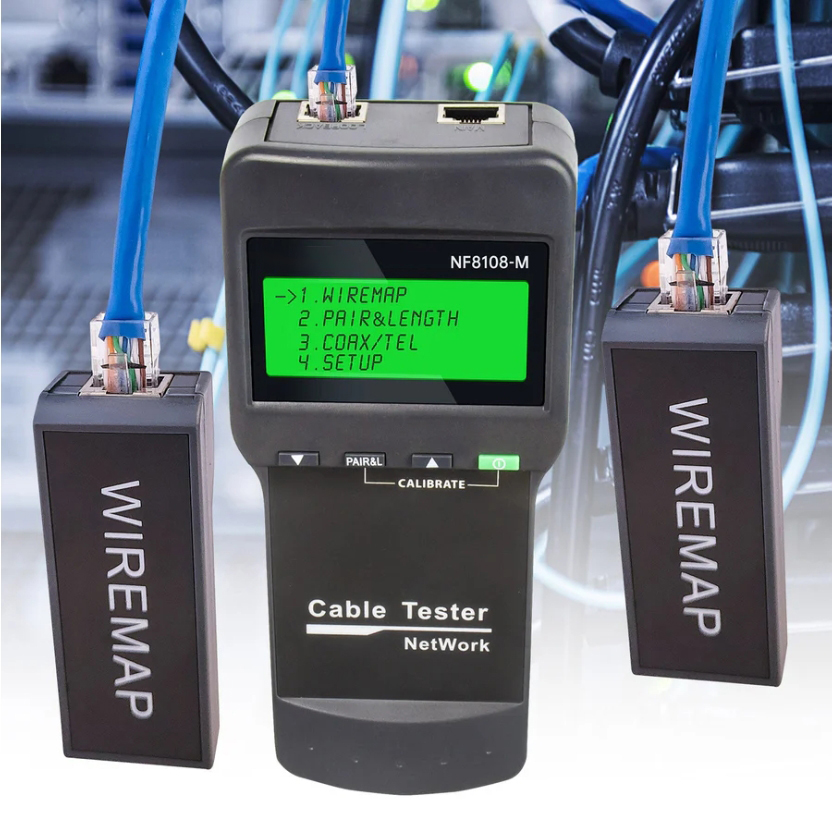

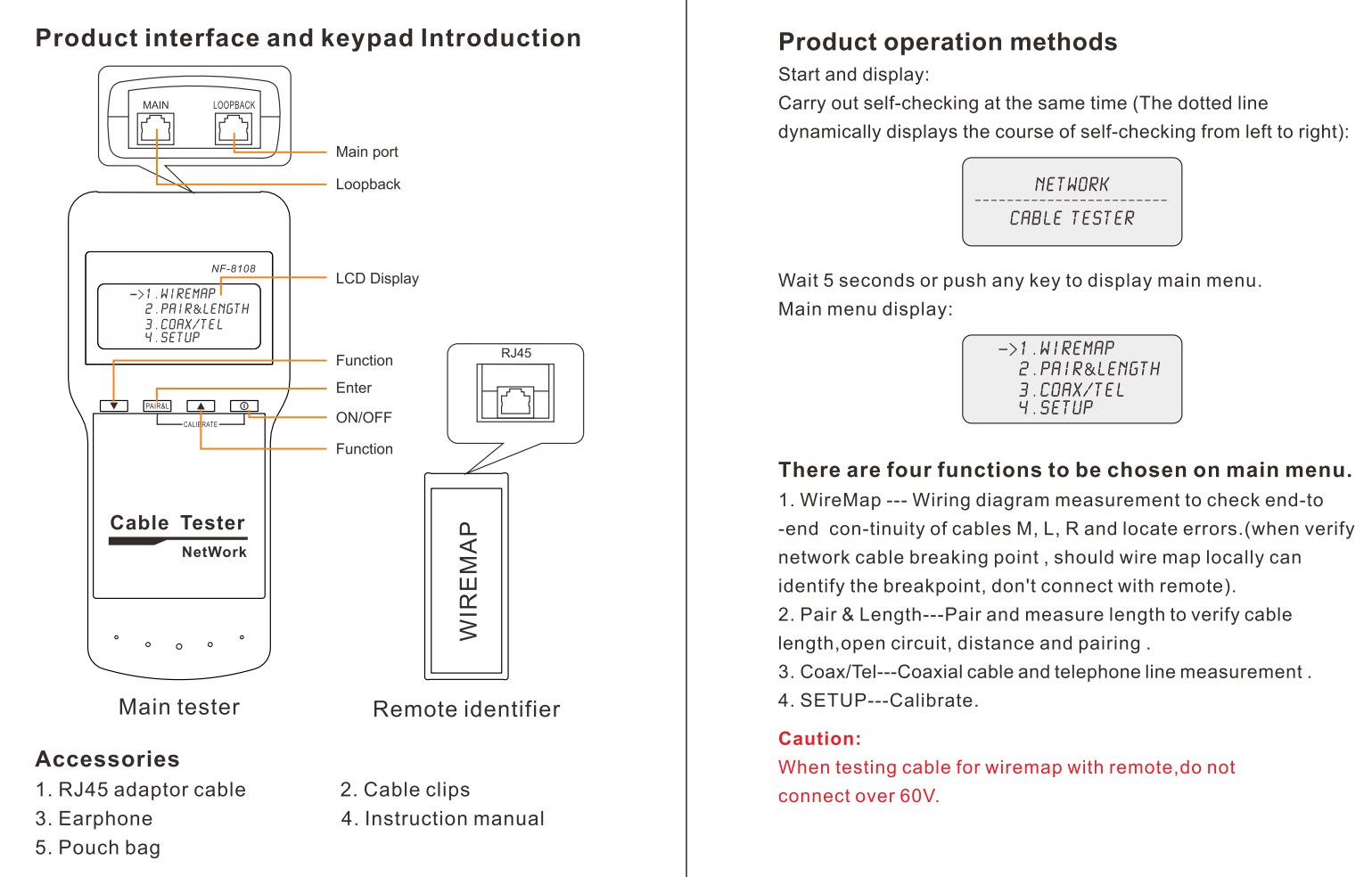

1.LCD Display: Portable line finder, equipped with LCD display, which can display the test results intuitively. The main menu has the functions of WireMap, Pair & Length, Coax/Tel and SETUP.
2.Multiple Uses: Suitable for testing the length and breakpoint of the network cable, connectivity test, and calibration function of the on off, crossover, and short circuit length of the network cable.

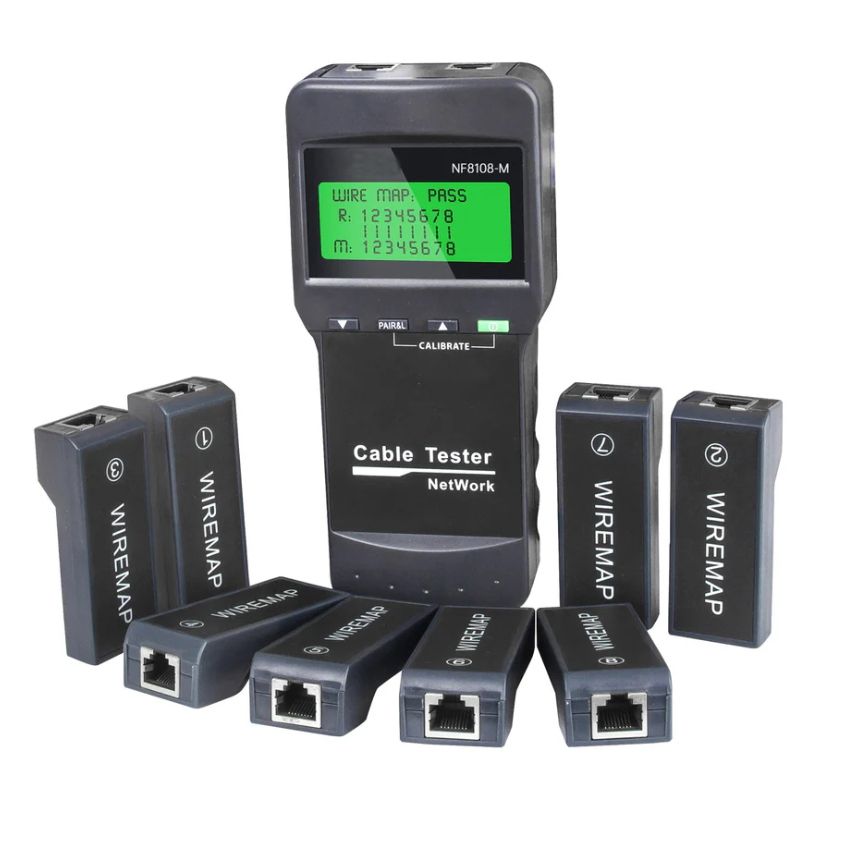

3.Efficient And Reliable: Equipped with 8Pcs remote adapters, high measurement accuracy, small errors, high efficiency, and the work efficiency is improved.
4.Lightweight And Easy To Carry: This portable line finder is small and lightweight, compact in structure, easy to carry and use, and has a calibration function.
5.Voltage Protection: Compatible with RJ45 connector, support AC 60V/DC 42V voltage protection, low battery display, cable test maximum distance is about 1000 meters.

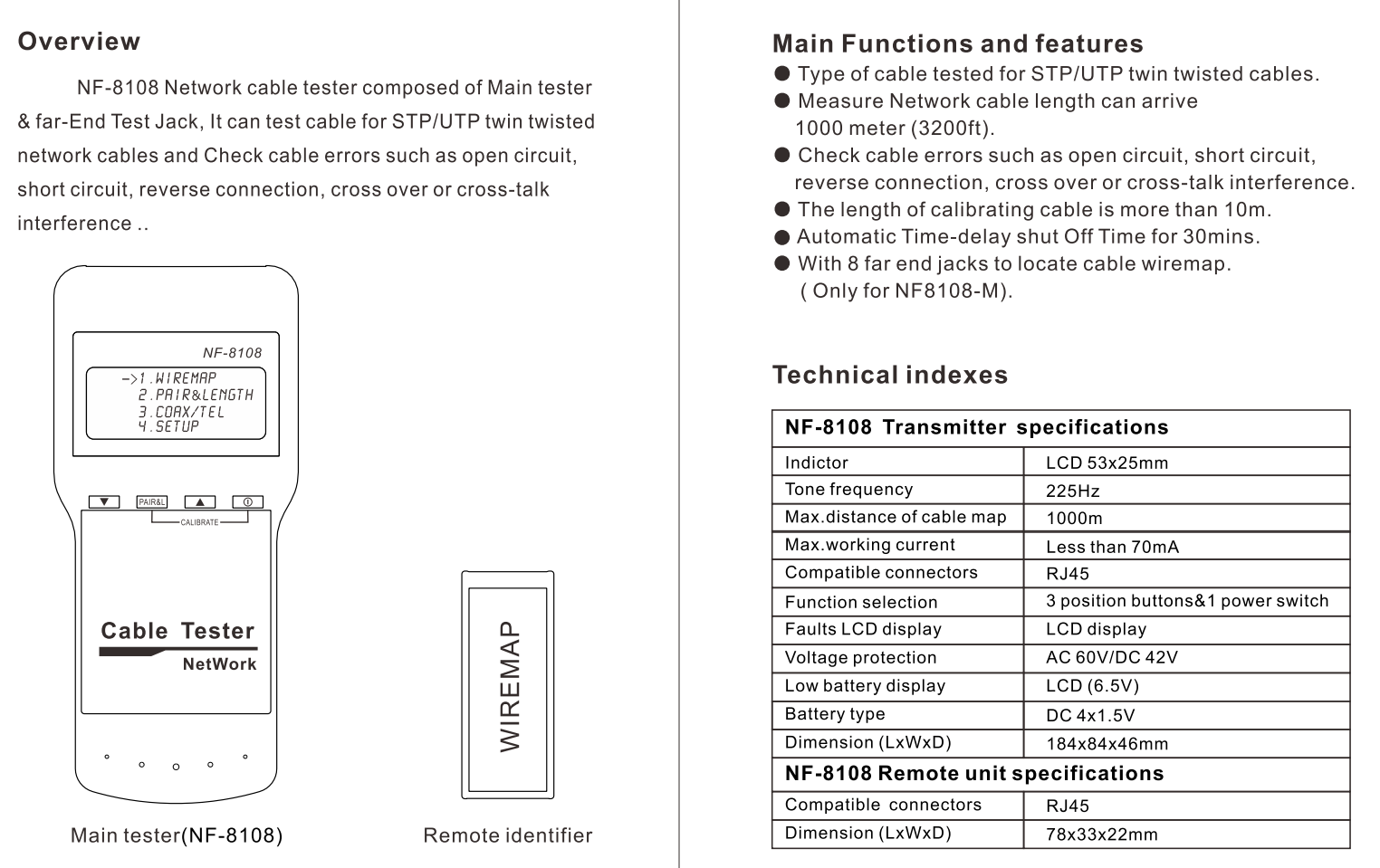

Specification
Item Type: Network Cable Tester
Material: ABS
Model: NF-8108-M
Battery: 4 x AA 1.5V Battery (Battery Not Included)
Purpose: Cable Length And Connectivity Test

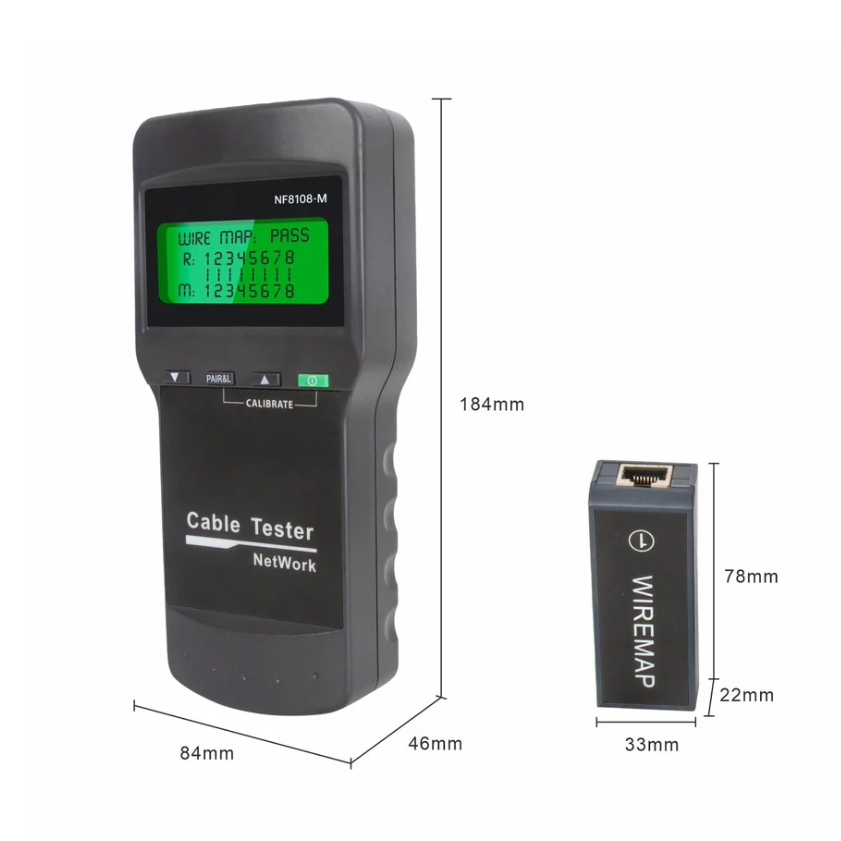

Display: LCD Screen 53x25mm / 2.1x1.0in
Audio Frequency: 225Hz
Maximum Cable Test Distance: 1000 Meters
Compatible Connector: RJ45

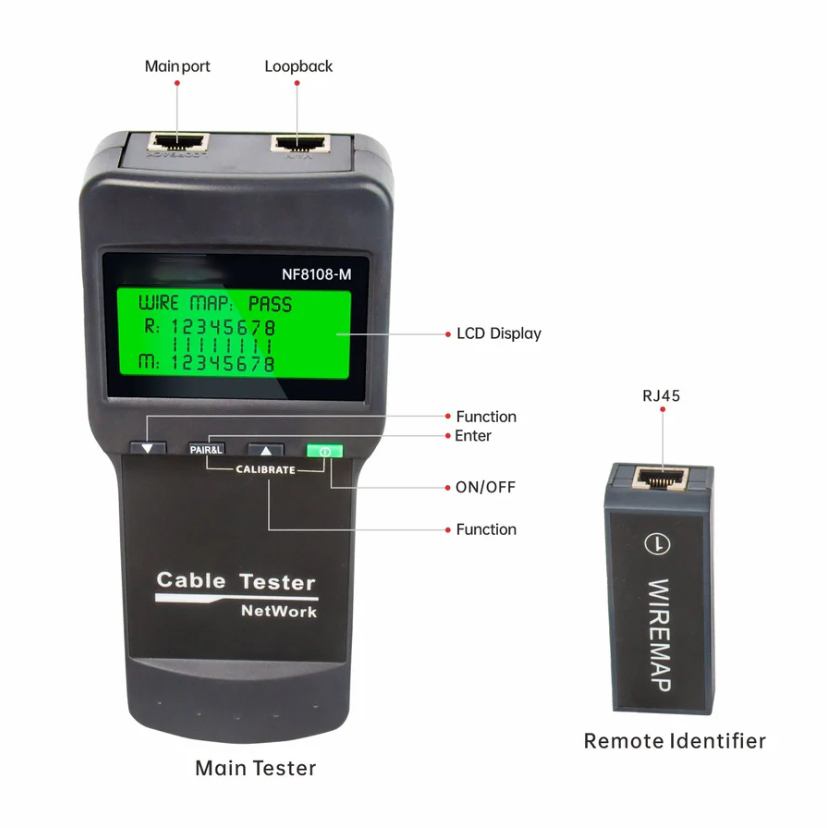

Function Selection: 3 Position Buttons and 1 Power Switch
Fault LCD Display: LCD Display
Voltage Protection: AC 60V/DC 42V
Low Battery Display: LCD Display (6.5V)

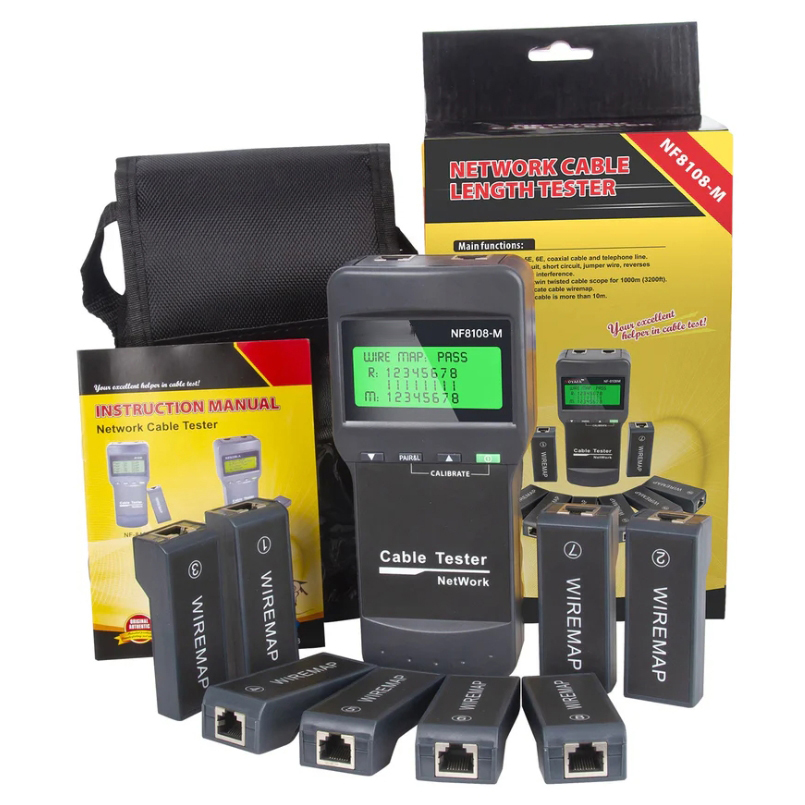

1 x Host (Battery Not Included)
8 x Remote Unit
1 x Tool Bag
1 x Manual
