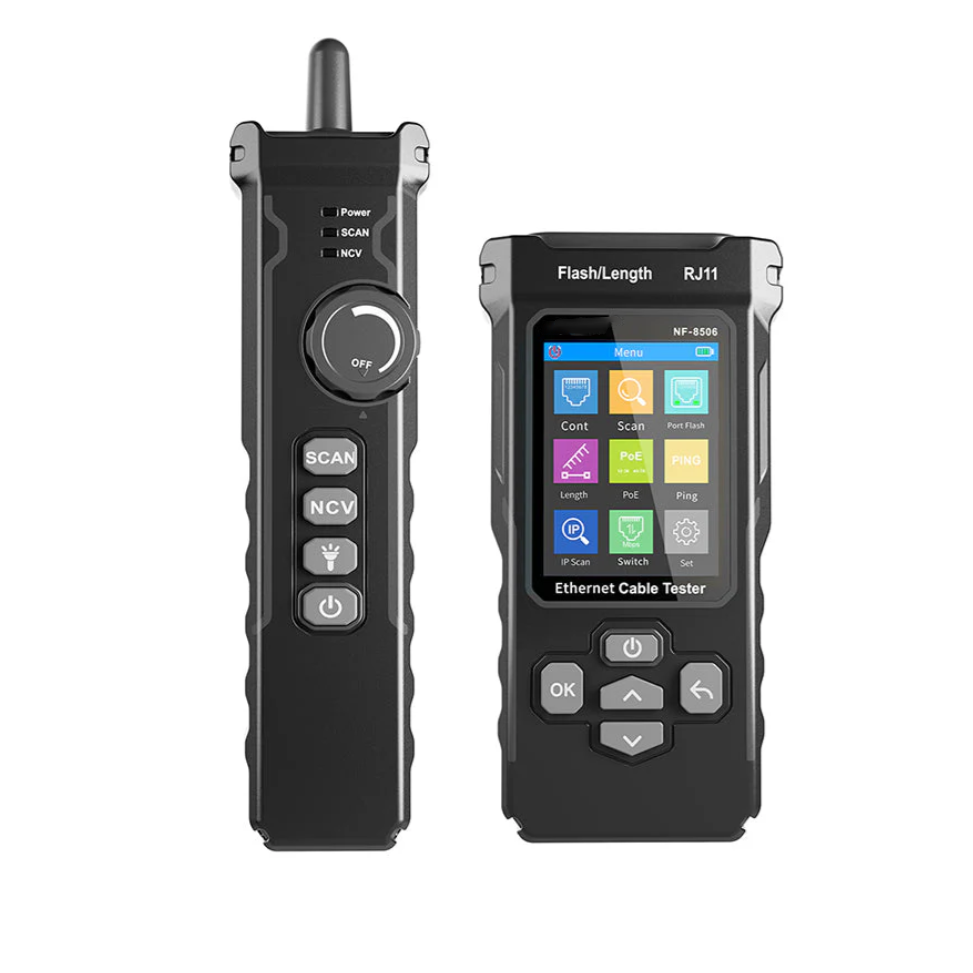

NF-8506 Cat5 / Cat5e / Cat6 / Cat6a Ethernet Cable Tracer & Tester with PoE / PING / Switch Testing, IP Scan, Port Flash, Cable Length Testing
Description:
Equipped with an alignment function, our network tester allows you to easily proofread network cable sequences and identify any issues such as short circuits, open circuits, or crossovers. With its multifunctionality, it also serves as a line hunter and measurement tool, making it perfect for various network troubleshooting tasks.
One of the standout features of our network tester is its ability to accurately detect circuits and identify live equipment with just one click. This ensures the safety of your construction projects by helping you avoid potential dangers caused by strong electricity.
Additionally, our tester offers a length test function that allows you to determine the cable length when plugged in. It supports cable length tests within the range of 2.5m to 200m, providing you with precise measurements for efficient cable management.
NF-8506 Cat5 / Cat5e / Cat6 / Cat6a Ethernet Cable Tracer & Tester with PoE / PING / Switch Testing, IP Scan, Port Flash, Cable Length Testing

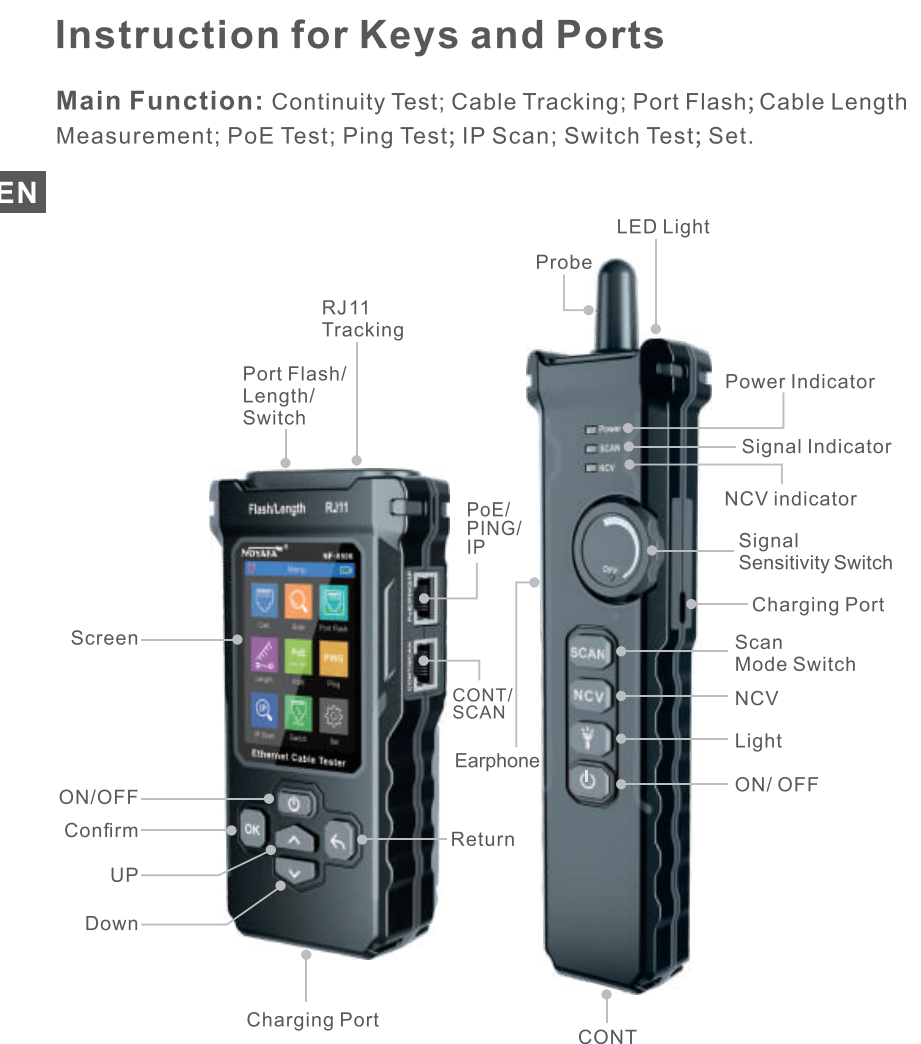

Features and Benefits:
Cable Tracing : Easily trace shielded and unshielded network cables for engineering, data center maintenance, and equipment upgrades. It offers standard, interference-resistant line tracing methods.
Wire Mapping : Quickly identify CAT5/CAT6 and validate cable wiring sequences, enabling detection and resolution of issues such as open/short circuits and crossovers.
Length Test : Automatic cable length detection simplifies accurate cable length measurement, ranging from 8.2 ft/2.5 m to 656 ft/200 m.
Port Flashing : Easily identify connected ports on switches or routers with blinking indicator lights. It provides additional information about port operating rates and duplex modes.
PoE Test : Efficiently detect PoE devices including non-standard and IEEE 802.3AF/IEEE 802.3AT/BT standards, ensuring comprehensive PoE detection.
PING Test : Quickly assess network speed issues by conducting PING tests from multiple locations to assess server and website response speeds.
Non-Contact Voltage Tester Pen : Increase safety during electrical work by identifying energized equipment and detecting energized wires and sockets, avoiding potential hazards.
High-intensity LED lighting : Integrated LED lighting with galvanized reflector improves visibility in dark or low-light environments.
Long Battery Life : Powered by a 3.7V 1500mAh lithium polymer battery, ensures long usage times, with convenient Type-C charging for easy recharging.
Product specifications
Model: NF-8506
Cable Scan: Digital Mode/Analog Mode
AUTO POWER OFF: ✓
Low power warning: ✓

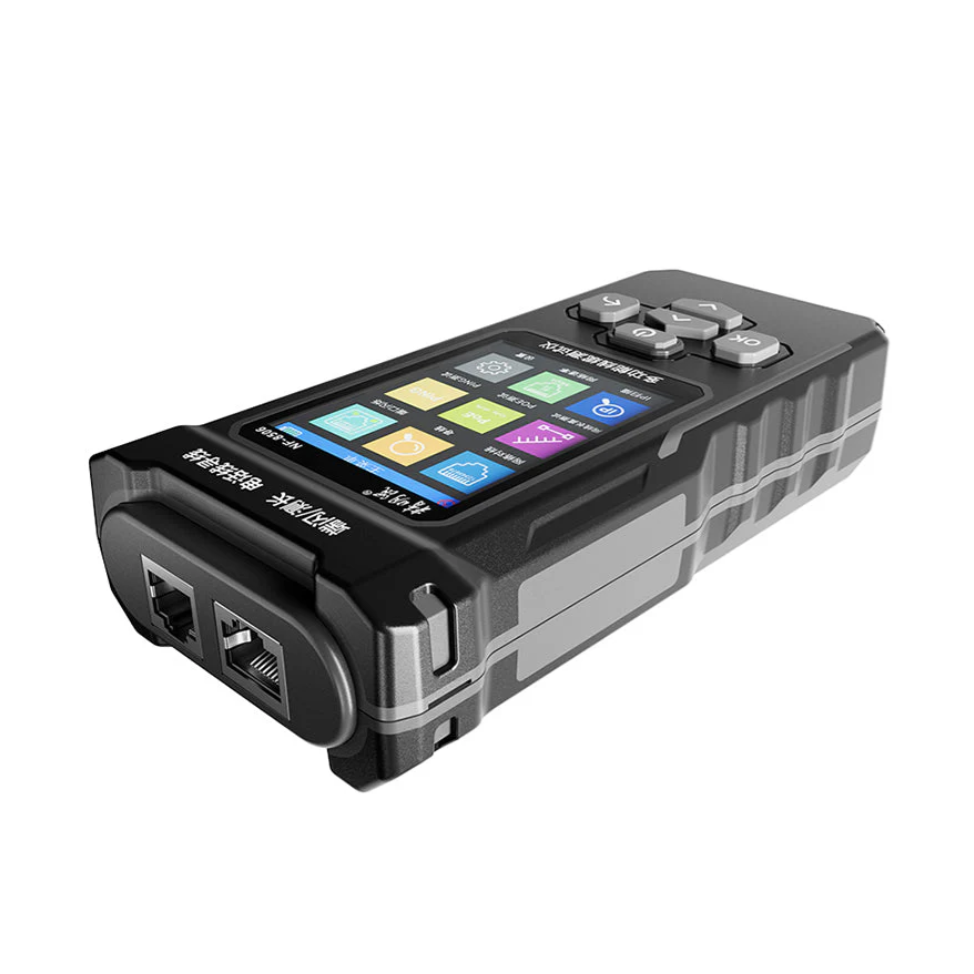

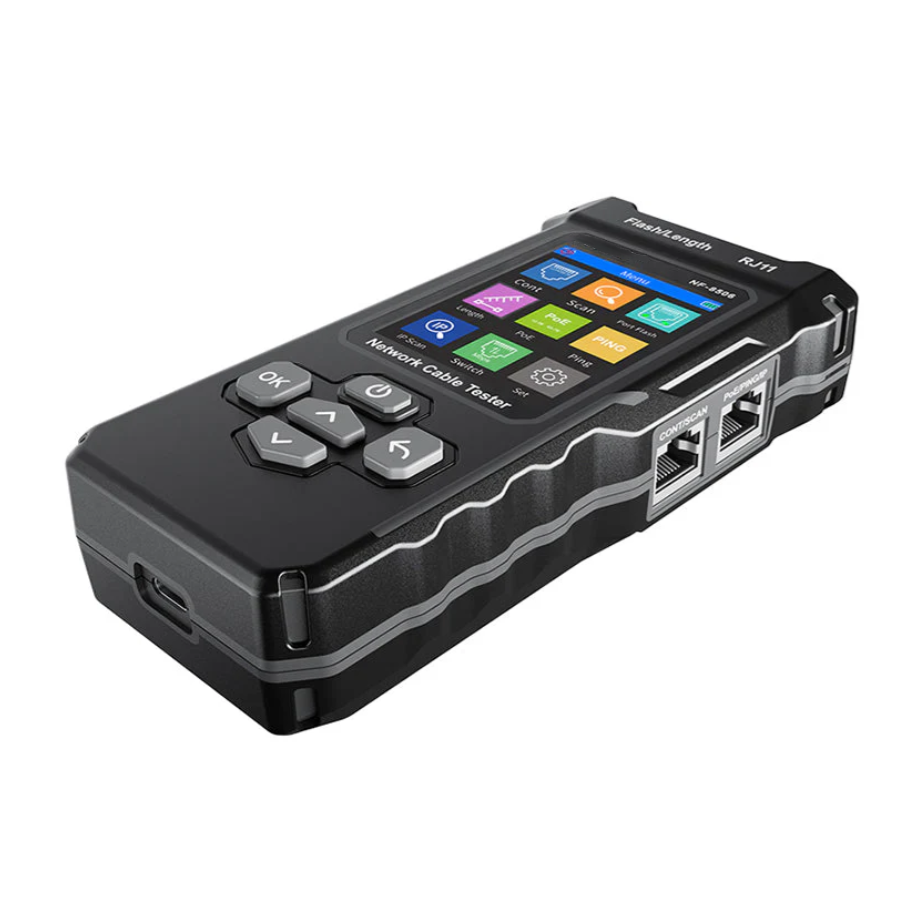

Transmitter
Cable continuity test: remote and switch
Cable length test range: 5-200m (±3m)
Flash Port: 10M/100M/1000M
POE: Mid-Span/End-Spar/AT-4 pairs; POE voltage test
Connection Speed: 10M/100M/1000M; Duplex Mode (Full Duplex/Half Duplex)
Battery: 3.7V lithium battery
Ping check function: ✓
IP check function: ✓

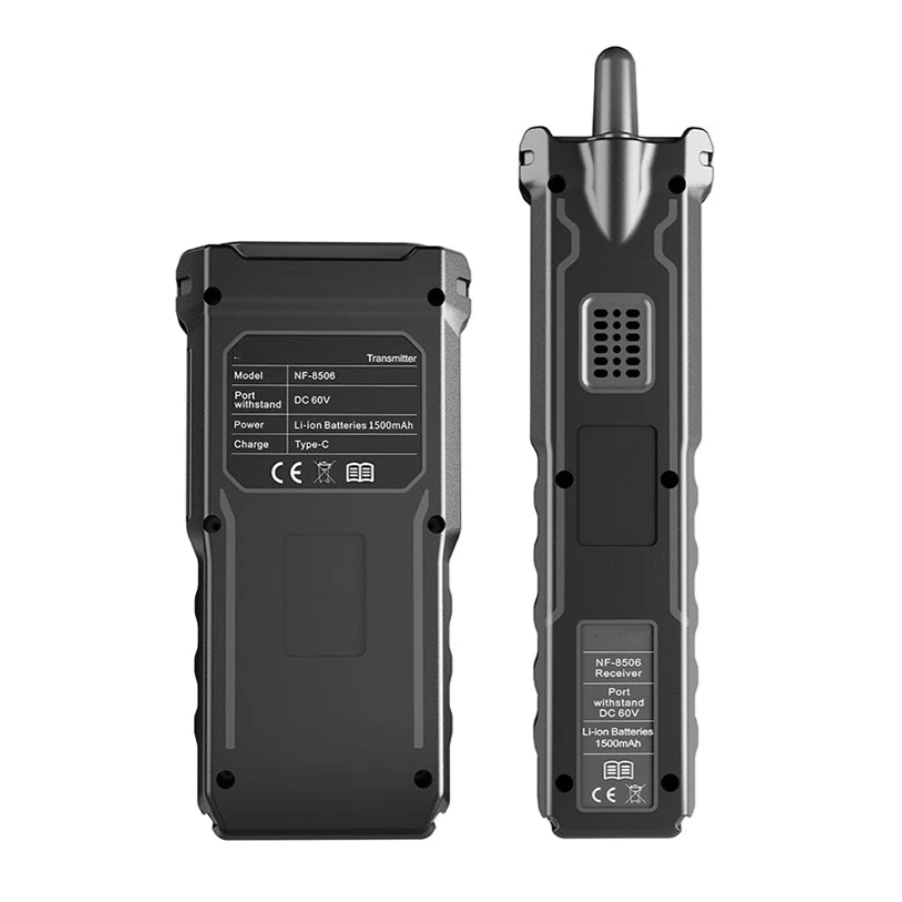

Transmitter dimension: 150x75x35mm

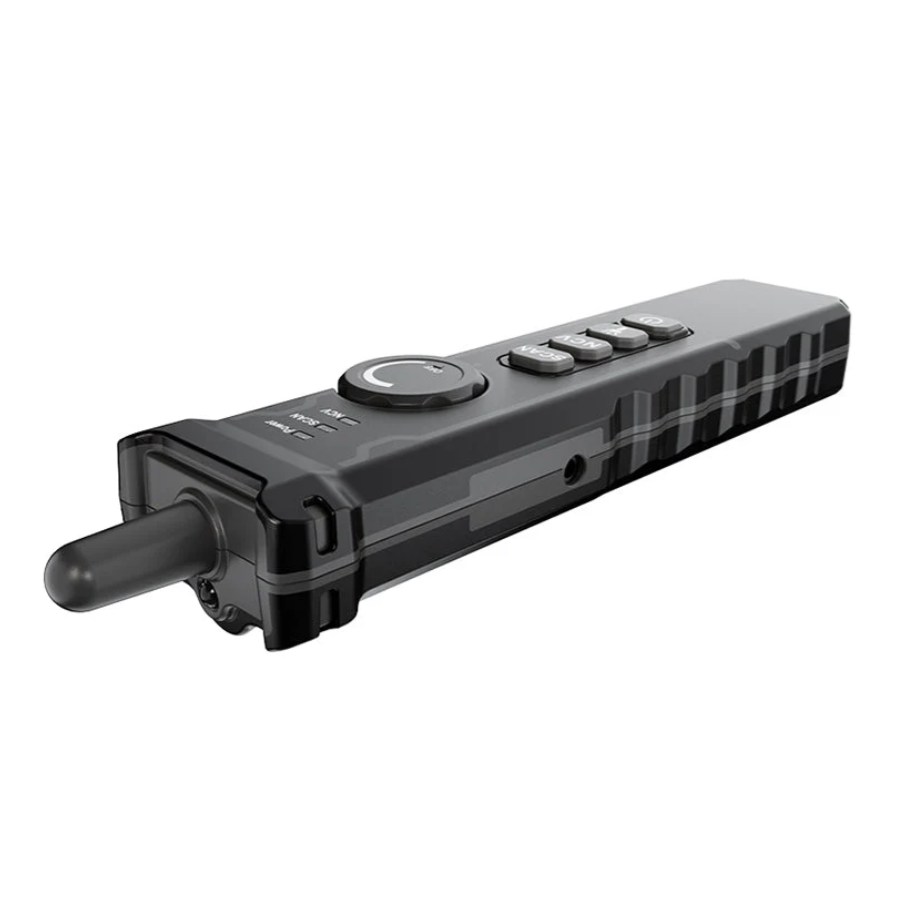

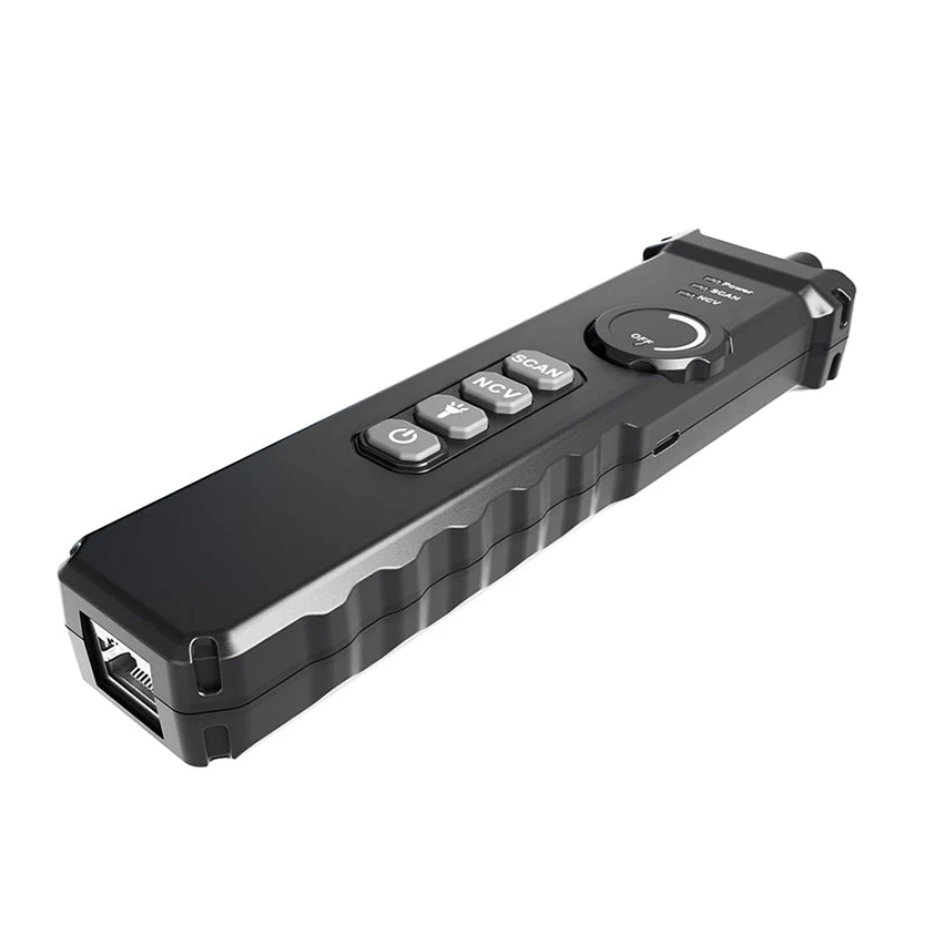

Receiver
Led Light: ✓
Headphones: ✓
Battery: 3.7V lithium battery
Receiver dimension: 200X50X33mm
