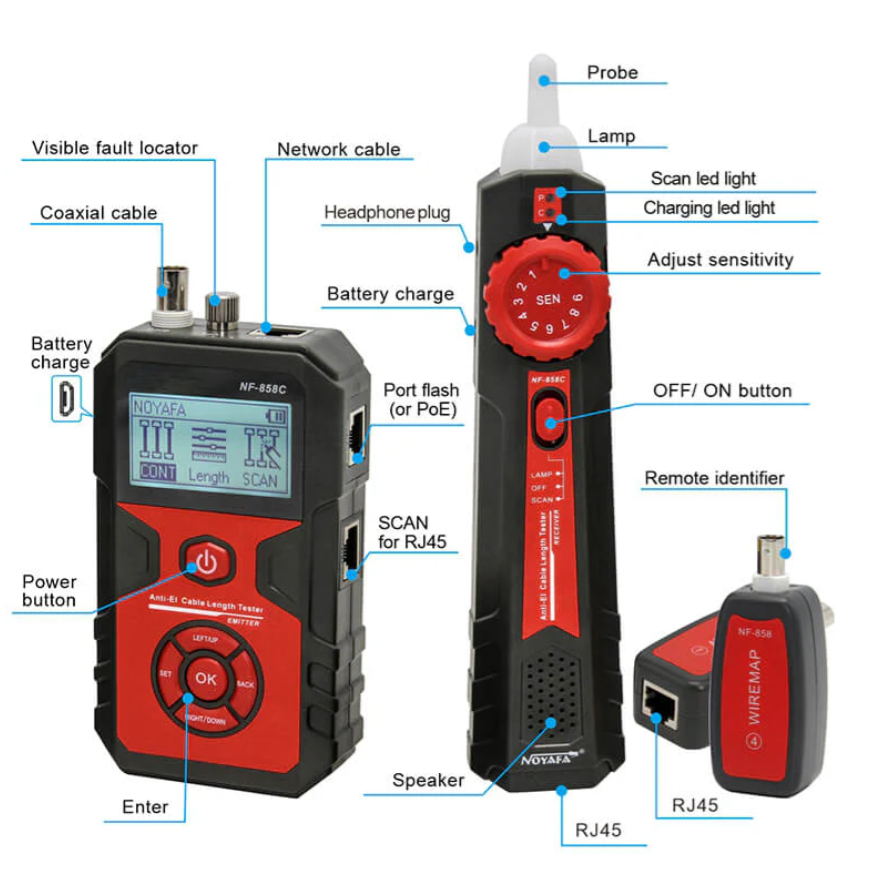

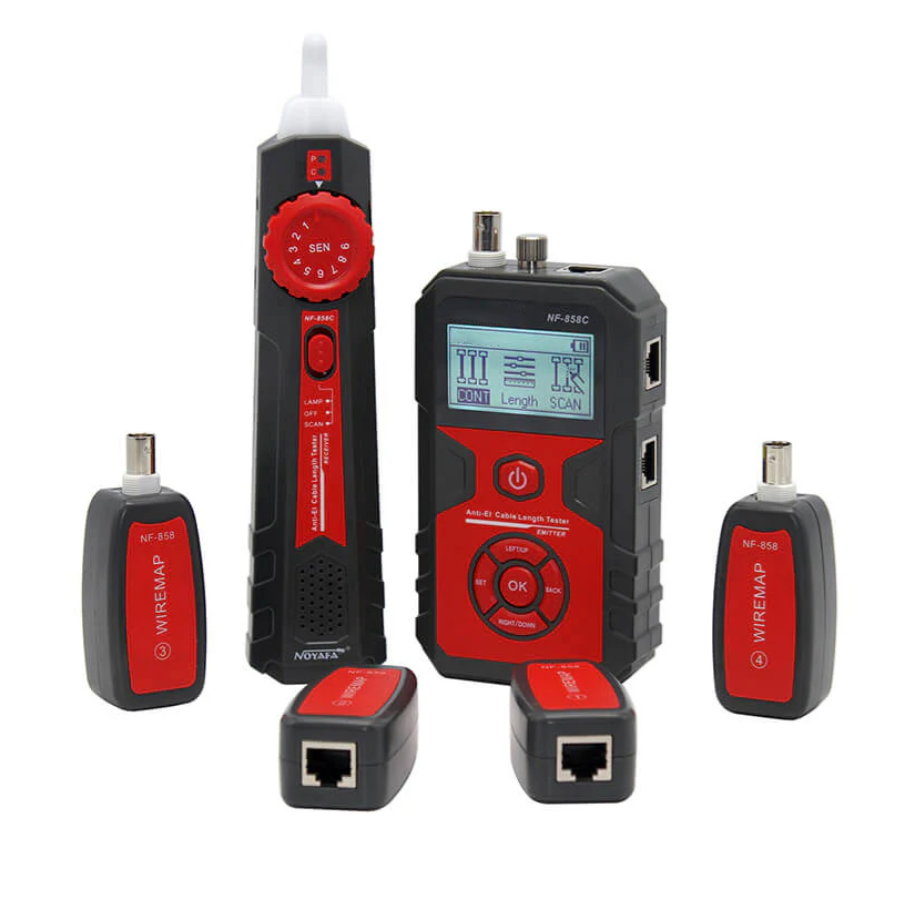

NF-858C Multifunctional Wire and Cable Tracker and Tester
Features and Benefits

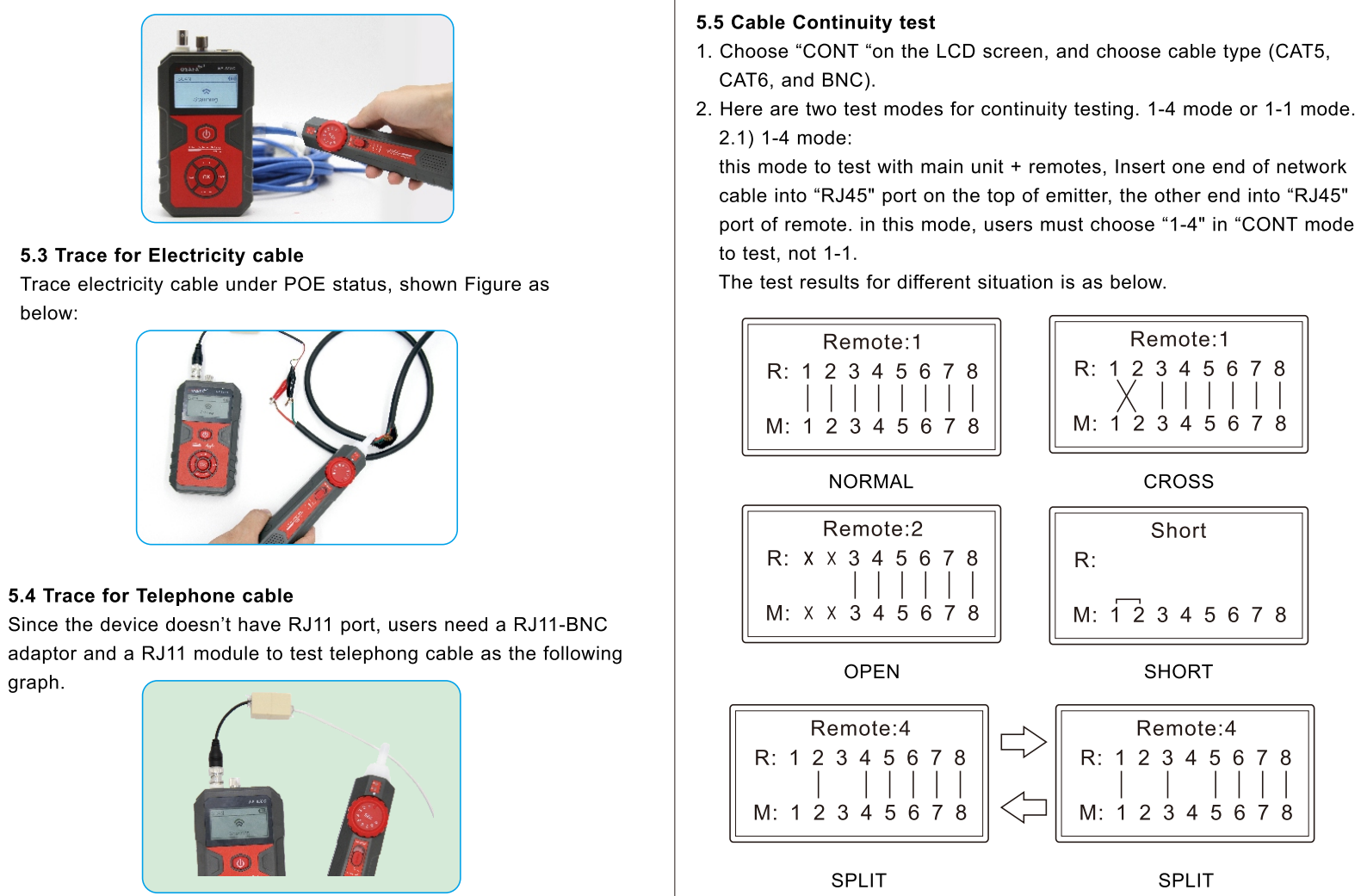

All-in-one Cable Tester : Perform cable continuity testing for RJ45 network cables, RJ11 telephone lines, and coaxial cables. Display the wiring map and fault name on the screen for real-time analysis.
Multi-tasking Tester : Connect 4 cables to 4 remote controls at a time. Test them one by one through the Transmitter.
Tone Tracker : Track the location or inserted port of a cable with one end connected to the NF-858C. The toner will tell you where it is even when it's active.

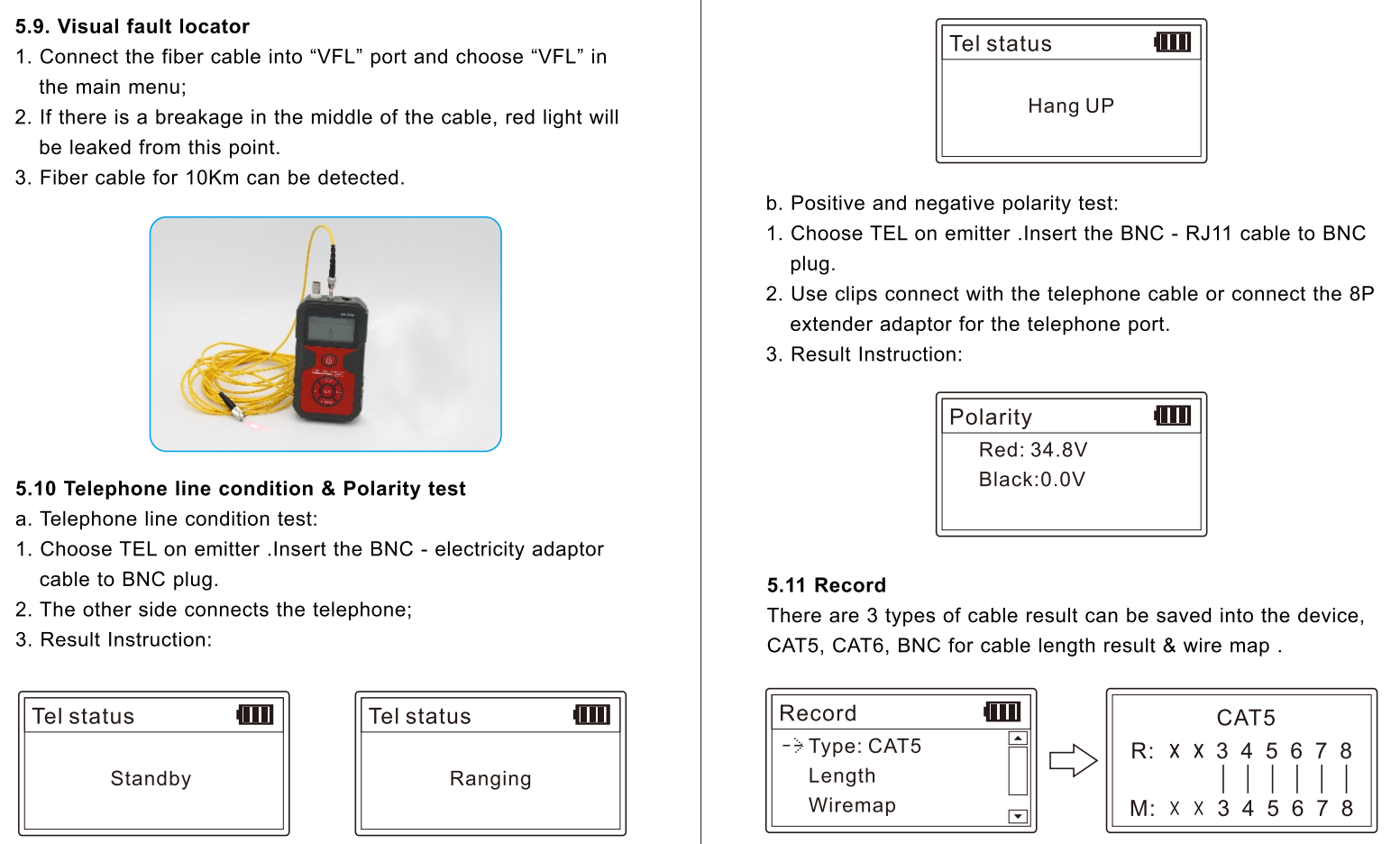

Fiber Optic Tester : Make invisible breakpoints visible in fiber optic cables. Easily locate breakages or leaks using the red light.
Port Locator : Send a blinking light to the Ethernet port via the connected cable. Let you target the port.
Ethernet Identifier : Identify which pins are supplying power and detect how much voltage.

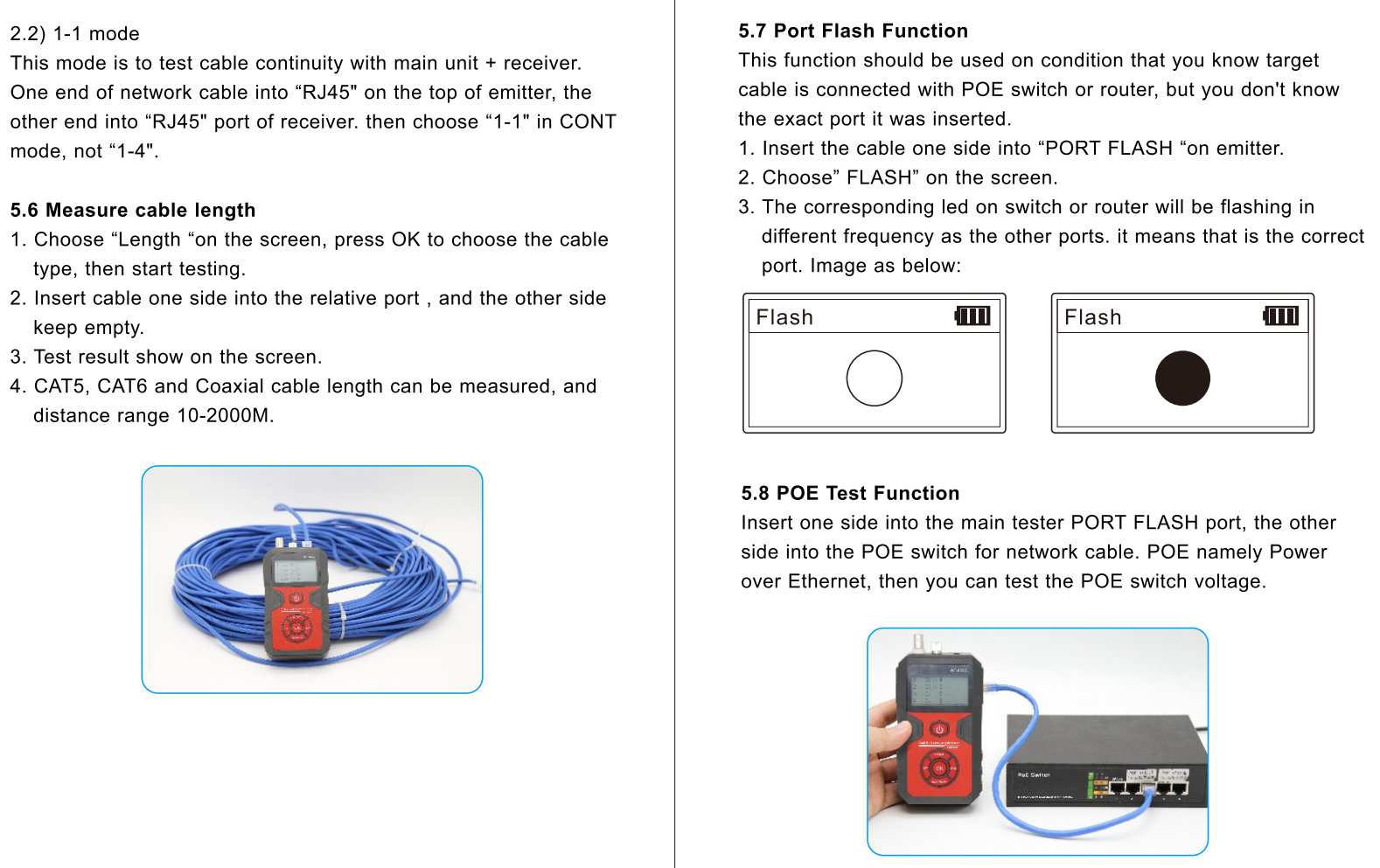

RJ45 and Coax Length Meter : Connect and test the length of a network cable.
NF-858C Multifunctional Wire and Cable Tracker and Tester
Features and Benefits
All-in-one Cable Tester : Perform cable continuity testing for RJ45 network cables, RJ11 telephone lines, and coaxial cables. Display the wiring map and fault name on the screen for real-time analysis.
Multi-tasking Tester : Connect 4 cables to 4 remote controls at a time. Test them one by one through the Transmitter.
Tone Tracker : Track the location or inserted port of a cable with one end connected to the NF-858C. The toner will tell you where it is even when it's active.
Fiber Optic Tester : Make invisible breakpoints visible in fiber optic cables. Easily locate breakages or leaks using the red light.
Port Locator : Send a blinking light to the Ethernet port via the connected cable. Let you target the port.
Ethernet Identifier : Identify which pins are supplying power and detect how much voltage.
RJ45 and Coax Length Meter : Connect and test the length of a network cable.

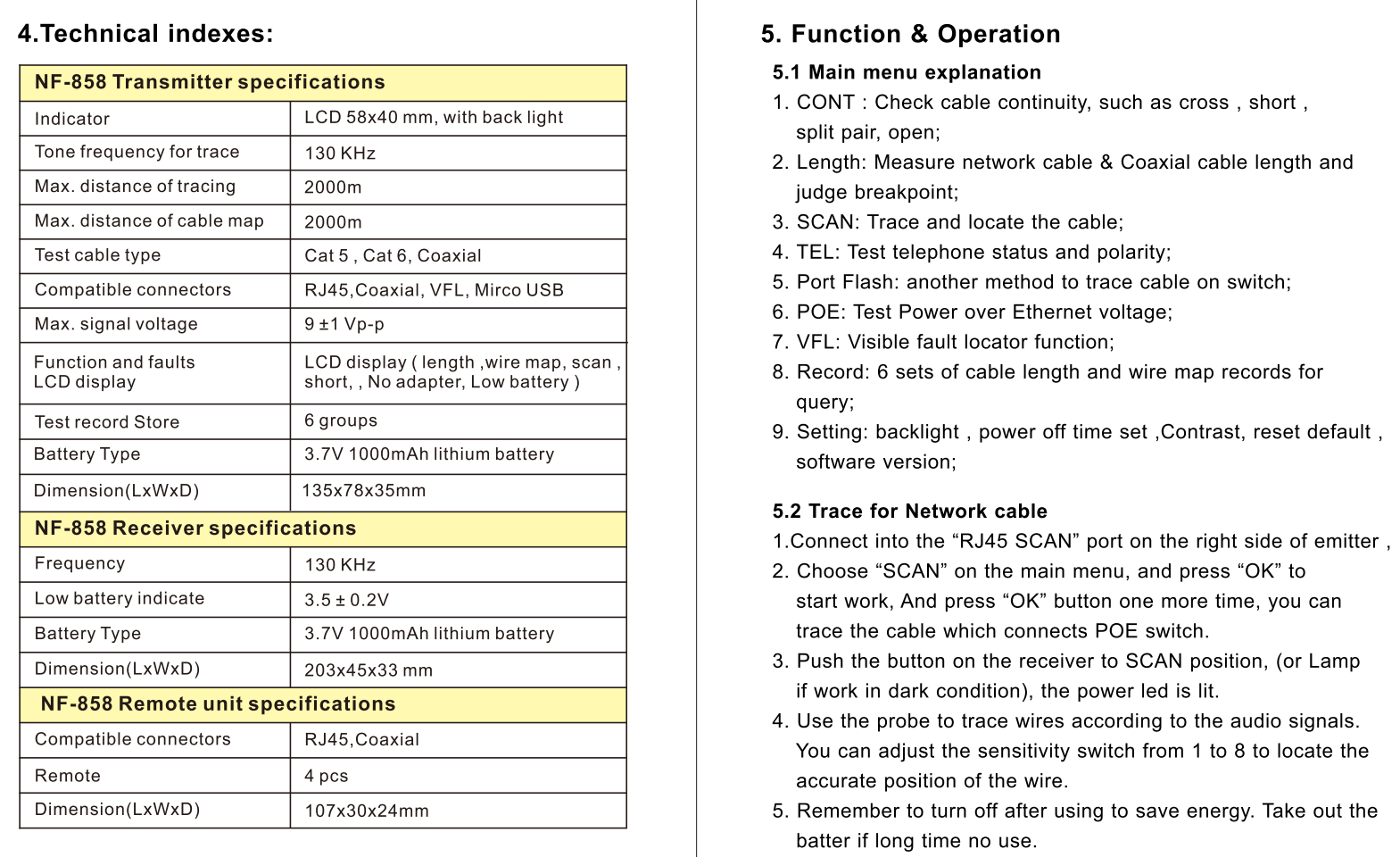

Product specifications
Transmitter Indicator : 58x40mm LCD with backlight
Tone Frequency for Tracing : 130 KHz
Max. Tracing Distance : 2000m
Max. Wiremap Distance : 6562 ft/2000 m
Test Cable Type : CAT5, CAT6, Coaxial
Compatible Connectors : RJ45, BNC, VFL, Micro USB
Max. Signal Voltage : 9 +-1 Vp-p
Function and Faults LCD Display : LCD Display (Length, Wiremap, Scan, Short, No Adapter, Low Battery)
Test Record Storage : 6 Groups
Battery Type : 3.7V 1000mAh Lithium Battery

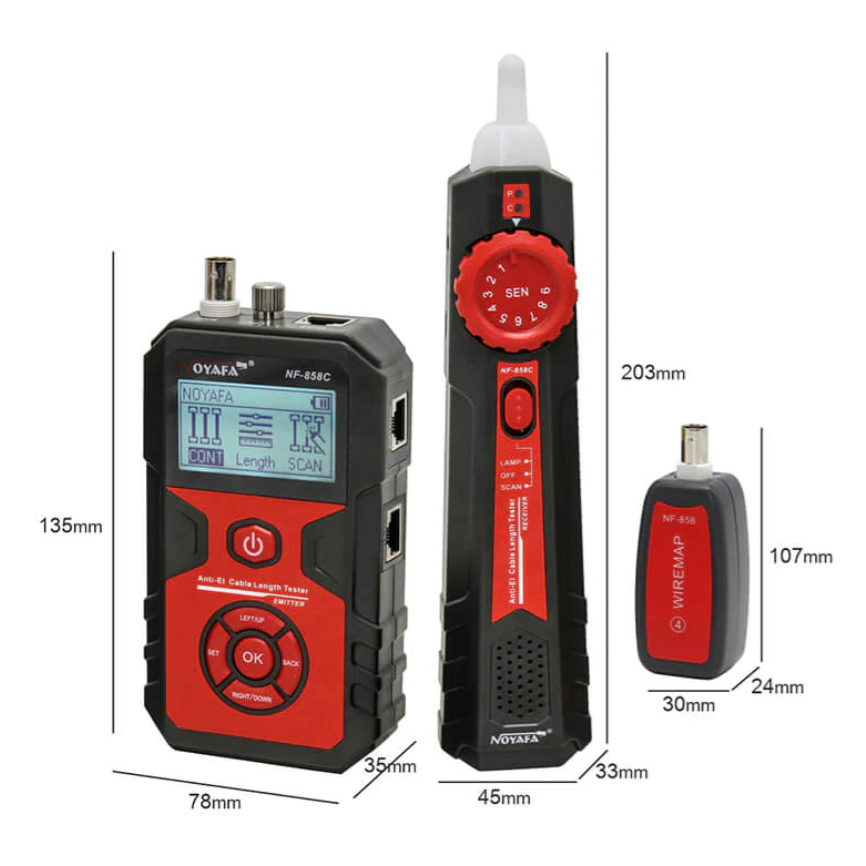

Dimension (LxWxD): 5.3 x 3.1 x 1.4 inches / 135 x 78 x 35mm Receiver Frequency : 130 KHz
Low Battery Indication : 3.5+-0.2V
Battery Type : 3.7V 1000mAh Lithium Battery
Dimension (LxWxD) : 8.0 x 1.8 x 1.3 inches / 203 x 45 x 33 mm Remote Unit
Compatible Connectors : RJ45, BNC
Remote : 4 pcs
Dimension (LxWxD) : 4.2 x 1.2 x 0.9 inches / 107 x 30 x 24 mm
