50W*2 18V Flexible Solar Panel Photovoltaic Power Generation Kit for Home Energy Storage Battery Accessories
Parameters
Maximum power (pmax): 50W*2
Open-circuit voltage (voc): 18V
Maximum power voltage (vmpp): 15V
Short-circuit current (isc): 5A
Maximum power current (impp): 4.6A
Output: MC4 18V
Standard Test Conditions
AM=1.5
Irradiance=1000W/㎡
Temperature= 25℃
Product Information
Weight: 720g*2 (solar panel)

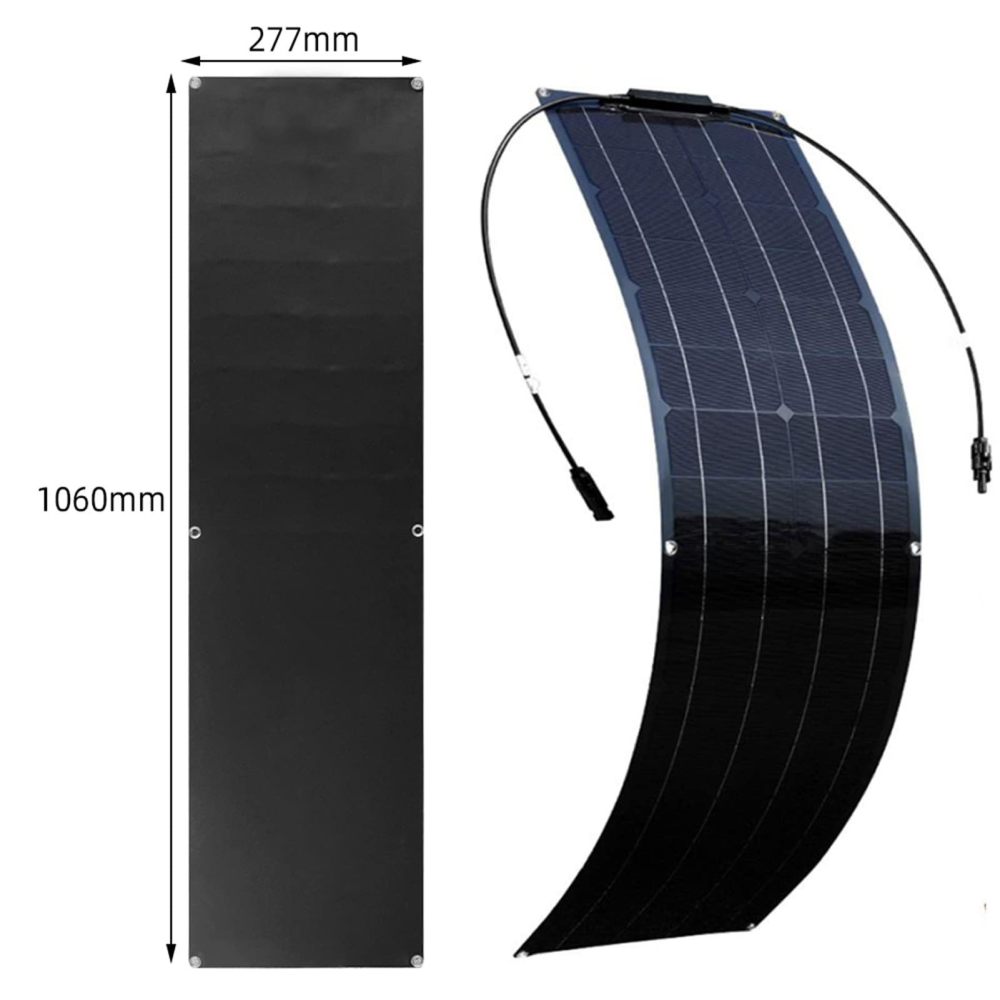

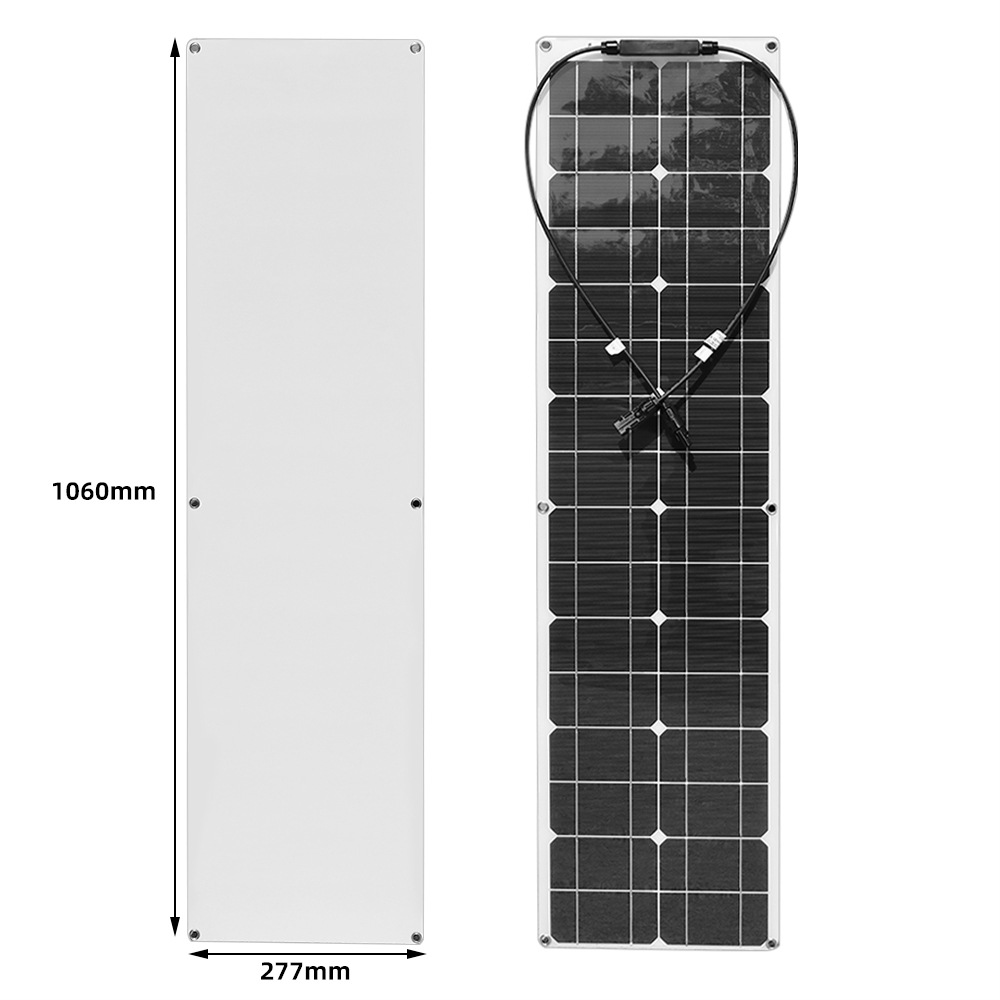

Dimensions: 1060*280*2.5mm (solar panel)
Packaging Dimensions: 1150*300*35mm
Place of Origin: Shenzhen Pinghu
Packaging Weight: 1.6kg (dual-panel set) 2.9kg (controller and cable set)
(Dimensions are manually measured and may have some inaccuracies.)
Warranty Period: One year

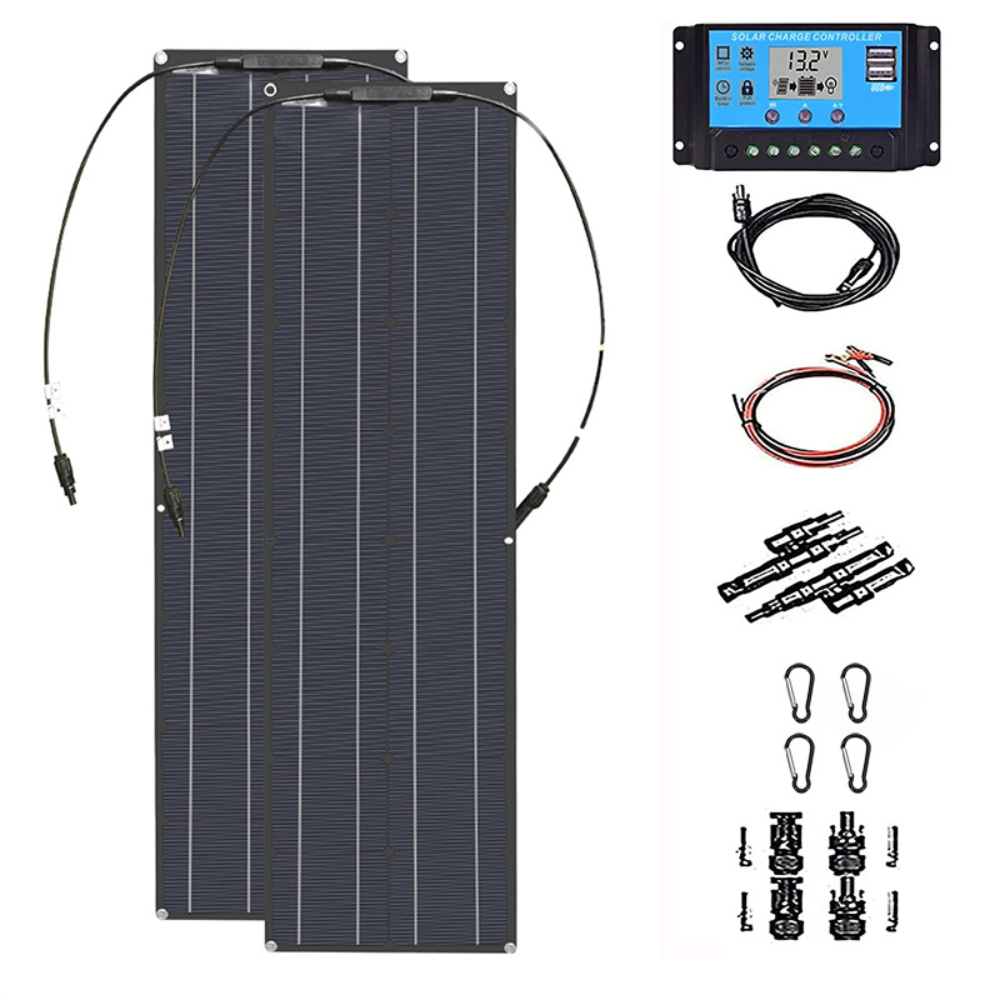

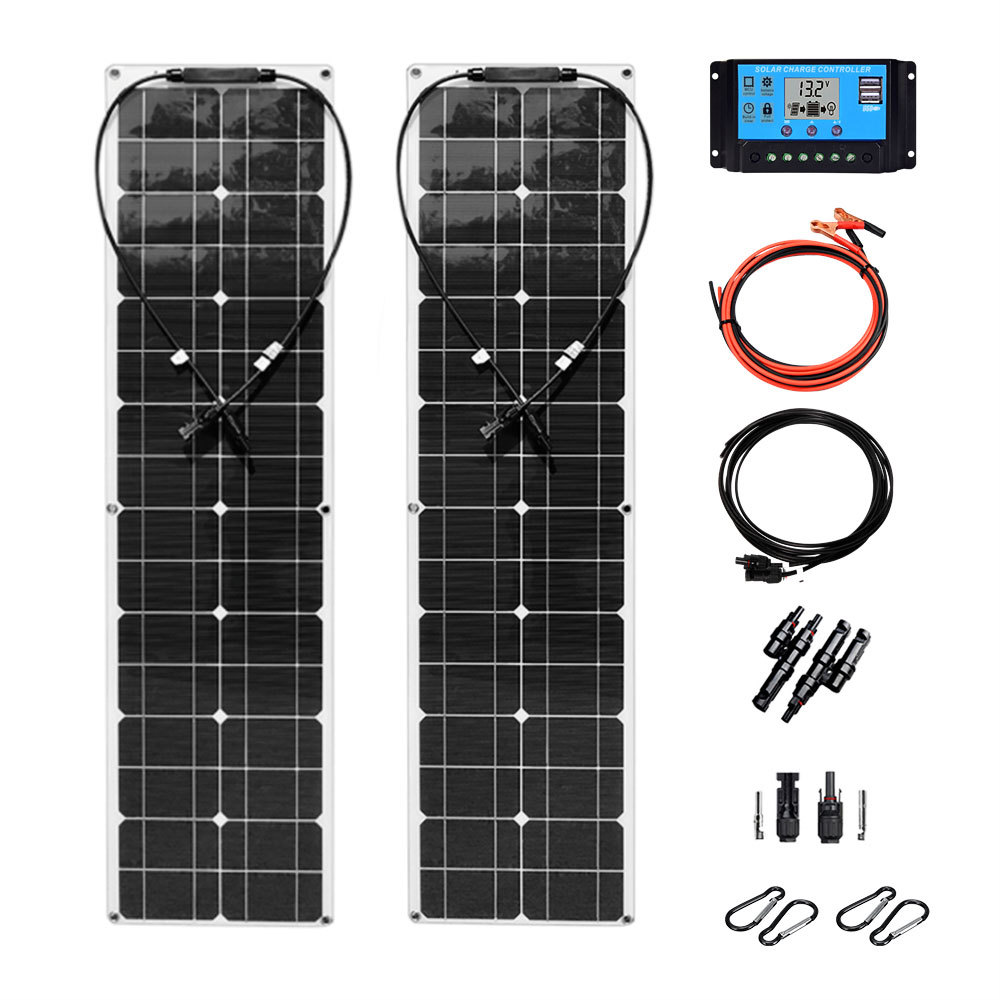

Packaging Contents: 2*Solar Panels Battery Clamps 2m Extension Cable*1 MC4 Connector 2m Extension Cable*1 MC4 Three-Way Male/Female Set*1 MC4 Male/Female Connector Set*2 Carabiner*4
The product does not store electricity and can be shipped as general cargo.
