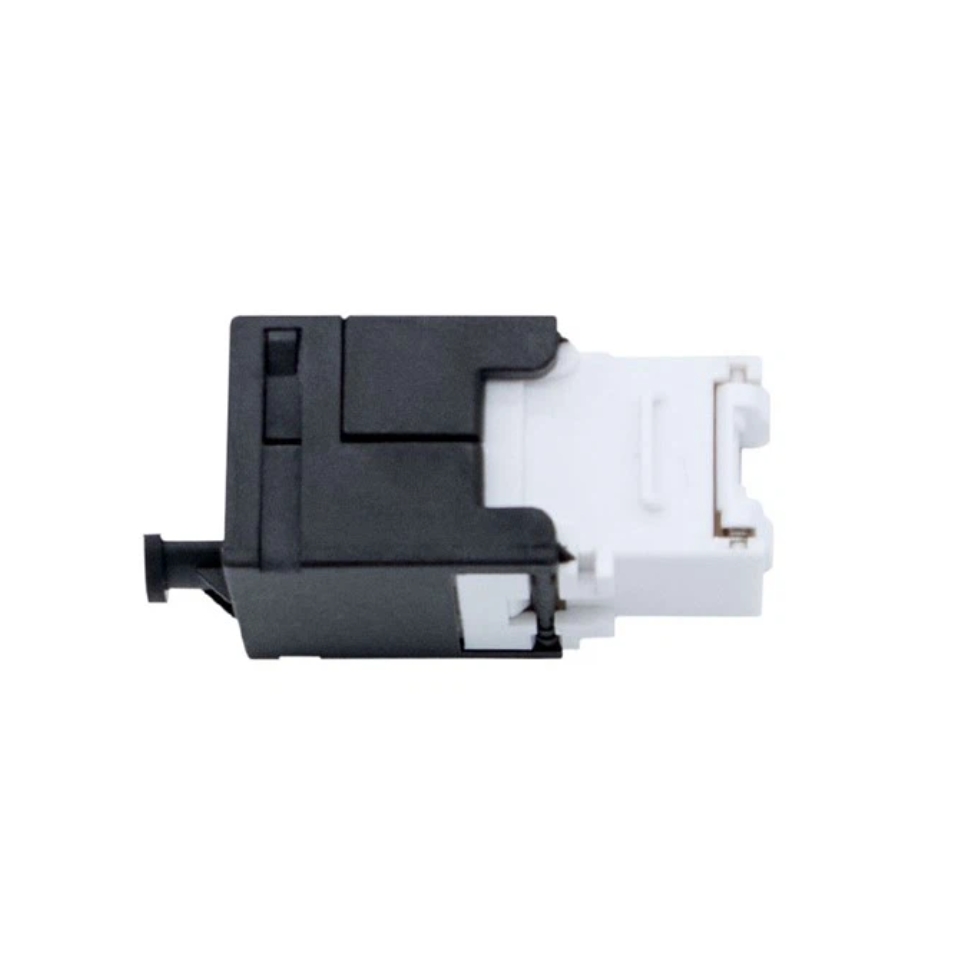

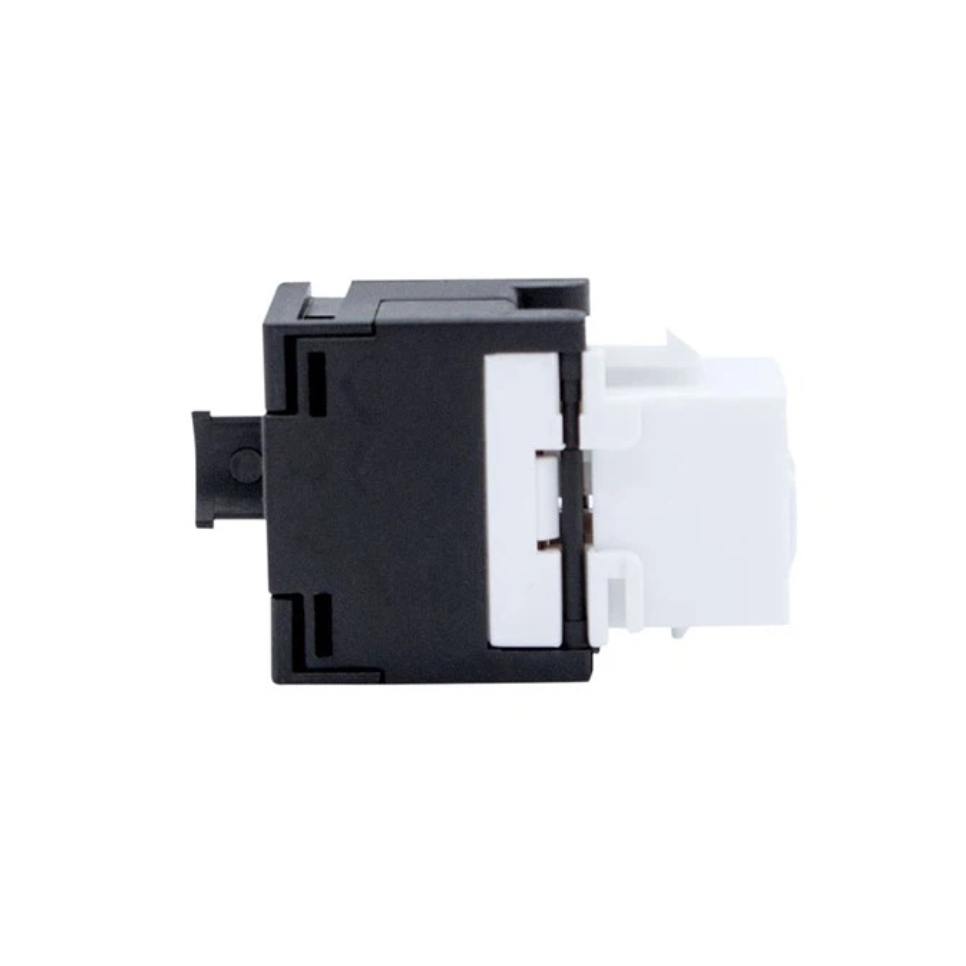

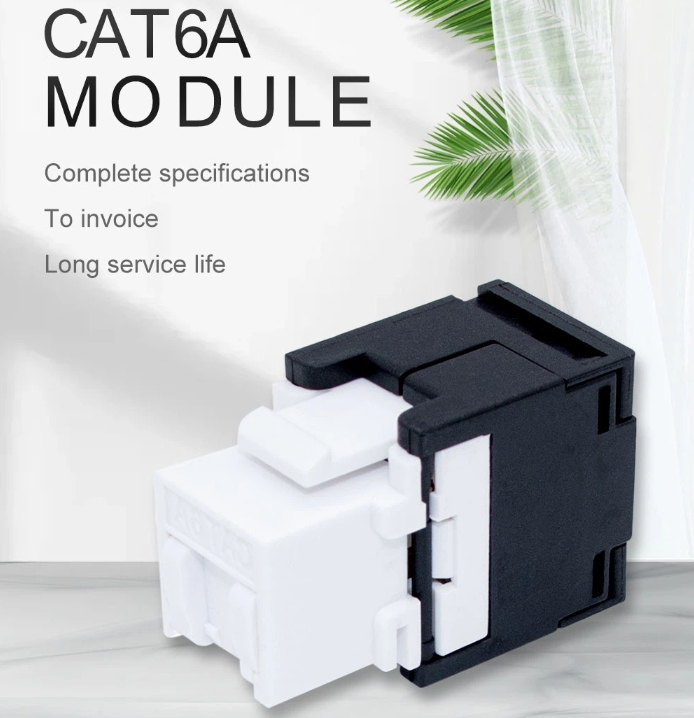

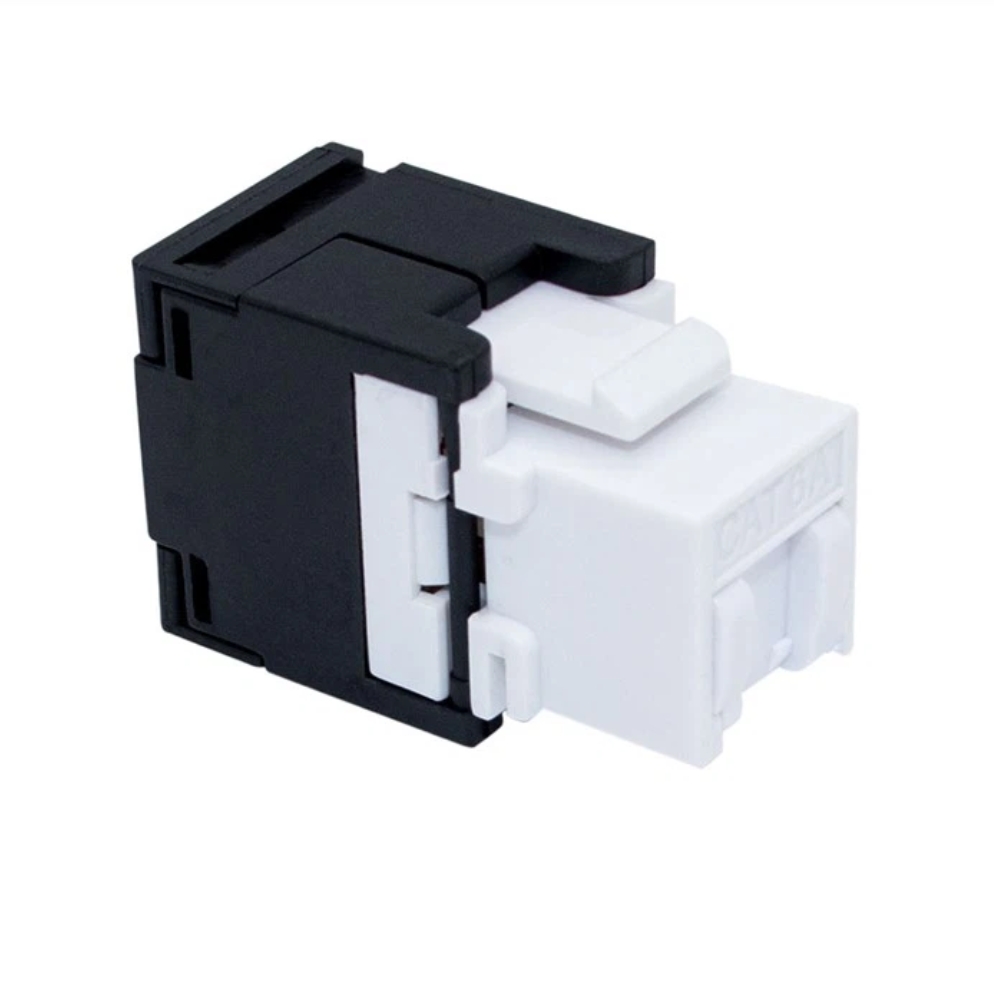

CAT6A UTP Toolless Keystone Jack 180 Degree Keystone RJ45 Jack Coupler With Dust-proof Door
Product Highlights
Support IEEE 802.3af/at/bt, Verified IEC 60512-99-001 & IEC 60512-99-002 Test

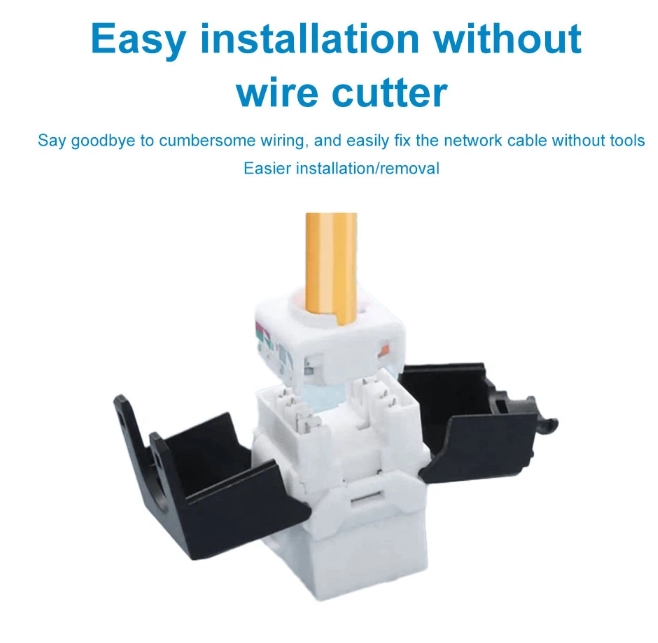

Fast Installation without Any Special Punch Tool or Crimping Tool
Dual-color-coded Labeling for 568A/B (258A) Wiring Schemes

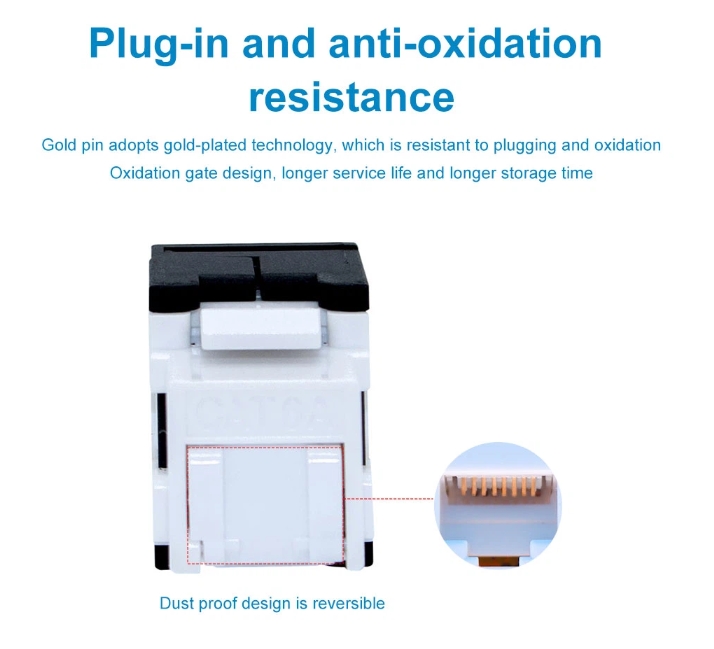

Gold-plated RJ45 Contacts for Optimal Conductivity
To Be Used with Keystone Wall Plate or Panel
CAT6A UTP Toolless Keystone Jack 180 Degree Keystone RJ45 Jack Coupler With Dust-proof Door
Material of plastic parts: PC UL94V-0
Standard 110 and LSA dual-use punching tools make operation more convenient
According to the standard of ISO/IEC 11801 & TIA/EIA 568-B.2 Cat.6

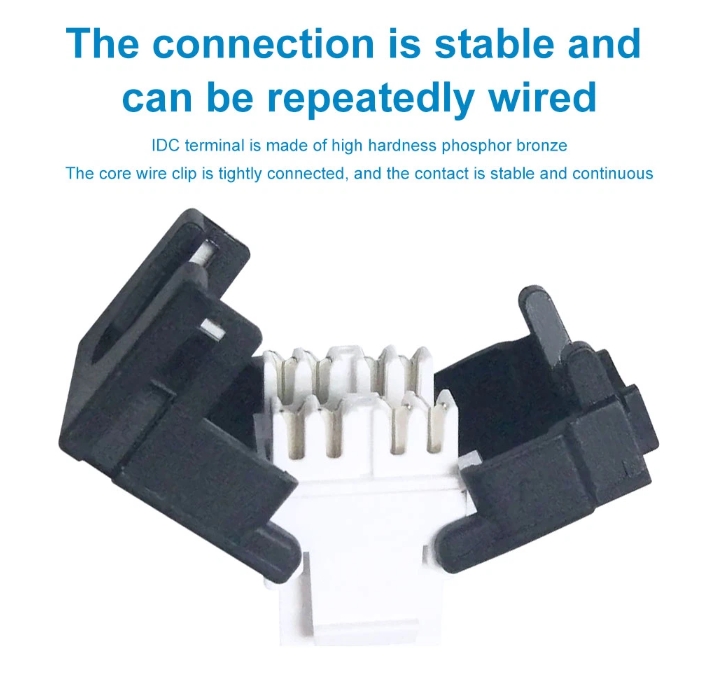

IDC clips: Tinned phosphor bronze nickel plated with dependability 250 times
2. Electrical Characteristics
DC Resistance: ≤300mΩ
Contact Resistance: ≤20mΩ
Dielectric strength: 1000V(AC750V)1min no break down and flashover
Insulation Resistance: ≥1000MΩ
3. Physical Characteristics
Phosphor bronze with nickel plated, connector pins with golden plated 3μ
IDC clip: Tinned phosphor bronze pins with nickel plated, fitting for 22-26AWG cables
Inserting Duration: ≥750 times
Punching Duration: ≥250 times
Jack housing plastic part: UL 94V-2, RED, YELLOW, BLUE, GREEN, BLACK, and other colors available
Termination caps material UL94V -2
Working temperature: -25℃~60℃
4. Standards
ISO/IEC11801
TIA/EIA-568B.2-1;
EN50173;
5. Application
Structured cabling transmitting data, voice, video
Applied for Cat.6 and E Classes
Suitable for working area, central room, managing room, equipment room, and subsystem applications
