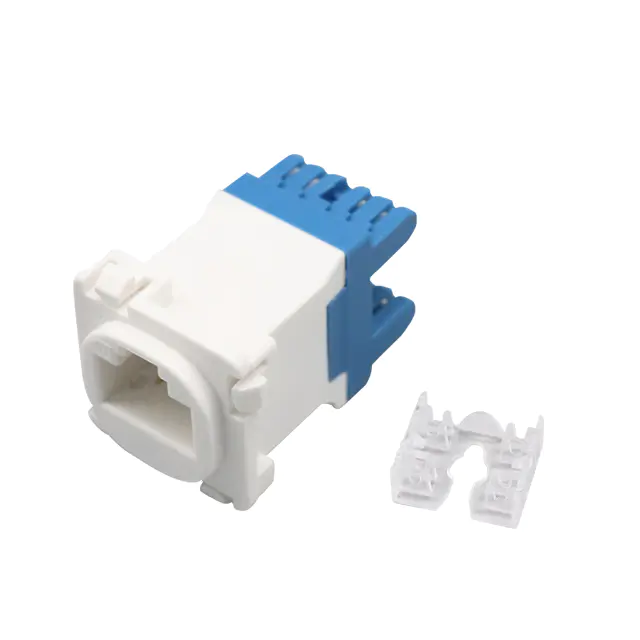

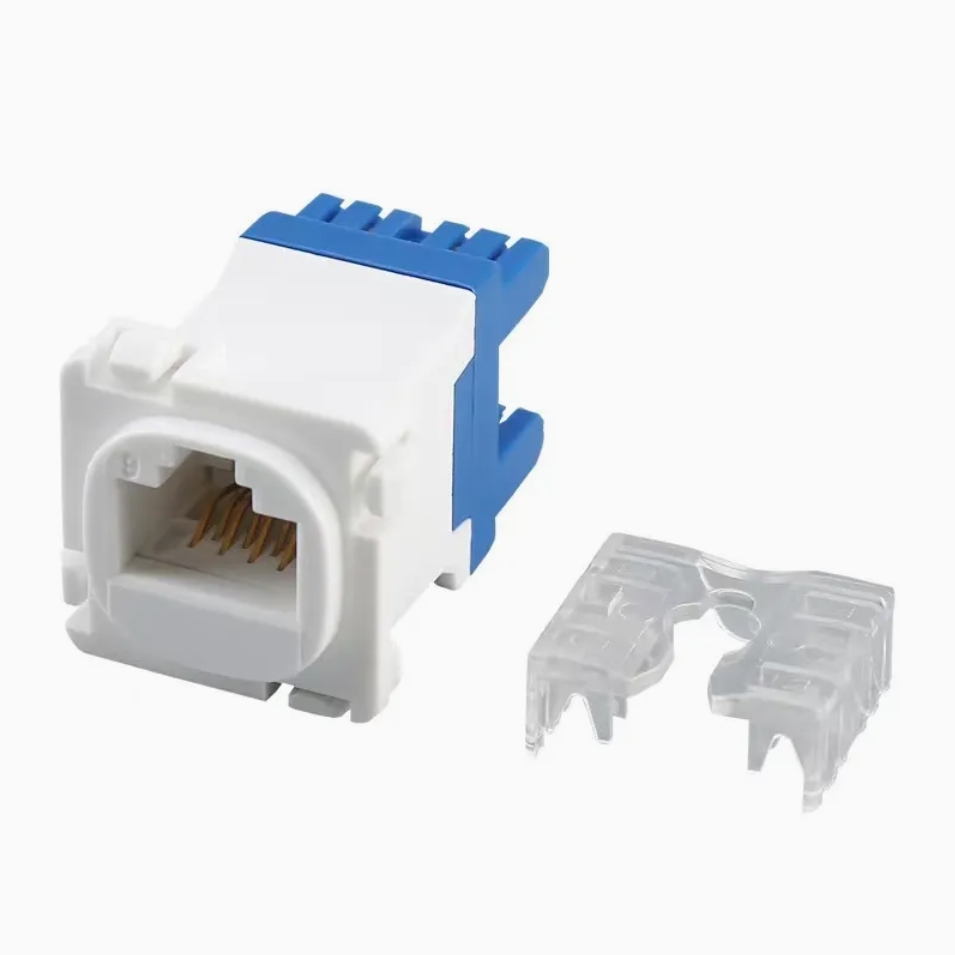

Australian Standard RJ45 CAT6 UTP RJ45 Keystone Jack RJ45 8P8C Female Module
Product Highlights
Support IEEE 802.3af/at/bt, Verified IEC 60512-99-001 & IEC 60512-99-002 Test
Fast Installation without Any Special Punch Tool or Crimping Tool

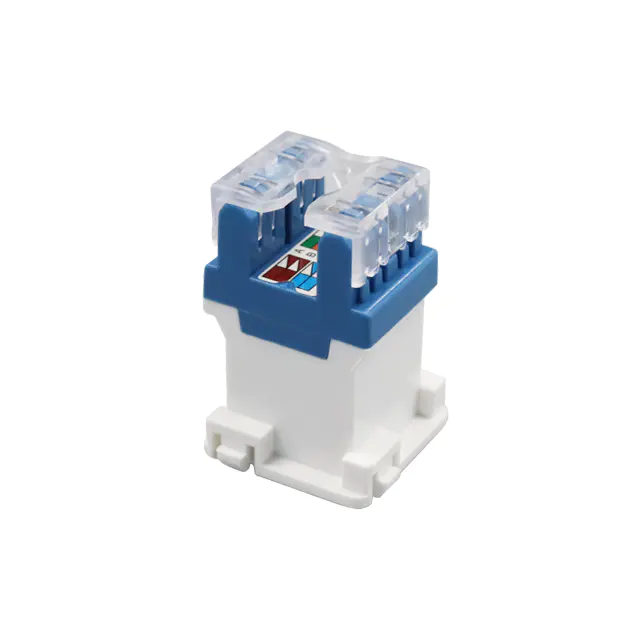

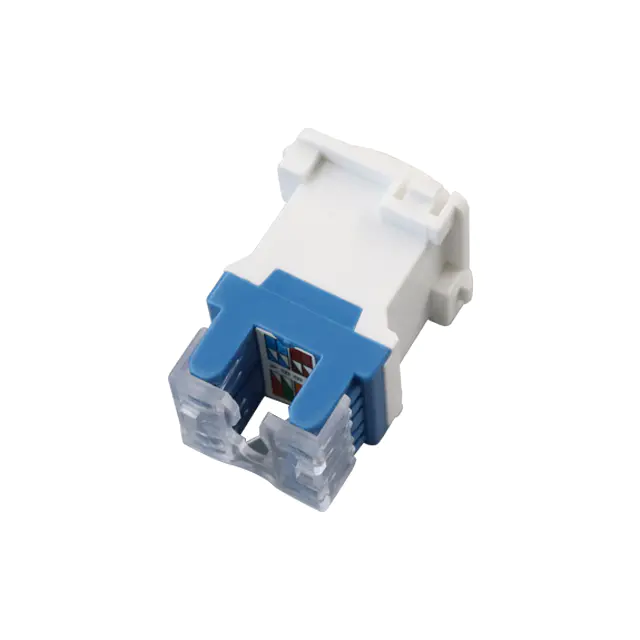

Dual-color-coded Labeling for 568A/B (258A) Wiring Schemes

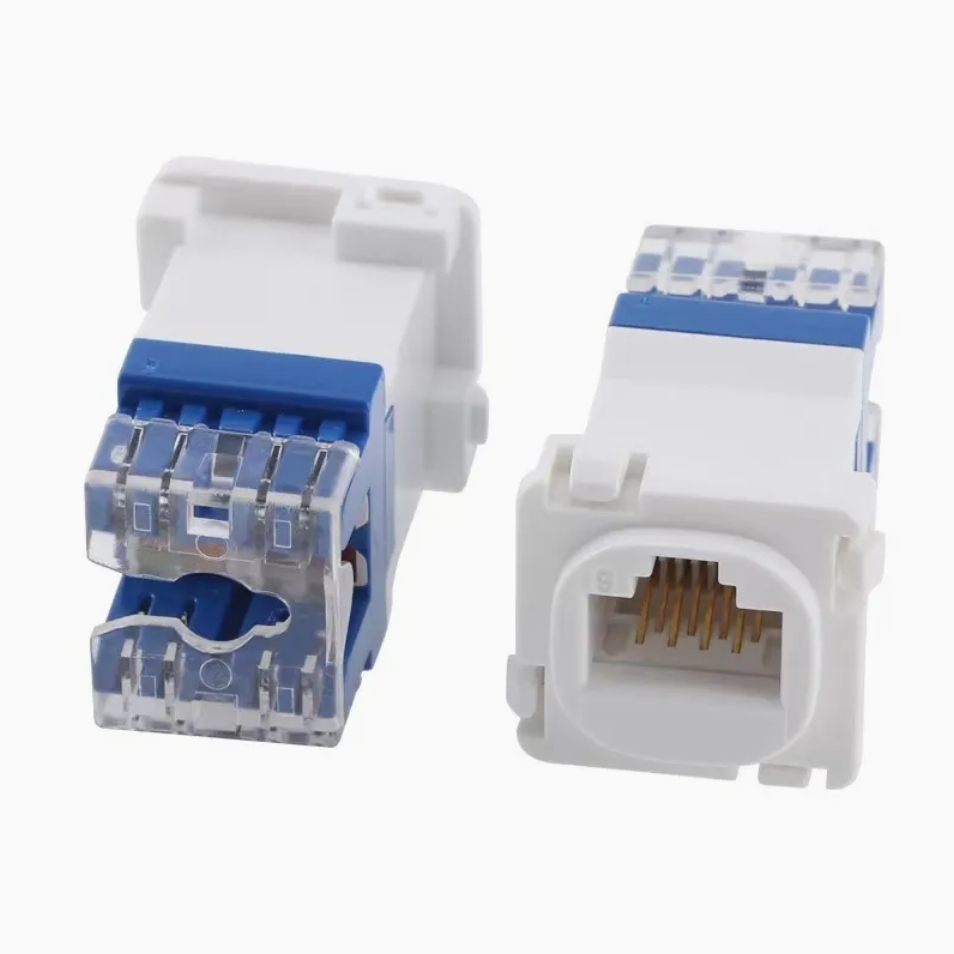

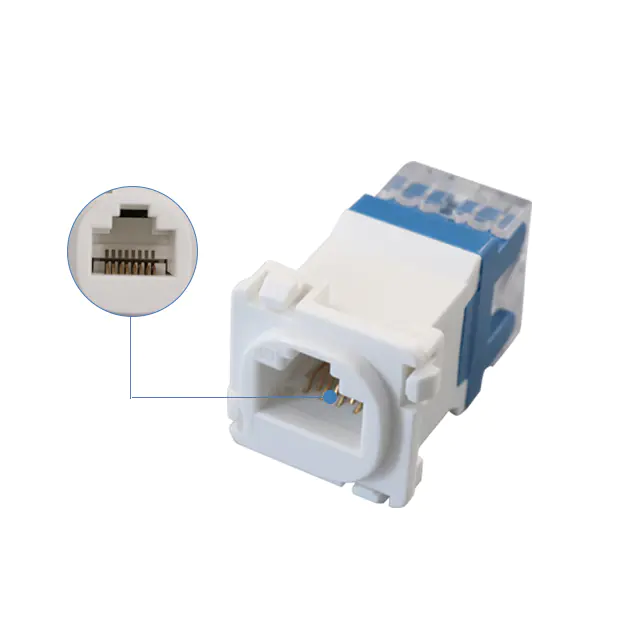

Gold-plated RJ45 Contacts for Optimal Conductivity
To Be Used with Keystone Wall Plate or Panel
Australian Standard RJ45 CAT6 UTP RJ45 Keystone Jack RJ45 8P8C Female Module
Description
Upgrade your network connectivity with our CAT6 RJ45 Keystone Jack. Designed to fit the AVOL range of switches and socket outlets. Flush-mountable and constructed with high-quality PC and copper, this keystone jack ensures reliable performance.
It is SAA-certified, meets AS/NZS standards, and features dimensions of 34.2mm x 22.5mm x 22.5mm
Features:
1.100% passed FLUKE DTX-1800 test.
2.15 years quality guarantee.
3.IDC fits for 22-26 AWG solid wire.
4.Insertion Life:750 times MIN
5.Punching Life:250 times MIN
6.Meet TIA/EIA-T568A and T568B category 6 requirements.
Material:
Housing Body: PC UL94V-2 (Customized UL94-V0)
IDC Housing: PC
IDC Contact: Phosphor Bronze with Nickel Plating 100u"
Contact Pin: Phosphor Bronze with Gold Plating 3u"-50u"
Gold Plating Thickness: Default 3u", customized 6u"-50u"
PCB: FR4 1.6mm(0.04u") thickness,2 layers
Our Services:
1) Warranty year is 1 year under normal use! The warranty period is a year from the date of original purchase.
2) NOTE: Return policy is exchange only, buyer must pay return shipping fee for item.
3) All message will be replied within 48 hours.
Shenzhen Creative Ruby Co., Limited is a professional network products manufacturer with 16 years R&D production experience. We design and produce fiber optic cables, electrical cables, industrial cables, special cables, electronic cables and cable accessories. We have two factories for production and one design team for product integration.
Our products can meet different market demands in Europe, Southeast Asia and many other countries and regions around the world. Our products can reach and exceed National Standards, such as TIA/EIA 568B and EIV50173. We have got ISO9001, CE, RoHS and other certificates. We have our own design department, production lines, quality inspection, marketing integration and OEM/ODM Center. More and more worldwide partners have joined us.
