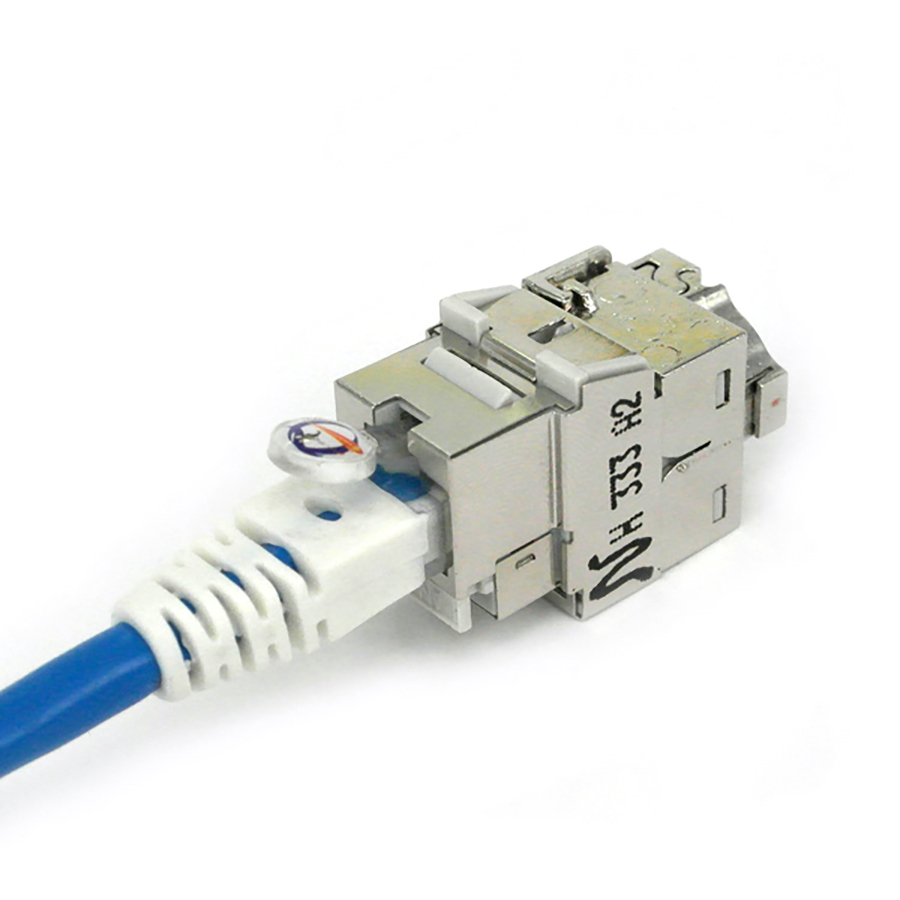

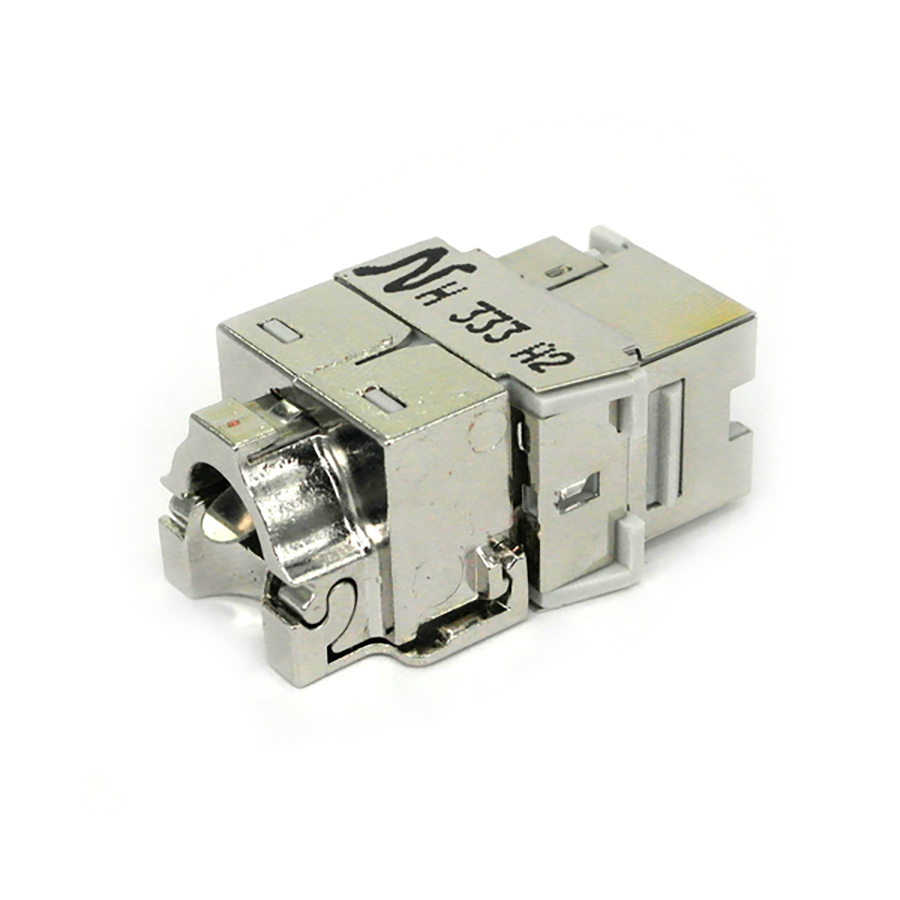

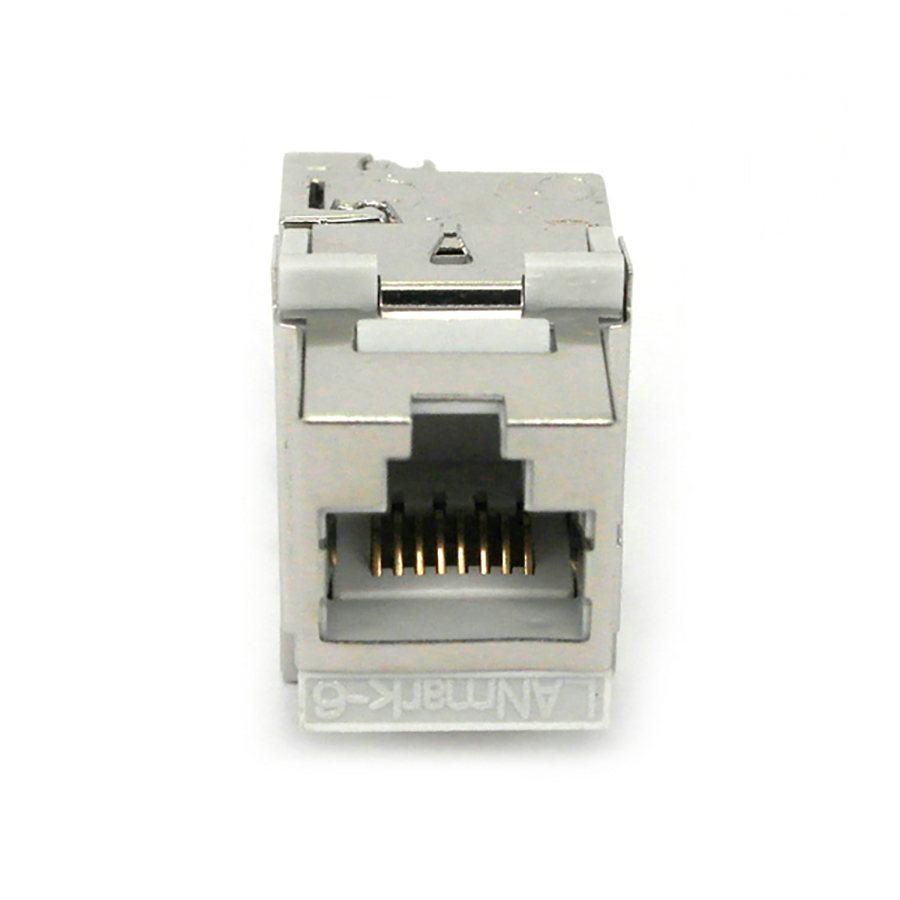

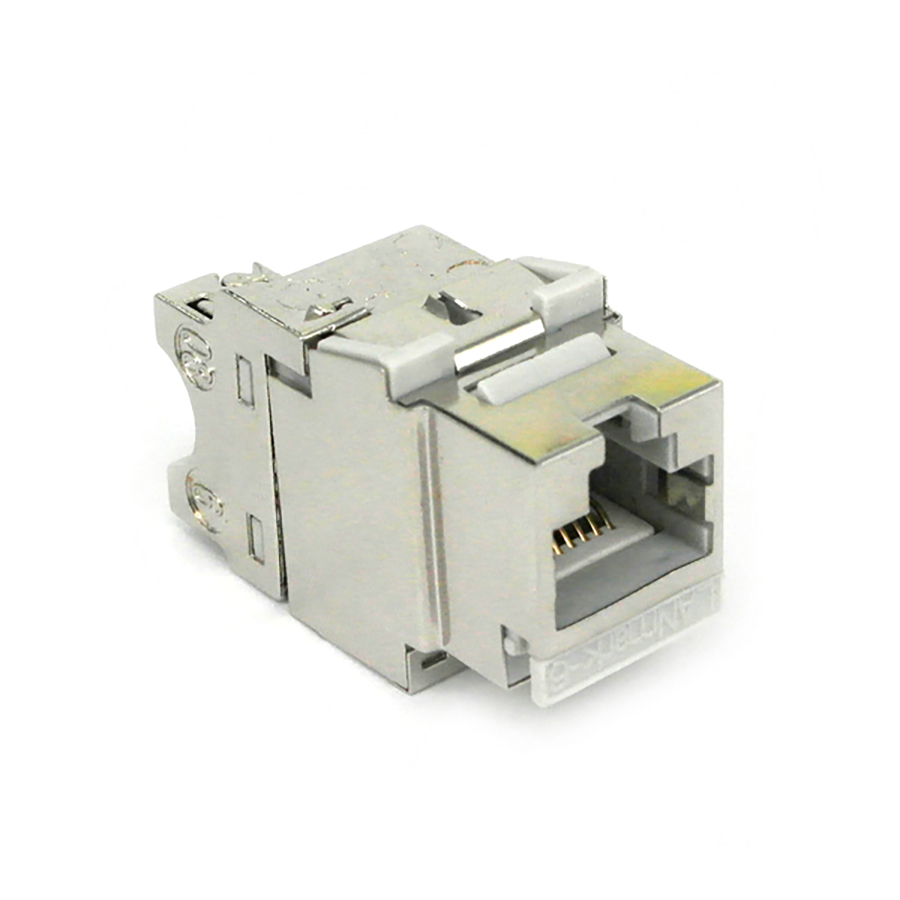

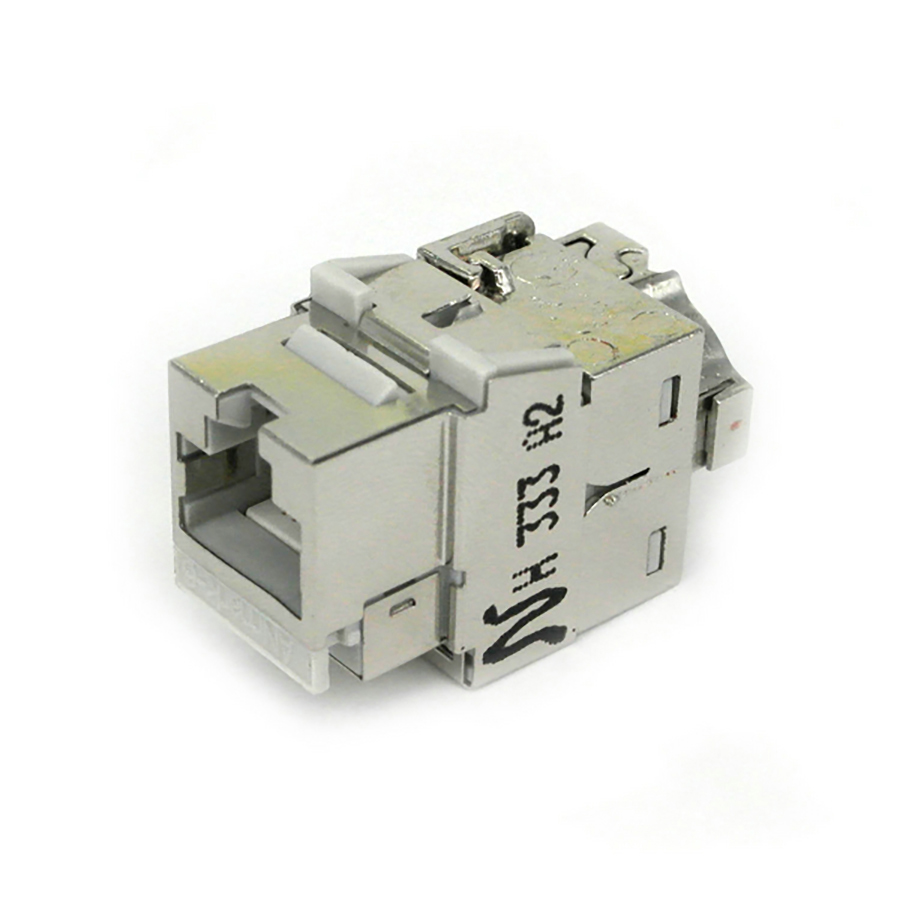

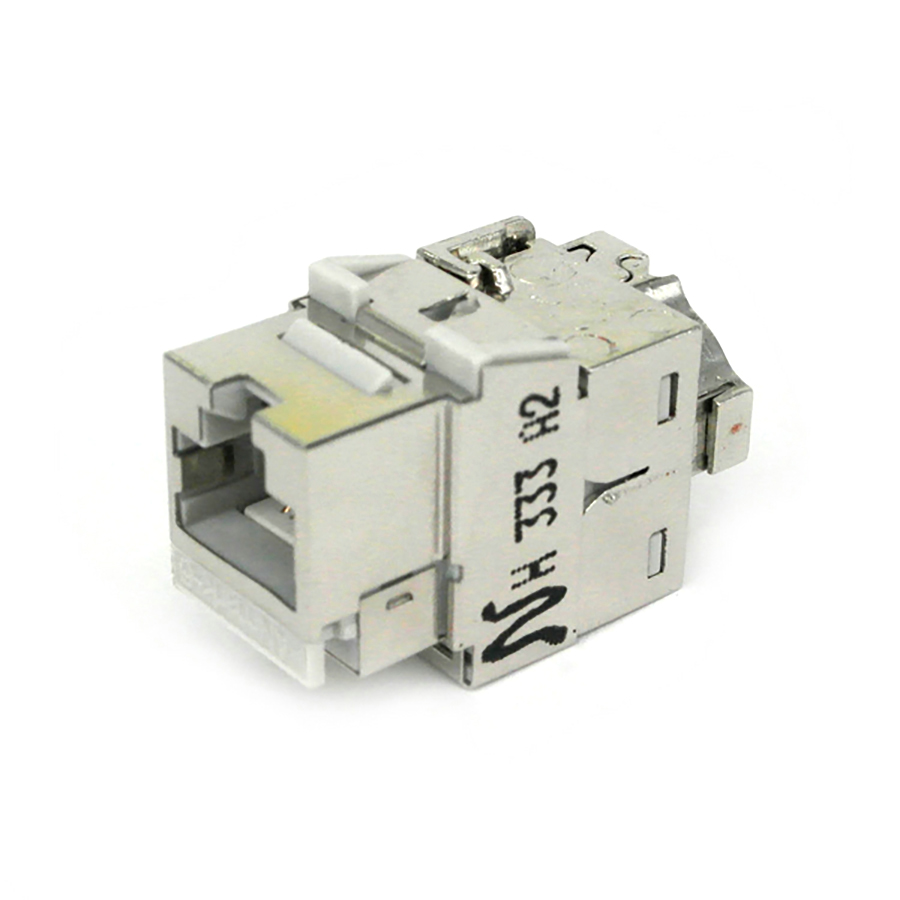

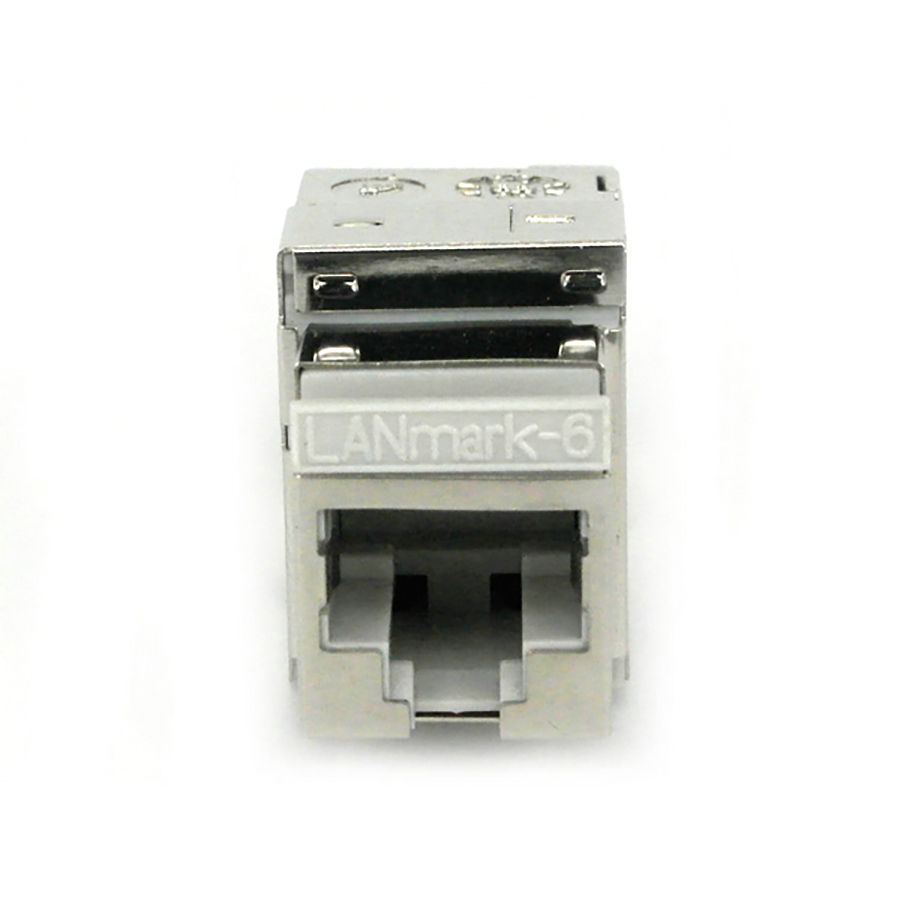

N420.666 Lanmark Snap-In Connector Cat6 Shielded Keystone Jack
Category 6 Snap-In connector

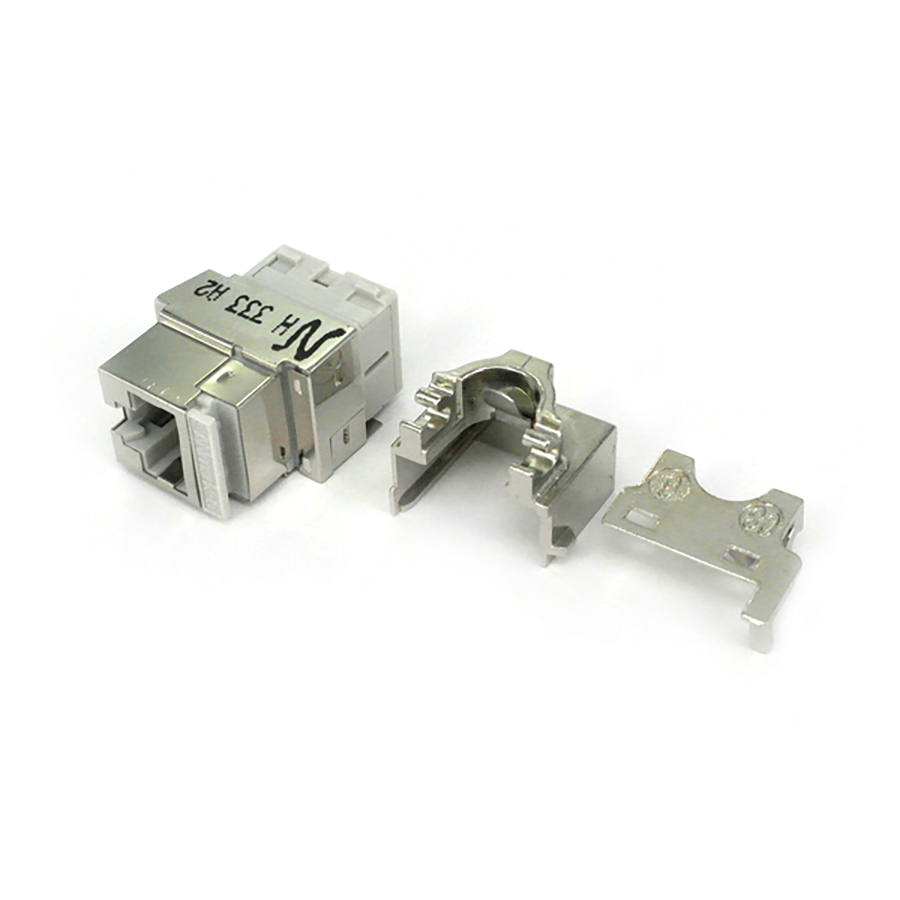

360° screened, compatible with foil shielded and braid shielded cables
Fast and easy termination without punch down tool
Wiring according to colour code T568B or T568A
Accepts solid wire from 24 to 22 AWG
Reterminable
Supports POE Plus applications (Type 1 and Type 2)
An adapter can be added to fit the keystone format
N420.666 Snap-In Connector Cat6 Shielded Keystone Jack
· Category 6 Snap-In connector
· Shielded
· Fast and easy termination without punch down tool
· Wiring according to colour code T568B or T568A
· Accepts solid wire from 24 to 22 AWG
· Can be reterminated multiple times
· Supports POE Plus applications (15 Watts per pair)
· An adapter can be added to fit the keystone format
STANDARDS
International : IEC 60603-7-4;IEEE 802.3af (PoE);IEEE 802.3at (PoE+);ISO/IEC 11801
APPLICATION
LANmark-6 Evo Snap-In connectors are manufactured and tested to the latest Category 6 specifications defined in the International and American cabling standards and are designed to meet or exceed the quality and performance criteria needed to support all applications up to 250 MHz.
10 BASE-T Ethernet
100 BASE-T Fast Ethernet
1000 BASE-T Gigabit Ethernet
155 Mb ATM
622 Mb ATM
1.2 Gb ATM
POE Plus (including IEC 60512-9-3 and IEC 60512-99-001)
Future Class E applications
DESIGN
LANmark-6 Evo Snap-In connectors are designed to match with LANmark-6 cable and patch cords and to complement all LANmark modular components, such as:
Snap-In patch panels (fixed, sliding and angled) and Zone Distribution Boxes
Snap-In outlet modules (UK, US, European and German style)
PERFORMANCE
LANmark-6 Evo Snap-In connectors meet or exceed the requirements for Category 6 connecting hardware as described in ISO/IEC 11801, IEC 60603-7 and EIA/TIA 568-C.2.
INSTALLATION
The wire organiser guarantees fast and easy termination of the LANmark-6 Evo Snap-In connector without the need for a punchdown tool. An optional comfort tool (N420.567) can be used to increase the ease of installation.
A stranded version is available for CP to TO links.
