Cat6a network patch cable is the cost-effective solution for indoor data centre applications, supporting up to 10GBase-T and 550MHz within 100 metres of cable. And it is fully backward compatible with all the previous categories. The FS cat6a patch cables conductor apply Pure Bare Copper with high electrical conductivity and low signal transmission attenuation. The shielded patch cord provides superior alien crosstalk (AXT) suppression and protects critical data from electromagnetic and radio frequency interference (EMI/RFI). The sheath material is new environmentally friendly material PVC CM, which is durable, flame-retardant, resistant to bending. Stranded copper patch cable can be used with a longer flex-life. The cable supports PoE to save you the expense and effort of powering PoE devices individually. You can also install PoE devices in locations distant from power outlets, such as high on walls, ceilings or poles. Cat6a cable uses eight-core four-pair precision twisted pairing technology and passes the Fluke test, which ensures that it can provide stable high-speed network connection and ensure the accuracy and reliability of data transmission.
Click to open expanded view

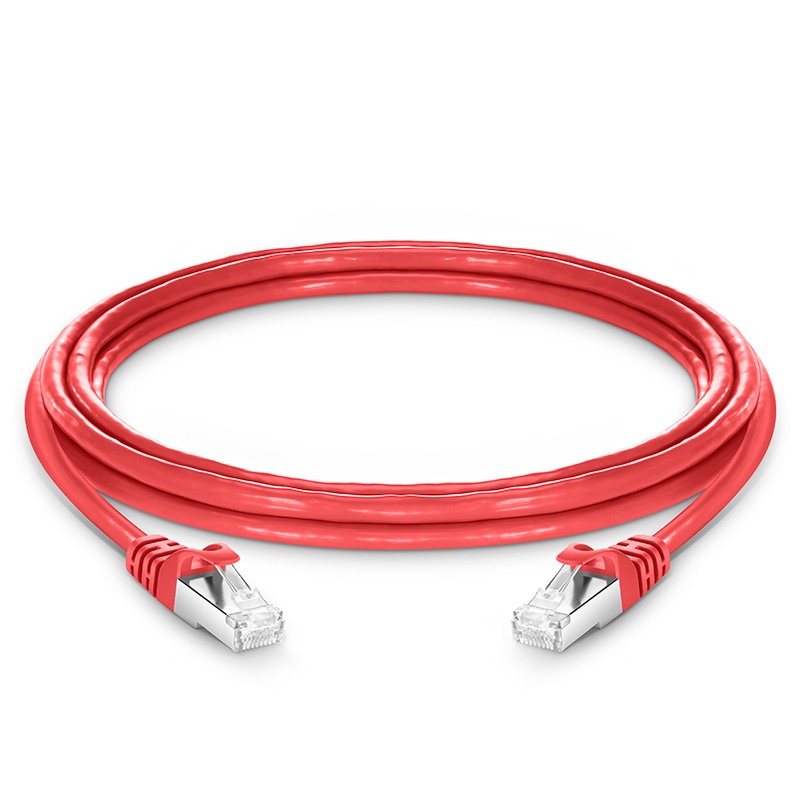

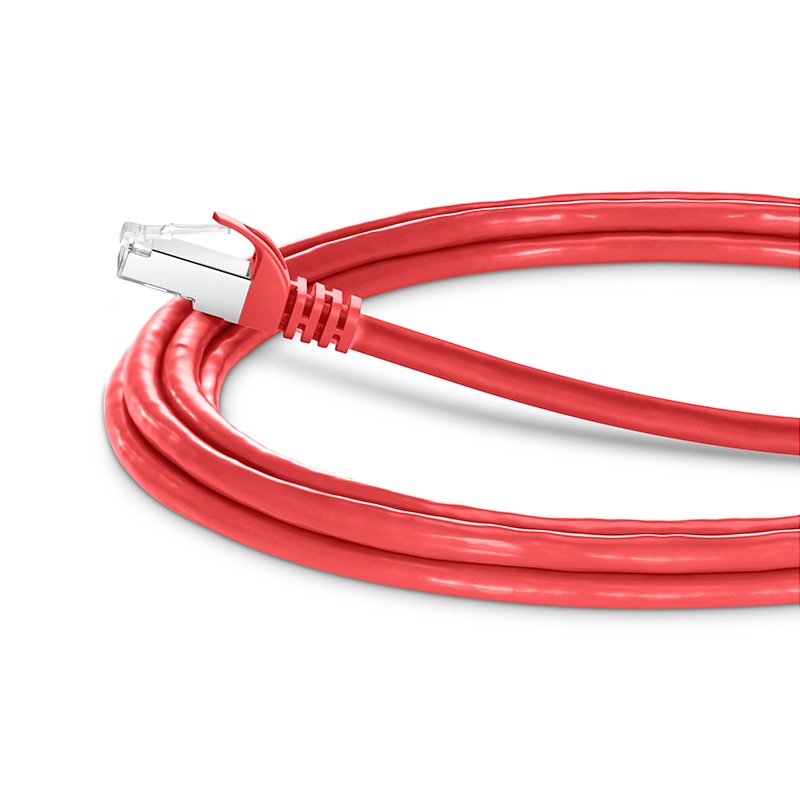

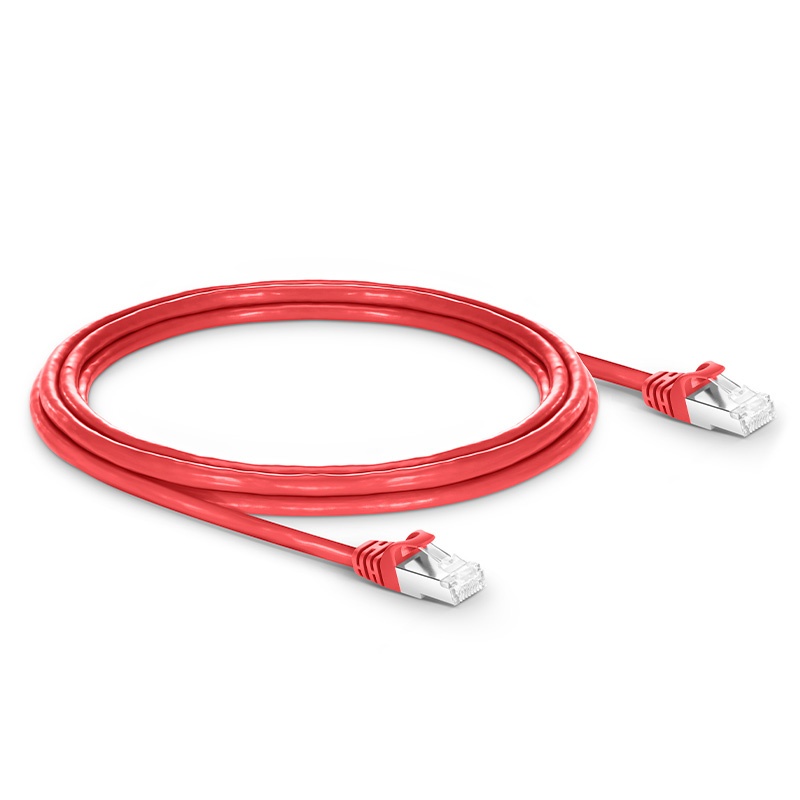

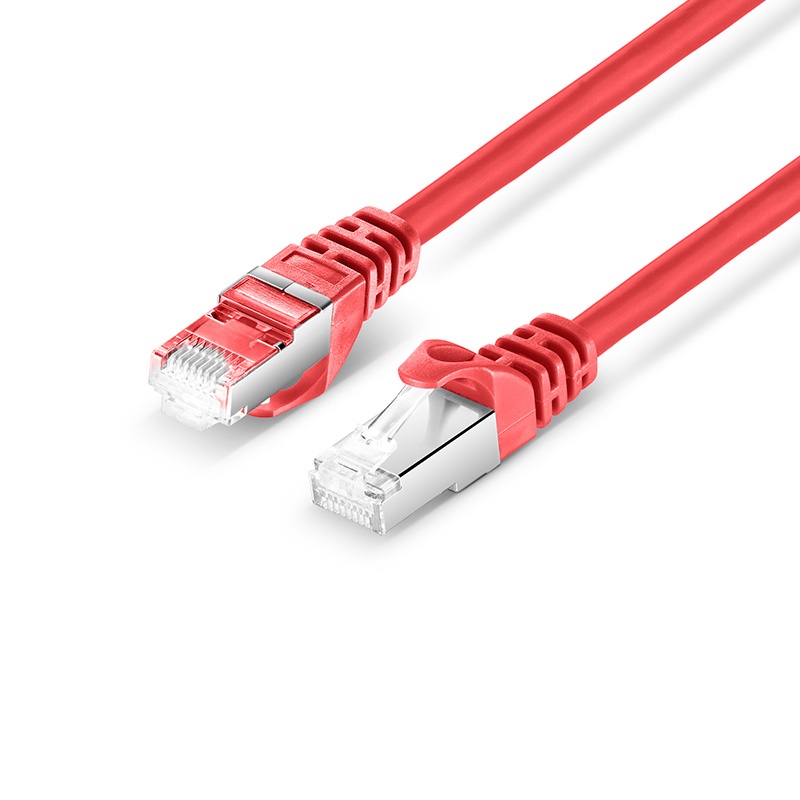

3m Cat6a S/FTP 26AWG Shielded Patch Cord PVC/LSZH Ethernet Network Patch Cable,RED (Customized Color)
Product Highlights
Exceed ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA Standards
Up to 550MHz with 1G/10G-T Speed, Support PoE/PoE+/PoE++ (IEEE 802.3af/at/bt)
28AWG Cable and Snagless Narrow Boot Design Takes 33% Less Space Than 23~24AWG Cables
Performance Tested with Fluke and Wired T568B
Stranded Cable and RJ45 Modular Plugs with 50μ'' Gold-plated Contacts
Pure Bare Copper Conductors with Stable Transmission Performance
Helps Reduce Congestion in High‑density Data Centers and Telecommunications Rooms
Use in Patch Panel or Equipment Connections in Enterprise Networks and Data Center
3m Cat6a S/FTP 26AWG Shielded Patch Cord PVC/LSZH Ethernet Network Patch Cable,RED (Customized Color)

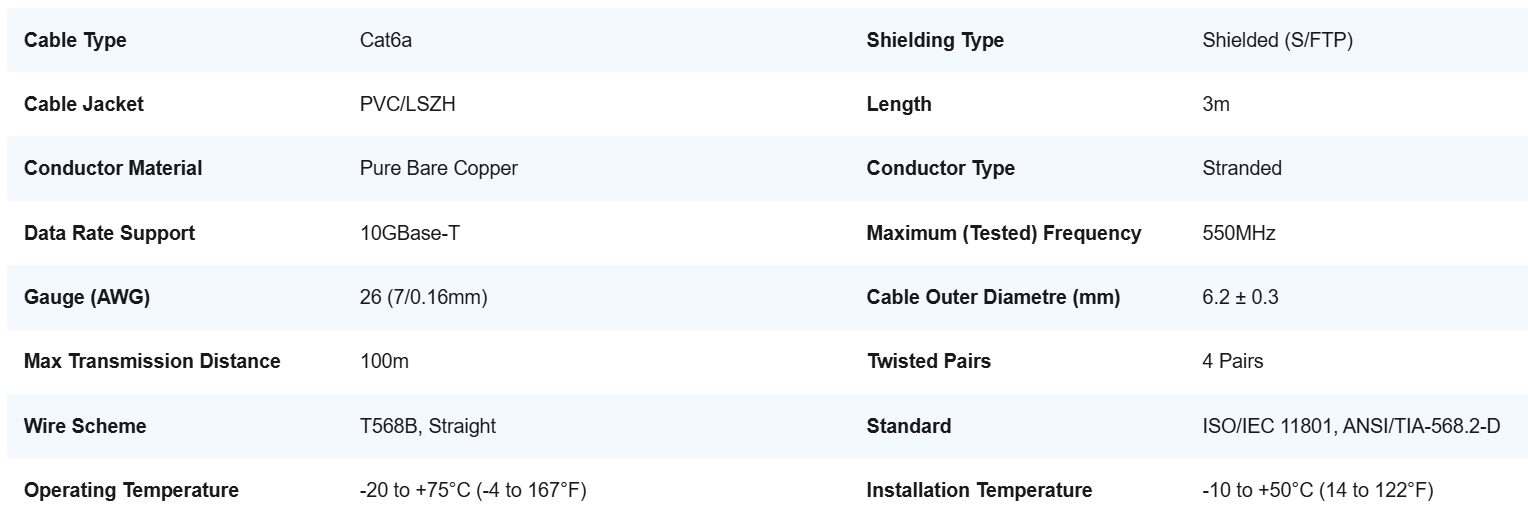

Specification

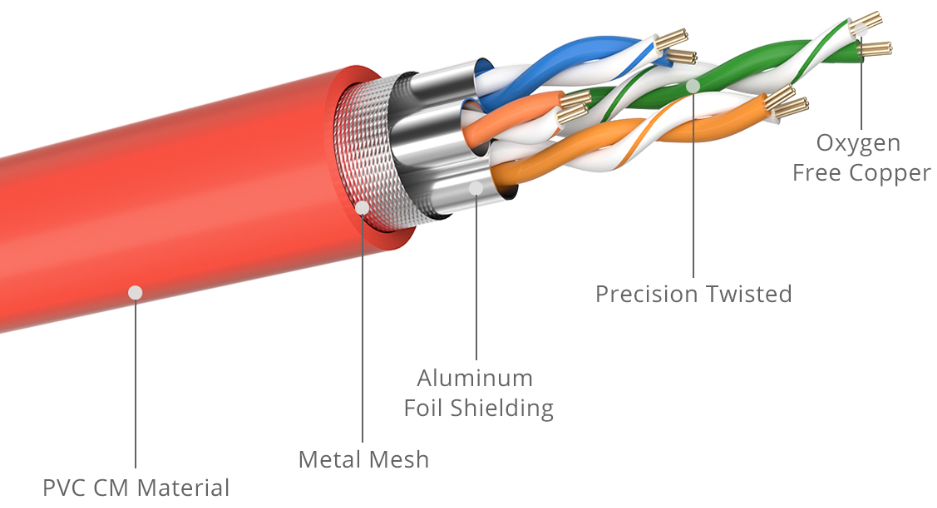

Twisted pair structure and double shielding layer bring better shielding performance.
This cable speeds up to 550MHz and supports 10GBase-T Ethernet, which allows for more reliable data transmission.

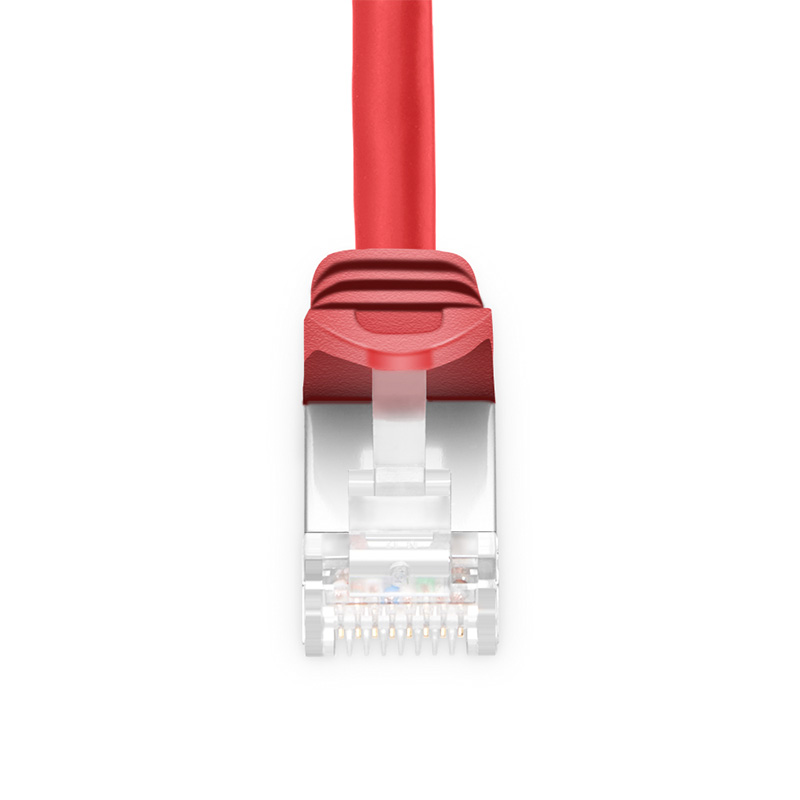

RJ45 modular plug, PVC Jacket and strain relief boot to increase the service life of the cable.
PoE Connectivity for Enterprise

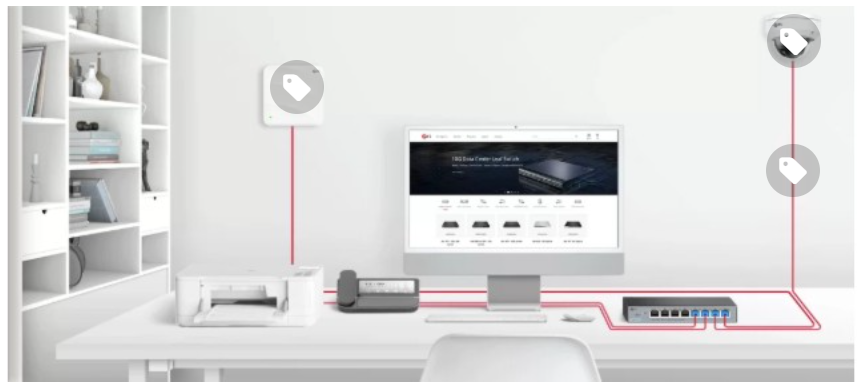

This cable is suitable for all devices with RJ45 jacks, such as PCs, servers, printers, routers, switches, media players, NAS, VoIP phones, PoE devices, and more.
Copper Cabling Solutions for Data Center
Provide cost-effective copper cable solutions for major corporations, medium-sized and small enterprises data centres.
The patch cables pass the Fluke Patch Cord Test and deliver specified testing report, in which includes NEXT, PS NEXT, ACR-F, PS ACR-F, ACR-N, PS ACR-N as well as RL.
