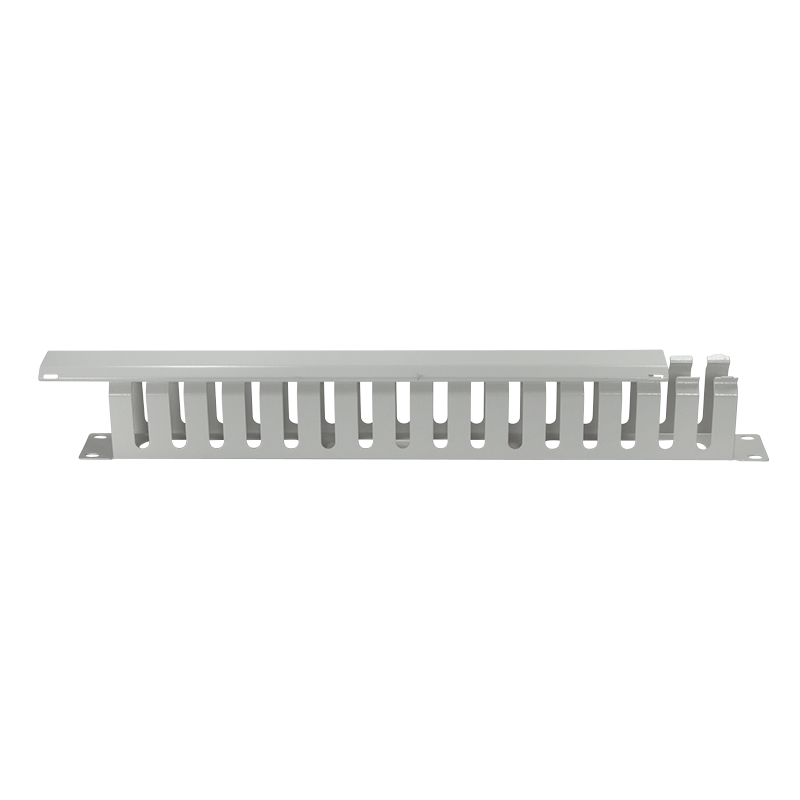

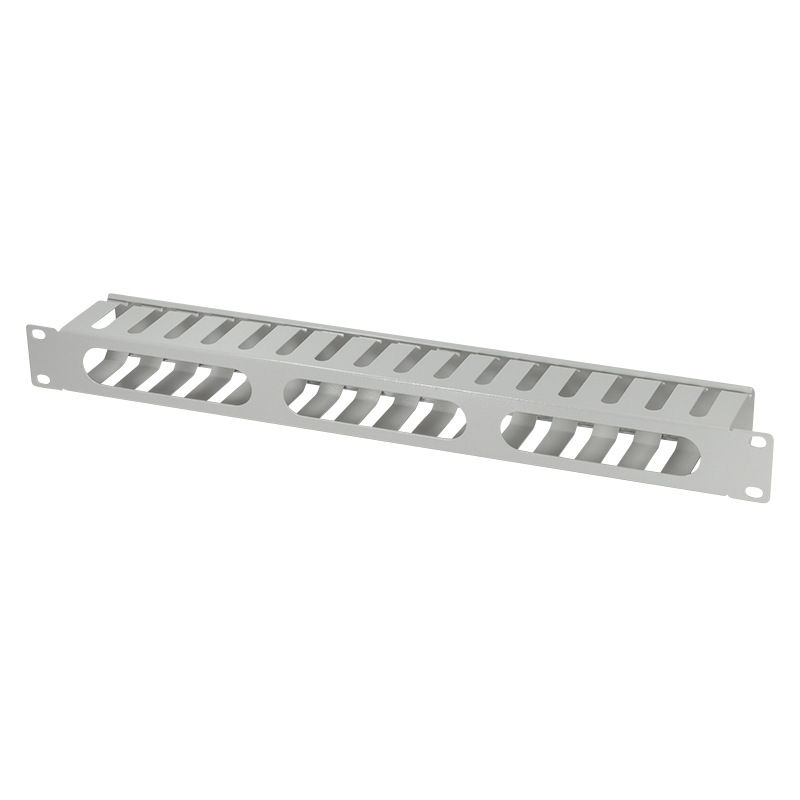

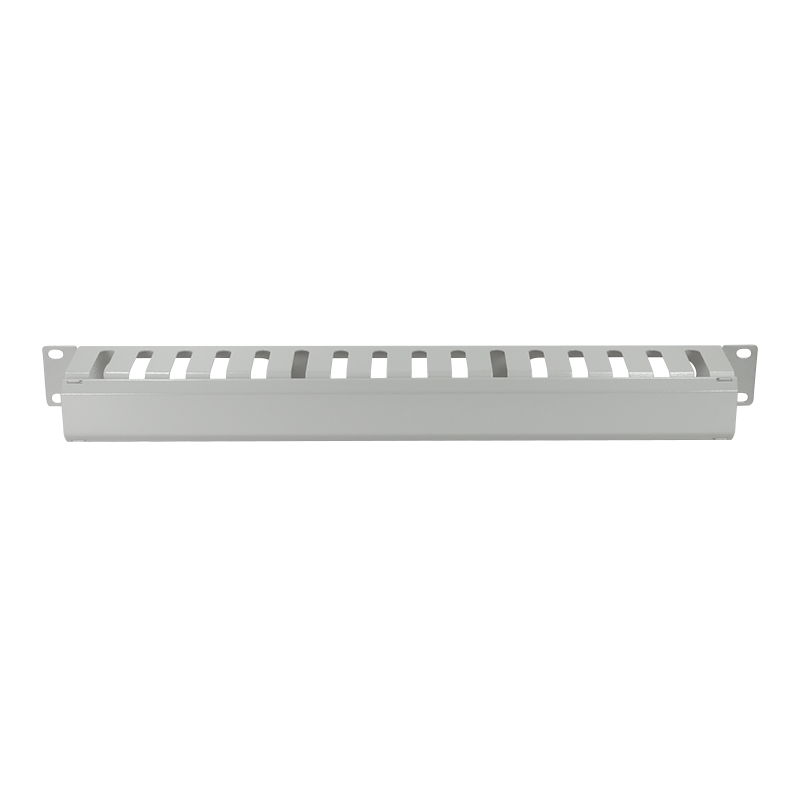

19inch Metal Cable Management Panel with Front Flap, 1U, Light Grey
Product Highlights
Mount to Any EIA 19" Rack or Cabinet in Data Centers and Telecom Room
Flexible Fingers Organize Patch Cords, Simplifying Moves, Adds, and Changes
Finger Spacing Provides a Large Area for Copper, Fiber Optic, and Coax Cables
Rounded Edges on Fingers Protect Cables from Snags and Damage to the Cable
Dual Hinged Cover Opens Upward or Downward to Provide Easy Access to Cables
The Bend Radius Control Helps Protect Cables from Kinks and Snags
Cable Pass Through Holes Provide Ease of Installation and Cable Maintenance
Durable Metal material Can Endure Years of Utilization in Challenging Environments
19inch Metal Cable Management Panel with Front Flap, 1U, Light Grey
Horizontal cable managers shall be capable of managing cables on the front and rear of any 19" rack. They ensure optimal cable radius to prevent deterioration or breakage. Flexible fingers maximise the care and protection of the equipment and cables, keeping the structured cabling system unhurt and totally functional. The removable cover makes it easy to add or remove bundled cables quickly.
Cable manager with access from the front and cable feed from the rear

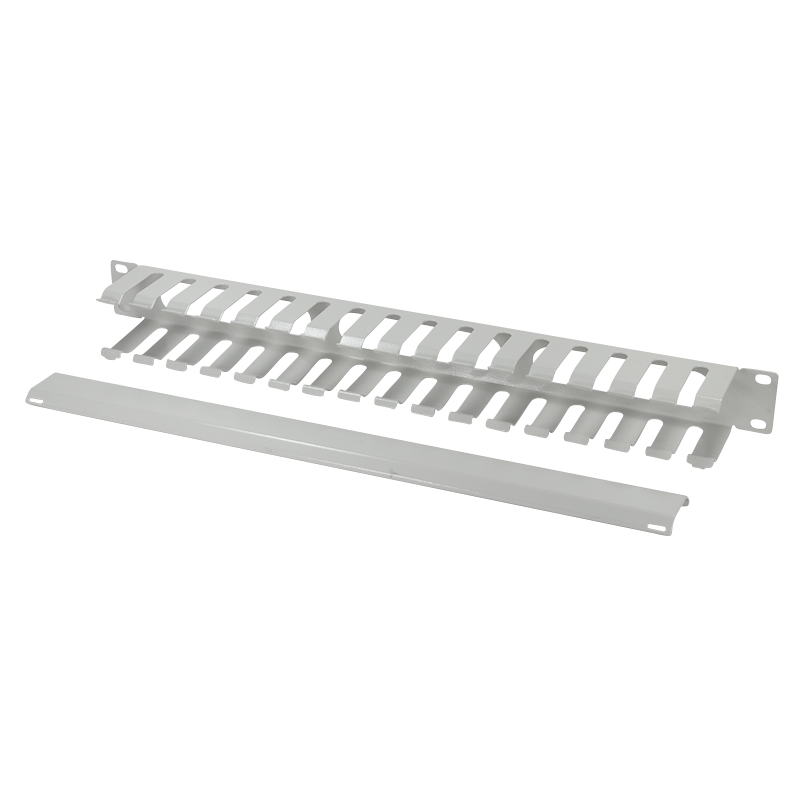

With removable front flap
19 inch horizontal rack installation, 1U
Can be used as a cable duct, cable tray or cable organizer
Material: 1.0 mm steel
Color: Grey RAL 7035
M6 mounting kit included

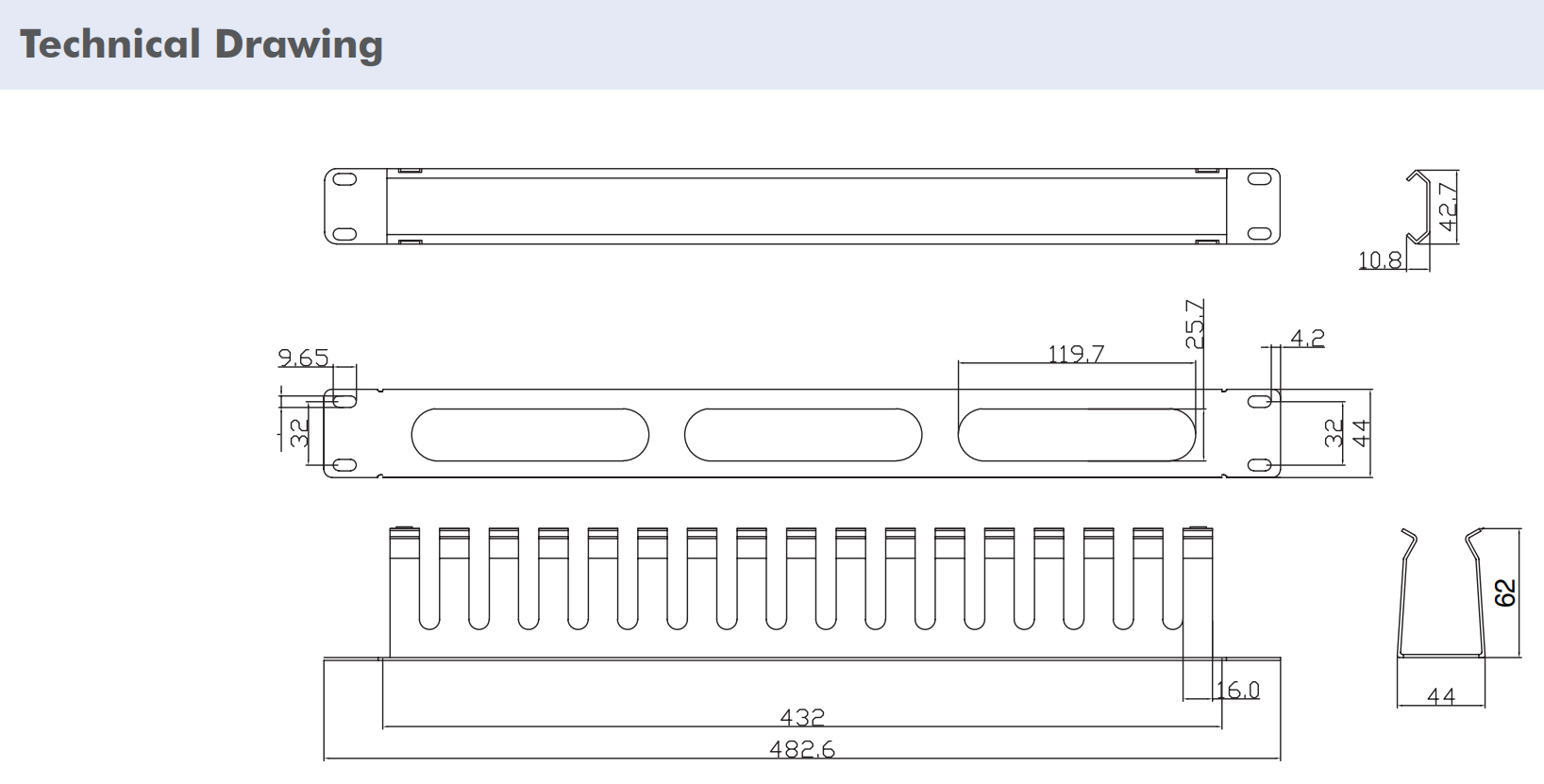

General product data:
Weight: 0.5 kg
Height: 4.4 cm
Width: 6.2 cm
Length: 48.26 cm
