Category 6a cable supports up to 550MHz and speeds up to 10Gbps over 100 metres. It is fully backward compatible with all the previous categories. A foil is wrapped around the cable protecting it from electromagnetic and radio frequency interference. Snagless boot prevents unwanted cable snags during installation and provides extra strain relief. Cat6a cable passes the Fluke test, which ensures that it can provide stable high-speed network connection and ensure the accuracy and reliability of data transmission. All patch cords shall be compatible with T568B wire scheme. Stranded copper patch cable can be used with a longer flex-life. The cable supports PoE to save you the expense and effort of powering PoE devices individually. You can also install PoE devices in locations distant from power outlets, such as high on walls, ceilings or poles.
Click to open expanded view

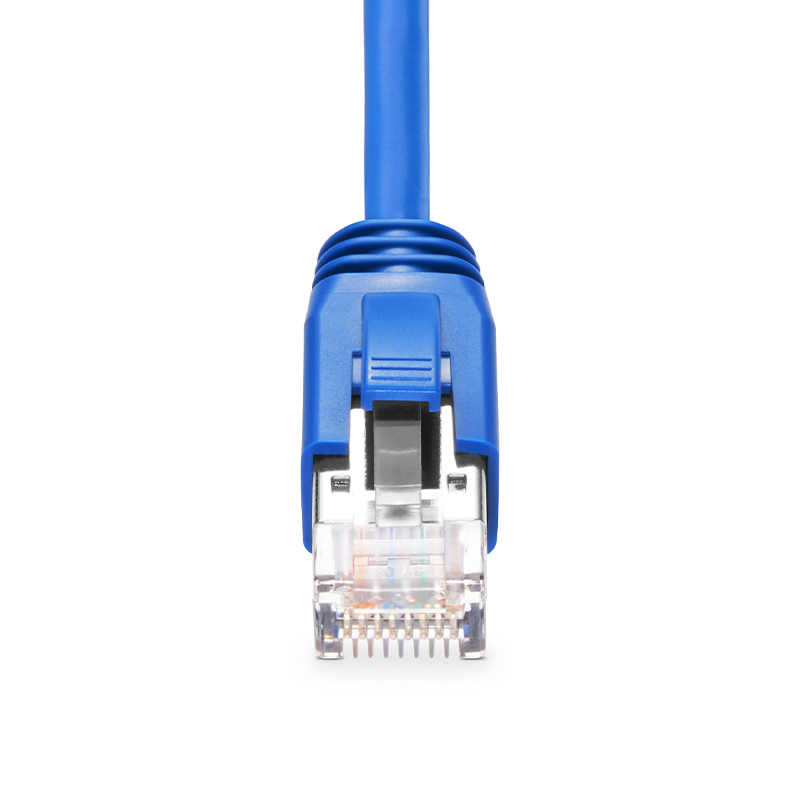

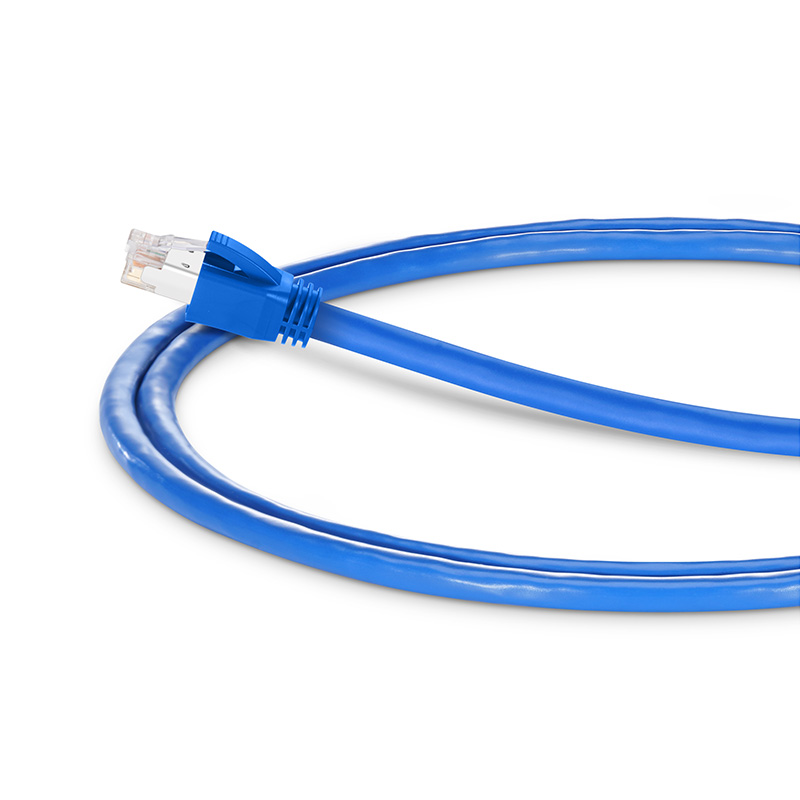

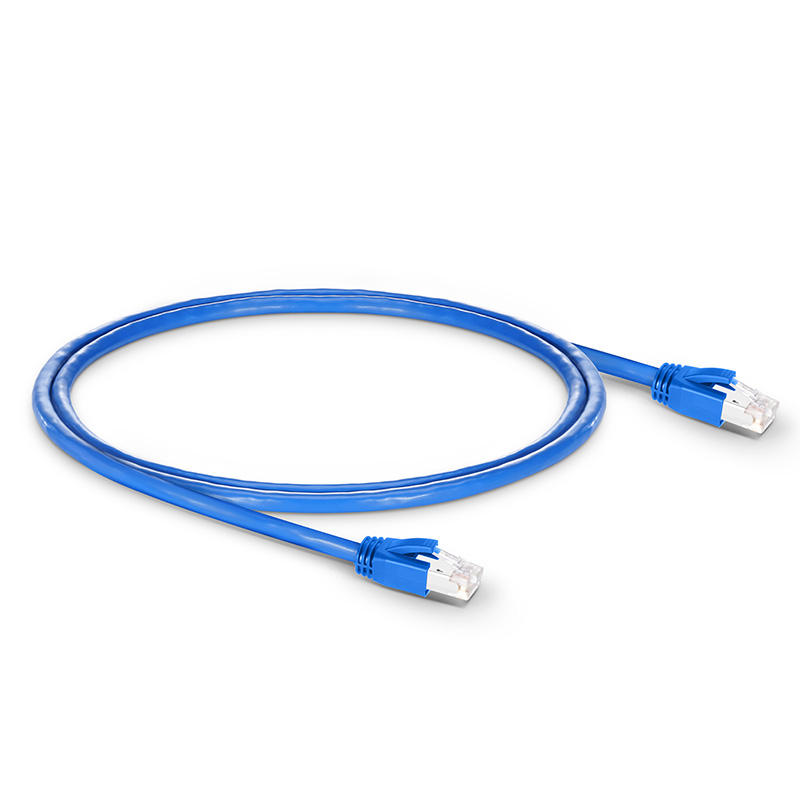

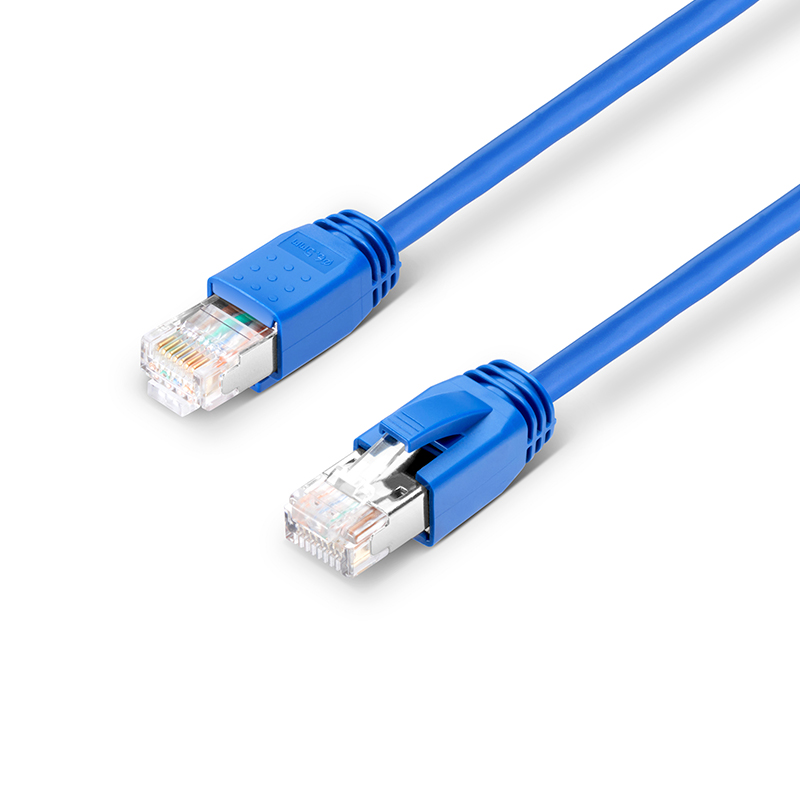

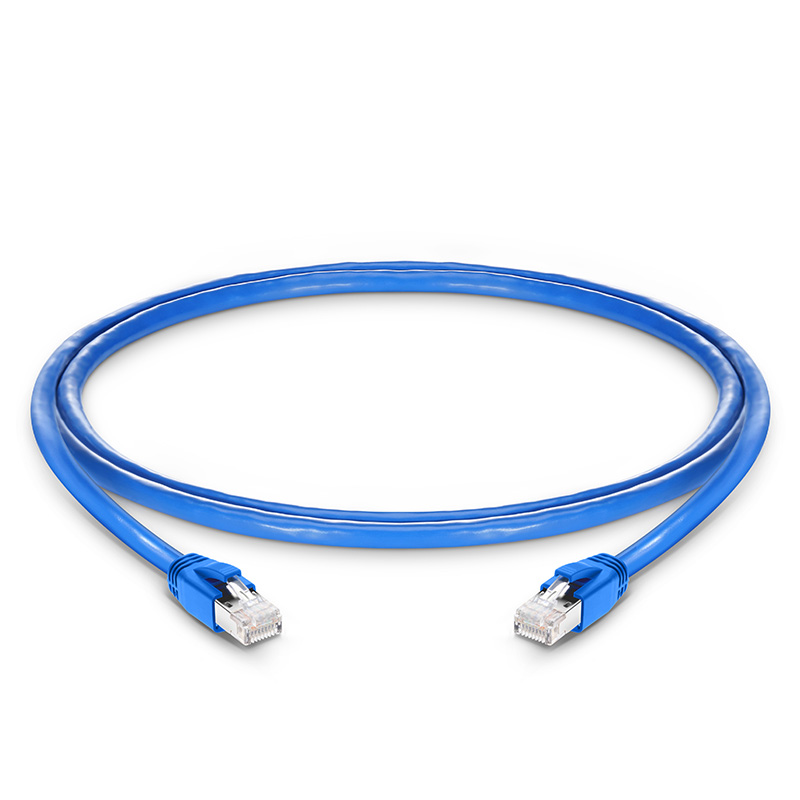

1m Cat6a F/FTP 23AWG Shielded Patch Cord PVC/LSZH Ethernet Network Patch Cable,Blue (Customized Color)
Hot
Hot
US$1~1.2
Product Highlights
Exceed ANSI/TIA-568.2-D Category 6a and ISO 11801 Class EA Standards
Up to 550MHz with 1G/10G-T Speed, Support PoE/PoE+/PoE++ (IEEE 802.3af/at/bt)
F/FTP Cable Minimizes EMI and RFI Interference
Passed Fluke Channel Test, Ensure a Stable Network Connection
Strain Relief and a Flexible Boot Simplify Moves, Additions and Changes
Use in Patch Panel or Equipment Connections in Enterprise Networks and Data Center
1m Cat6a F/FTP 23AWG Shielded Patch Cord PVC/LSZH Ethernet Network Patch Cable,Blue (Customized Color)

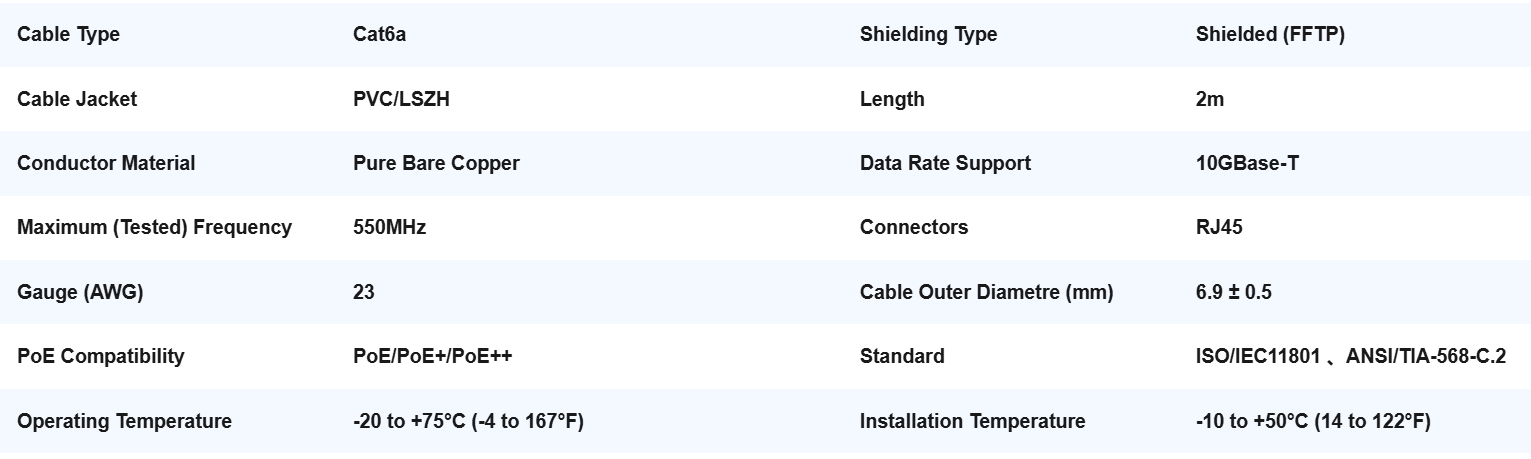

Specifications
550MHz Stable Transmission
This cable speeds up to 550MHz and supports 10GBase-T Ethernet, which allows for more reliable data transmission.

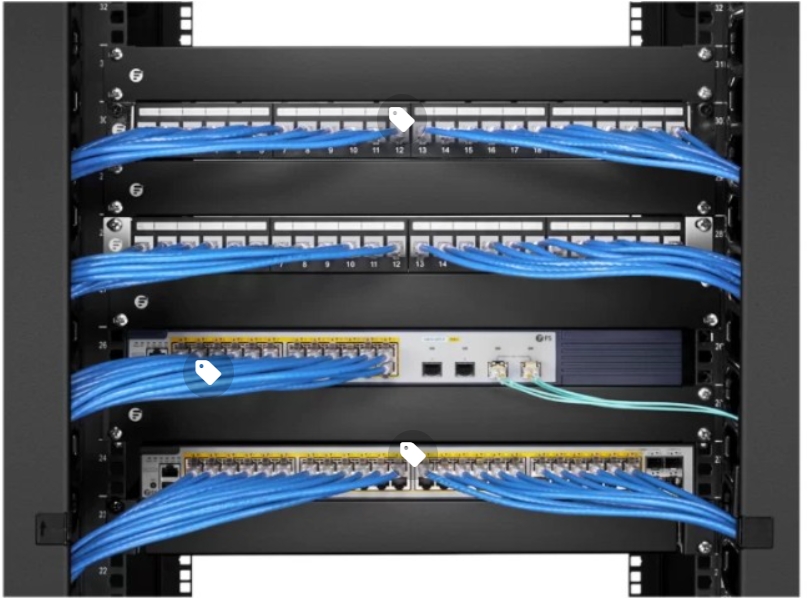

Copper Cabling Solutions for Data Center
Provide cost-effective copper cable solutions for major corporations, medium-sized and small enterprises data centres.
Fluke Networks-Cable Testing
The patch cables pass the Fluke Channel Test and deliver a specified testing report, which includes NEXT, PS NEXT, ACR-F, PS ACR-F, ACR-N, PS ACR-N as well as RL.
