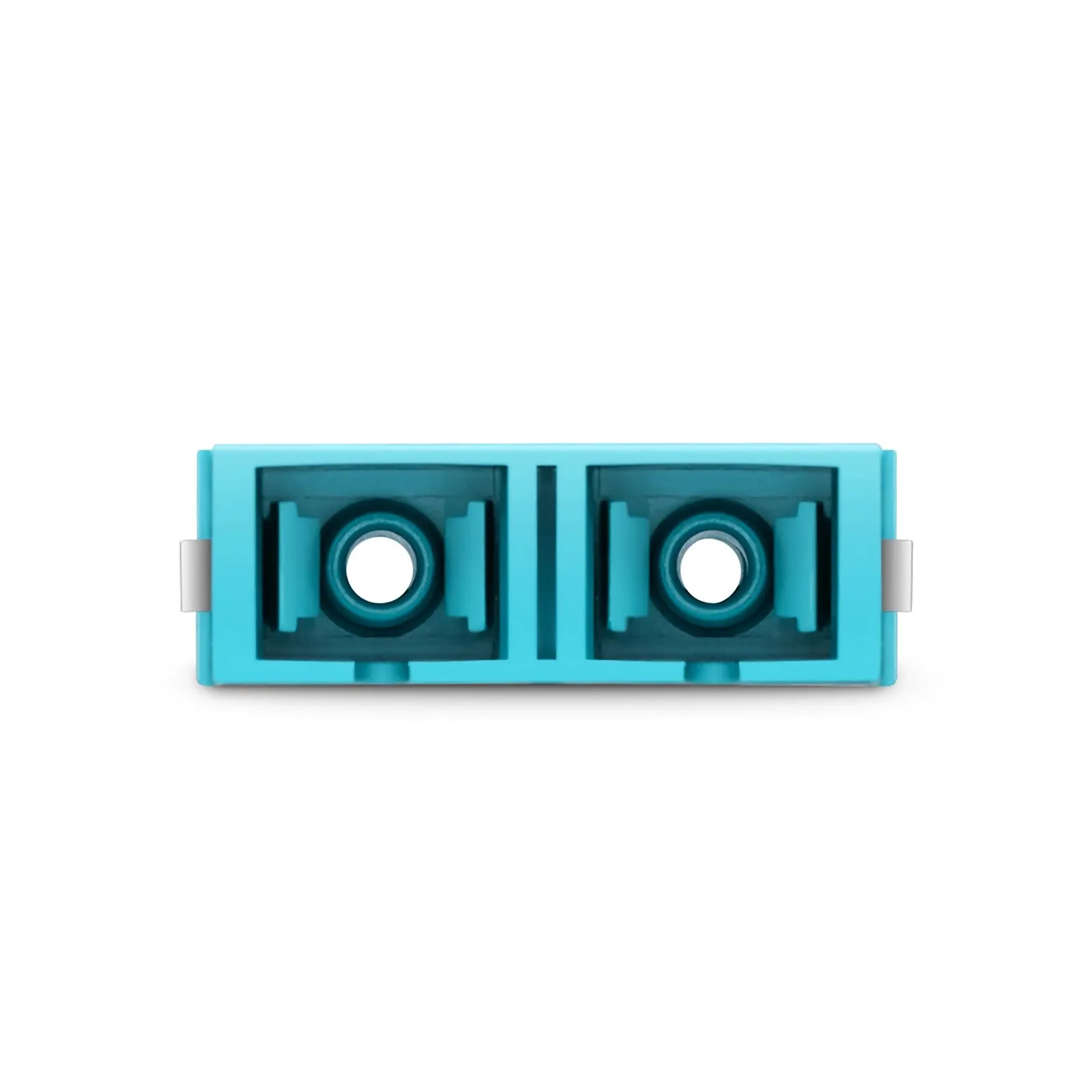

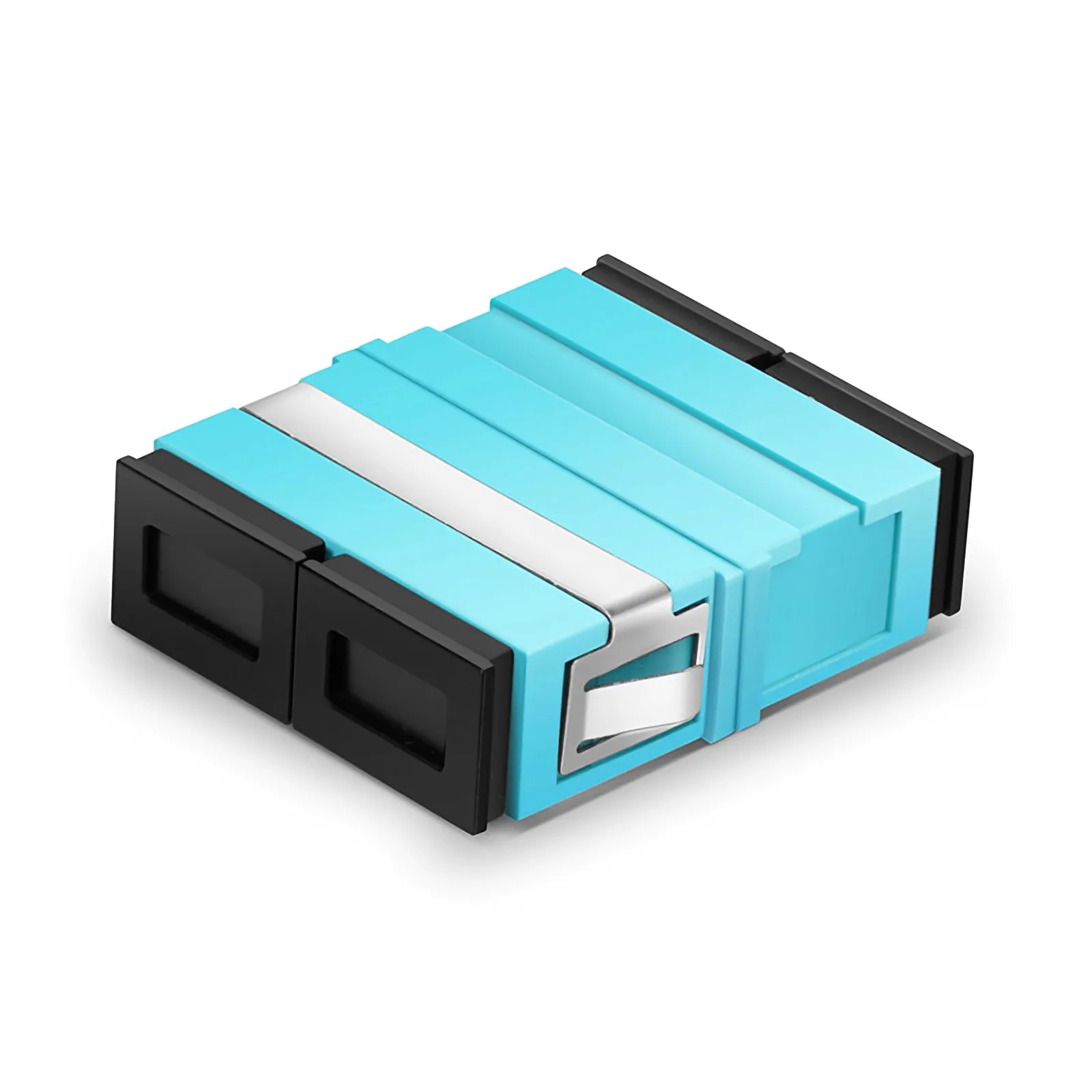

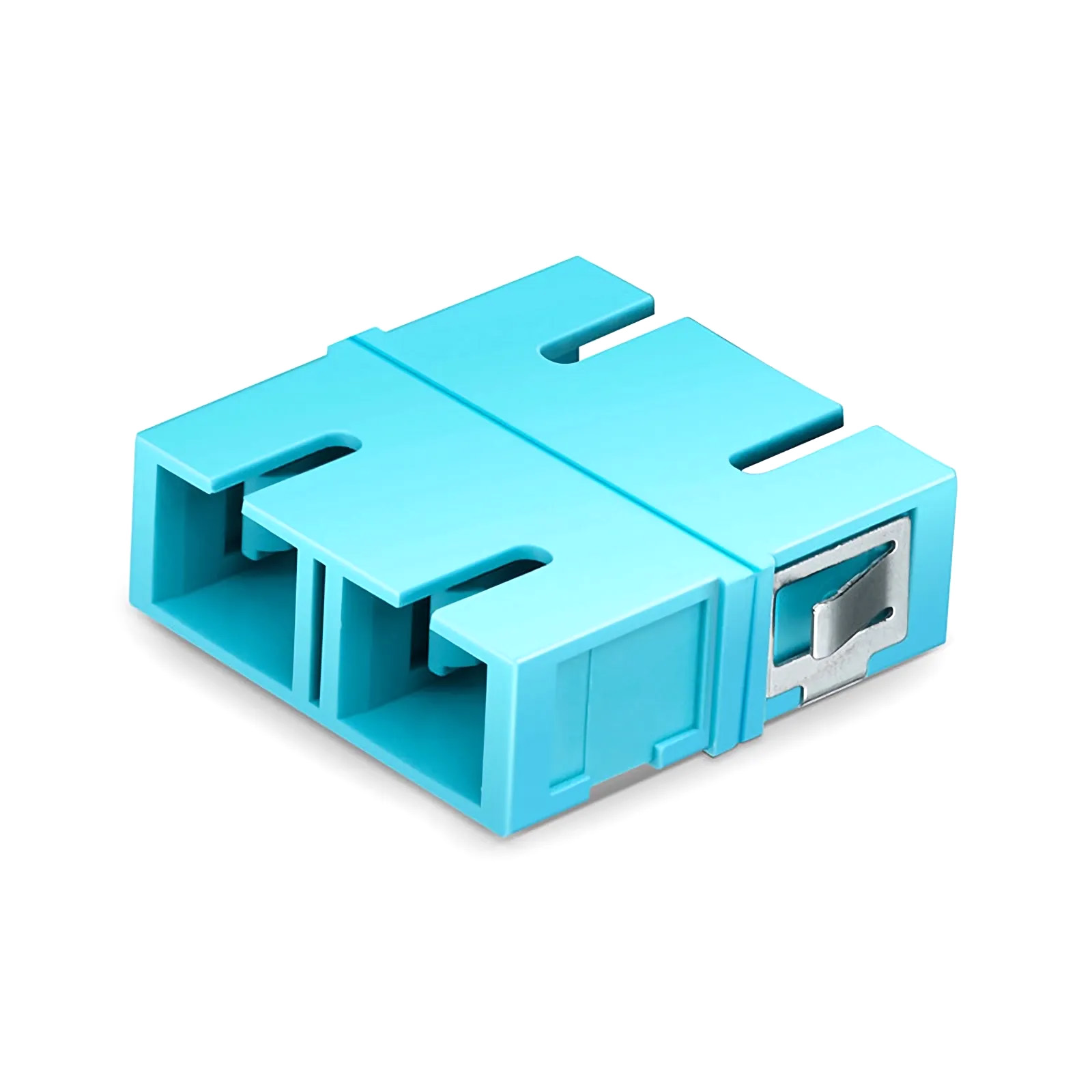

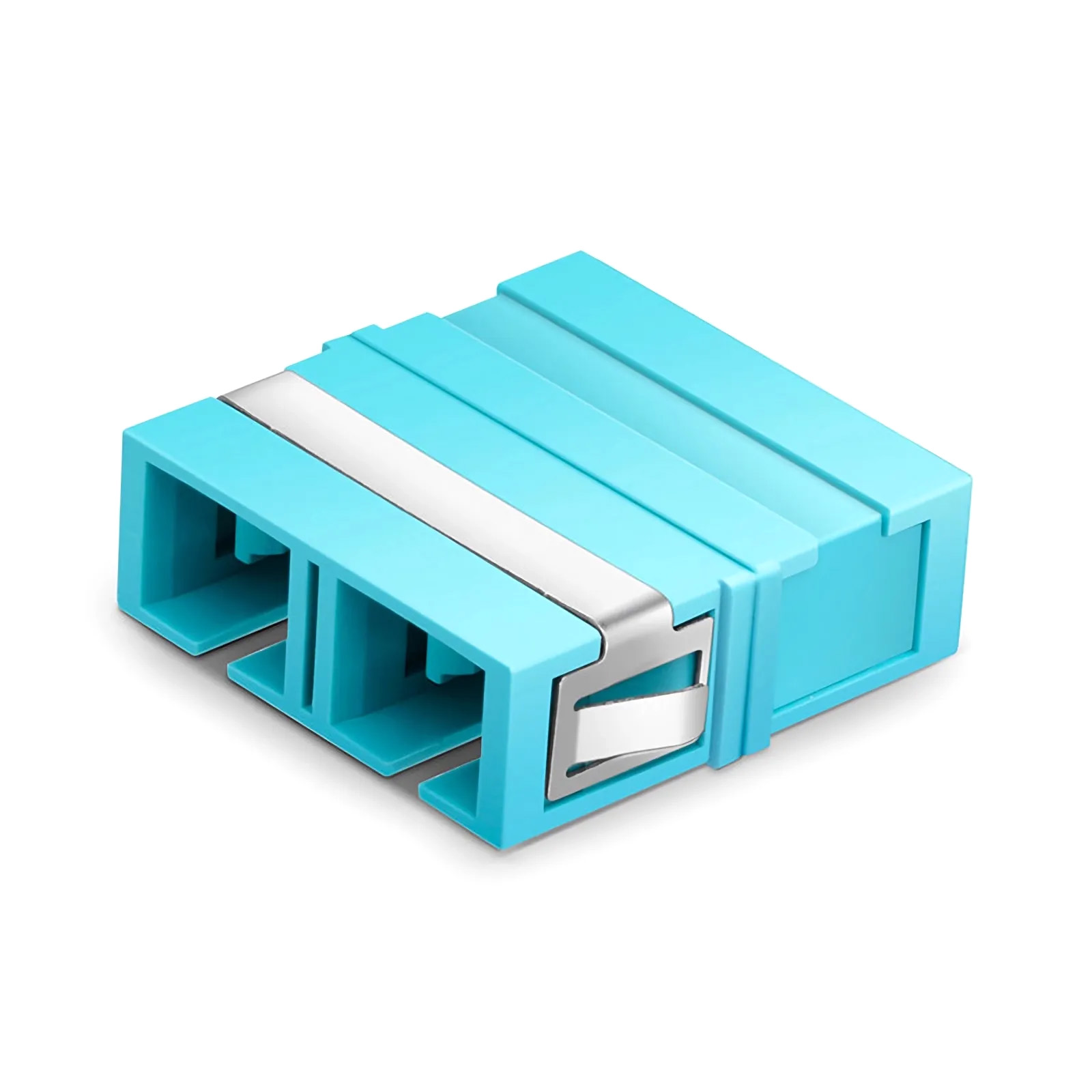

SC/UPC to SC/UPC Duplex OM3 Multimode Plastic Fiber Optic Adapter/Coupler without Flange, Aqua
Product Highlights
≤0.2dB(Typical) Low Insertion Loss
Color Coded for Rapid Fiber Management
Protective Dust Cap Keeps Adapter’s Interior Clean from Dust

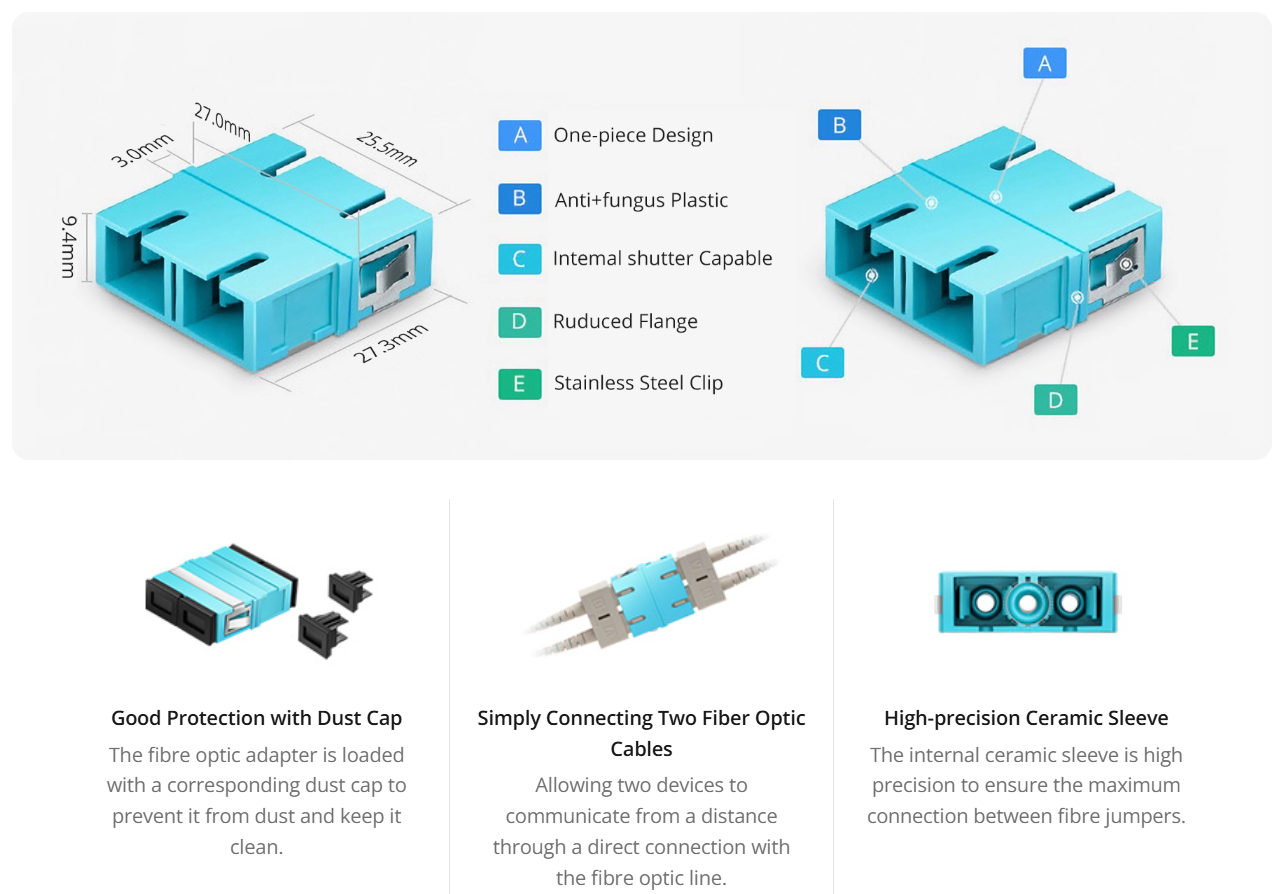

Stainless Steel Clips for Tool-less Snap-in Installation
Available in A Variety of Connector Types
Can be Used with M2 Model Screw
SC/UPC to SC/UPC OM3 Multimode Duplex Plastic Fiber Optic Adapter, 0.2dB Insertion Loss
A fiber optic adapter, sometimes also called a coupler, is a small device designed to terminate or link the fiber optic cables or fiber optic connectors between two fiber optic lines.
By linking two connectors precisely, fiber optic adapters allow the light sources to be transmitted at most and lower the loss as much as possible. At the same time, fiber optic adapters have the merits of low insertion loss, good interchangeability and reproducibility. QIN supplies a wide range of mating sleeves and hybrid adapters, including special male to female hybrid fiber optic adapters.

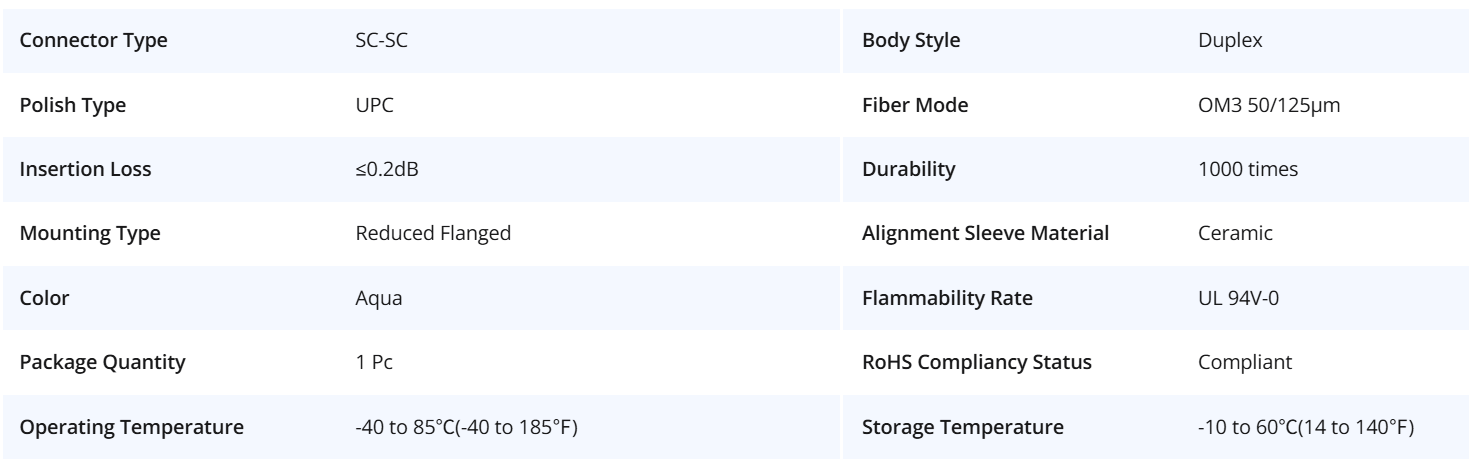

Specifications
Fiber Optical Adapter
Low insertion loss and good durability
Good repeatability and changeability
Excellent temperature stability
Adapters Bridge the Gap Between Fiber Optic Connectors
Widely applied in optical fibre communication systems, cable television networks, LAN & WAN, fibre optic access networks and video transmission.

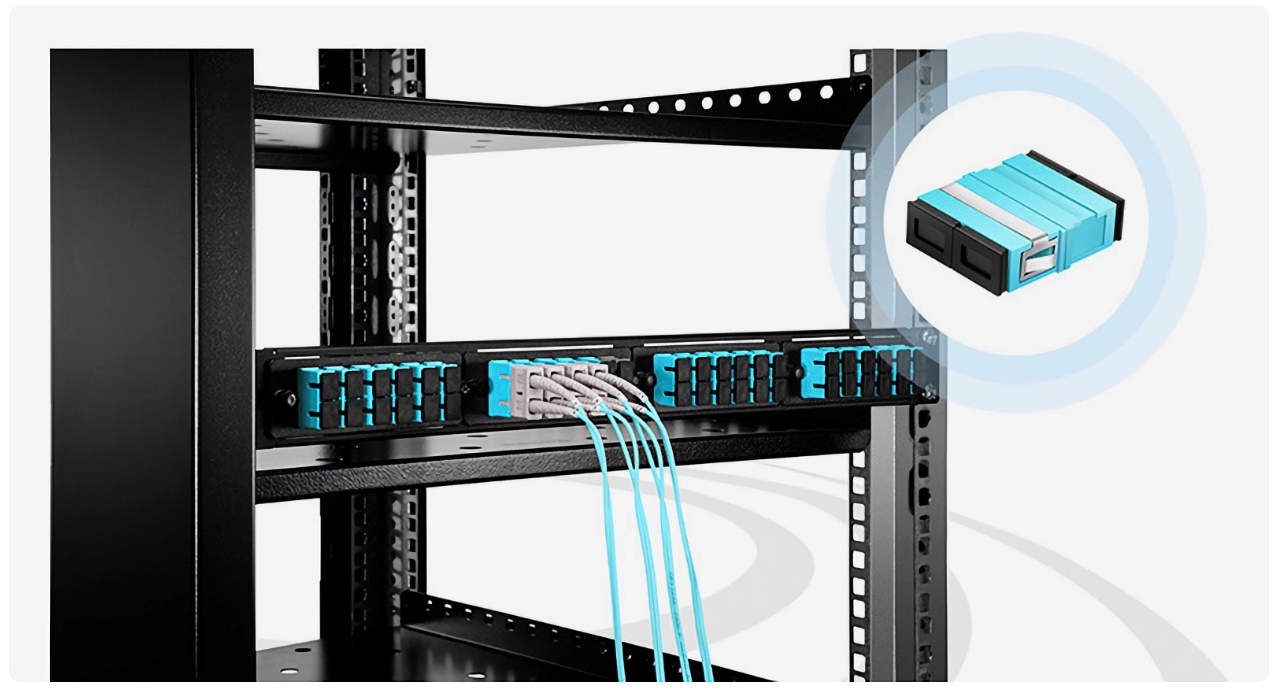

Extending Fiber Connection with Adapters
With high-precision components and tool-less design, the adapters allow two devices to communicate from a distance through a direct connection with the fiber optic line.

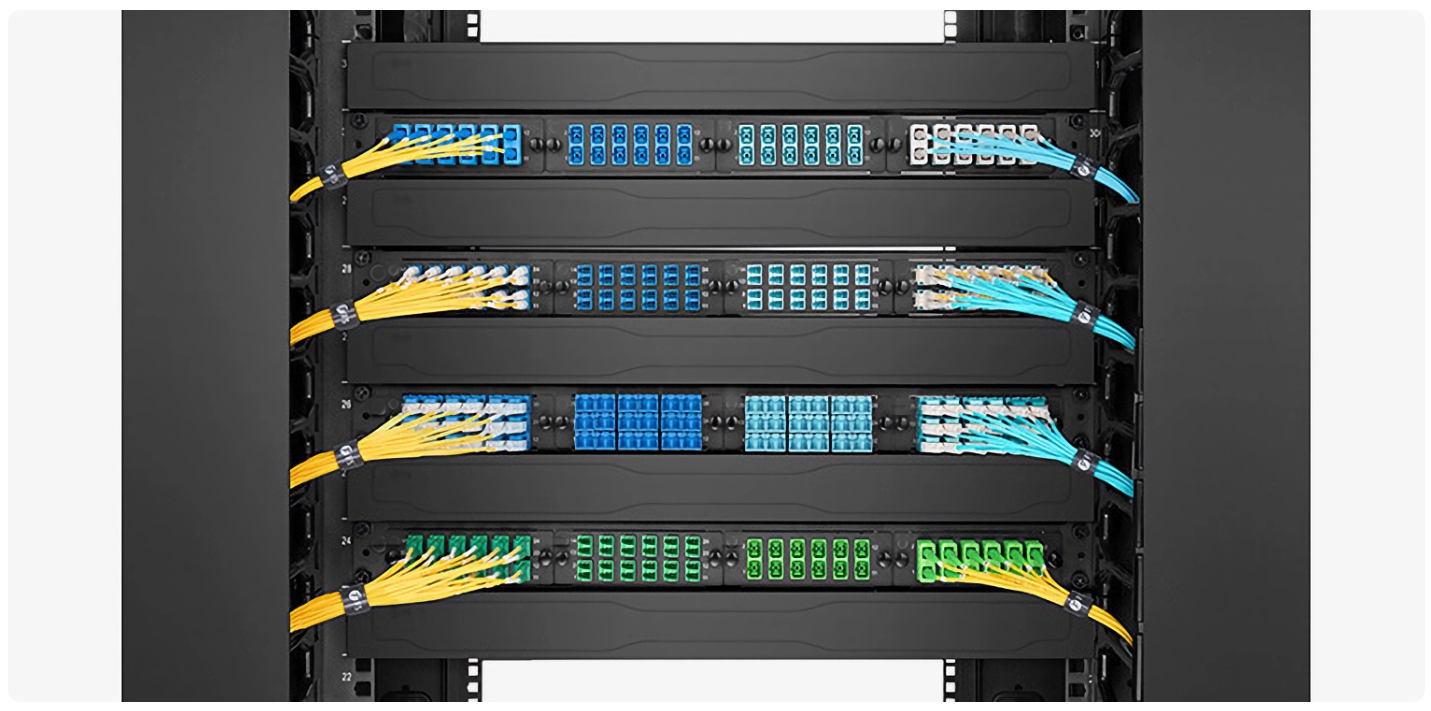

Color-coded Adapters Simplify Fiber Management
The adapter housing colors follow the TIA/EIA-568-C.3 suggested color identification scheme, effectively helping technicians make better cable management and reduce human errors.
Application for Optical Fiber Connection
It is mostly applied for optical fiber communication system, optical fiber access network, fiber optic data transmission, fiber optic CATV, LAN, test equipment, and commercial applications.
