ST/UPC to ST/UPC Simplex Multimode Metal Fiber Optic Adapter/Coupler without Flange

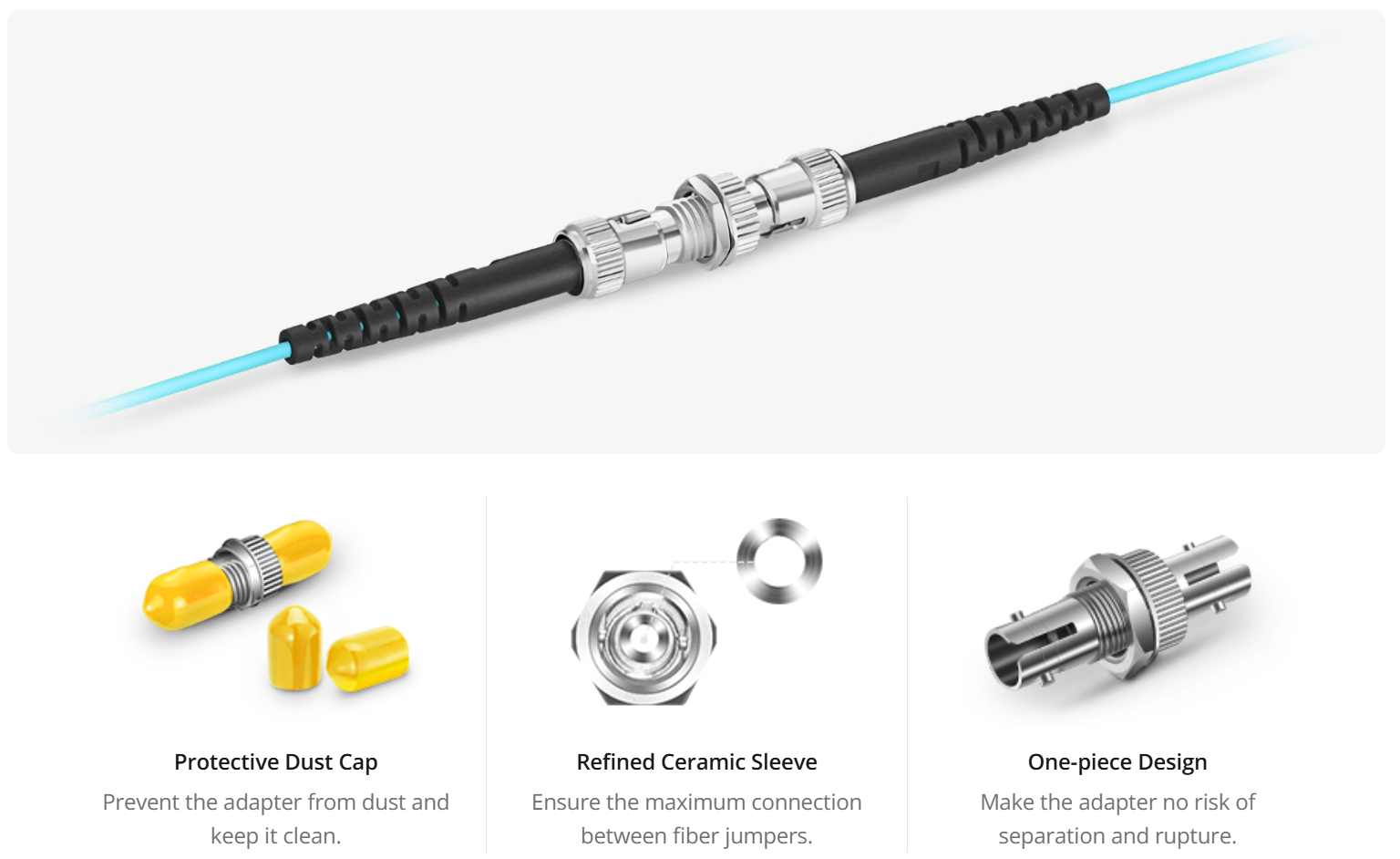

Product Highlights
Nickel-plated Copper Protects the Metal from Corrosion and Wear

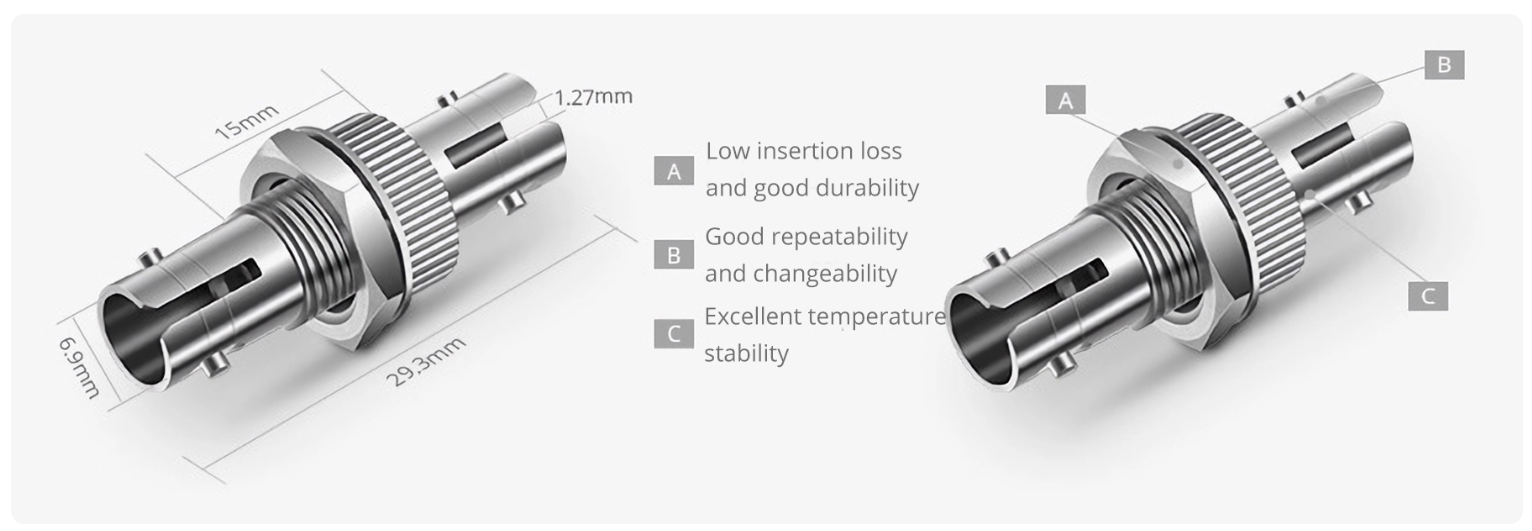

≤0.2dB (Typical) Low Insertion Loss
One-piece Design Zirconia Ceramic Sleeve with High-precision Alignment

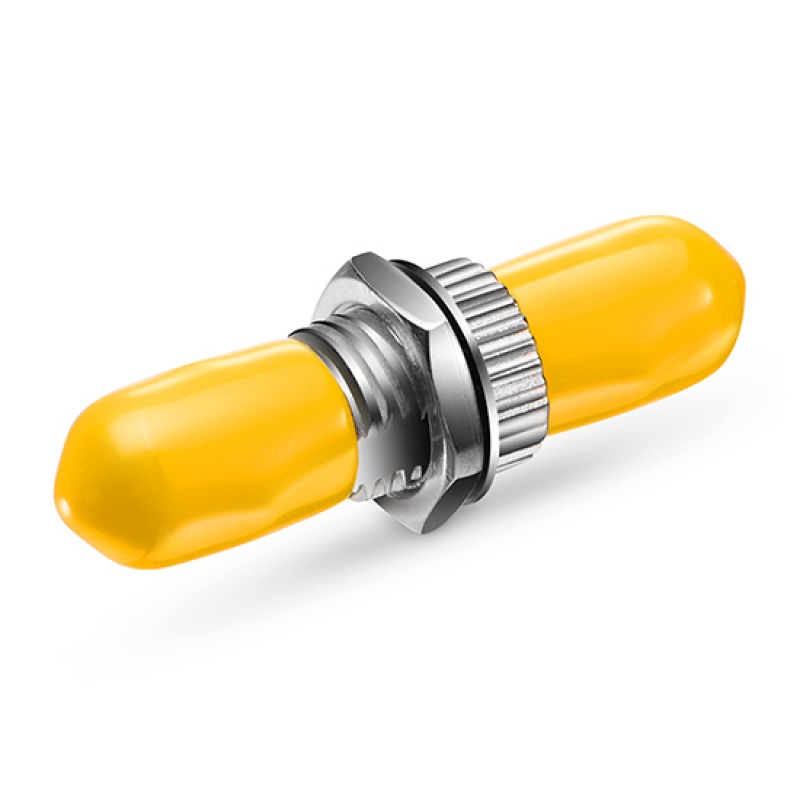

Protective Dust Cover Keeps the Inside of the Adapter Clean From Dust
Available in A Variety of Connector Types
ST/UPC to ST/UPC Multimode Simplex Copper Fiber Adapter, Female to Female, 0.2dB insertion loss
Fiber optic adapter, sometimes also called coupler, is a small device designed to terminate or link the fiber optic cables or fiber optic connectors between two fiber optic lines.
By linking two connectors precisely, fiber optic adapters allow the light sources to be transmitted at most and lower the loss as much as possible. At the same time, fiber optic adapters have the merits of low insertion loss, good interchangeability and reproducibility. QIN supplies a wide range of mating sleeves and hybrid adapters, including special male to female hybrid fiber optic adapter.

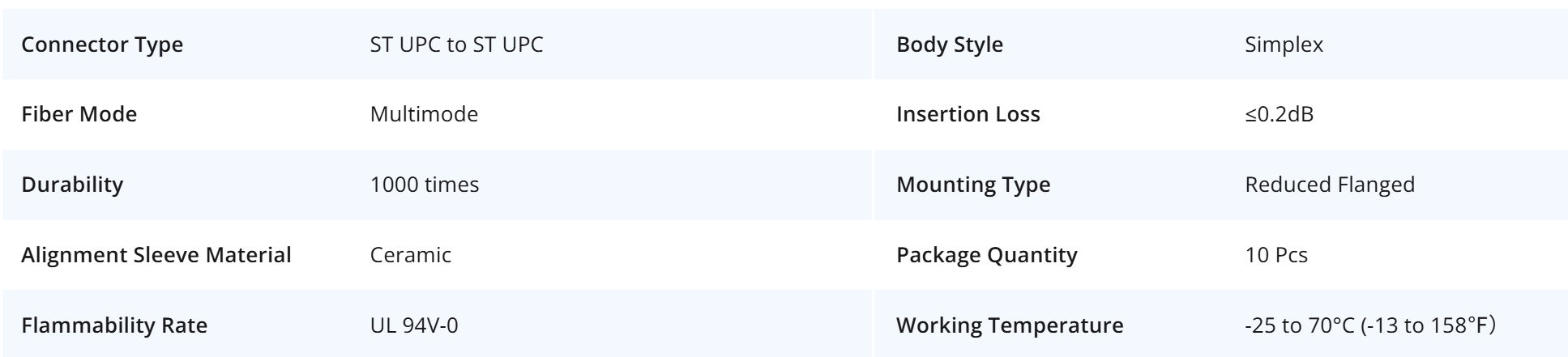

Specifications
Extending Fiber Connection with Adapters
With high-precision components and tool-less design, the adapters allow two devices to communicate from a distance through a direct connection with the fiber optic line.
Nickel-plated Copper Protects the Metal from Corrosion
The adapter is made of nickel-plated copper, which can resist corrosion. Through machining, its structure is more sturdy with high hardness and precision.
Application for Optical Fiber Connection
It is mostly applied for optical fiber communication system, optical fiber access network, fiber optic data transmission, fiber optic CATV, LAN, test equipment, and commercial applications.
