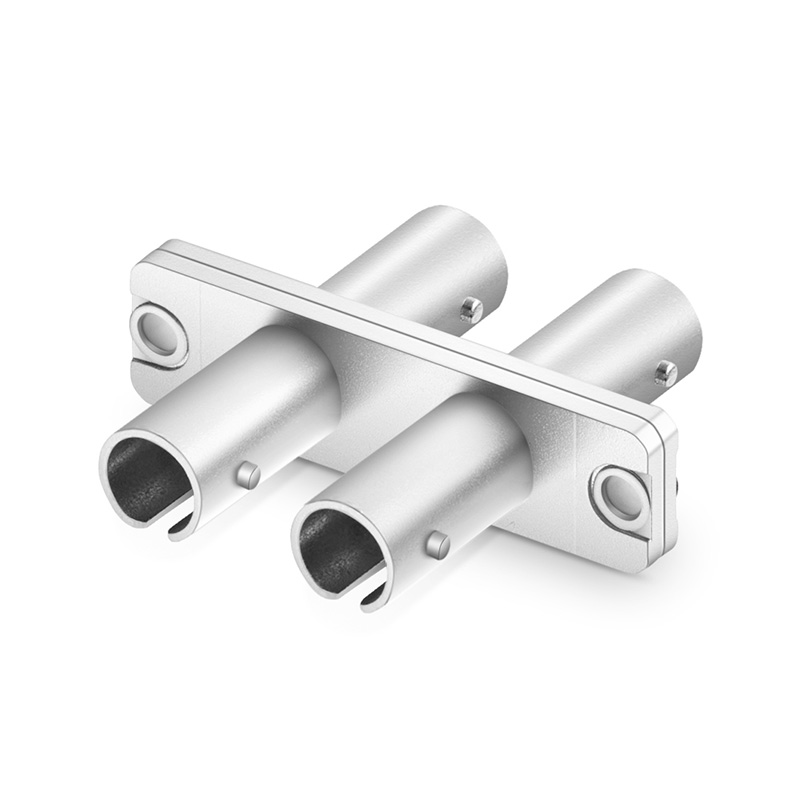

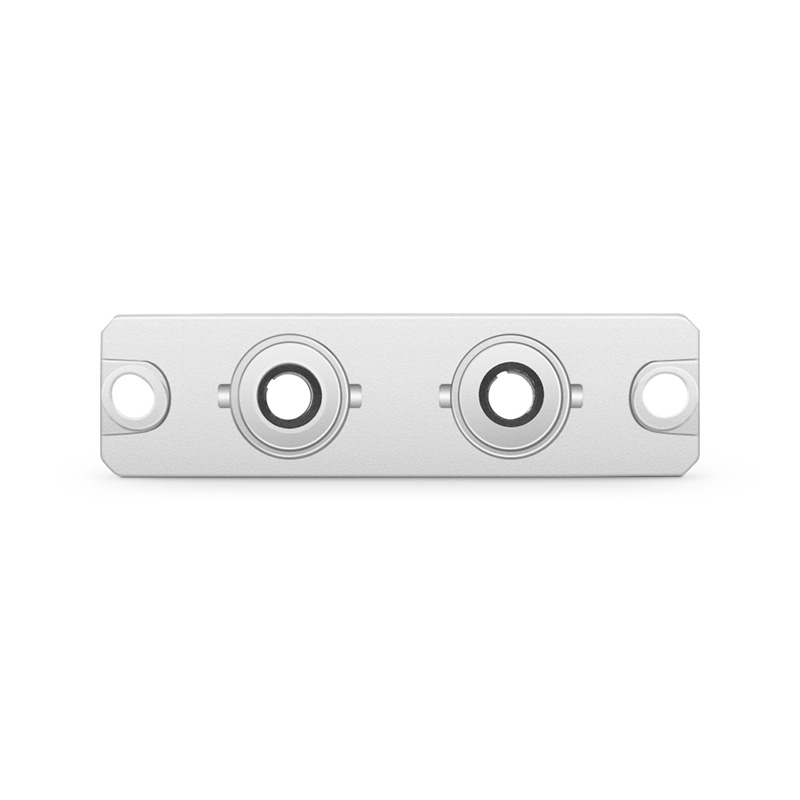

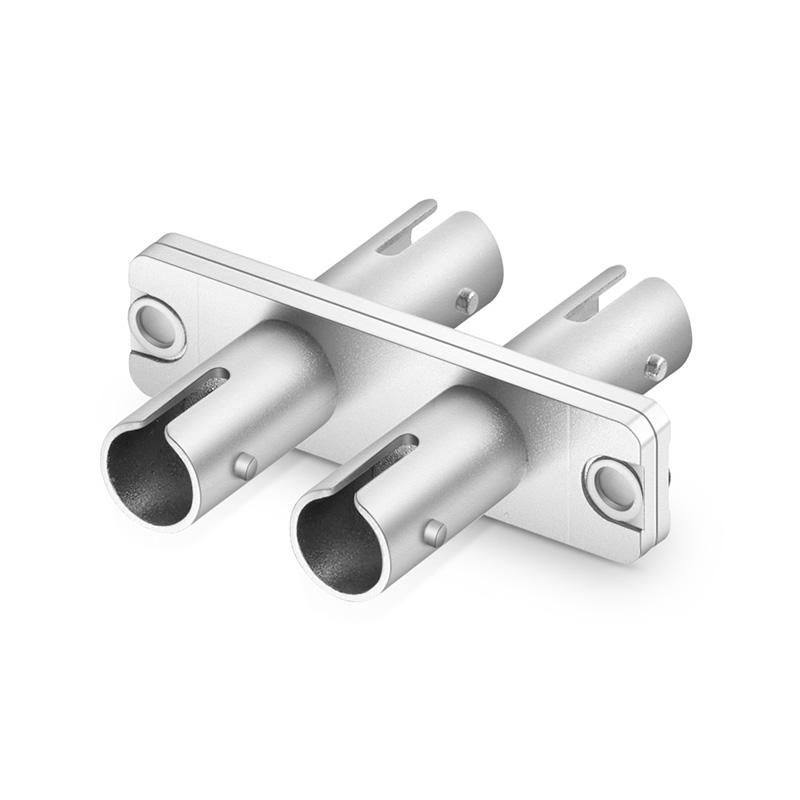

ST/UPC to ST/UPC Duplex OS2 Singlemode Metal Fiber Optic Adapter with Flange
Product Highlights
≤0.2dB (Typical) Low Insertion Loss
ST Guarantees for Long-term Stable Mechanical Properties and Repeated Matching
Zirconia Ceramic Sleeve with High Precision Alignment

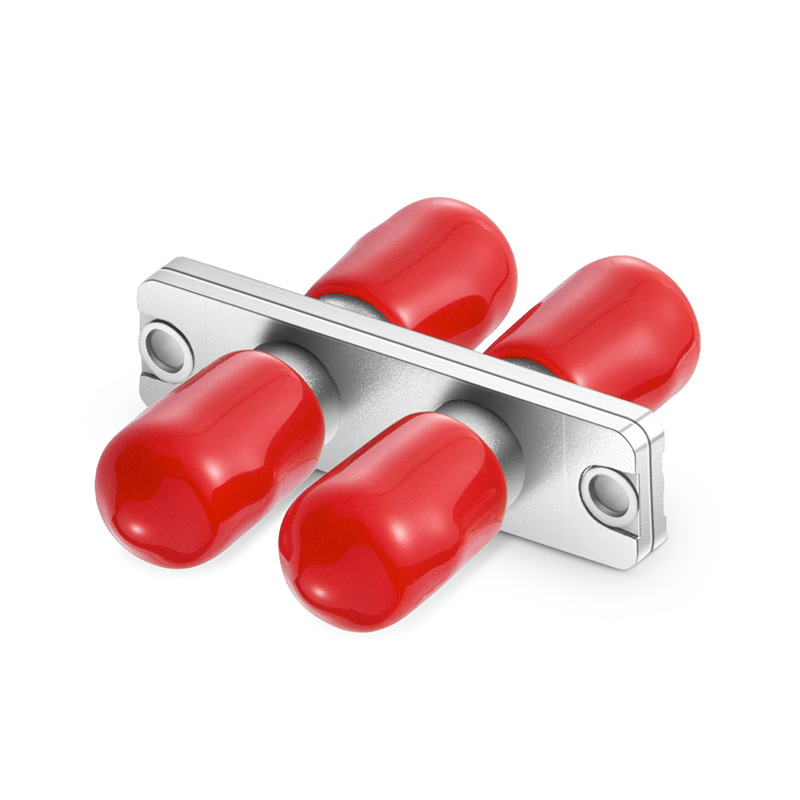

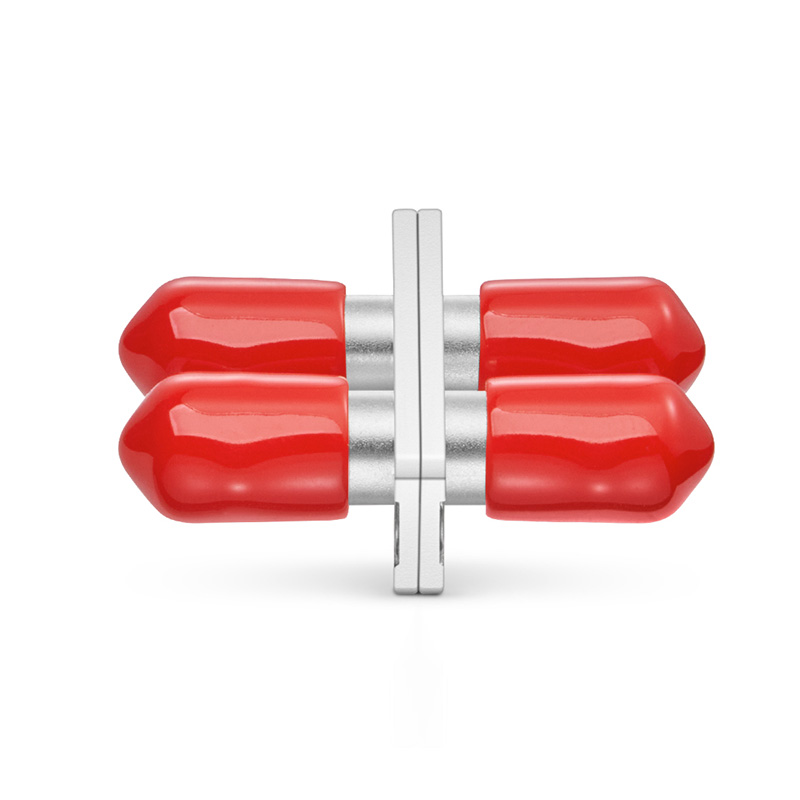

Protective Dust Cover Keeps the Inside of The Adapter Clean From Dust
Threaded Adapter for Easy Installation and Removal
ST/UPC to ST/UPC Duplex Singlemode Metal Fiber Optic Adapter with Flange
A fiber optic adapter, sometimes also called a coupler, is a small device designed to terminate or link the fiber optic cables or fiber optic connectors between two fiber optic lines. By linking two connectors precisely, fiber optic adapters allow the light sources to be transmitted at most and lower the loss as much as possible. At the same time, fiber optic adapters have the merits of low insertion loss, good interchangeability and reproducibility. QIN supplies a wide range of mating sleeves and hybrid adapters, including special male to female hybrid fiber optic adapters.

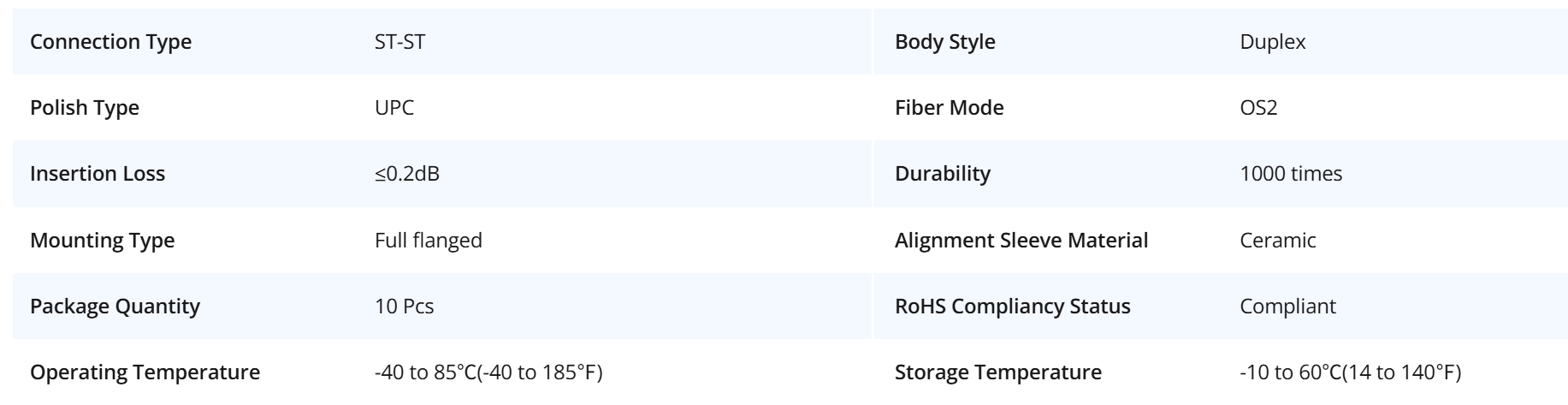

Specifications

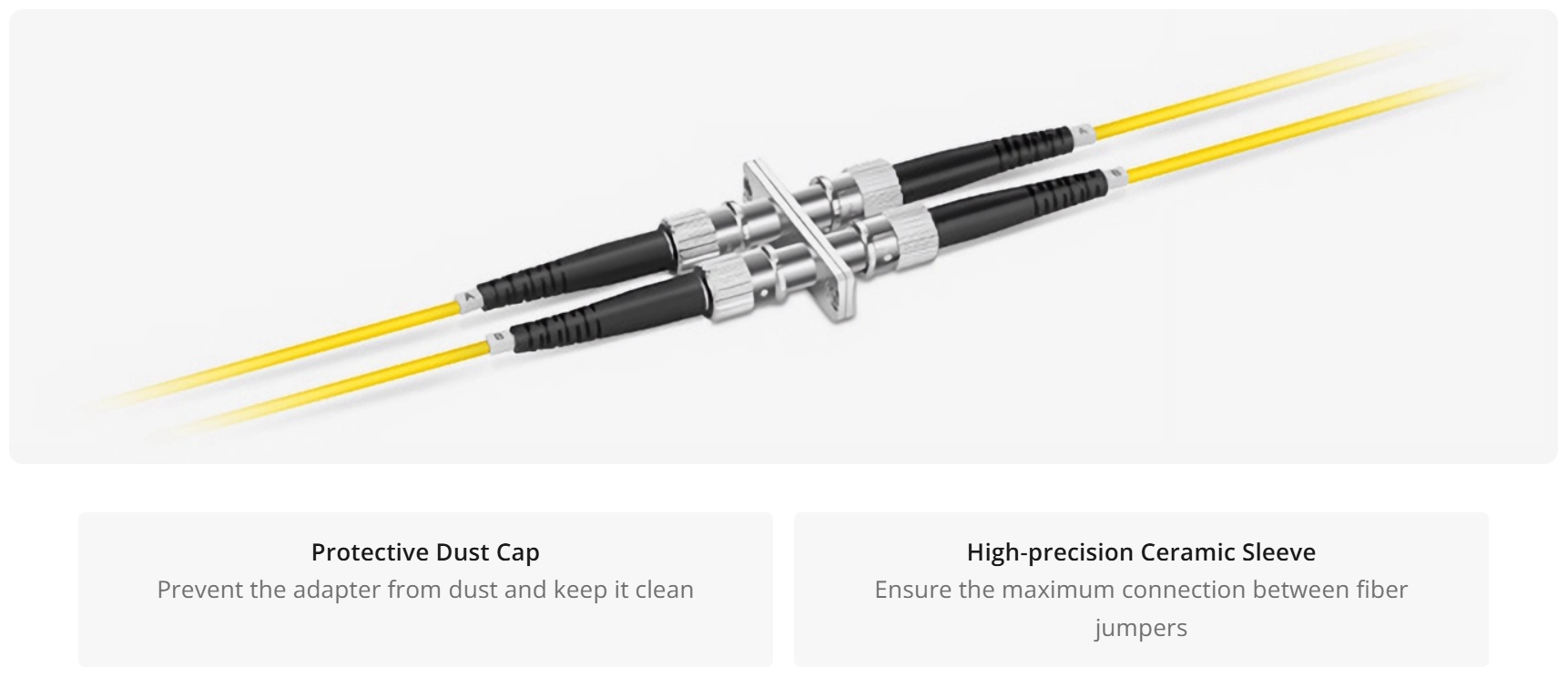

Extending Fiber Connection with Adapters
With high-precision components and tool-less design, the adapters allow two devices to communicate from a distance through a direct connection with the fiber optic line.
Nickel-plated Copper Protects the Metal from Corrosion

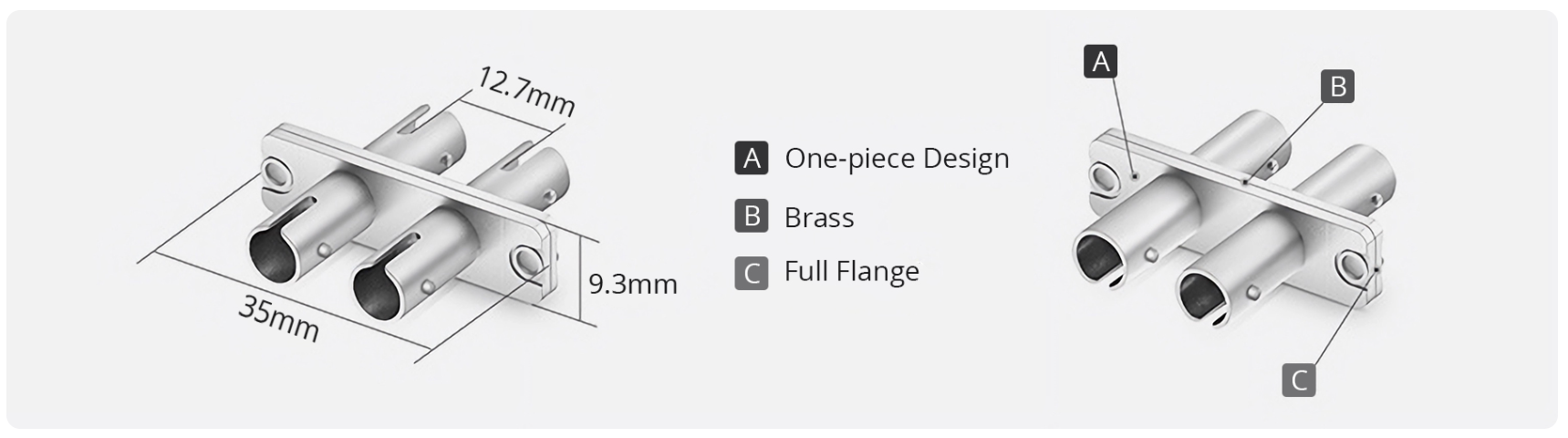

The adapter is made of nickel-plated copper, which can resist corrosion. Through machining, its structure is more sturdy with high hardness and precision.
Application for Optical Fiber Connection
It is mostly applied for optical fiber communication system, optical fiber access network, fiber optic data transmission, fiber optic CATV, LAN, test equipment, and commercial applications.
