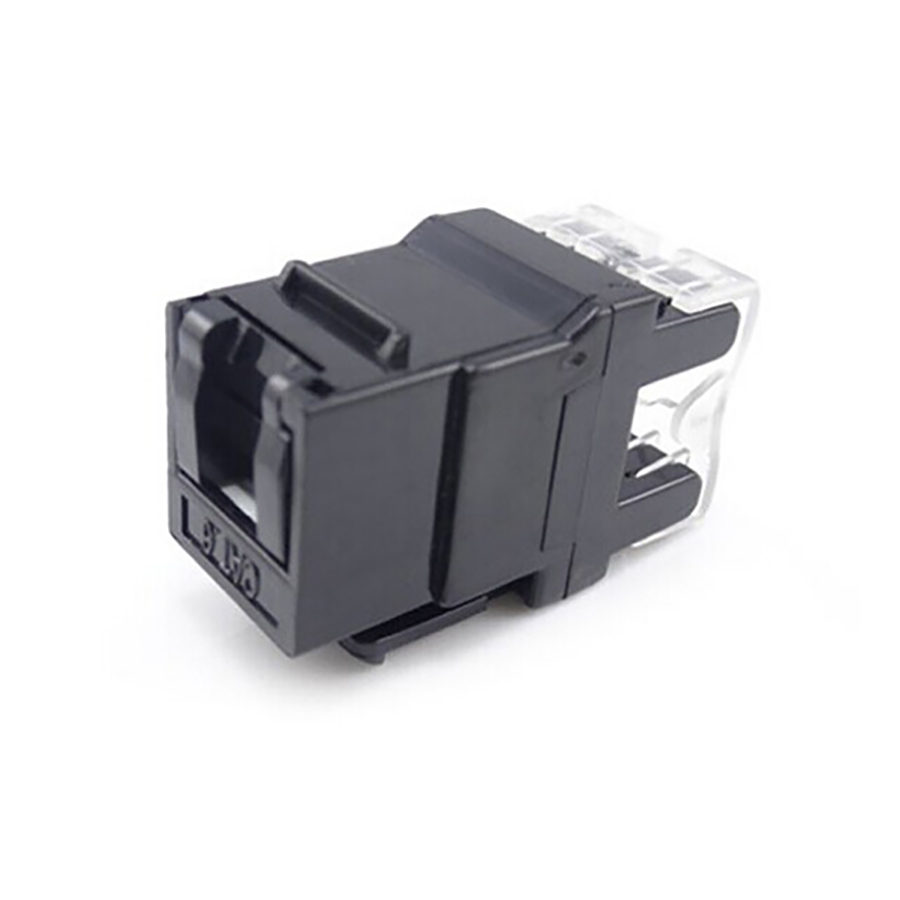

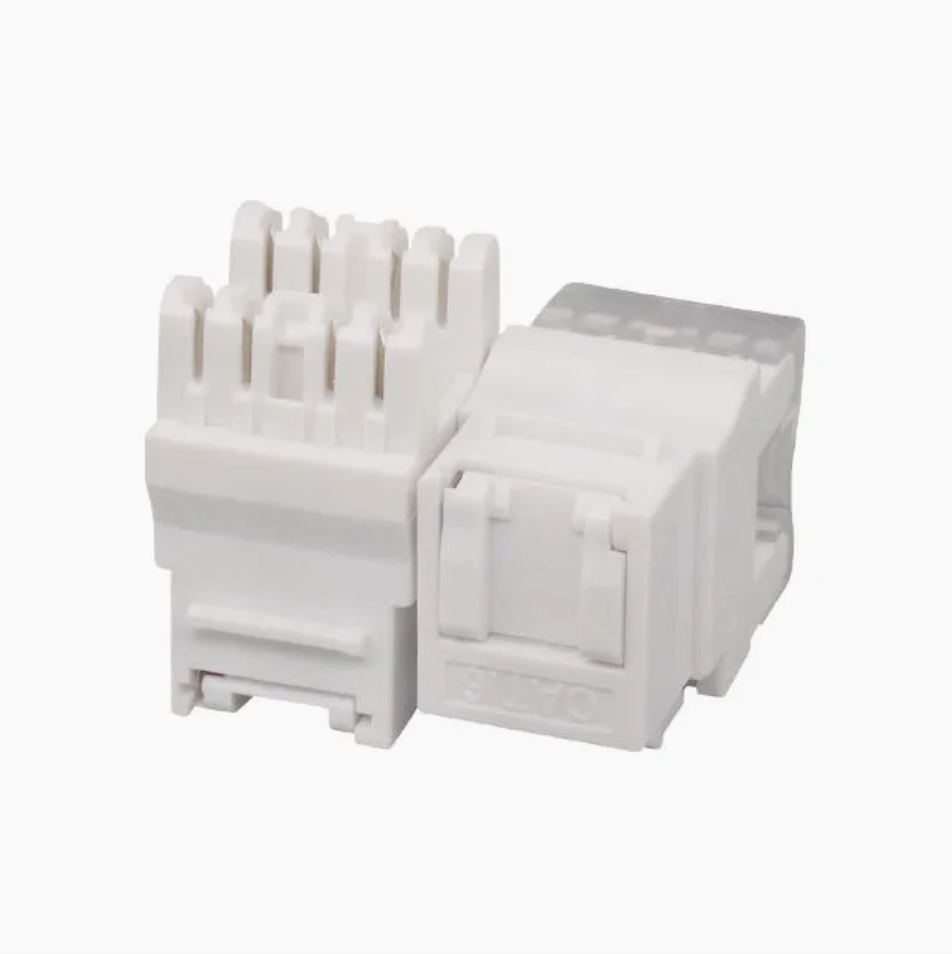

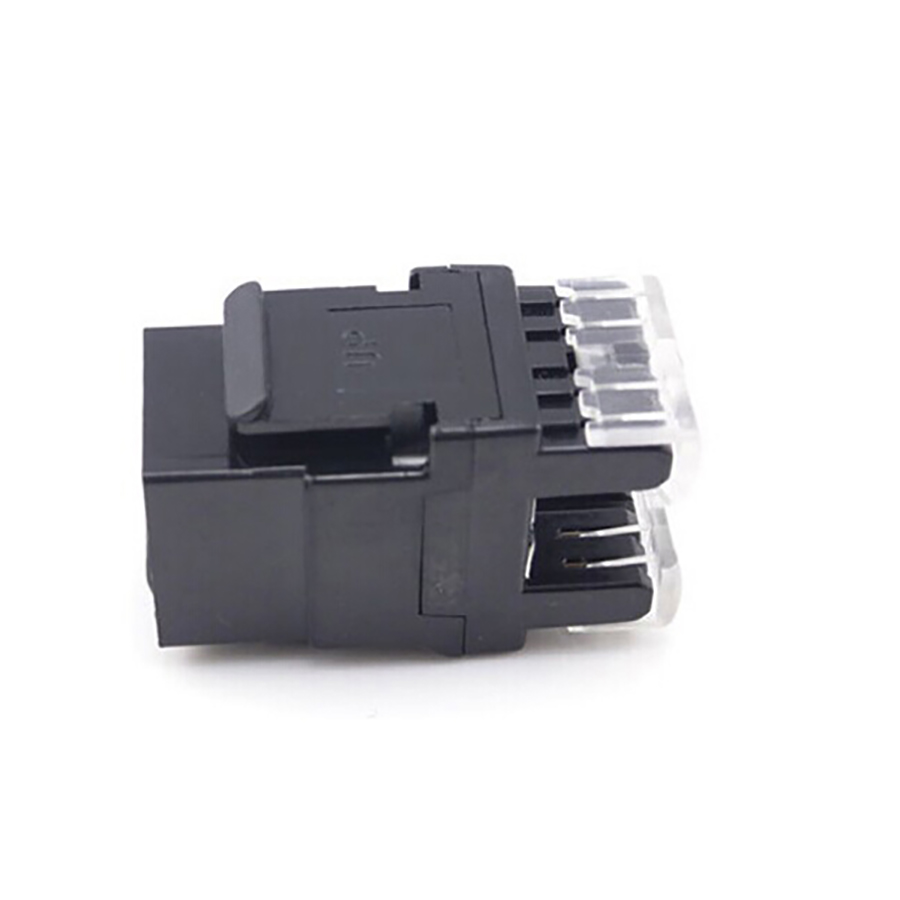

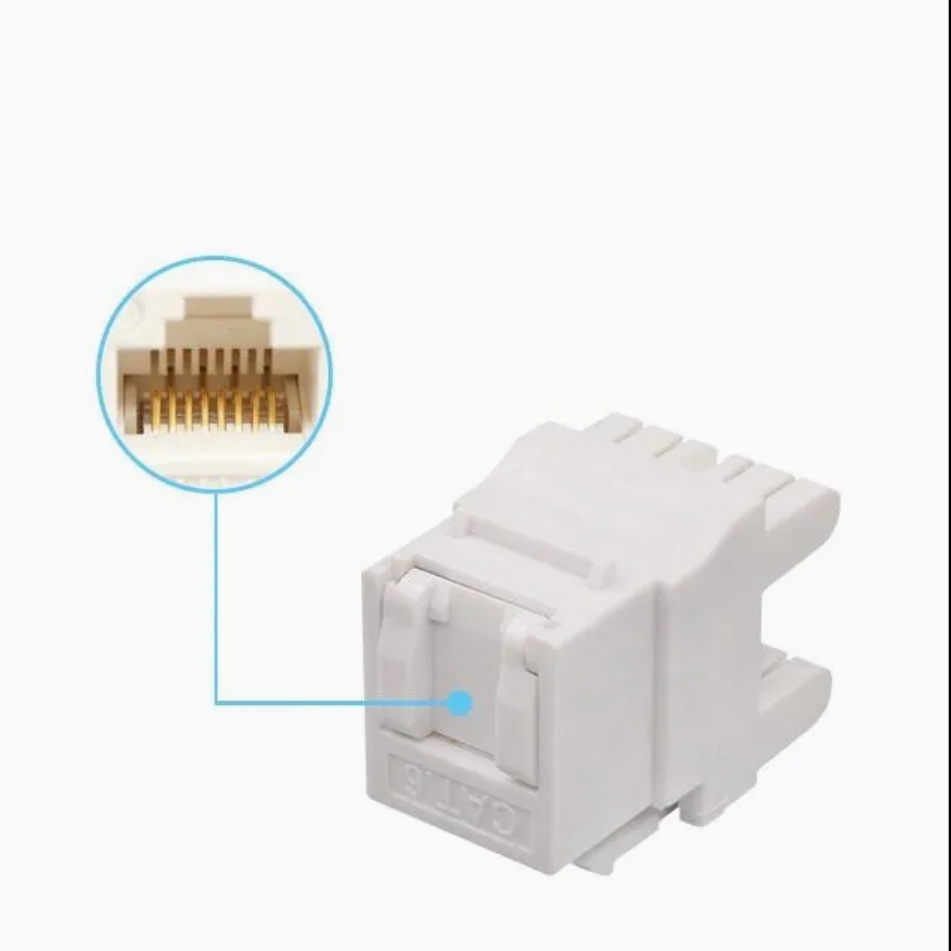

Cat6 RJ45 Unshielded Toolless Keystone Jack Module with Dust Cover
Product Highlights
Meet ISO/IEC 11801 ClassE and ANSI/TIA-568.2-D Category 6 Standards

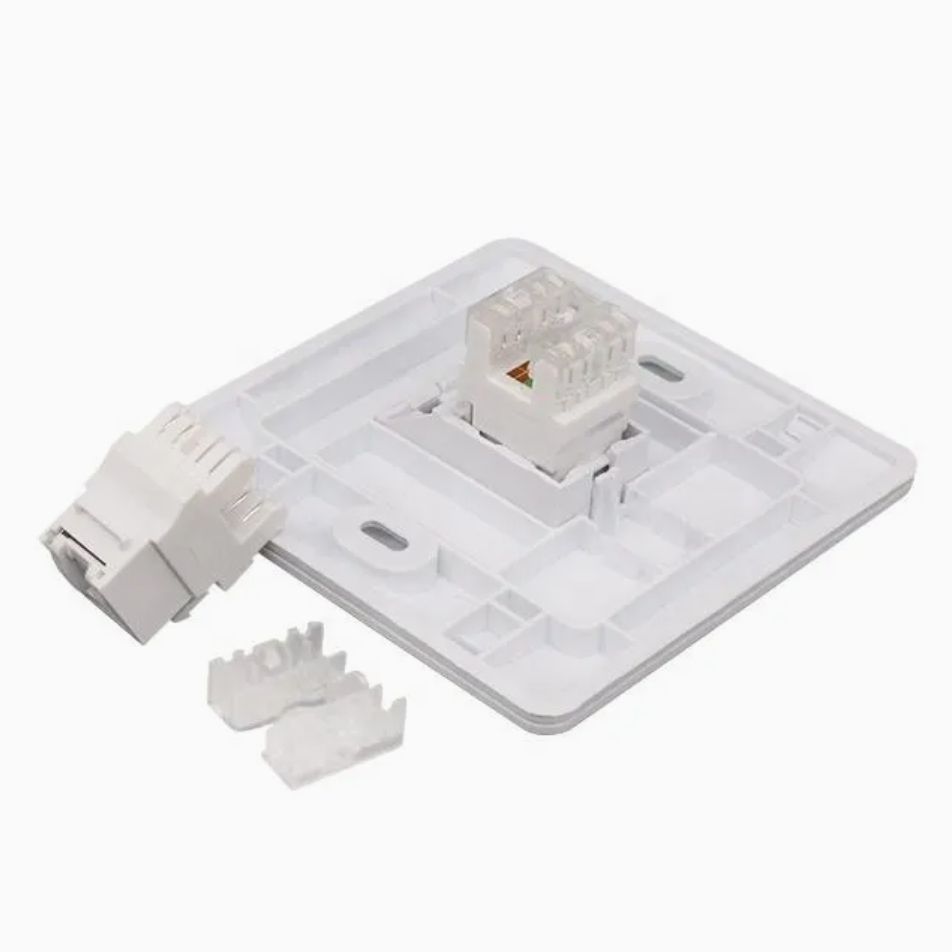

Mountable Either at 90 Degrees (Straight) or 45 Degrees (Angled) in RJ45 Wallplate or Faceplate

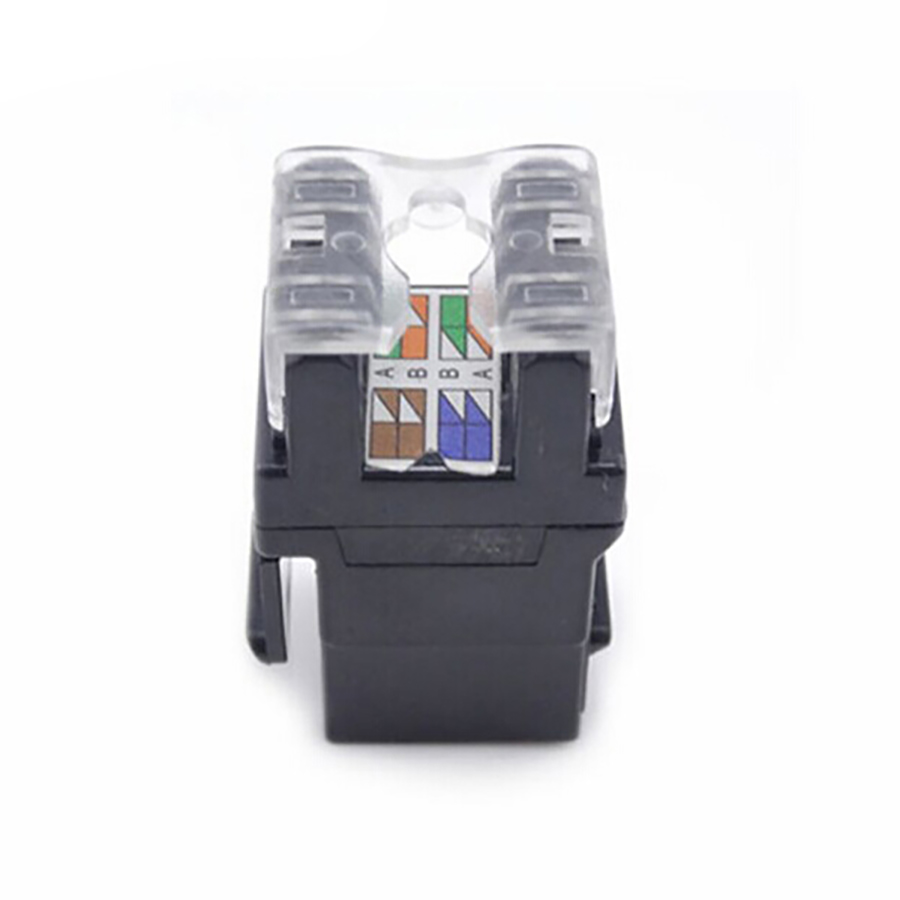

Dual-color Coded Labeling Made for Both 568A & 568B Wiring Schemes
Compact Casing Fits into Any Conventional Faceplate, Outletbox, or Panel

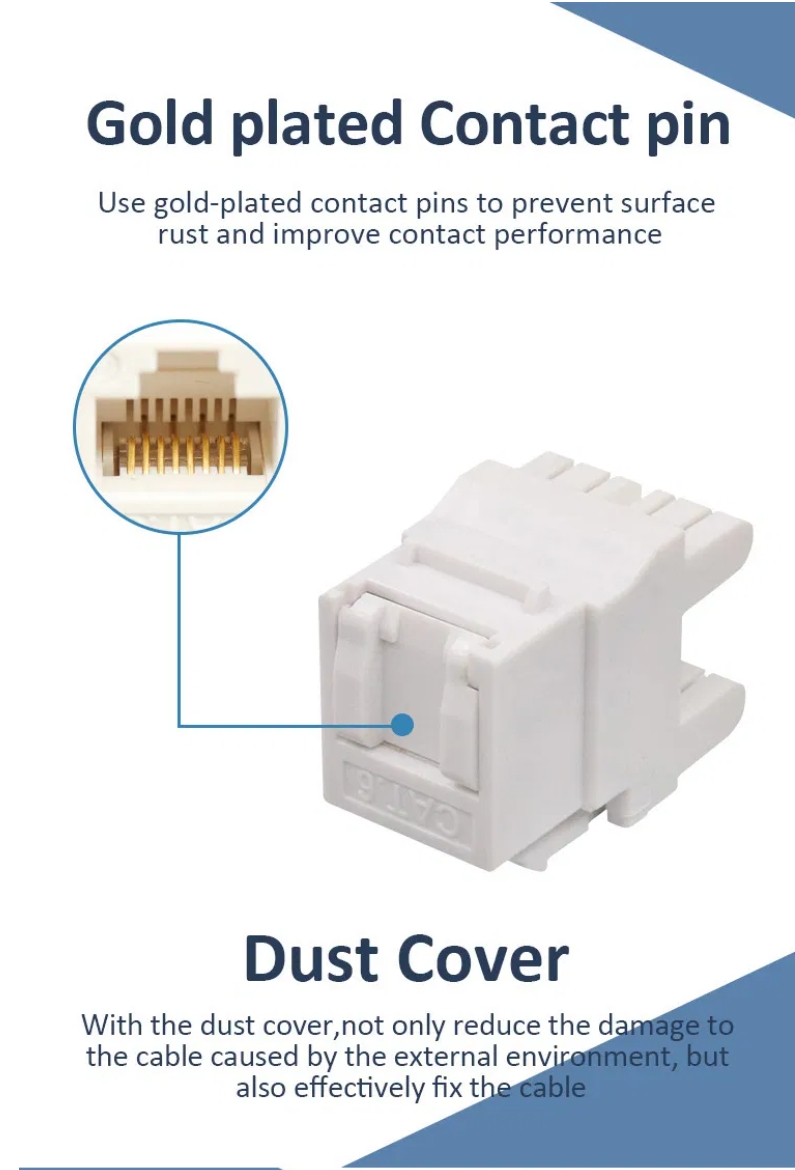

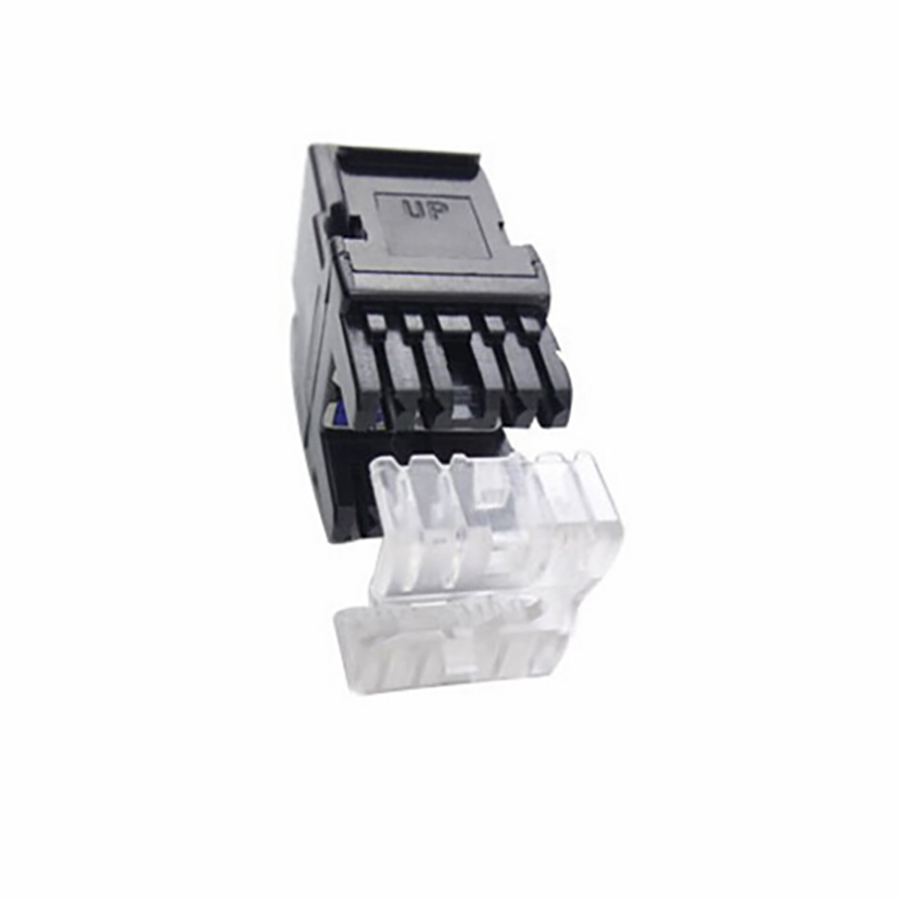

Dust Cover Effectively Protects the Crimped Portion of the Wire
Cat6 RJ45 Unshielded Toolless Keystone Jack Module with Dust Cover
A keystone jack is a female connector used in data communications, particularly local area networks (LANs). The jack is usually mounted in a wall plate or patch panel. A keystone plug is the matching male connector, usually attached to the end of a cable or cord.
A principal advantage of keystone connectors is their versatility. Several types of keystone jack can be mounted on a single patch panel. They are available in unshielded and shielded forms, and can accommodate cords and cables having various numbers of conductors.
Features:
1. Voltage rating: 125V AC RMS
2. Current rating: 1.5A
3. Contact resistance: 110mΩ maximum
4. Insulation resistance: 1,000MΩ minimum 500V DC
5. Dielectric strength: 750V AC RMS, 60Hz, 1min
Environment:
1. Storage: -40~85°C
2. Operation: 0~70°C
Mechanical:
1. Housing material: PC
2. Insert material: flame retardant PBT
3. PCB material: FR-4, T=1.6mm
4. Contact material: phosphor bronze stamp pin, T=0.30mm
5. IDC contact material: phosphor bronze, T=0.50mm with tin plating
6. RJ45 jack: IFE: 750 times min
7. IDC lifespan: 200 times min
8. Wire: 24-26AWG
9. Tia Cat.5e perm link test: worst pair next margin: ≥3dB
10. Retentiveness of insertion structure: 50N 60±5s
Designed to terminate 4-pair, 22-26 AWG twisted pair cable. Backward compatible with Cat6 and Cat 5e cable.
Ideal for 1G unshielded network solutions, compatible with RJ45 faceplates, patch panels and surface mount boxes.
180 degree easy termination jack supports tool free or crimp tool termination.
Support PoE applications for connecting equipment such as a PoE IP camera or access point with power up to 100W. Verified by IEC60512-99-001 and IEC60512-99-002 tests.
