The Cat6 keystone toolless style connectors make for a simple installation without the need for a punch down tool. Toolless keystone jacks are an ideal solution for terminating and connecting network cable, such as Cat6 premise wiring, the RJ45 keystone jack snaping into wall plates, patch panels and surface-mount boxes.
Click to open expanded view

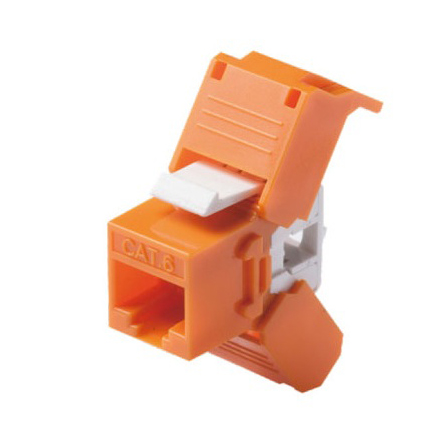

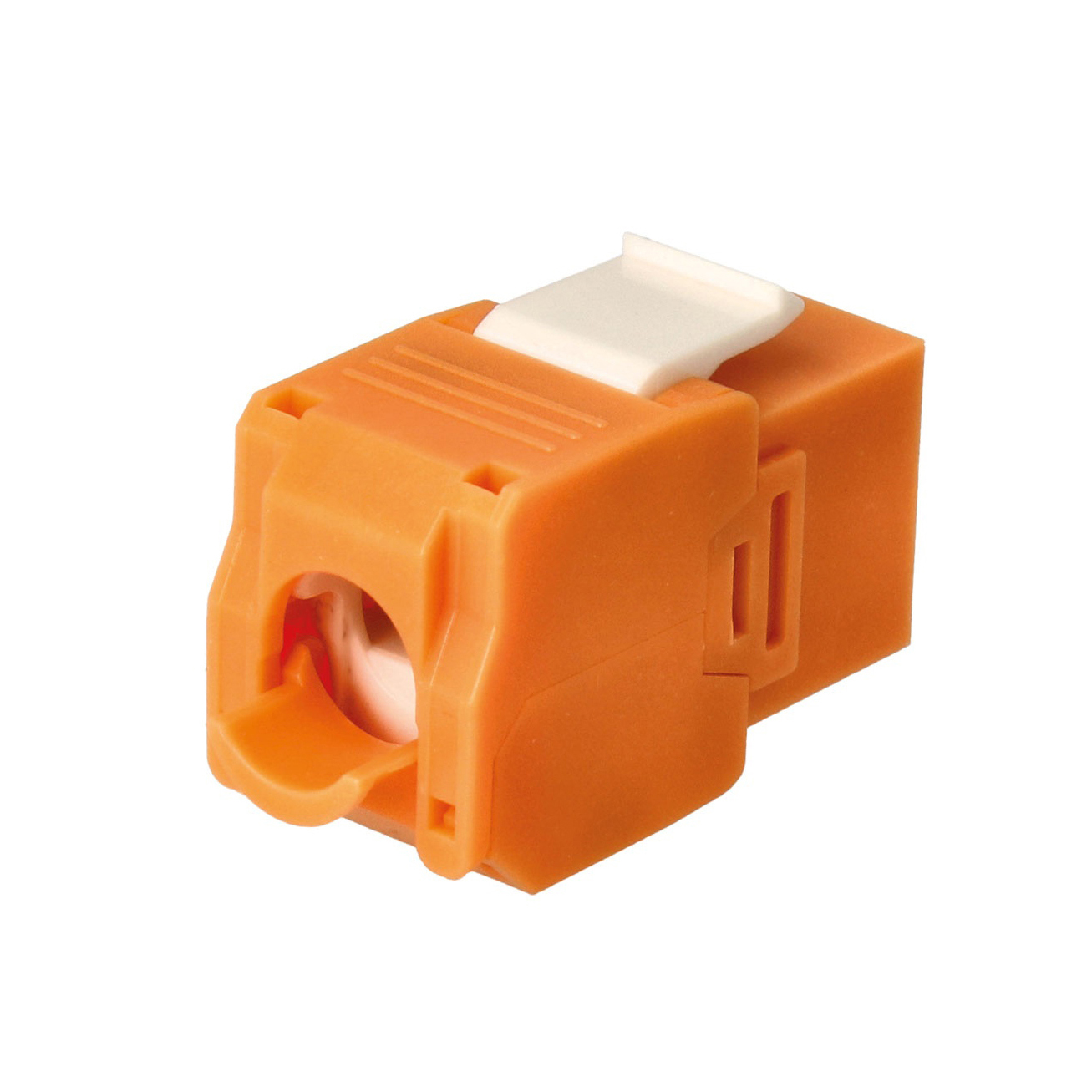

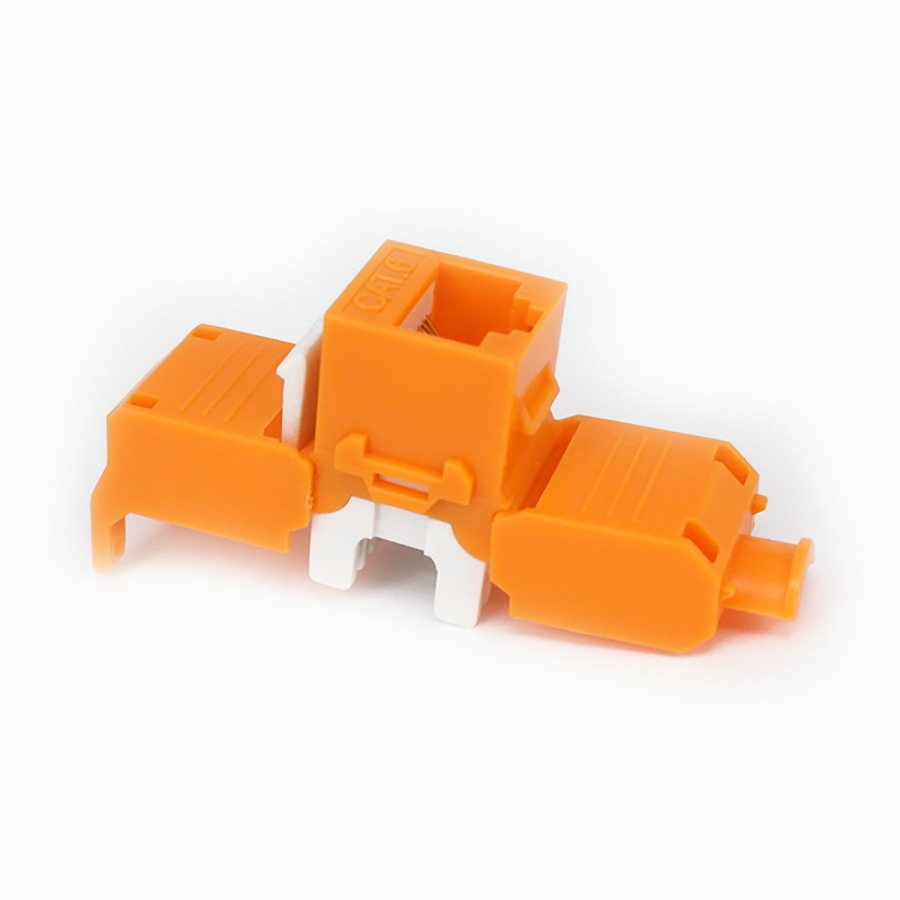

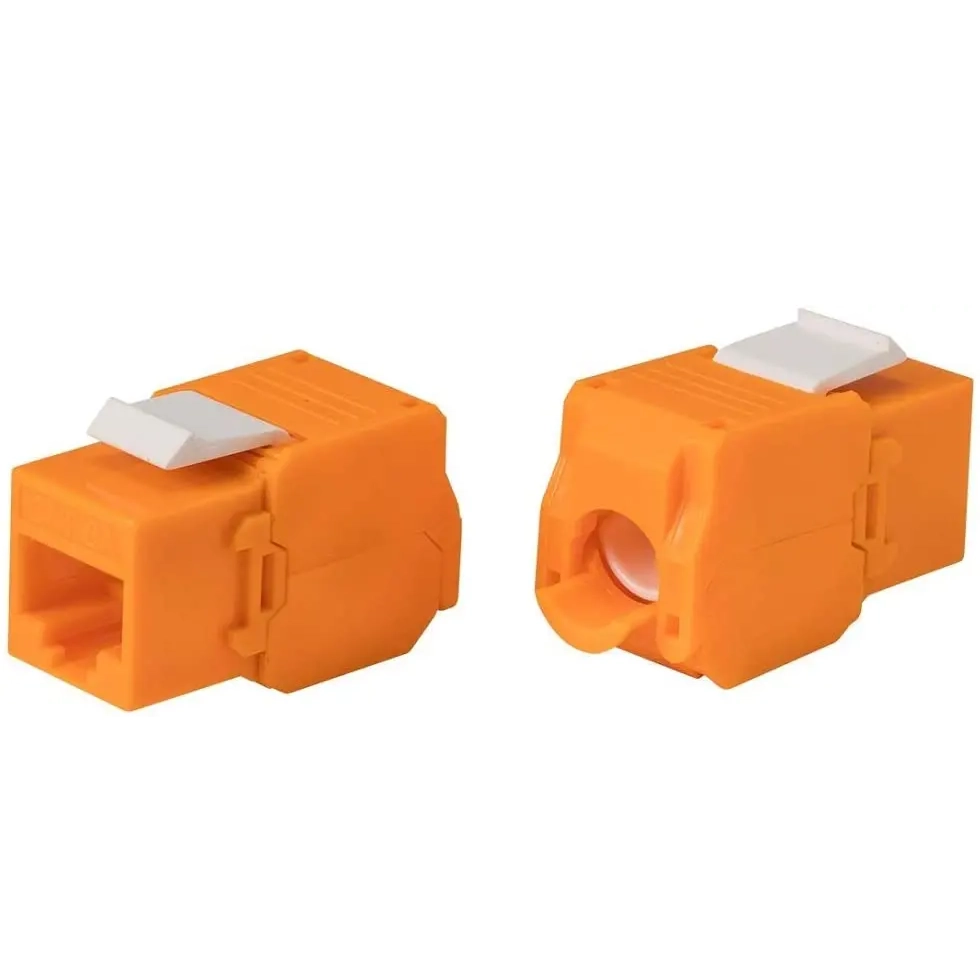

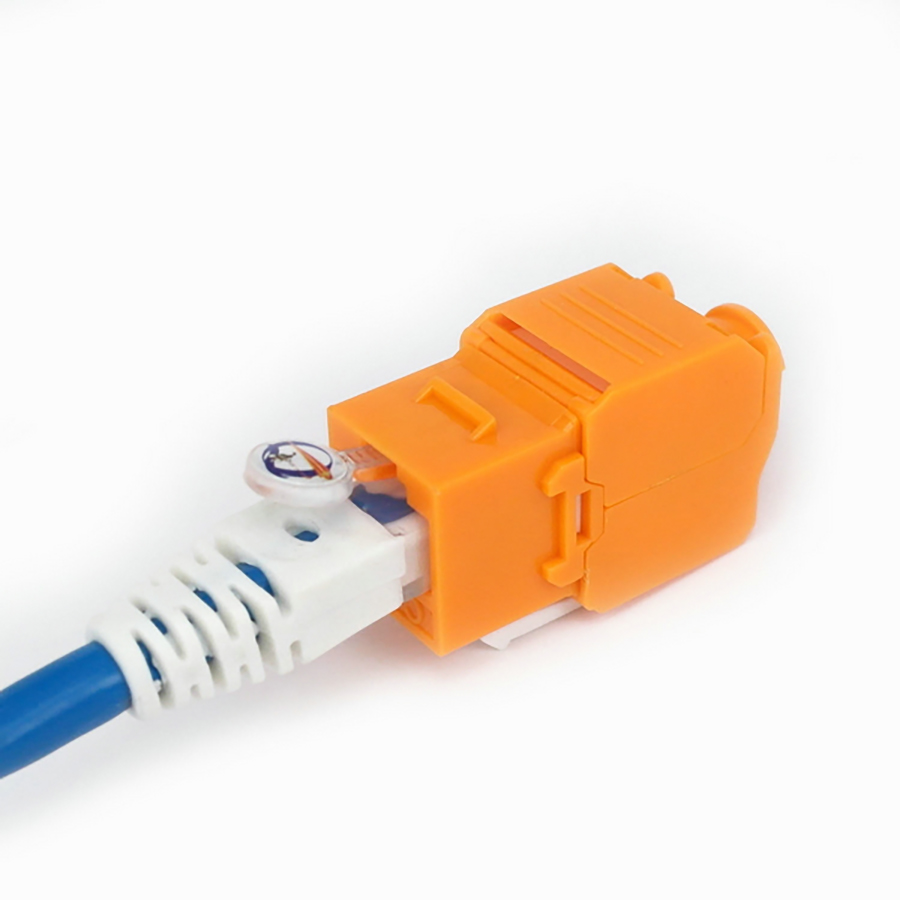

CAT6 Unshielded Toolless Keystone Jack 180 Degree UTP Rj45 UTP Cat6 Connector Orange
Hot
Hot
US$0.5~0.7
Product Highlights
Support IEEE 802.3af/at/bt, Verified IEC 60512-99-001 & IEC 60512-99-002 Test
Fast Installation without Any Special Punch Tool or Crimping Tool

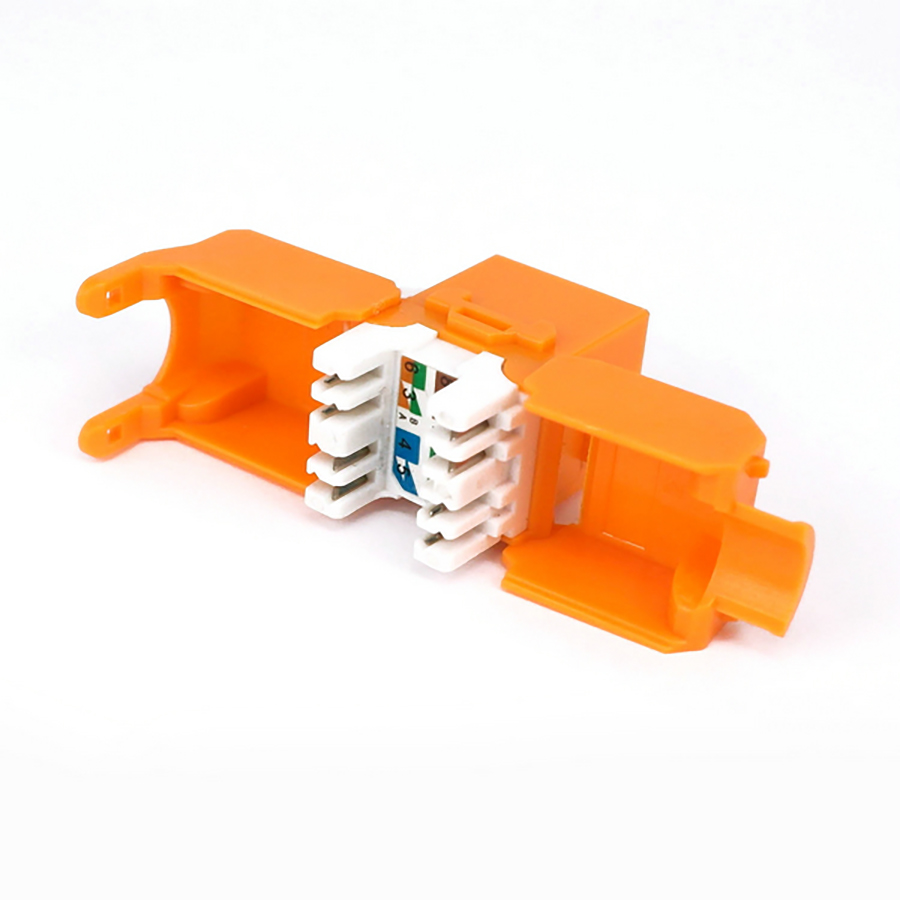

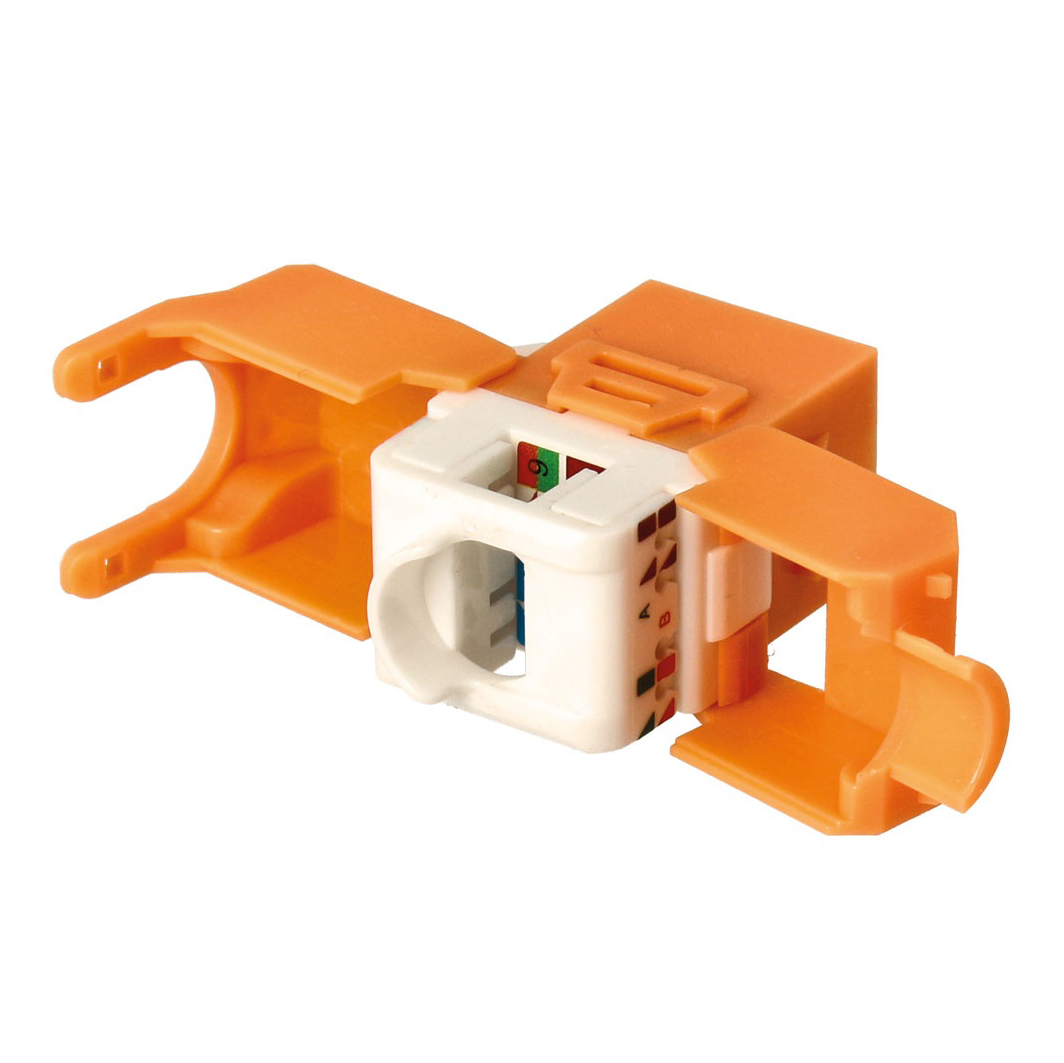

Dual-color-coded Labeling for 568A/B (258A) Wiring Schemes
Gold-plated RJ45 Contacts for Optimal Conductivity
To Be Used with Keystone Wall Plate or Panel
CAT6 Unshielded Toolless Keystone Jack 180 Degree UTP Rj45 UTP Cat6 Connector Orange
Features:
1. Voltage rating: 125V AC RMS
2. Current rating: 1.5A
3. Contact resistance: 110mΩ maximum
4. Insulation resistance: 1,000MΩ minimum 500V DC
5. Dielectric strength: 750V AC RMS, 60Hz, 1min
Environment:
1. Storage: -40~85°C
2. Operation: 0~70°C
Mechanical:
1. Housing material: PC
2. Insert material: flame retardant PBT
3. PCB material: FR-4, T=1.6mm
4. Contact material: phosphor bronze stamp pin, T=0.30mm
5. IDC contact material: phosphor bronze, T=0.50mm with tin plating
6. RJ45 jack: IFE: 750 times min
7. IDC lifespan: 200 times min
8. Wire: 24-26AWG
9. Tia Cat.5e perm link test: worst pair next margin: ≥3dB
10. Retentiveness of insertion structure: 50N 60±5s
