1. It has two common wiring schemes, T568A and T568B, with clear labeling of the wiring schemes on the jack module, facilitating accurate and fast termination.

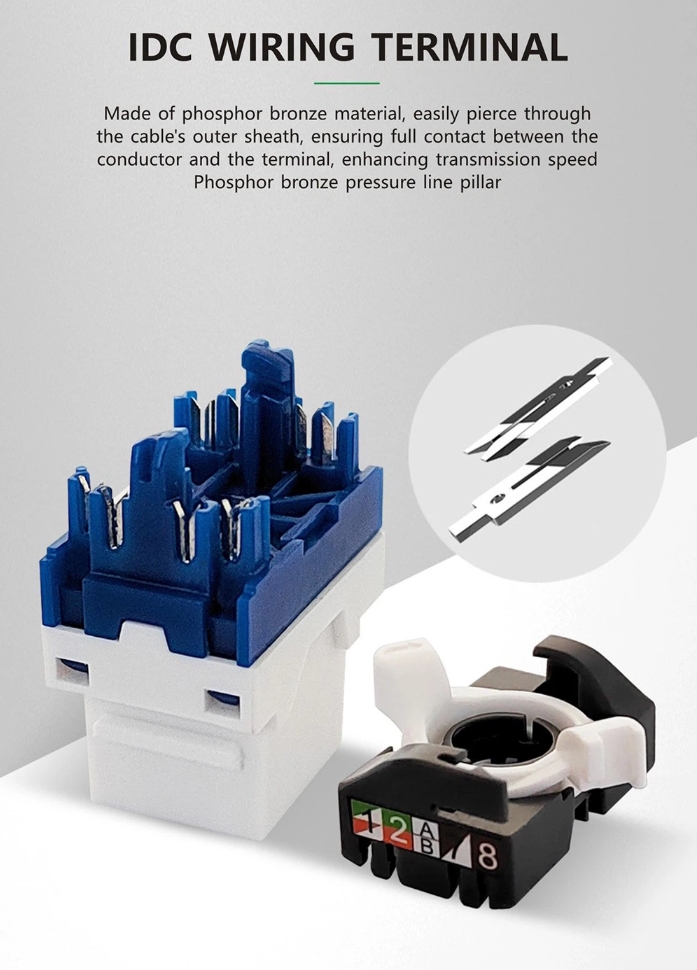

2. The IDC termination block is made of environmentally friendly phosphor bronze, with a termination life of 250 times or more, suitable for 23-26AWG cables.

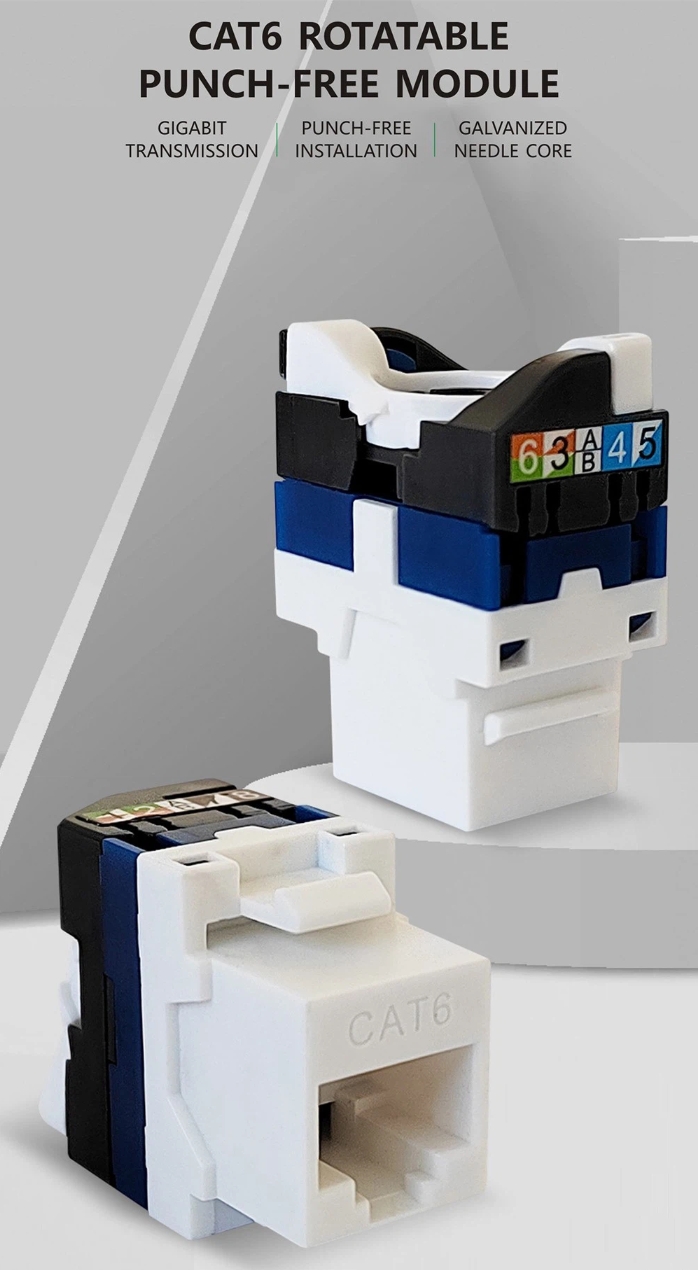

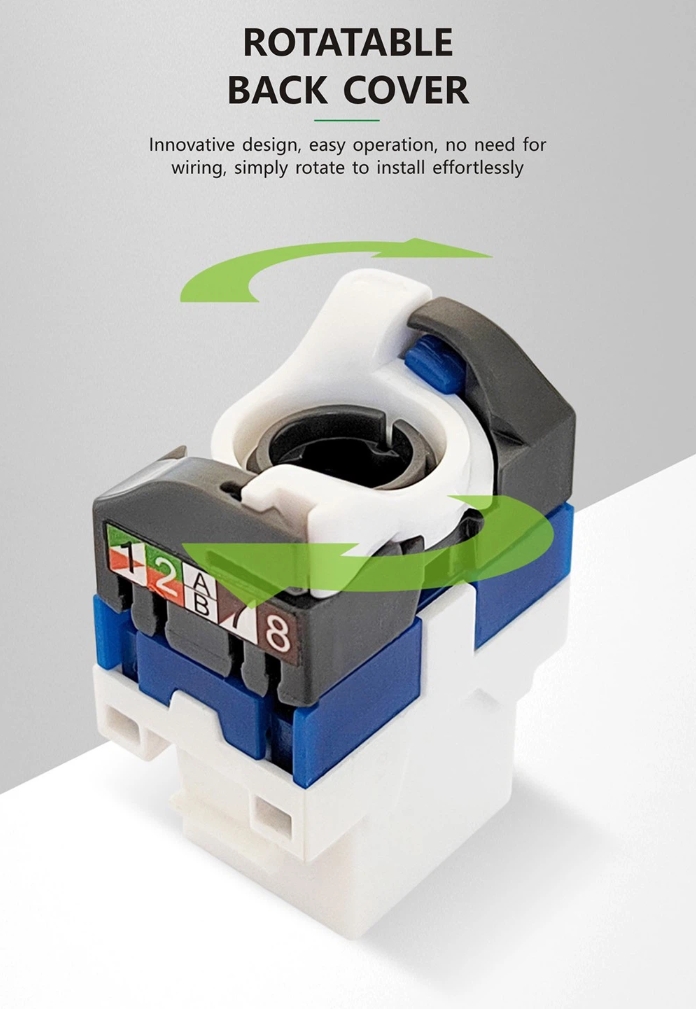

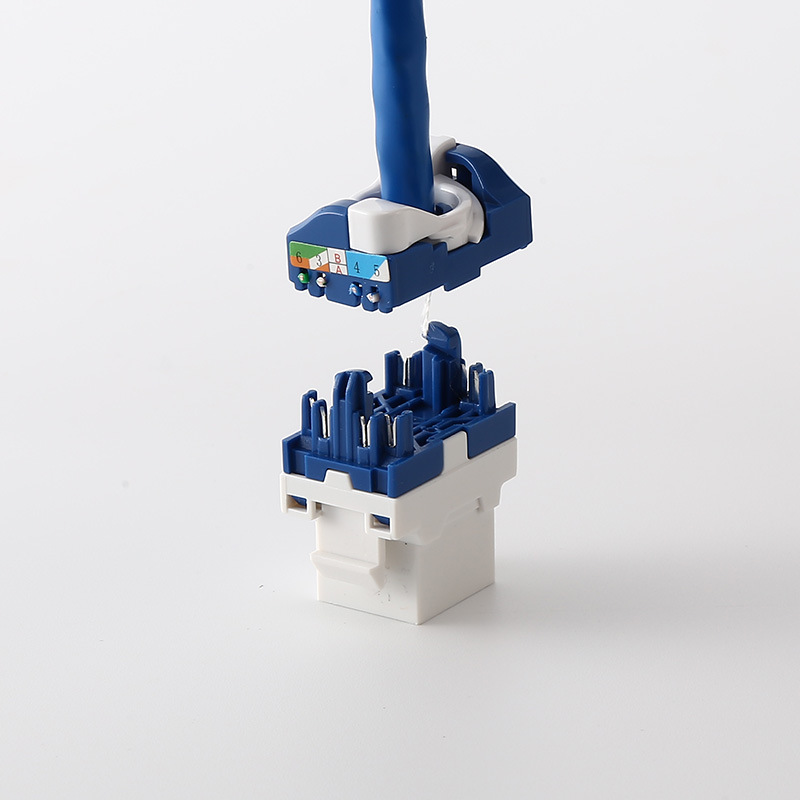

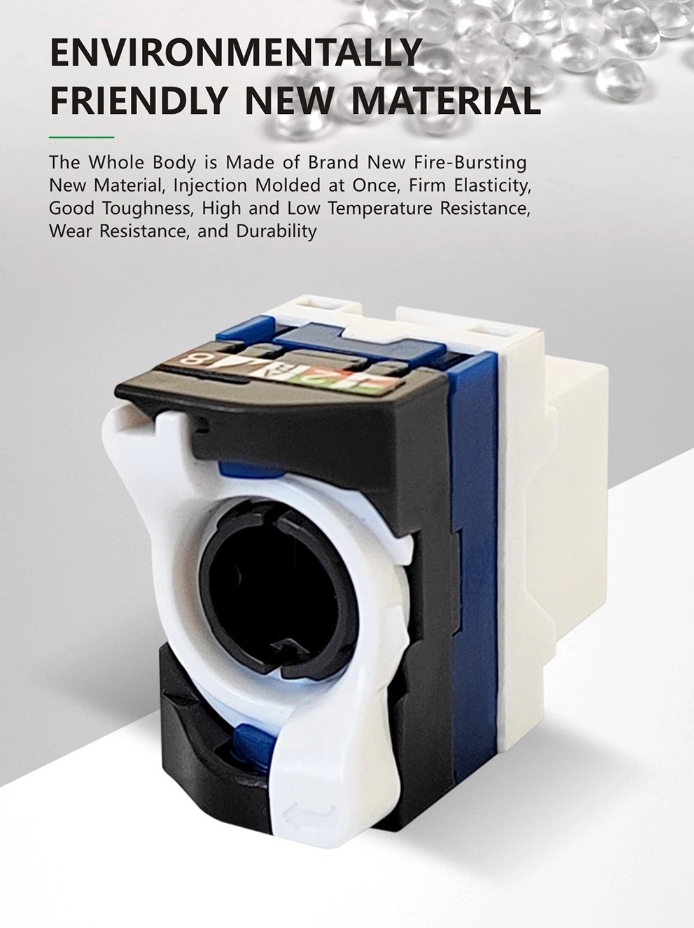

3. The termination jack features a 45-degree angled and toothed design, allowing for reliable contact and easy piercing of cable insulation without the need for tools.
4. The upgraded circuit board design and manufacturing process reduce interference and provide a high margin, ensuring backward compatibility with lower category systems to avoid investment loss for users.

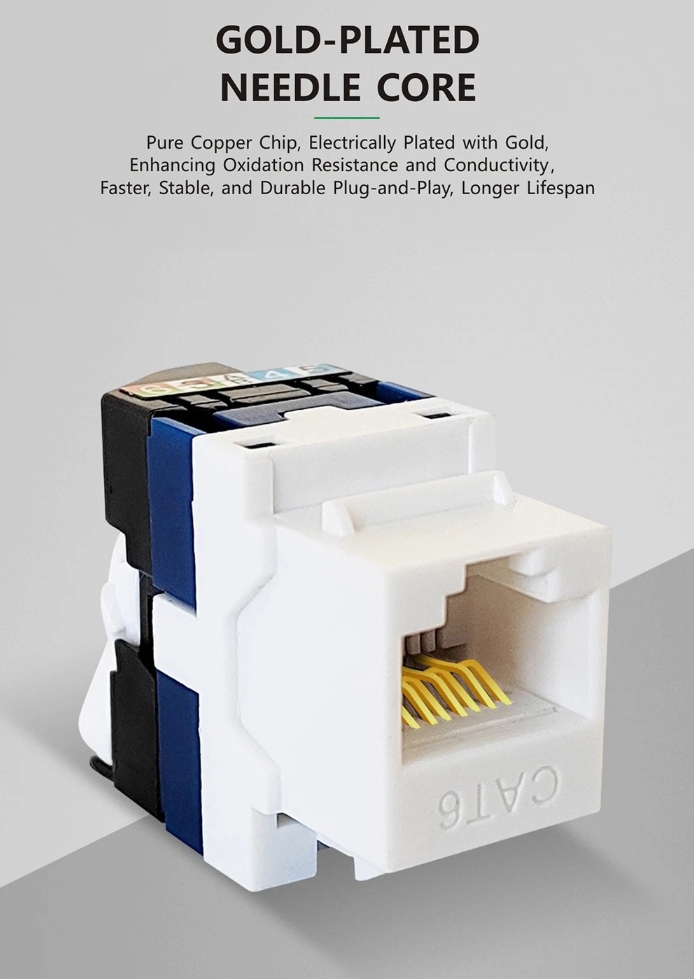

5. The contact pins adopt a high-low pin design to achieve optimal pair balancing. The gold-plated layer on the contact pins ranges from 6μm to 50μm, meeting various needs, and has a durability of 1000 or more insertions.

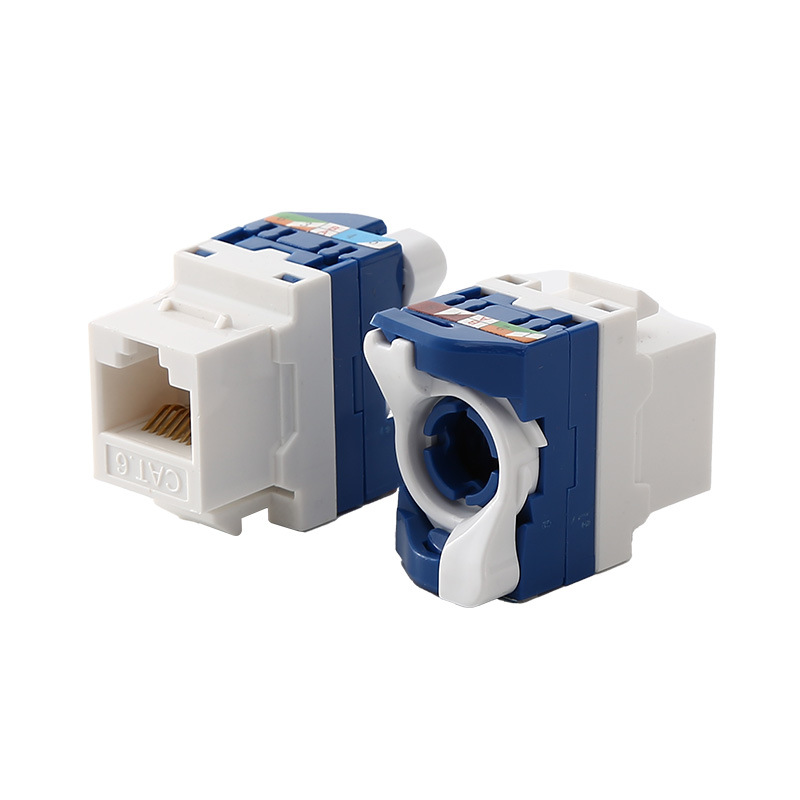

6. This specification offers three models for ordering: CAT5E, CAT6, and CAT6A.
