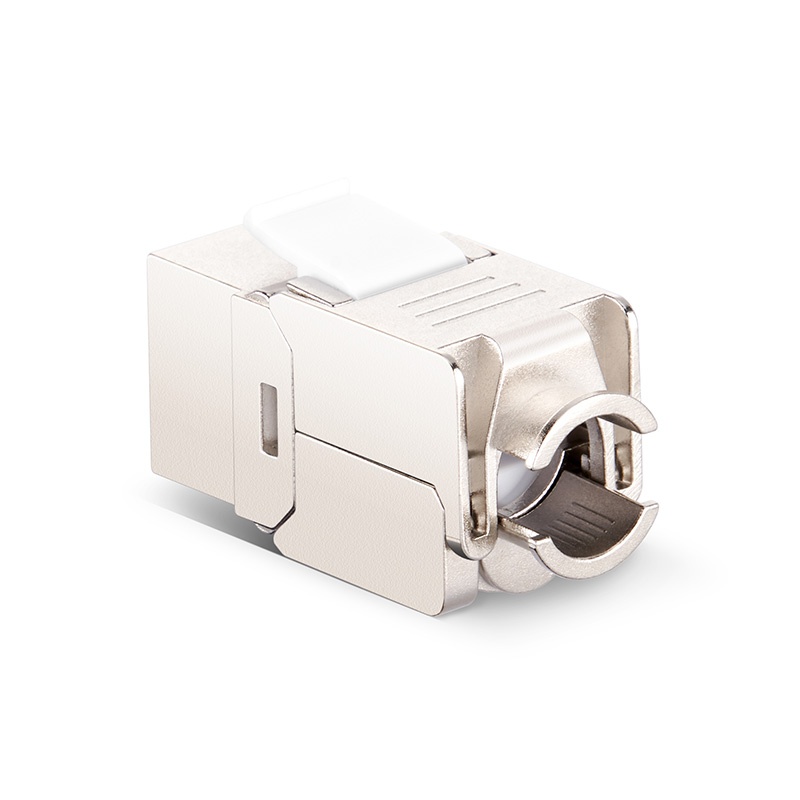

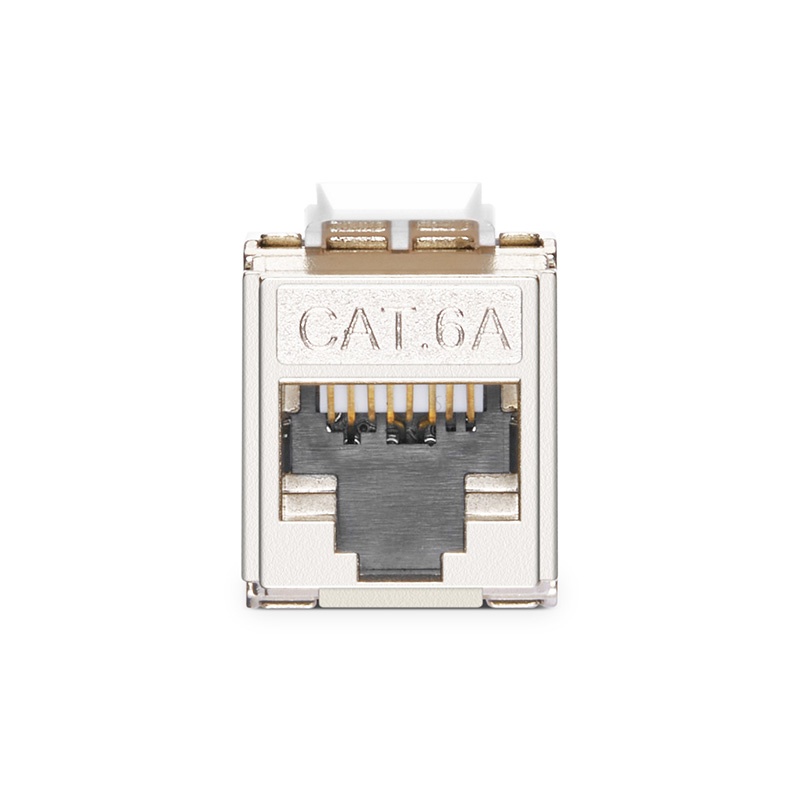

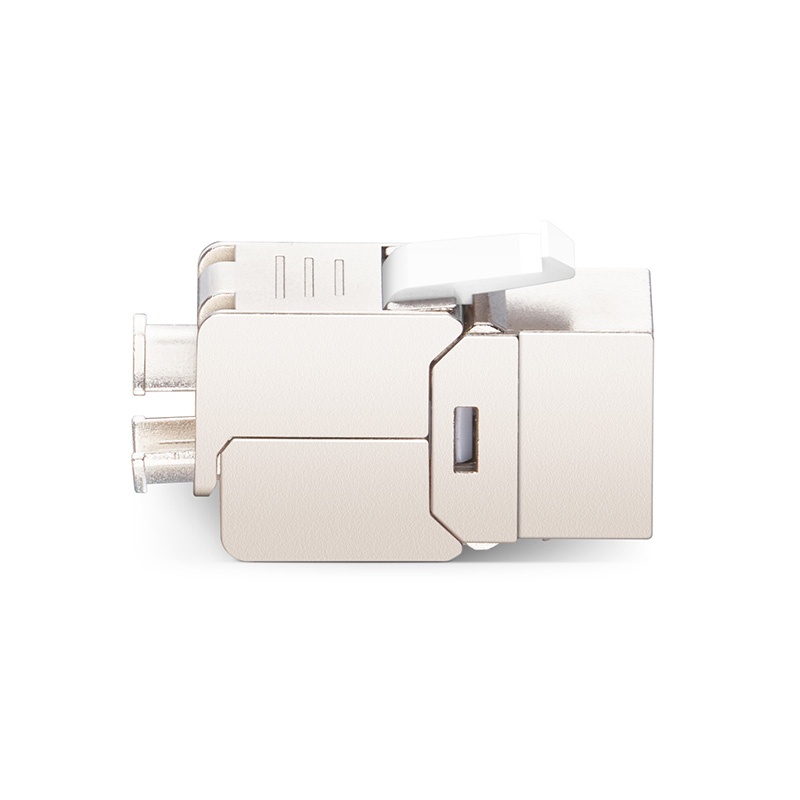

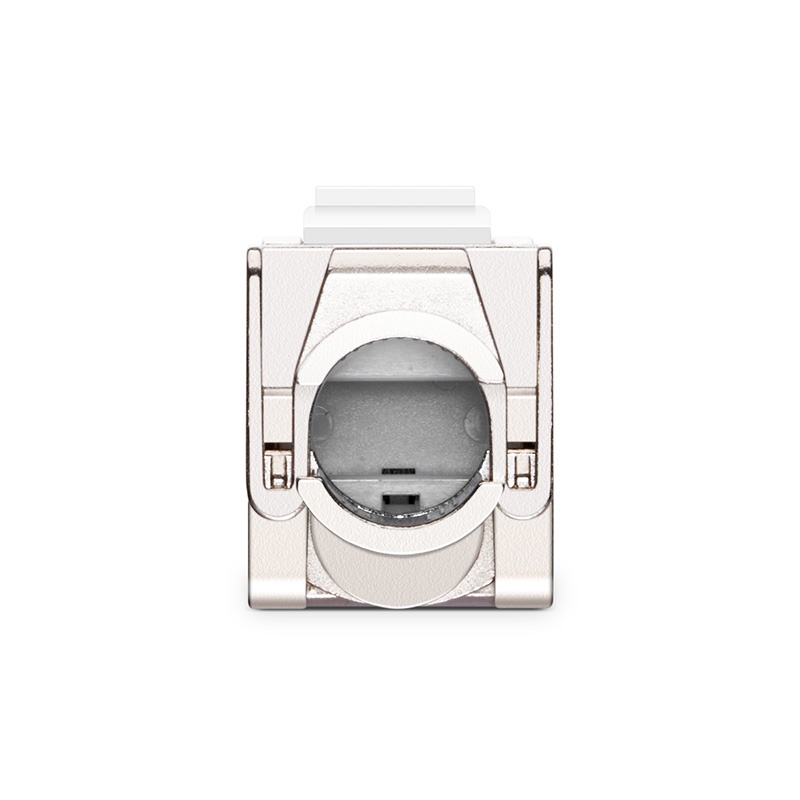

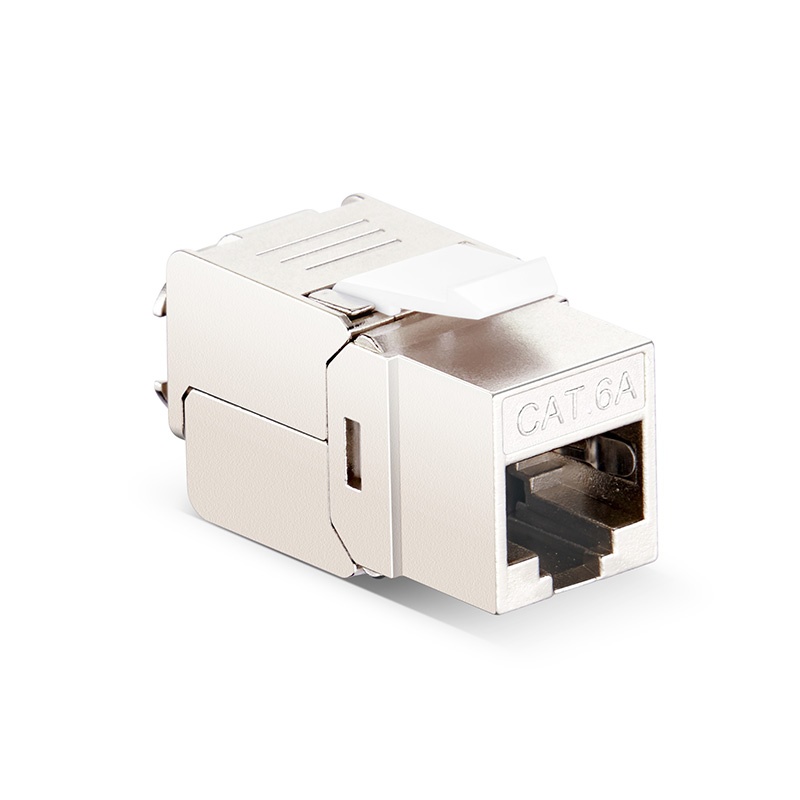

Cat6a SFTP RJ45 (8P8C) Shielded Toolless 180 Degrees Keystone Jack Telecom Parts Modular Jack
Product Highlights
Support IEEE 802.3af/at/bt, Verified IEC 60512-99-001 & IEC 60512-99-002 Test
The Shielded Keystone Jack, Against EMI/RFI, NEXT, and AXT

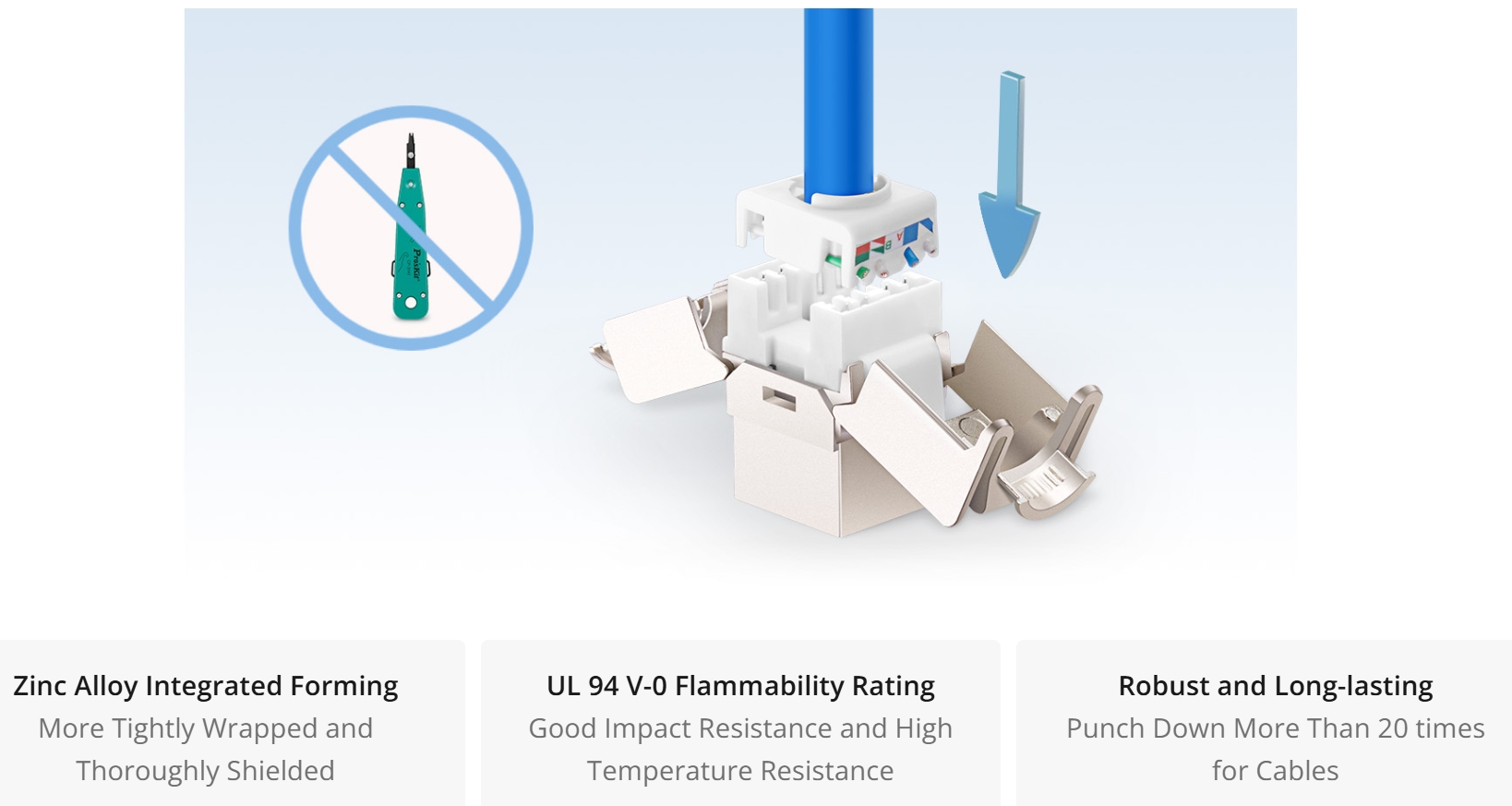

Fast Installation Without Any Special Punch Tool or Crimping Tool
Dual-color-coded Labeling for 568A/B (258A) Wiring Schemes

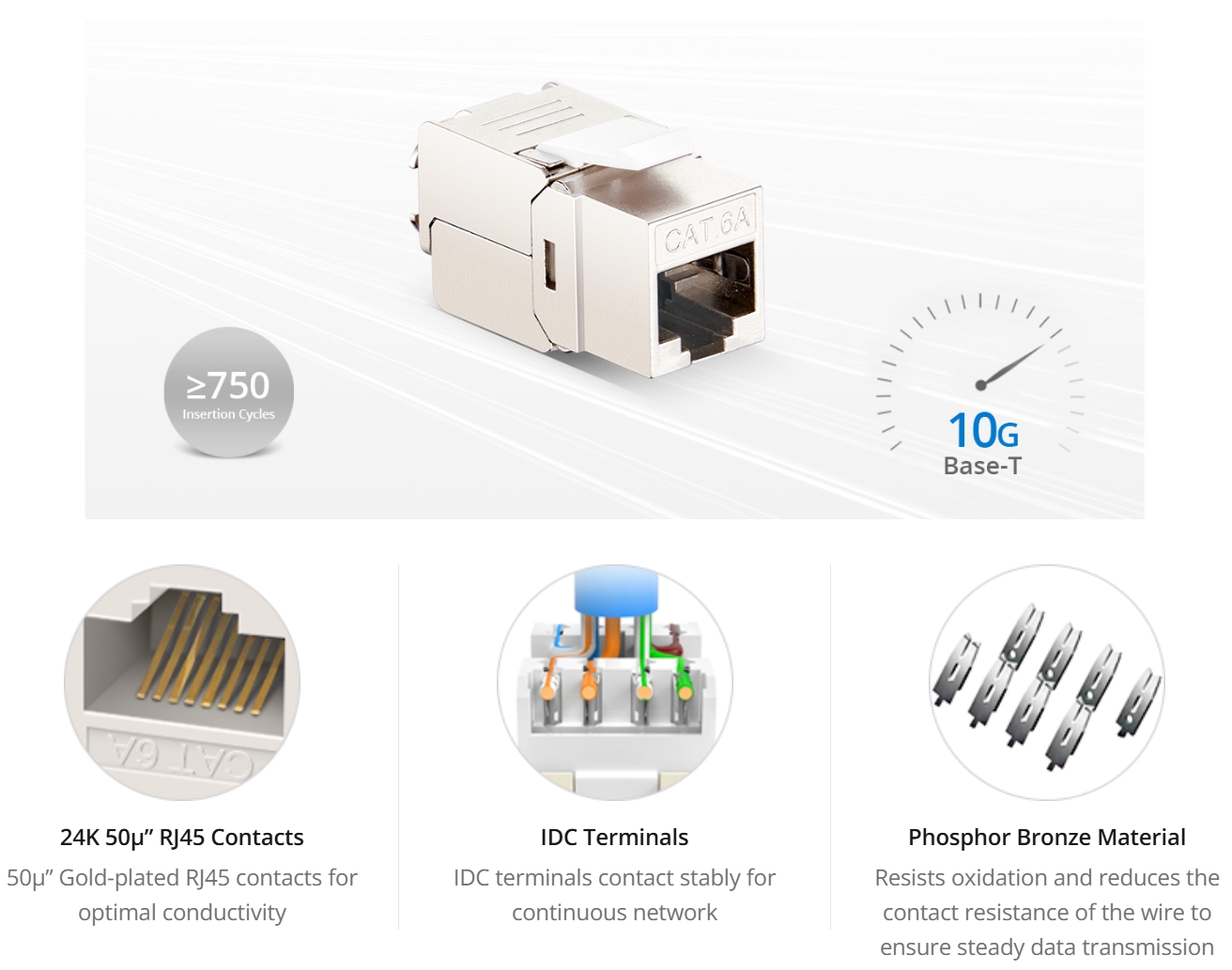

Gold-plated RJ45 Contacts for Optimal Conductivity
Toolless Shielded Keystone Jack for Cat6A Ethernet Networking
Cat6a STP RJ45 Toolless Keystone Jack Module is designed to terminate 4-pair, 22-26 AWG twisted pair cable with convenient wire separation for easy installation. Each module is factory tested to exceed industry standard performance requirements and support IEEE 802.3af/at/bt. Contacts are plated with 50 microinches of gold for superior performance. Jacks are individually serialized and are compatible with keystone interfaces such as faceplates, modular patch panels and surface mount boxes. The metal keystone jacks are designed for gigabit and 10G copper Ethernet network applications such as enterprise office, home decoration, data center, intelligent park and other types of environment network cabling project, eliminating EMI and crosstalk to ensure peak performance and data integrity.

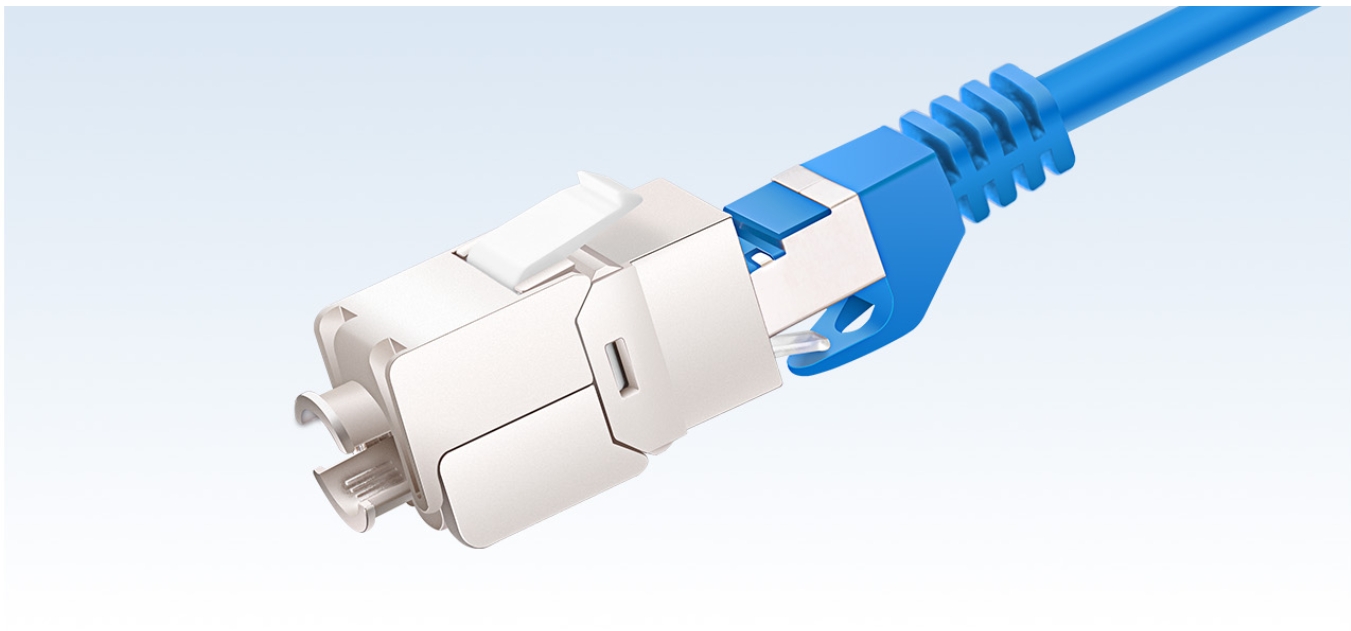

Designed for Cat6a, Cat6, Cat5e Cables and ideal for 10GBase-T Ethernet applications. Gold-plated contacts maintain optimum conductivity between two cables, ensuring stable transmission.

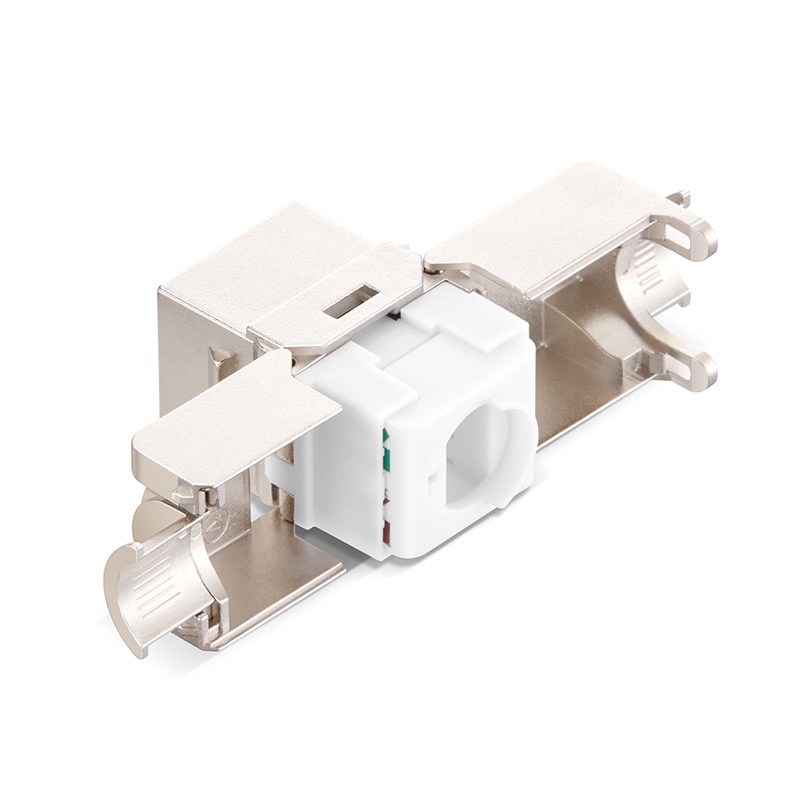

180-degree wide-angle, hinged design provides easy access and termination. Supports reuse to save you time and money.
The unit test standard is more stringent than the permanent link test. FS shielding information module single test value exceeds ANSI/TIA 568-C.2 requirements for stable data transmission.

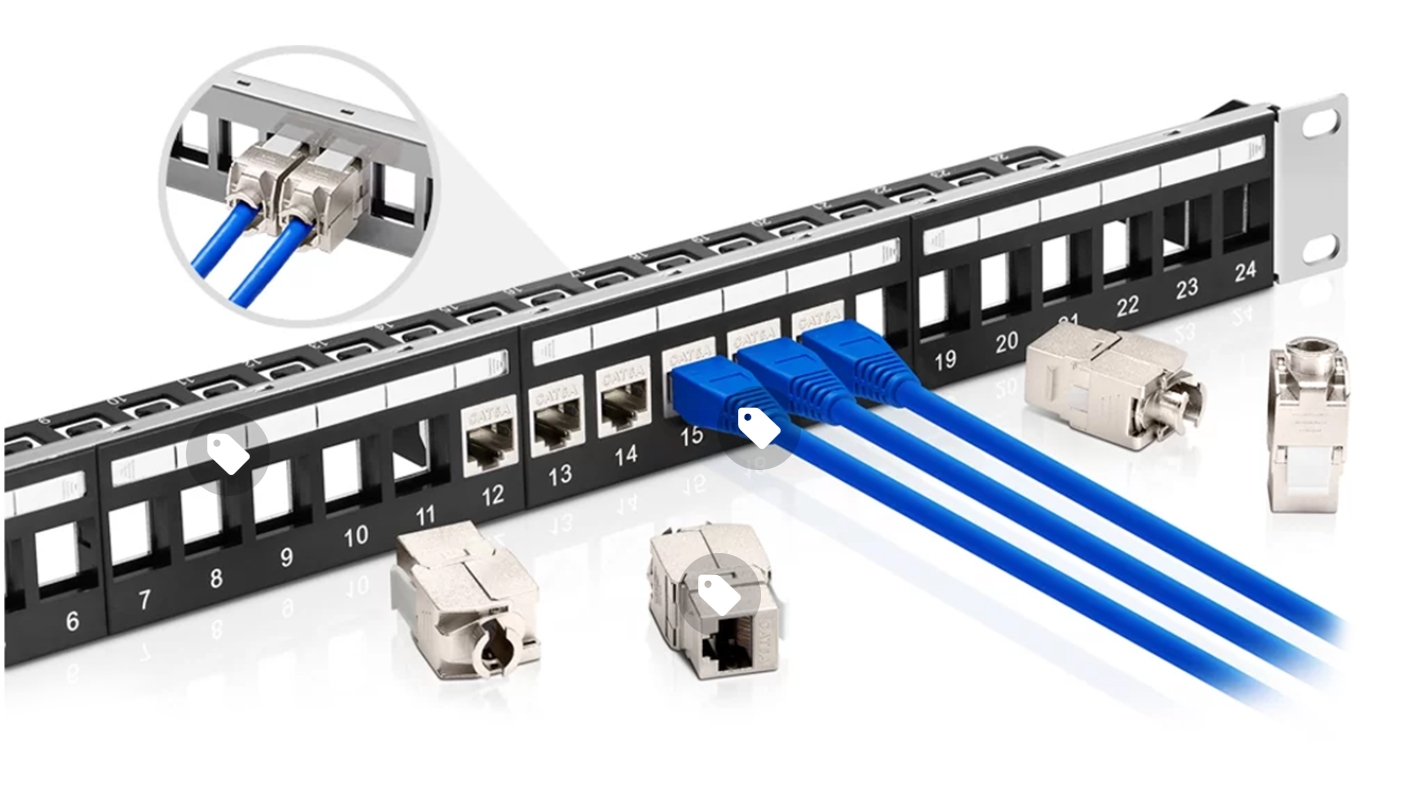

Designed for installation with convenience, and performance well with 1U 24/48 ports patch panels and network cables to improve management efficiency.

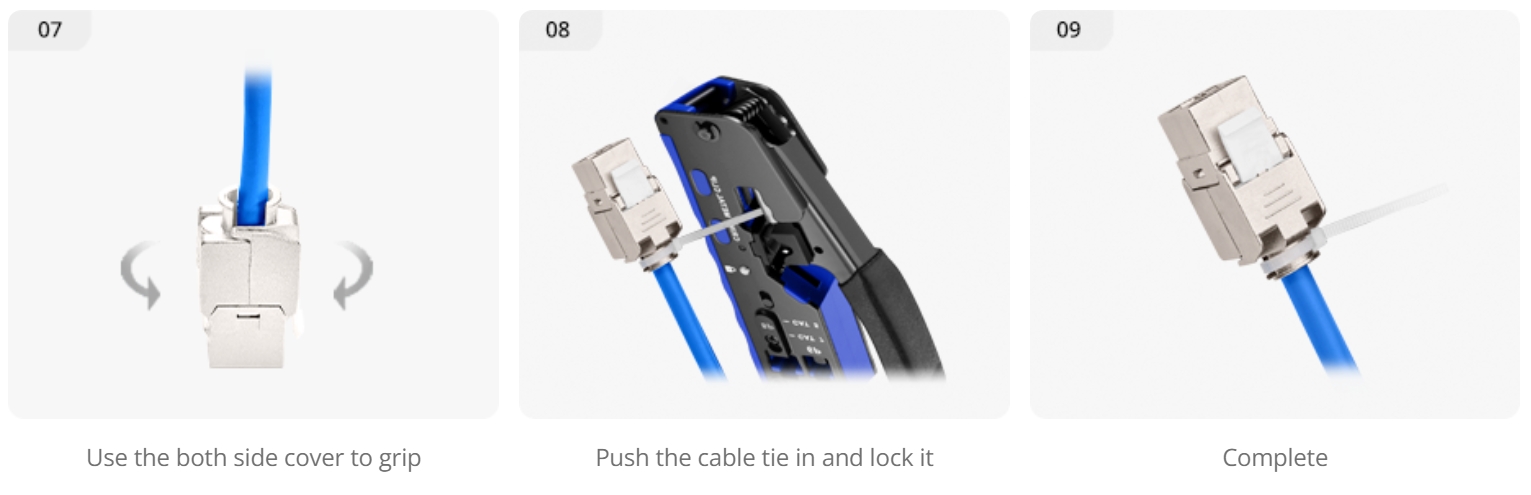

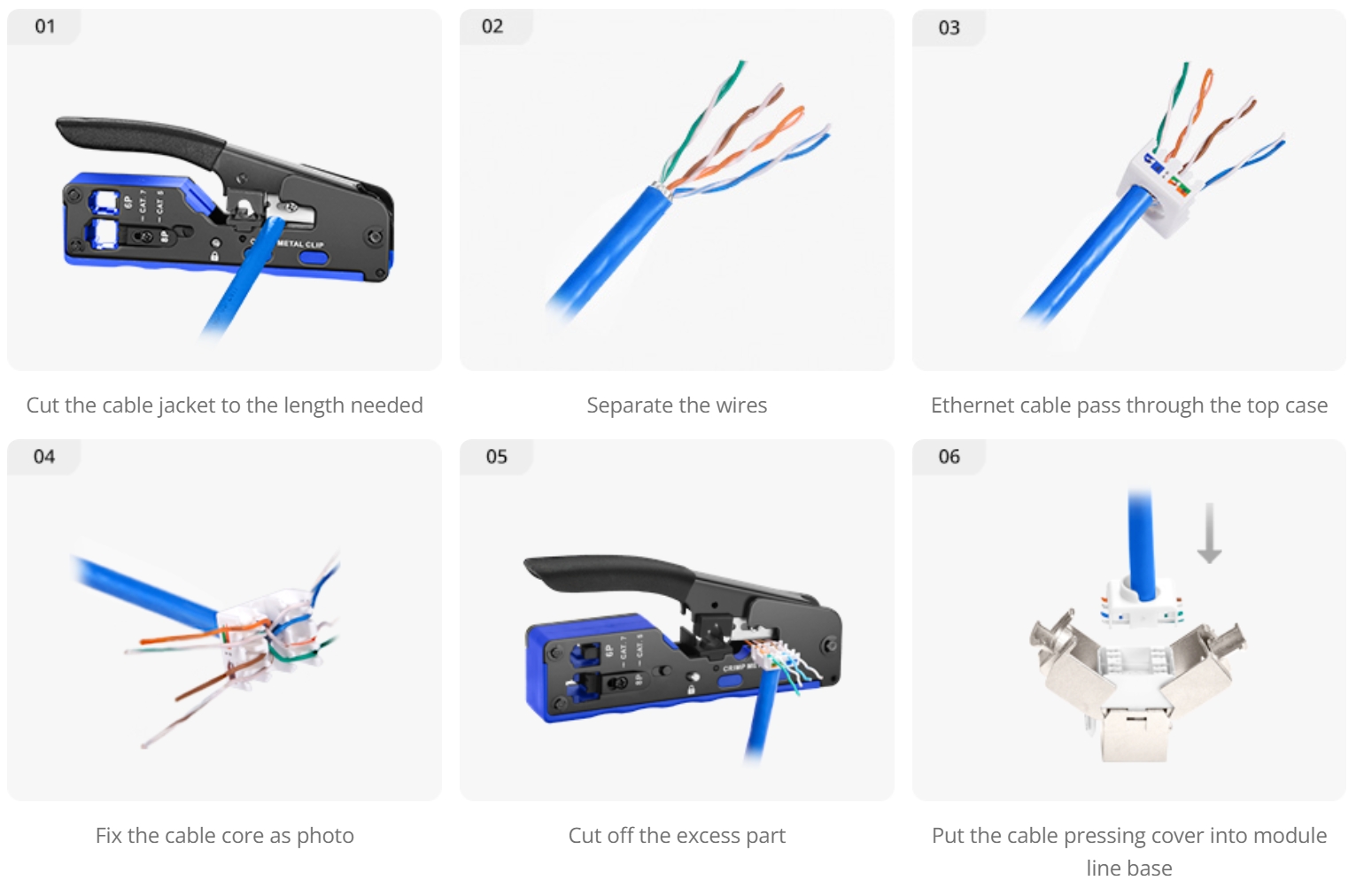

Operating Instructions
