Cat7 SFTP RJ45 (8P8C) Shielded Toolless 180 Degrees Keystone Jack Telecom Parts Modular Jack
Product Highlights
Up to 500 MHz, 10GBase‑T, Fully Compliant with ANSI/TIA/EIA 568-C.2 Standard
Backwards Compatible to 10MB/100MB/1000MB/10GB Ethernet Cat5e Cat6 Cat6a
Support IEEE 802.3af/at/bt, Verified IEC 60512-99-001 & IEC 60512-99-002 Test
The Shielded Keystone Jack, against EMI/RFI, NEXT, and AXT
Fast Installation without Any Special Punch Tool or Crimping Tool
Dual-color-coded Labeling for 568A/B (258A) Wiring Schemes
Gold-plated RJ45 Contacts for Optimal Conductivity
To Be Used with Keystone Wall Plate or Panel

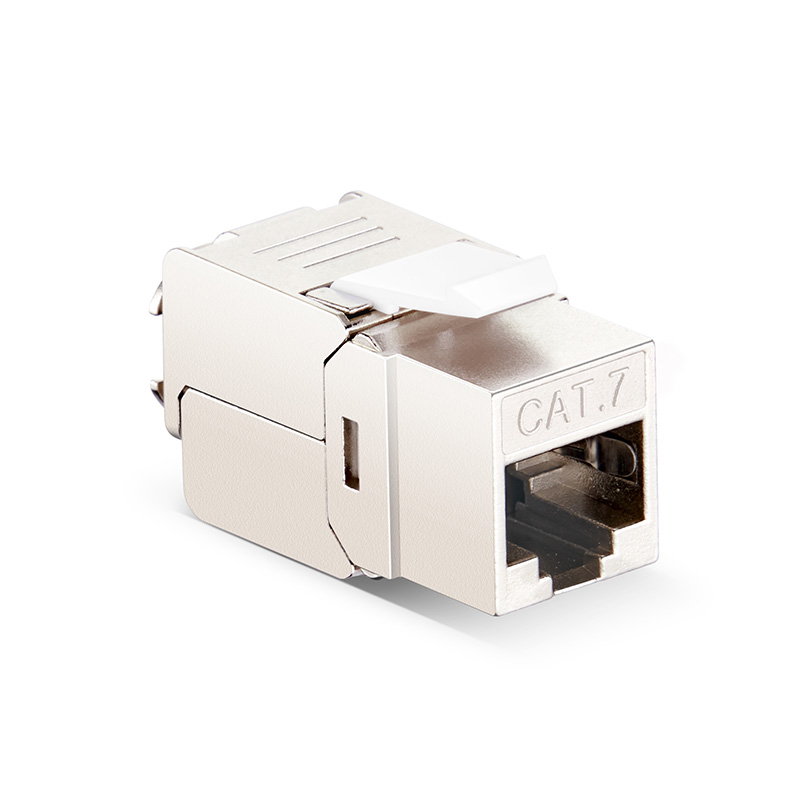

Cat7 RJ45(8P8C) Shielded Toolless Keystone Jack Module
The Cat7 Keystone toolless style connectors make for a simple installation without the need for a punch-down tool. Toolless keystone jacks are an ideal solution for terminating and connecting network cables, such as Cat7 premise wiring, the RJ45 keystone jack snaping into wall plates, patch panels and surface-mount boxes.
Designed for Cat7, Cat6a, Cat6, Cat5e Cables and ideal for 10GBase-T Ethernet applications. Gold-plated contacts maintain optimum conductivity between two cables, ensuring stable transmission.

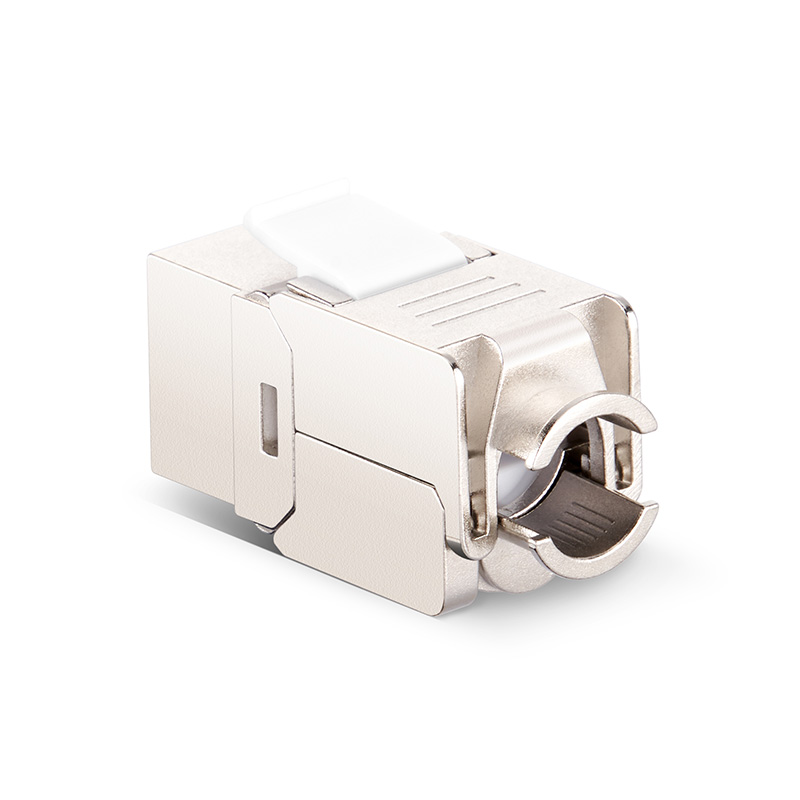

180-degree wide-angle, hinged design provides easy access and termination. Supports reuse to save you time and money.
The unit test standard is more stringent than the permanent link test. FS shielding information module single test value exceeds ANSI/TIA 568-C.2 requirements for stable data transmission.
Designed for installation with convenience, and performance well with 1U 24/48 ports patch panels and network cables to improve management efficiency.
