Click to open expanded view

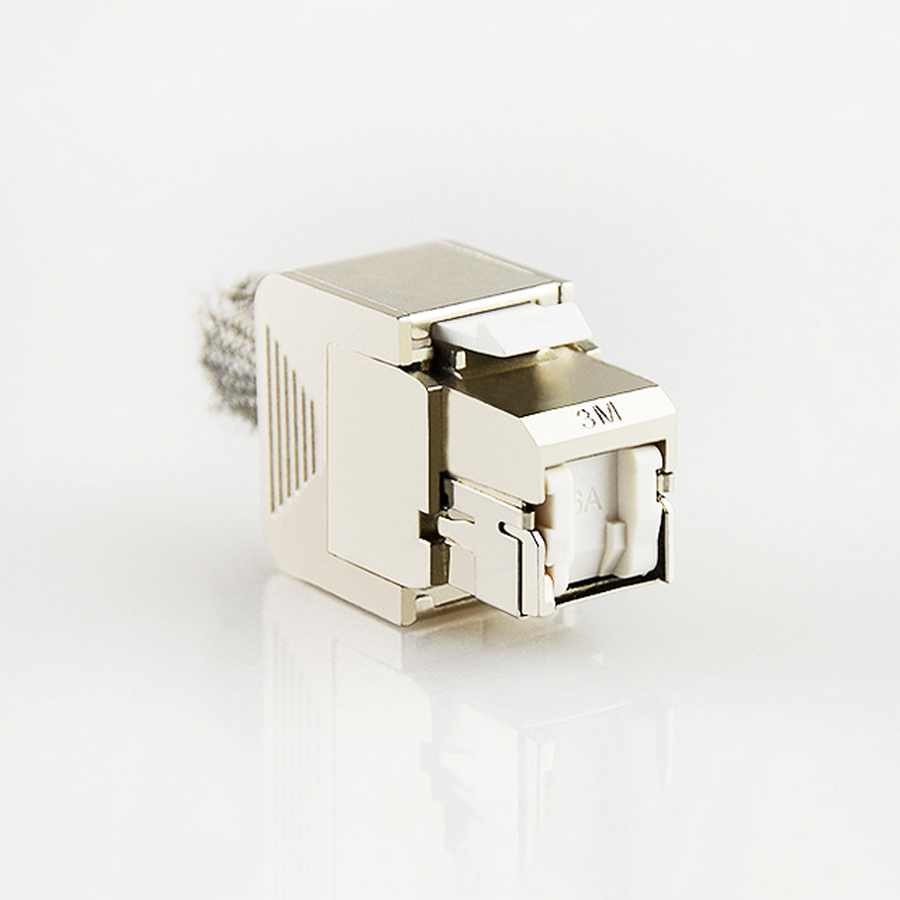

CORN Cat6 SFTP Keystone Jack 180 Degree Modular Jack, RJ45, Cat6A Shielded

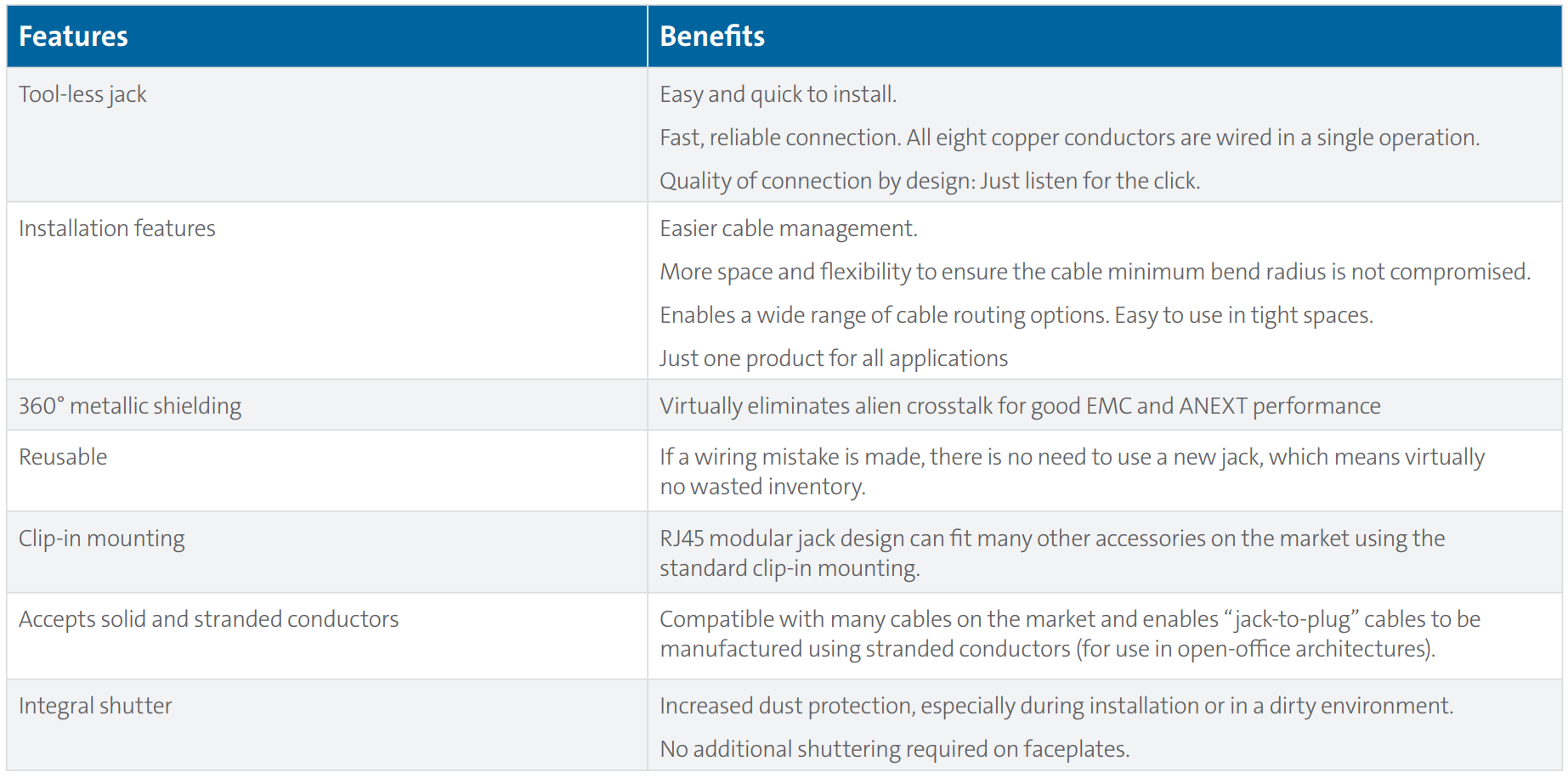

Features and Benefits
Electrical performance guaranteed to meet or exceed the channel specifications to ISO/IEC 11801 Class EA and ANSI/TIA-568-C.2 Category 6A
Patented crossing of straddling pair contacts enables efficient alien crosstalk reduction in the channel
Snaps into standard M-series faceplates, surface-mount boxes, consolidation point boxes and modular panels
Mountable either at 90 degrees (straight) or 45 degrees (angled) in M-series faceplate
Universal design and label supports both T568 A & B wiring
IDC connector terminations on rear of base allow quick and easy installation of 22 to 24 AWG cable
Support network line speeds up to at least 10 gigabits per second
Low-profile rear protective strain relief cap, protects against contamination and secures the connection
CORN Cat6 SFTP Keystone Jack 180 Degree Modular Jack, RJ45, Cat6A Shielded
Our Cat.6A copper interconnect products work together to provide an easy-to-use solution for deploying high-speed connections throughout a building. The RJ45 jack is a key component in this system. The traditional one-click design enables an easy, tool-less termination on shielded cables, meeting industry performance standards.
