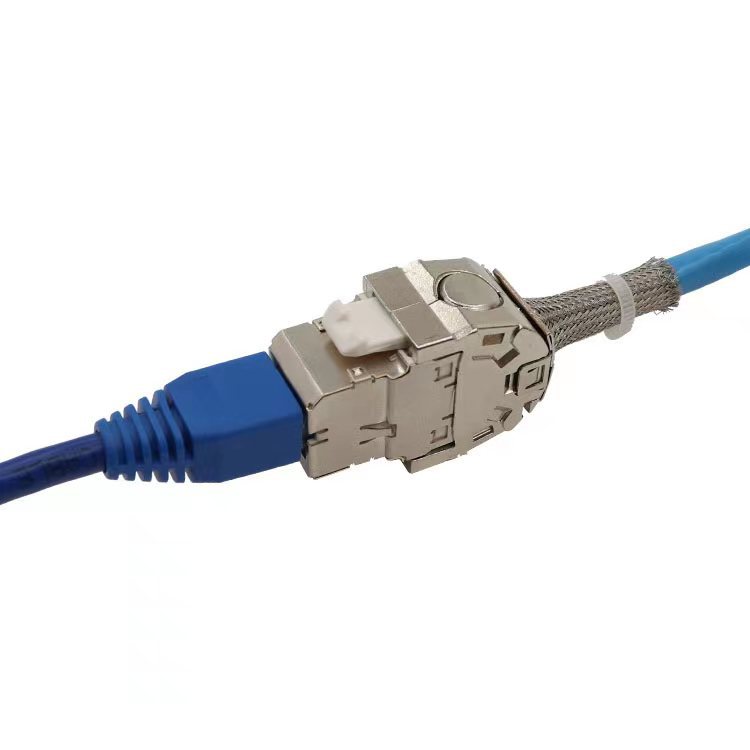

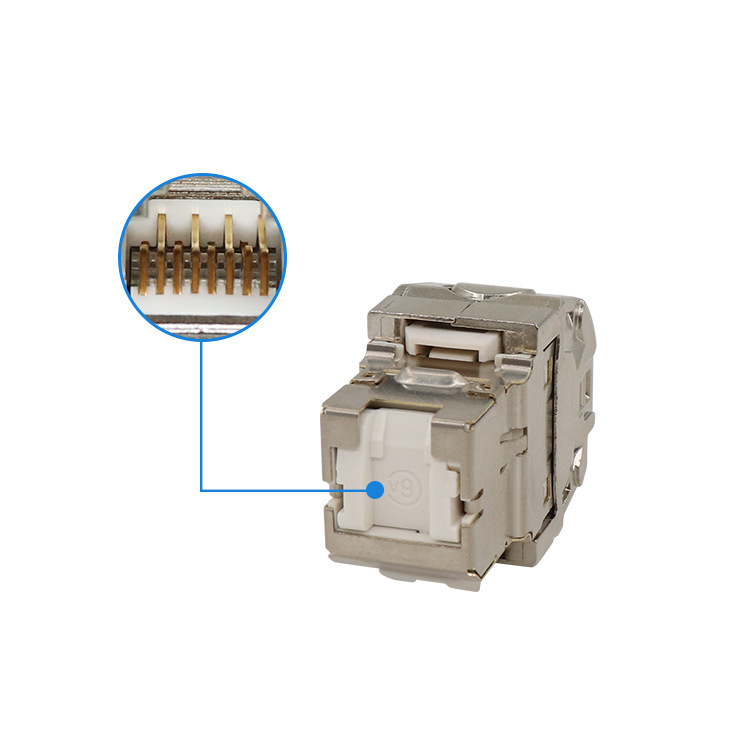

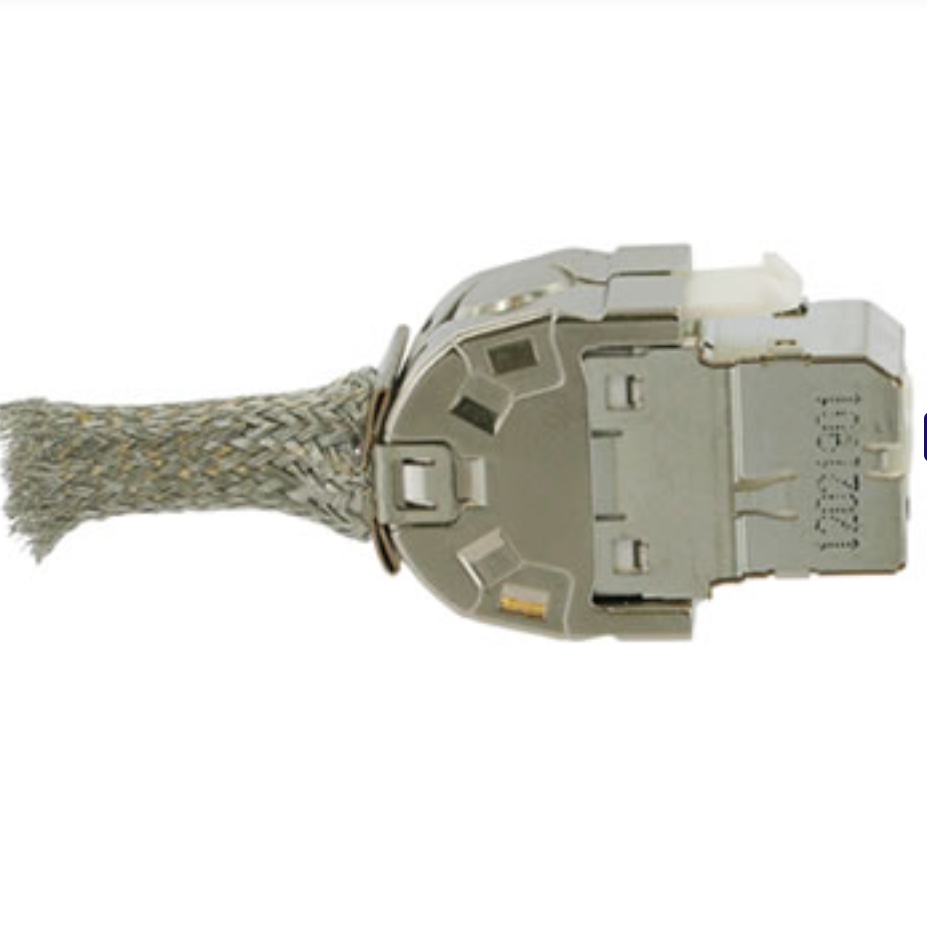

3M/Corning Cat.6A STP Keystone Jack Module 3 Entry for face plate and Patch panel
Features and Benefits
Electrical performance guaranteed to meet or exceed the channel specifications to ISO/IEC 11801 Class EA and ANSI/TIA-568-C.2 Category 6A
Patented crossing of straddling pair contacts enables efficient alien crosstalk reduction in the channel
Snaps into standard M-series faceplates, surface-mount boxes, consolidation point boxes and modular panels
Mountable either at 90 degrees (straight) or 45 degrees (angled) in M-series faceplate
Universal design and label supports both T568 A & B wiring

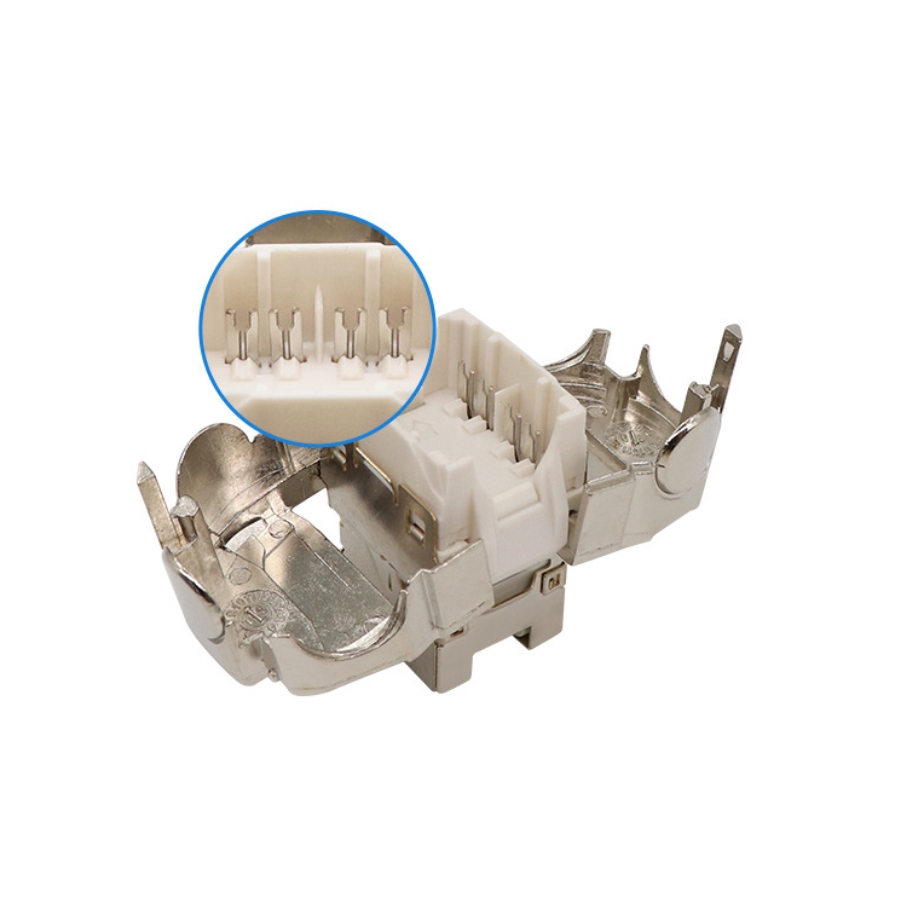

IDC connector terminations on rear of base allow quick and easy installation of 22 to 24 AWG cable
Support network line speeds up to at least 10 gigabits per second
Low-profile rear protective strain relief cap, protects against contamination and secures the connection
3M/Corning Cat.6A STP Keystone Jack Module 3 Entry for face plate and Patch panel

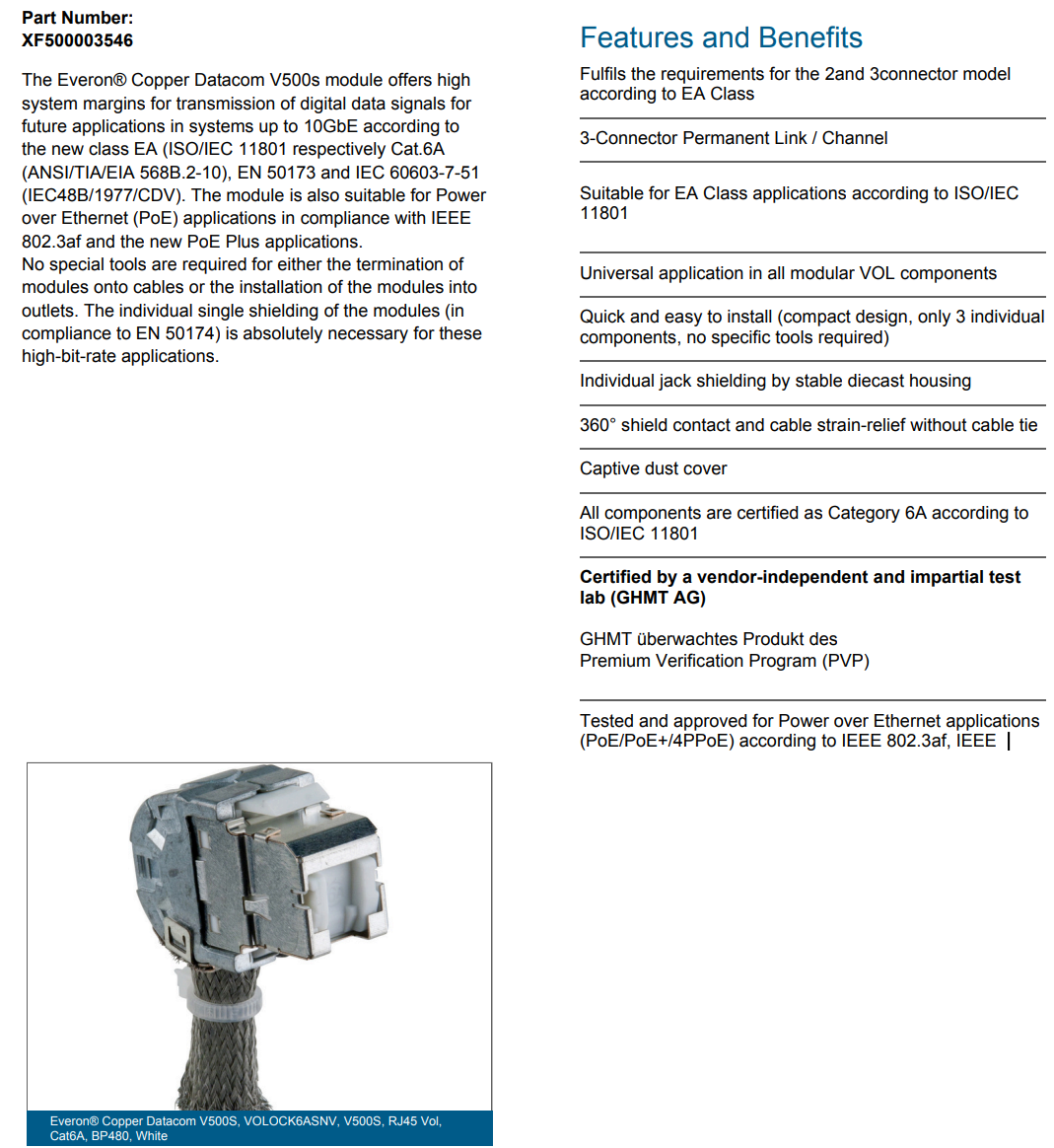

The Copper Datacom V500s module offers high system margins for transmission of digital data signals for future applications in systems up to 10GbE according to the new class EA (ISO/IEC 11801 respectively Cat.6A (ANSI/TIA/EIA 568B.2-10), EN 50173 and IEC 60603-7-51 (IEC48B/1977/CDV). The module is also suitable for Power over Ethernet (PoE) applications in compliance with IEEE 802.3af and the new PoE Plus applications. No special tools are required for either the termination of modules onto cables or the installation of the modules into outlets. The individual single shielding of the modules (in compliance to EN 50174) is absolutely necessary for these high-bit-rate applications.
