Application
Patch Cords can be used to deliver a full end-to-end Class E solution.
They provide improved data throughput and allow for the inclusion of a cross-connect or Consolidation Points for maximum system flexibility. They will also maximise the lifetime and long term performance of the system by minimising the risk of wear & tear damage which can be caused by using non-matched cords. .

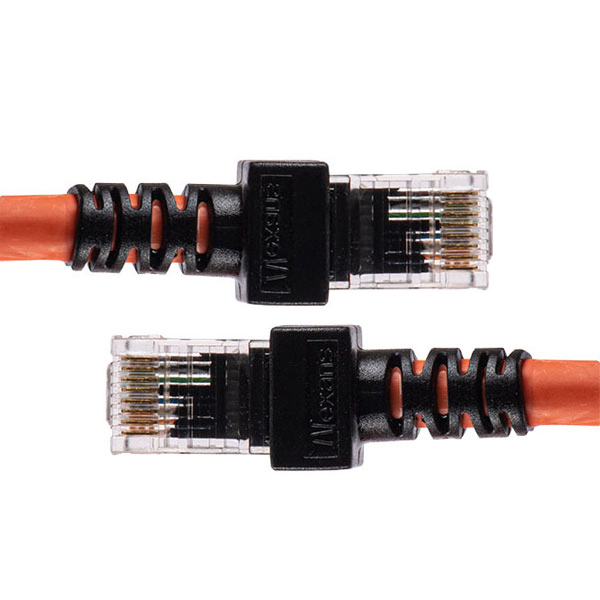

LANmark-6 Cords feature a slim over-moulded boot which is kept inside the RJ45 boundaries to enable High Density Patching with 48 cords in 1 height unit. They also come with a Retrofit Latch Protector, which can be used for colour coding of different services.
Installation
Small cross section allows neat installation and simplifies the creation of bundles in cabinets.
A Low Smoke Zero Halogen - Flame Retardant jacket is standard.

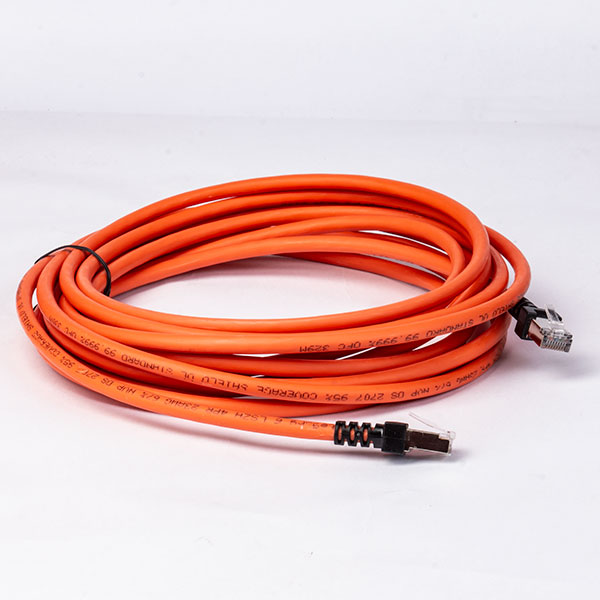

1, 2, 3, 5, 10 and 20m are standard lengths; other lengths are available on demand.
Orange and Dark Grey are standard colours available from stock; other colours are available on demand.
Default Plug configuration is a black boot with a preinstalled black latch protector; other combinations available on request.
550MHz Stable Transmission
550MHz maximum frequency and 1000Base-T Ethernet speed allow more reliable data transmission.

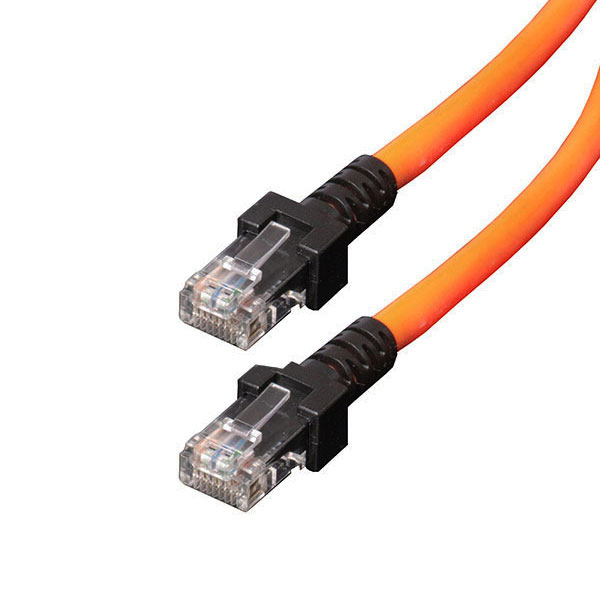

RJ45 modular plug, PVC jacket and strain relief boot to increase the service life of the cable.
This cable is suitable for all devices with RJ45 jacks, such as PCs, servers, printers, routers, switches, media players, NAS, VoIP phones, PoE devices, and more.
Specific color cables can easily and rapidly trace equipment and simplify the management.
100% Fluke Channel Test confidence and exceed ANSI/TIA-568.2-D Category 6 and ISO 11801 Class E standards that each patch cord delivers specified performance.
