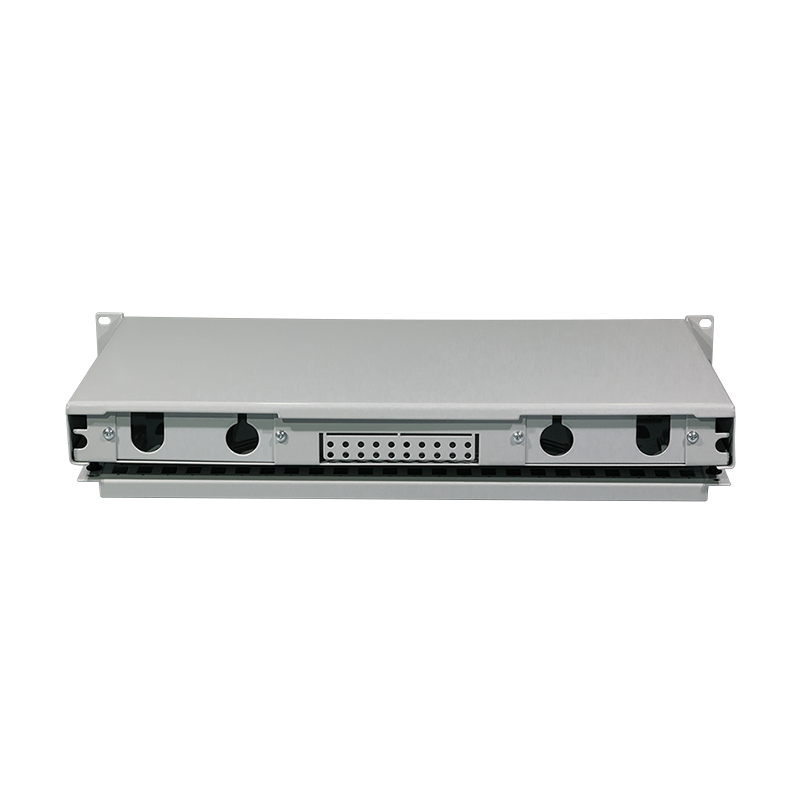

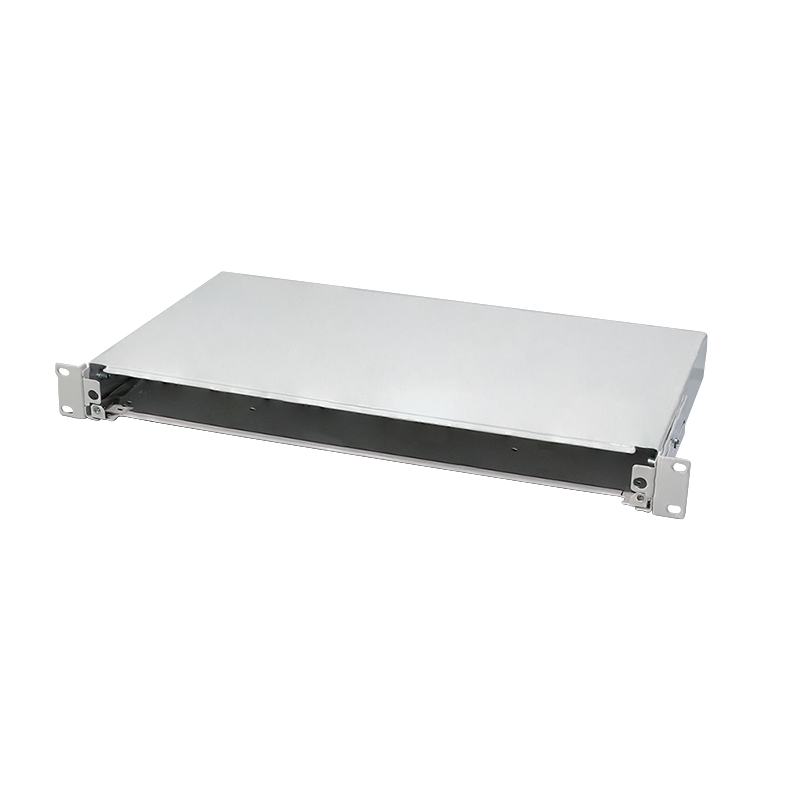

Flat Blank 19 inch Sliding Fiber Optic Patch Panel, 1U, Grey, Unloaded, Without Front Panel
This modular 19" fiber optic splice boxes provide a simple and cost-effective solution for integrating fiber optic cabling into local area networks. The retractable, rugged housing fits into any standard 19" rack and provides space for up to 48 fibers, e.g. for the assembly of 24 LC-Duplex or SC-Duplex connectors. The housing comes without front panel, connectors, cassettes or pigtails. The modular design allows easy assembly with adapters, front panels, pigtails, etc. according to customer requirements.
Flat Blank 19 inch Sliding Fiber Optic Patch Panel, 1U, Grey, Unloaded, Without Front Panel
This modular 19" fiber optic splice boxes provide a simple and cost-effective solution for integrating fiber optic cabling into local area networks. The retractable, rugged housing fits into any standard 19" rack and provides space for up to 48 fibers, e.g. for the assembly of 24 LC-Duplex or SC-Duplex connectors. The housing comes without front panel, connectors, cassettes or pigtails. The modular design allows easy assembly with adapters, front panels, pigtails, etc. according to customer requirements.

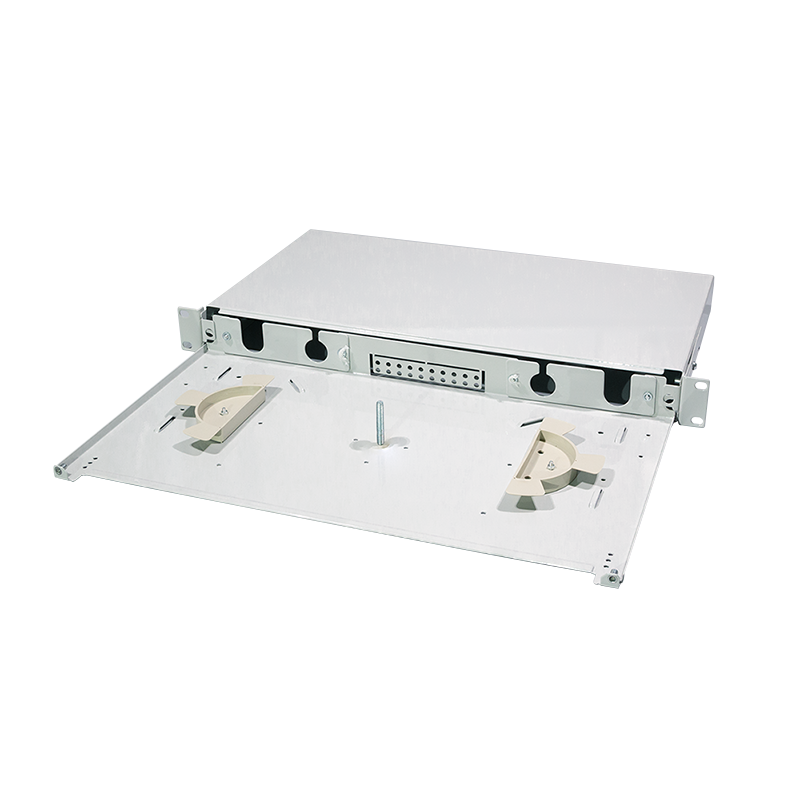

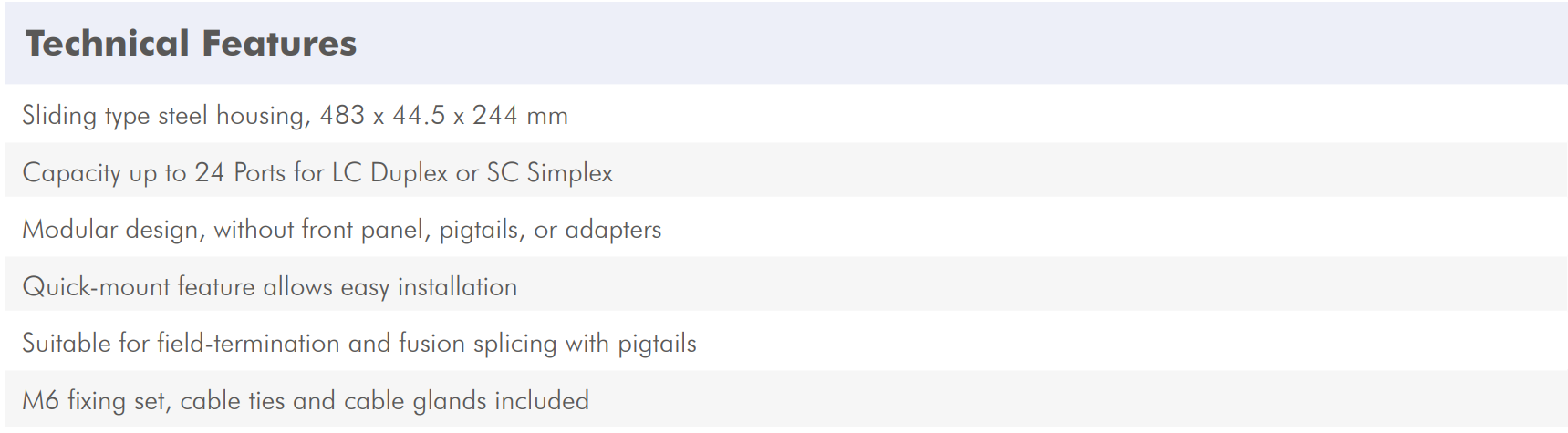

Sliding type steel housing

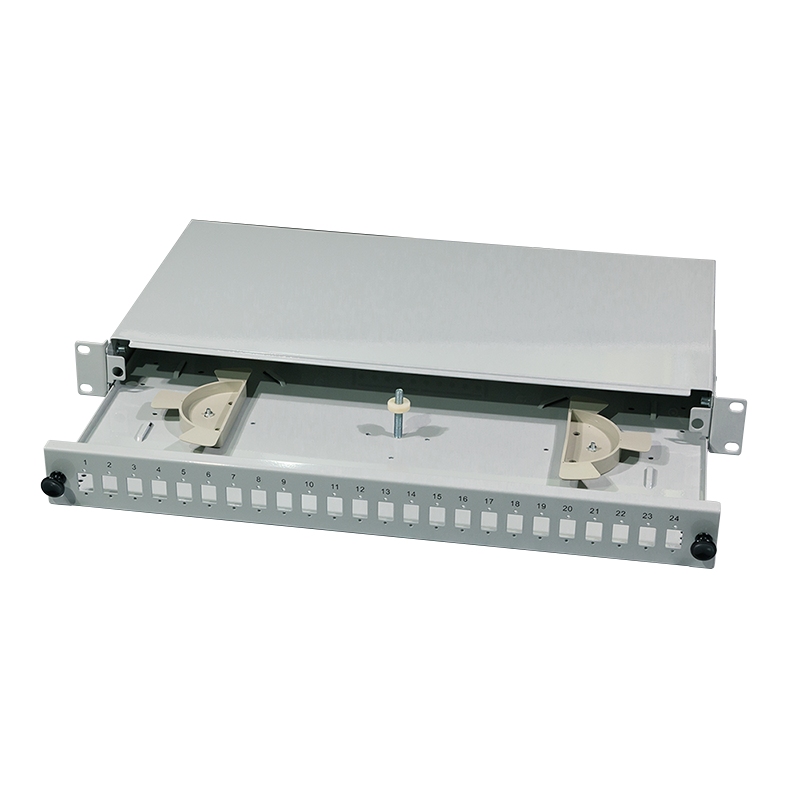

Capacity up to 24 Ports for LC Duplex or SC Simplex
Modular design, without front panel, pigtails, or adapters
Quick-mount feature allows easy installation
Suitable for field-termination and fusion splicing with pigtails

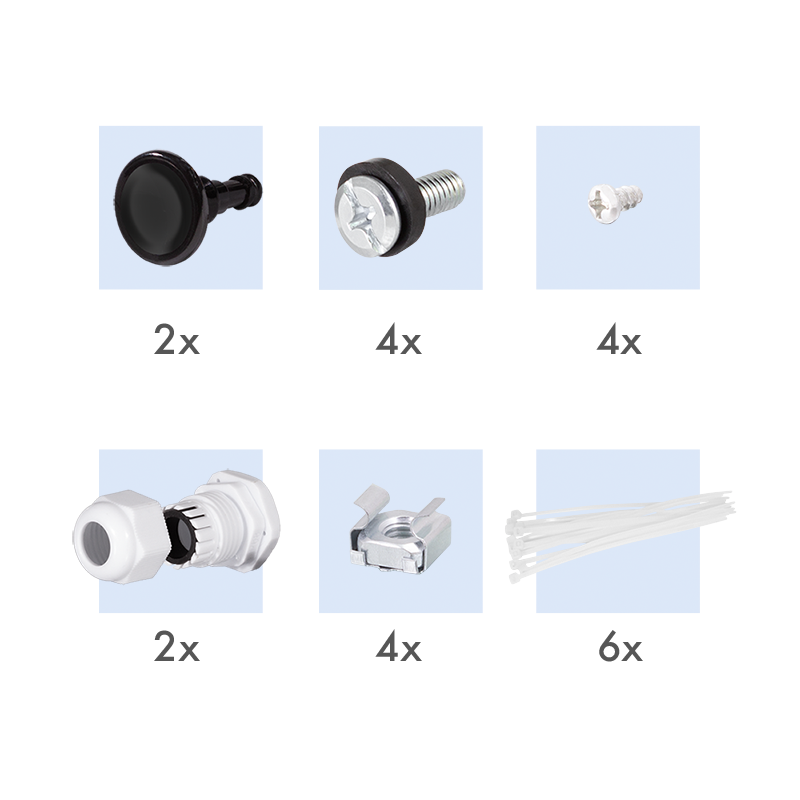

M6 fixing set, cable ties and cable glands included

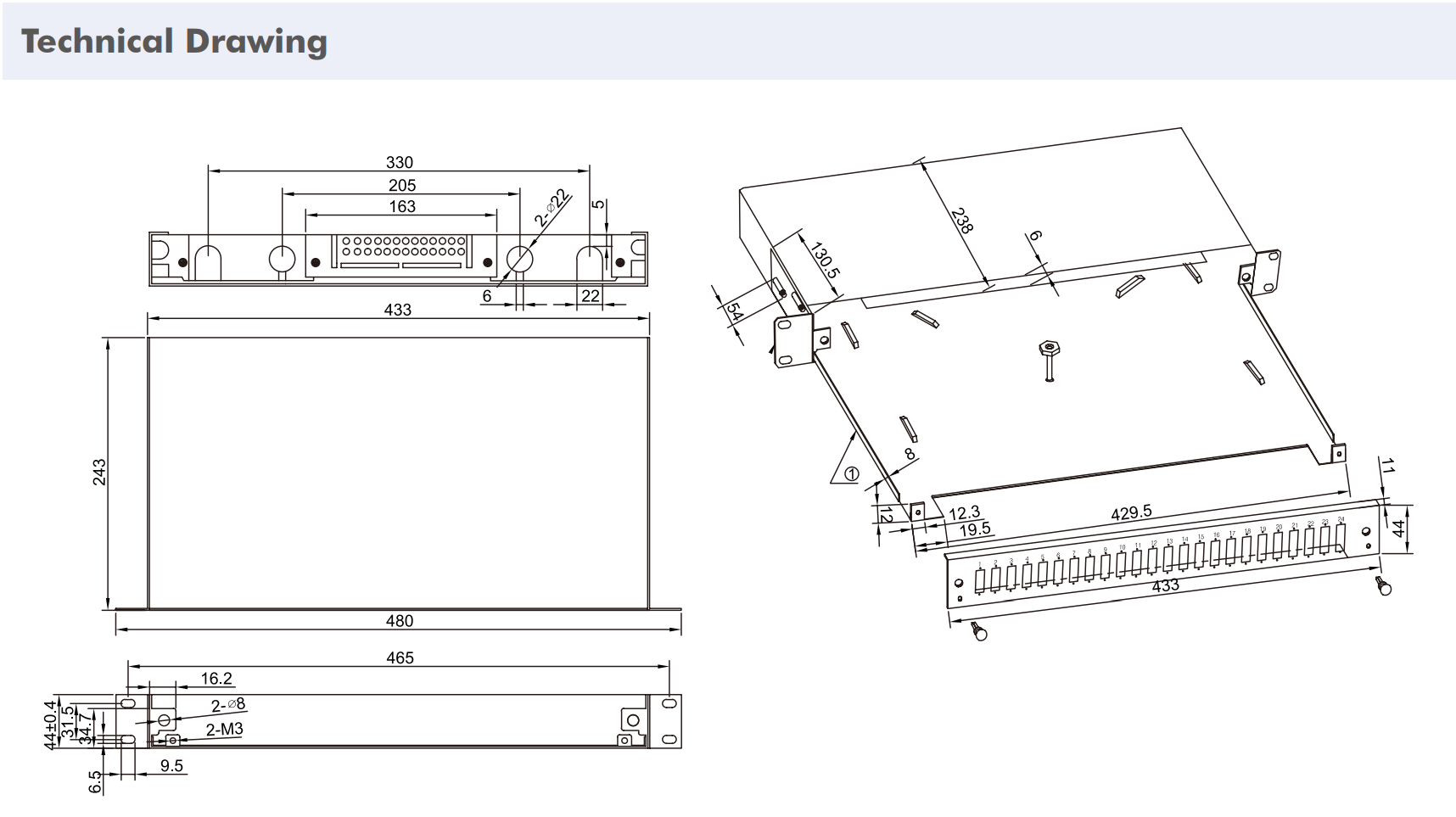

Dimension: 480x44x243 mm
Color: RAL 7035 light grey
General product data:
Weight: 2 kg
Height: 4.45 cm
Width: 48.3 cm
Length: 24.4 cm
Enjoy maximum flexibility to meet unique system requirements. Ideal for multiple network applications.
