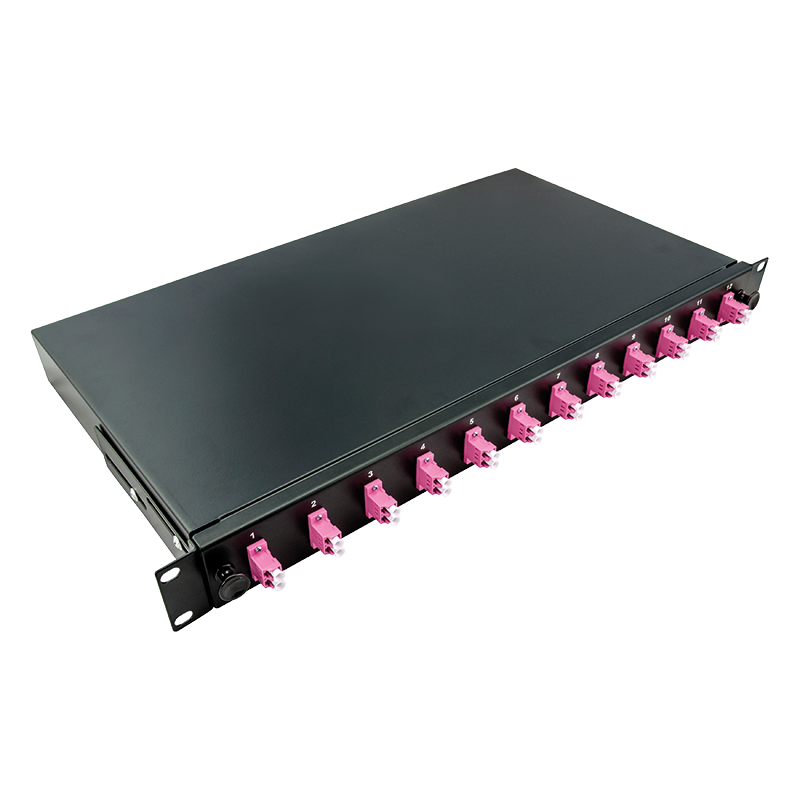

Full Loaded 12 x LC-Duplex Multimode OM4 Fiber Optic Distribution Frame (ODF) 19 inch Sliding Panel
This fully assembled fiber optic patch panels are designed to fit on a standard 19" rack and provide optimal protection for your fiber optic applications. These pre-assembled fiber optic patch panels are ready to install and use to enhance a data center. Our FO panels offer a clear choice of the different versions, even customized versions with a custom logo for OEM applications can be ordered easily.
Full Loaded 12 x LC-Duplex Multimode OM4 Fiber Optic Distribution Frame (ODF) 19 inch Sliding Panel
This fully assembled fiber optic patch panels are designed to fit on a standard 19" rack and provide optimal protection for your fiber optic applications. These pre-assembled fiber optic patch panels are ready to install and use to enhance a data center. Our FO panels offer a clear choice of the different versions, even customized versions with a custom logo for OEM applications can be ordered easily.
Fully loaded 12 Port LC-Duplex patch panel, Multimode OM4
1U Metal housing 480 x 243 x 44 mm, black RAL 9005

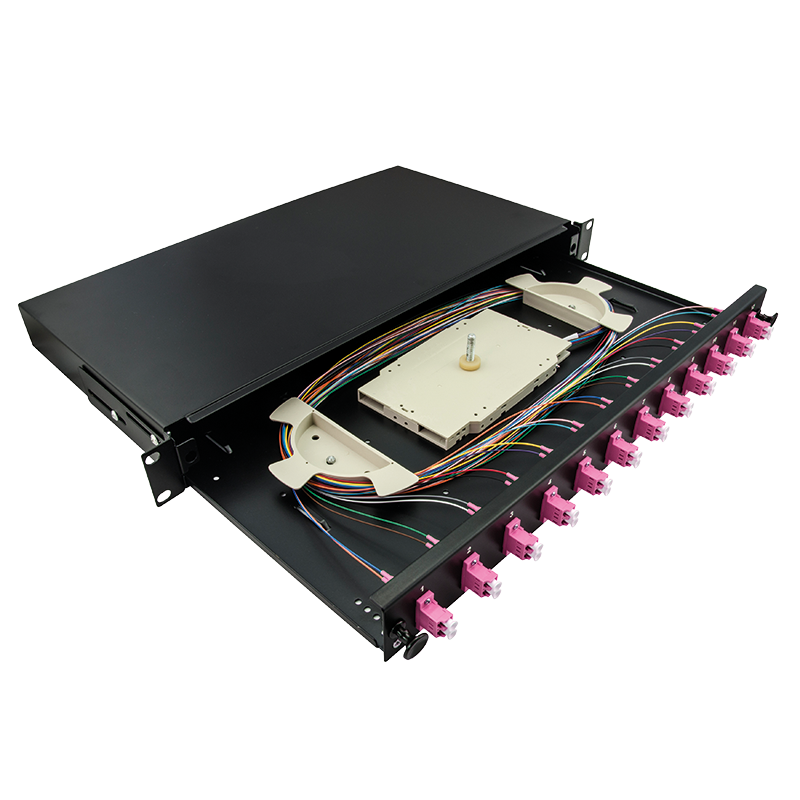

Slide-out tray with changeable front plate
2 sets 12 color pigtails Multimode OM4 with LC/UPC connector

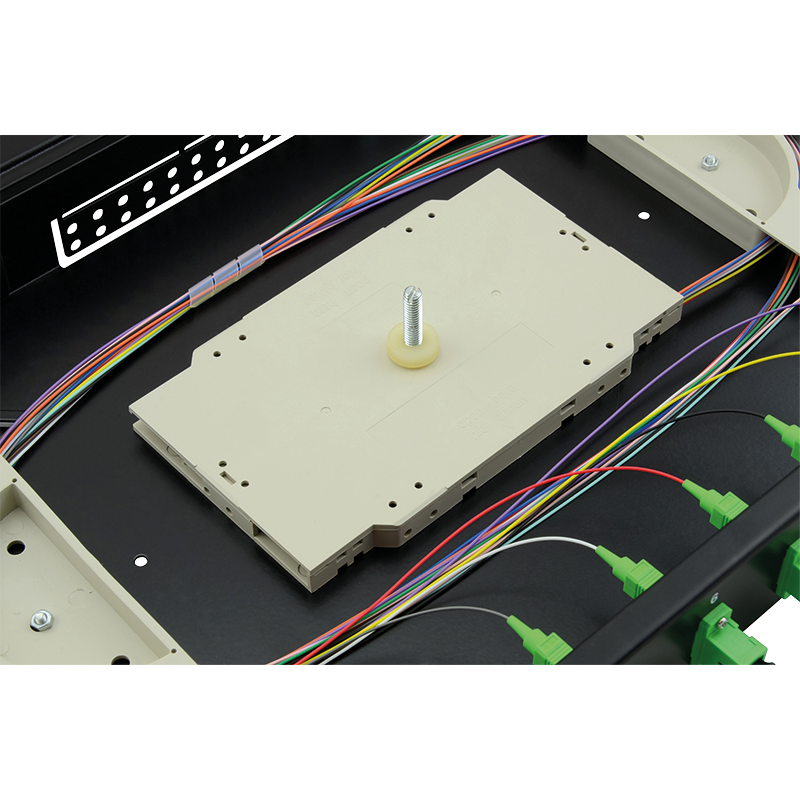

Including fiber adapters, pigtails and splice tray
With 2 pcs. PG13.5 cable clamp, 6 pcs. cable tie
Including 4 sets of M6 screws and nuts
General product data:
Weight: 2.8 kg
Height: 4.4 cm
Width: 24.3 cm
Length: 48.3 cm
Enjoy maximum flexibility to meet unique system requirements. Ideal for multiple network applications.
